Product Highlights
- Made from lightweight mandrel bent aluminum tubing (2-1/2" OD for the HOT and COLD side), the charge pipe kit has less bend and better air flow compared to the oem restrictive design
- Straight thru mandrel-bent aluminum tubing increases overall internal volume of your turbocharger system and eliminates air flow restrictions. Does NOT require re-tuning the ECU

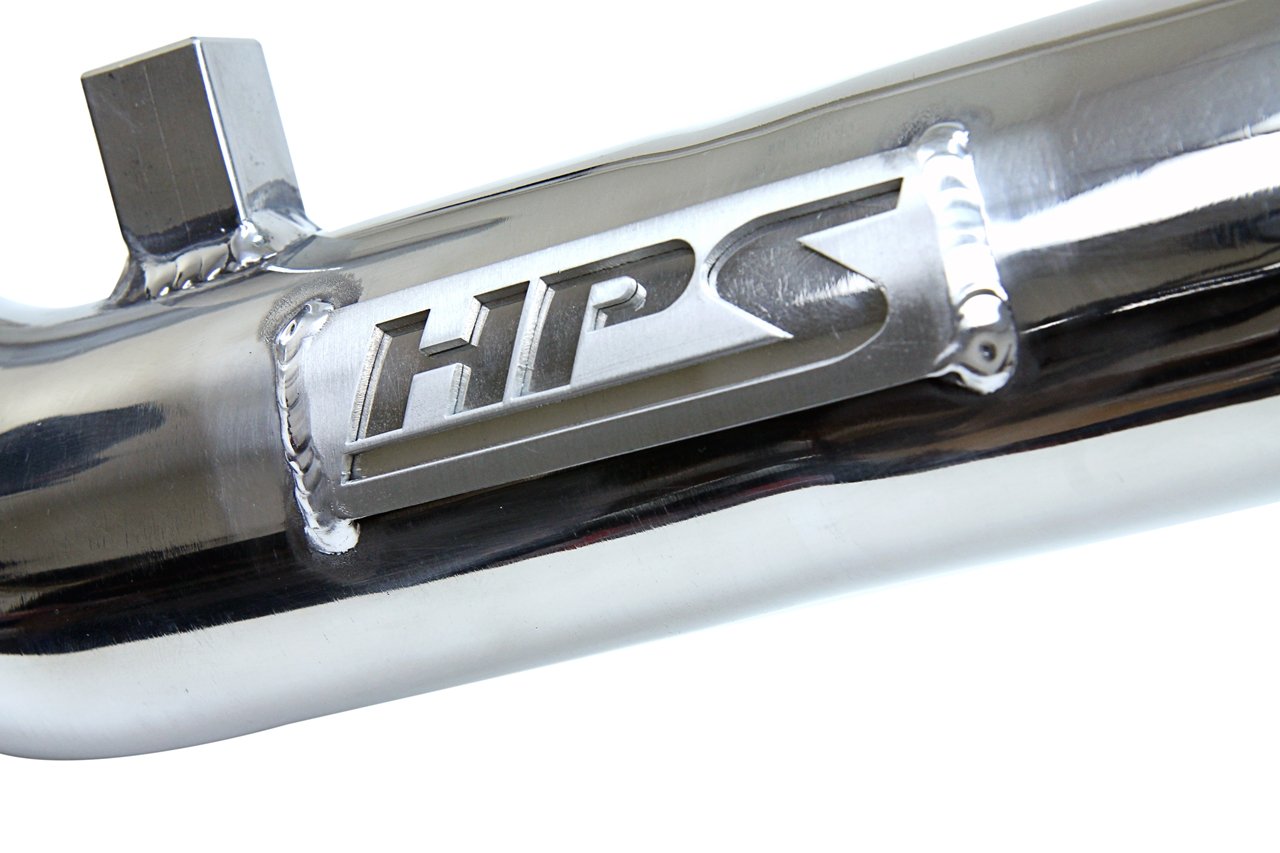

- The bead rolled pipe ends prevent couplers from popping off under boost.
- Features HPS signature race proven high temp 4-ply reinforced silicone hoses and industrial grade 100% stainless steel T-bolt clamps
- Includes easy to follow step-by-step installation manual with clear pictures and instructions to guide the installer throughout the whole process.
- No modification is required during the installation. Does not trigger CEL light
Vehicle Application
2018 Ford Focus RS Hatchback 2.3L 4 Cylinder Turbo
2017 Ford Focus RS Hatchback 2.3L 4 Cylinder Turbo
2016 Ford Focus RS Hatchback 2.3L 4 Cylinder Turbo
Features and Benefits

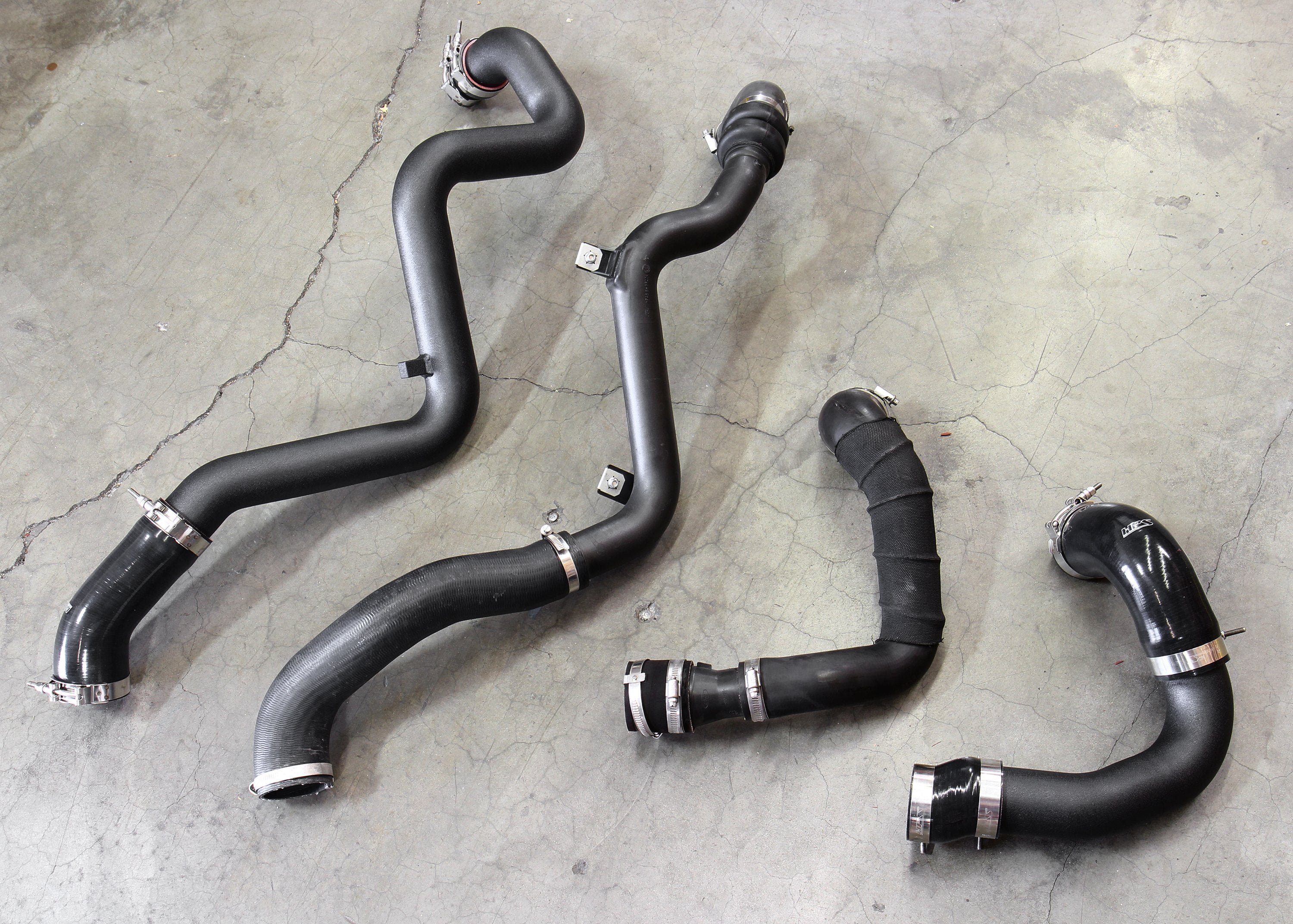

HPS Performance Intercooler Pipe Complete Kit (Hot and Cold Side) with black high temp 4-ply reinforced silicone hoses is a direct replacement for 2016-2018 Focus RS 2.3L Turbo oem intercooler pipings and rubber hoses. Made from lightweight mandrel bent aluminum tubing (2.5" OD for the HOT and Cold Side), the charge pipe kit has less bend and better air flow compared to the oem restrictive design. The bead rolled pipe ends prevent couplers from popping off under boost. The included HPS high temp 4-ply reinforced black silicone hoses with 100% stainless steel t-bolt clamps can withstand minimum 50+ psi of boost and replace the factory rubber couplers, which often crack or fail over a period of time. Straight thru mandrel-bent aluminum tubing increases overall internal volume of your turbocharger system and eliminates air flow restrictions. Does NOT require re-tuning the ECU.

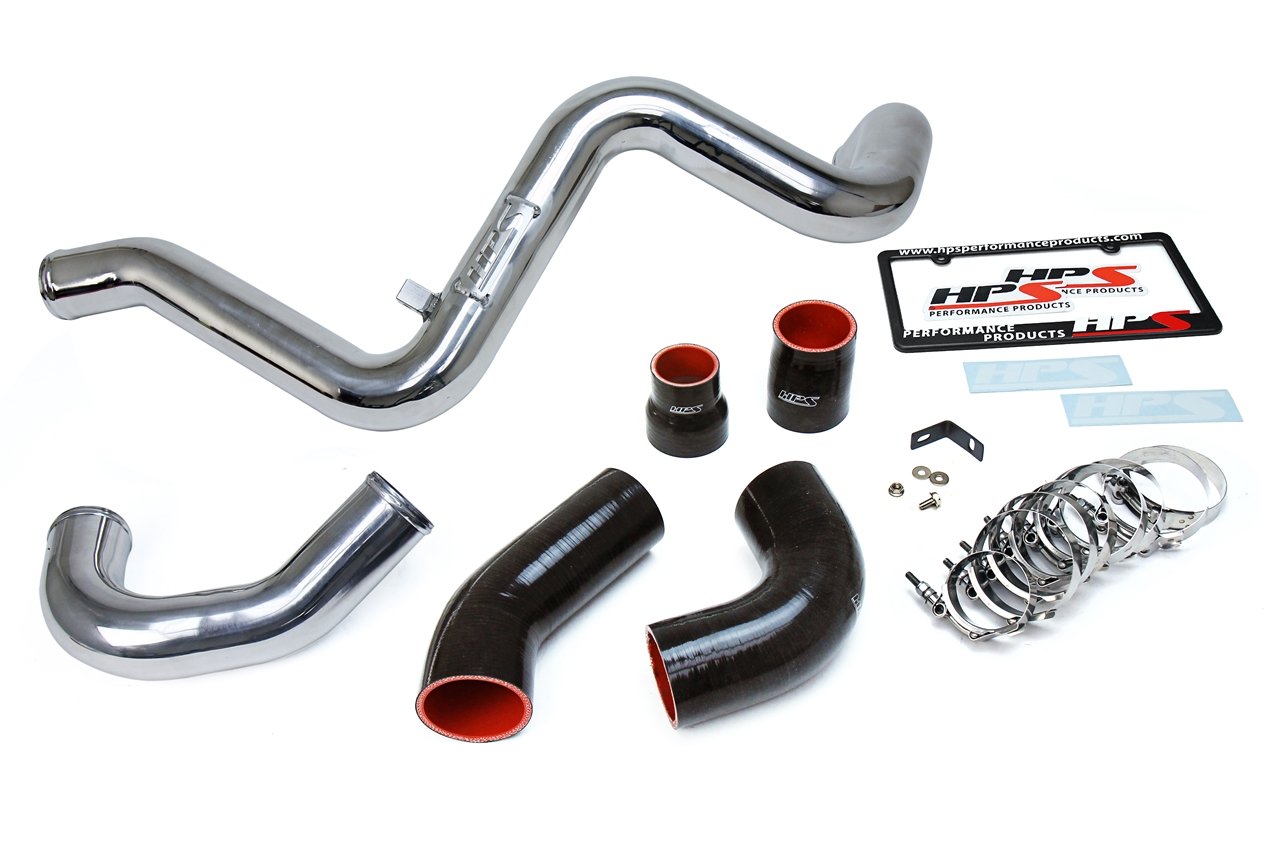

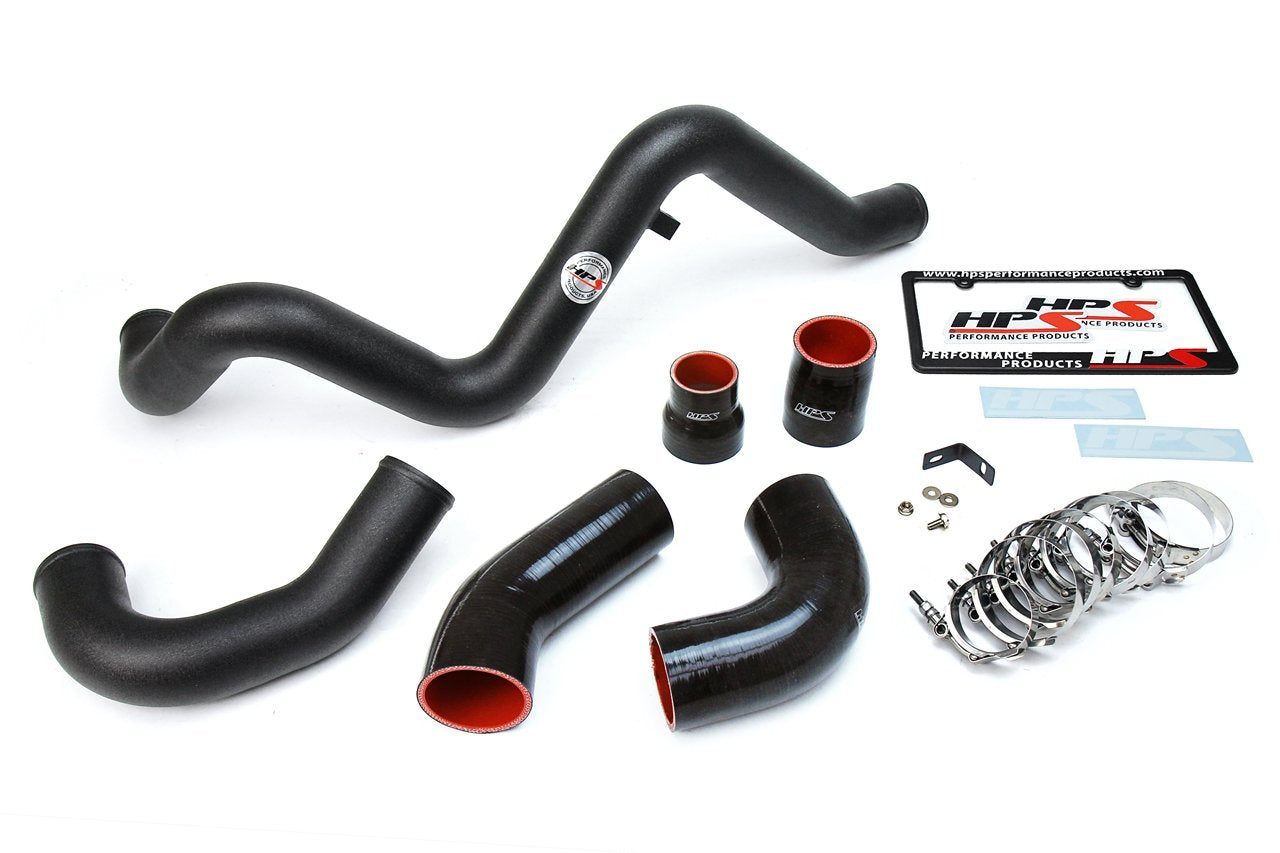

Included in the kit
- HPS Performance Aluminum Intercooler Tubes
- HPS Performance High Temperature Reinforced Silicone Couplers
- HPS Performance 100% Stainless Steel T-Bolt Clamps
- Mounting Hardware
- Installation Instruction
Product Information
- Part Number: 17-104
- Product Type: Intercooler Pipe Hot Side and Cold Side
- Charge Pipe Material: Aluminum
- Aluminum Tube Size (Outside Diameter): 2-1/2 inch
- Available colors: Polished, Black
- Warranty: 2 Years
- Street Legal In All US States: No
- California Restricted: Not legal for sale or use in California
- TUV Approved (Europe): No
- Weight: 9 lb
- Shipping Box Dimension: 36 inch x 12 inch x 12 inch
