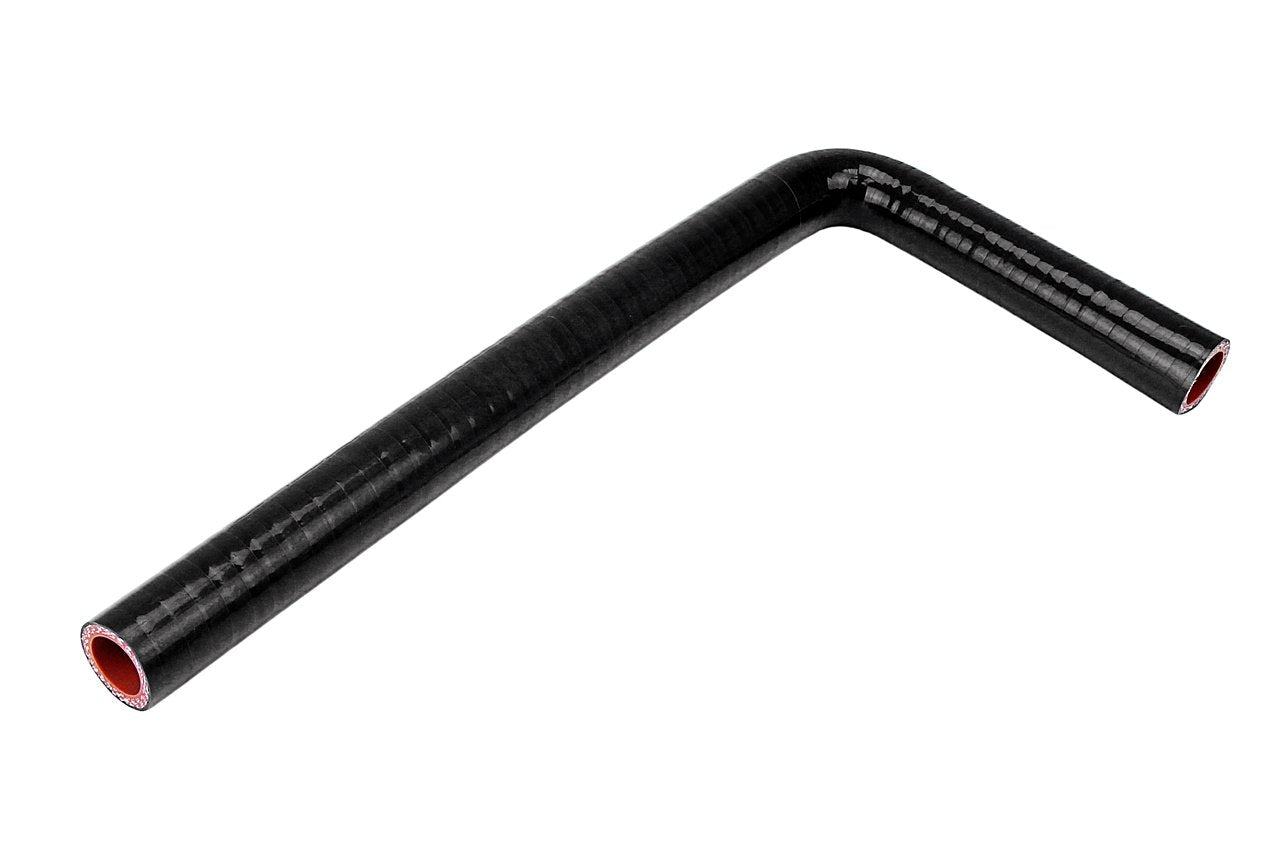

HPS 1/2" high temperature 4-ply reinforced silicone 90 degree elbow coupler hose meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. This HPS 1/2 inch silicone elbow can be easily trimmed to replace OEM or aftermarket rubber heater hose. Unlike the traditional rubber heater hose elbow being sold in the auto parts store, HPS performance silicone 90 degree bend elbow coupling hose is designed and engineered to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, heater hoses, supercharger aftercoolers, and air-to-water heat exchangers. The flexible line makes maneuvering the hose in the engine bay a quick and pain-free process.
Technical Specification
Product Type: Silicone 90 Degree Elbow Coupler Hose
Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C)
Reinforced Layer: 4-ply polyester
Hose Inside Diameter: 1/2" (13mm)
Hose Outside Diameter: 7/8" (22mm)
Wall Thickness: 4.5mm +/- 0.5mm

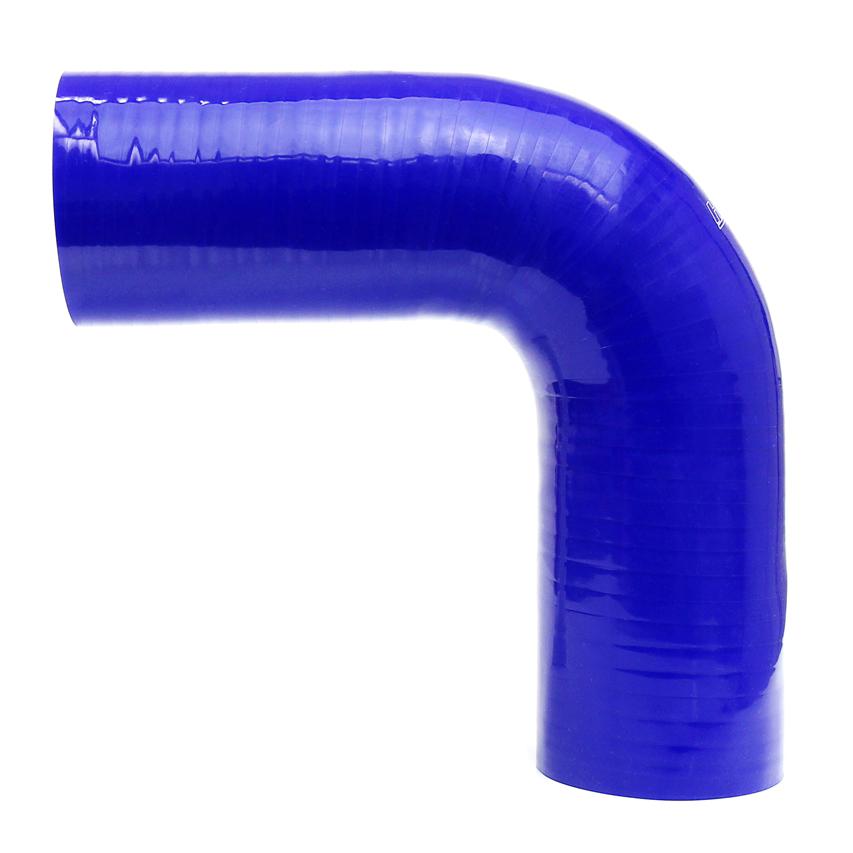

Available colors: Black or Blue
UV and ozone resistant
Remark: Silicone hose is NOT compatible with fuel or oil.

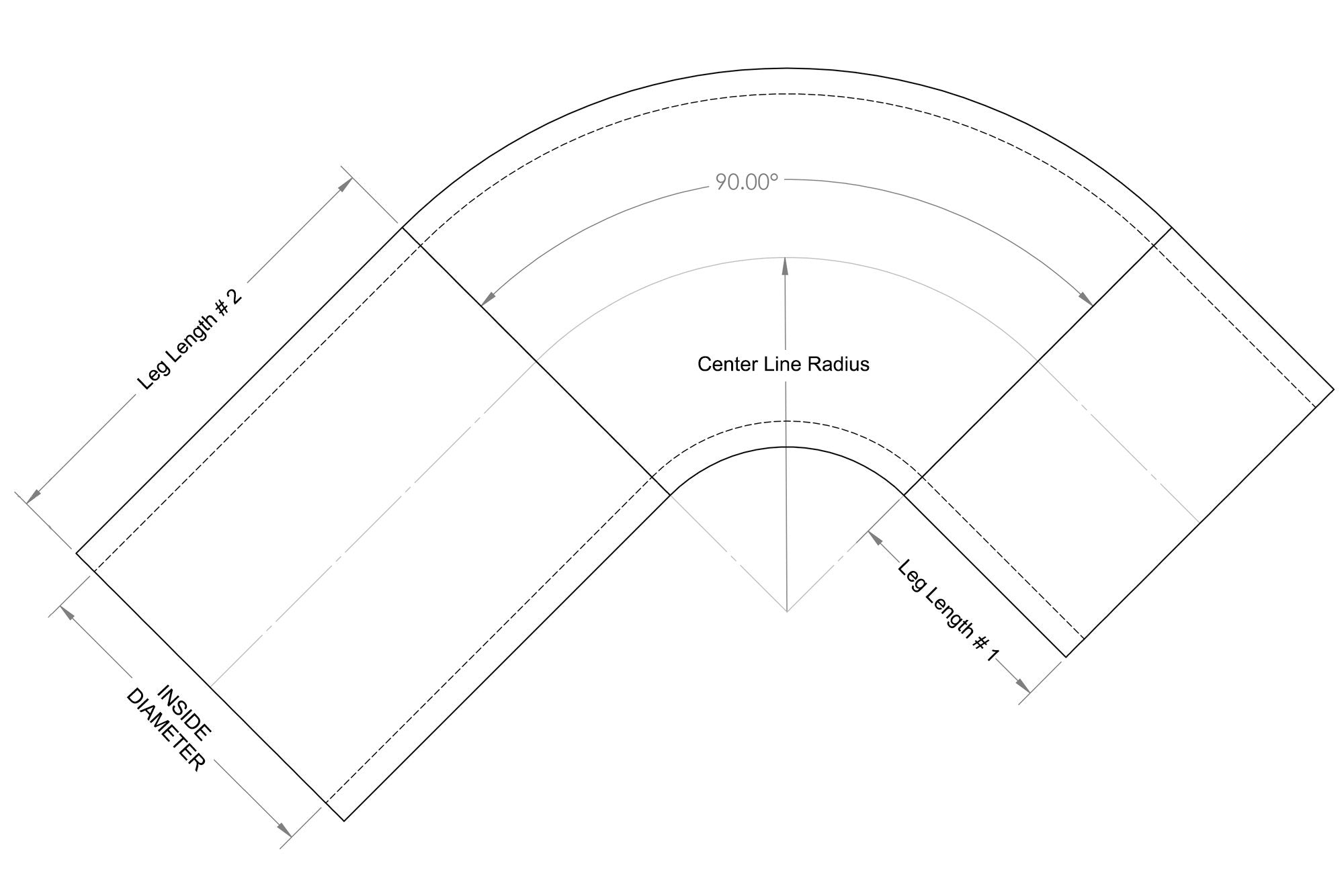

| Leg Length on Each Side | Center Line Radius | Part Number | Black | Part Number | Blue |
|---|---|---|---|
| 5" | 1-1/4" | HTSEC90-050-BLK | HTSEC90-050-BLUE |
| 10" | 1-1/4" | HTSEC90-050-L10-BLK | HTSEC90-050-L10-BLUE |
| 4" x 6" | 1" | HTSEC90-050-L4X6-BLK | HTSEC90-050-L4X6-BLUE |
| 5" x 12" | 1" | HTSEC90-050-L5X12-BLK | HTSEC90-050-L5X12-BLUE |
| 5" x 18" | 1" | HTSEC90-050-L5X18-BLK | HTSEC90-050-L5X18-BLUE |
| 5" x 36" | 1" | HTSEC90-050-L5X36-BLK | HTSEC90-050-L5X36-BLUE |
| 8" x 18" | 1" | HTSEC90-050-L8X18-BLK | HTSEC90-050-L8X18-BLUE |
| 8" x 24" | 1" | HTSEC90-050-L8X24-BLK | HTSEC90-050-L8X24-BLUE |
