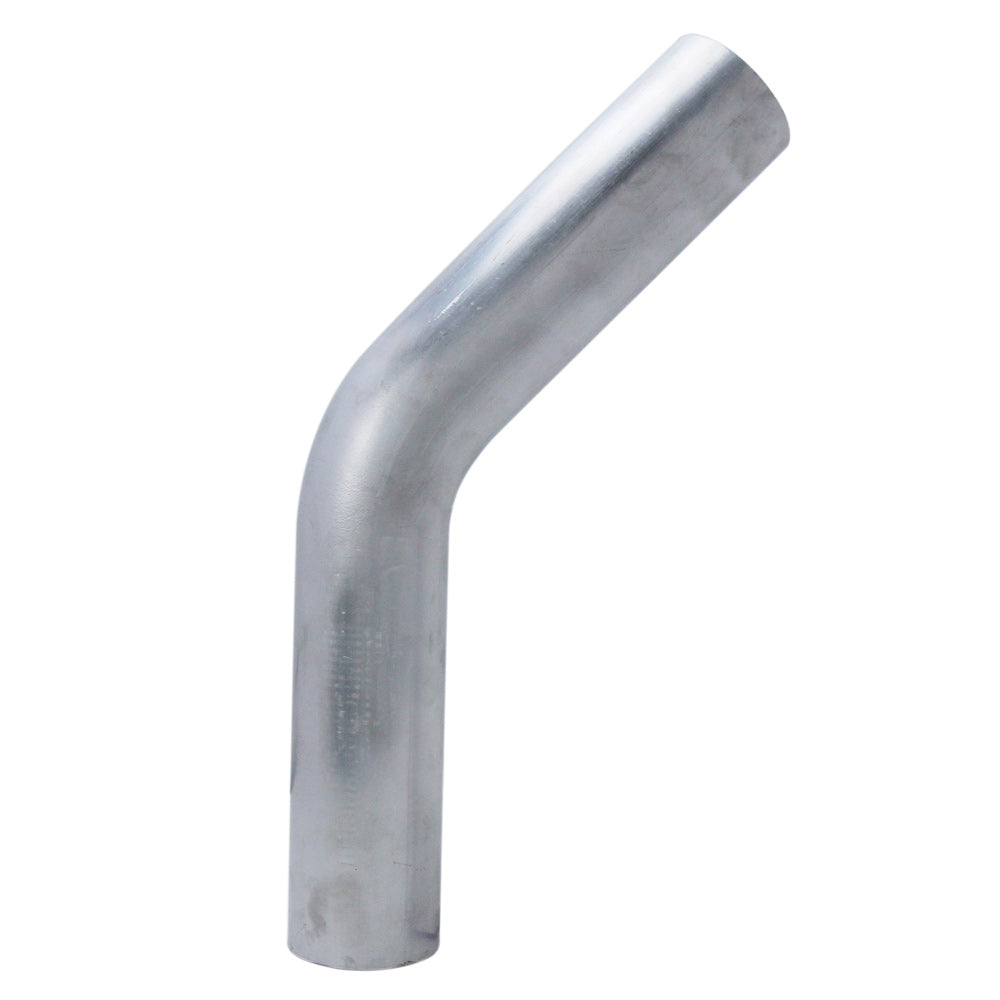

HPS 2-3/8" 45 Degree Bend 6061 Aluminum Elbow Tubing with 6" Leg Length and 3-1/8" Center Line Radius ( part # AT45-238-CLR-312 ) is commonly used in industrial, automotive, marine and aerospace industry; Great for custom fabrication project such as DIY air intake, cooling systems, turbo intercooler piping setup because 6061 aluminum is the most popular and versatile alloy, and is the least expensive of the heat treatable aluminum alloys. HPS 2.38" 45 Degree Bend 16 gauge aluminum round tubing is sold in the T6 condition, ideal for sawing, machining, sanding, and polishing. HPS 60mm OD 45 Degree Bend aluminum elbow pipe can be polished, but due to the softness of the aluminum, care must be taken not to remove too much material, especially in the area near any welds.

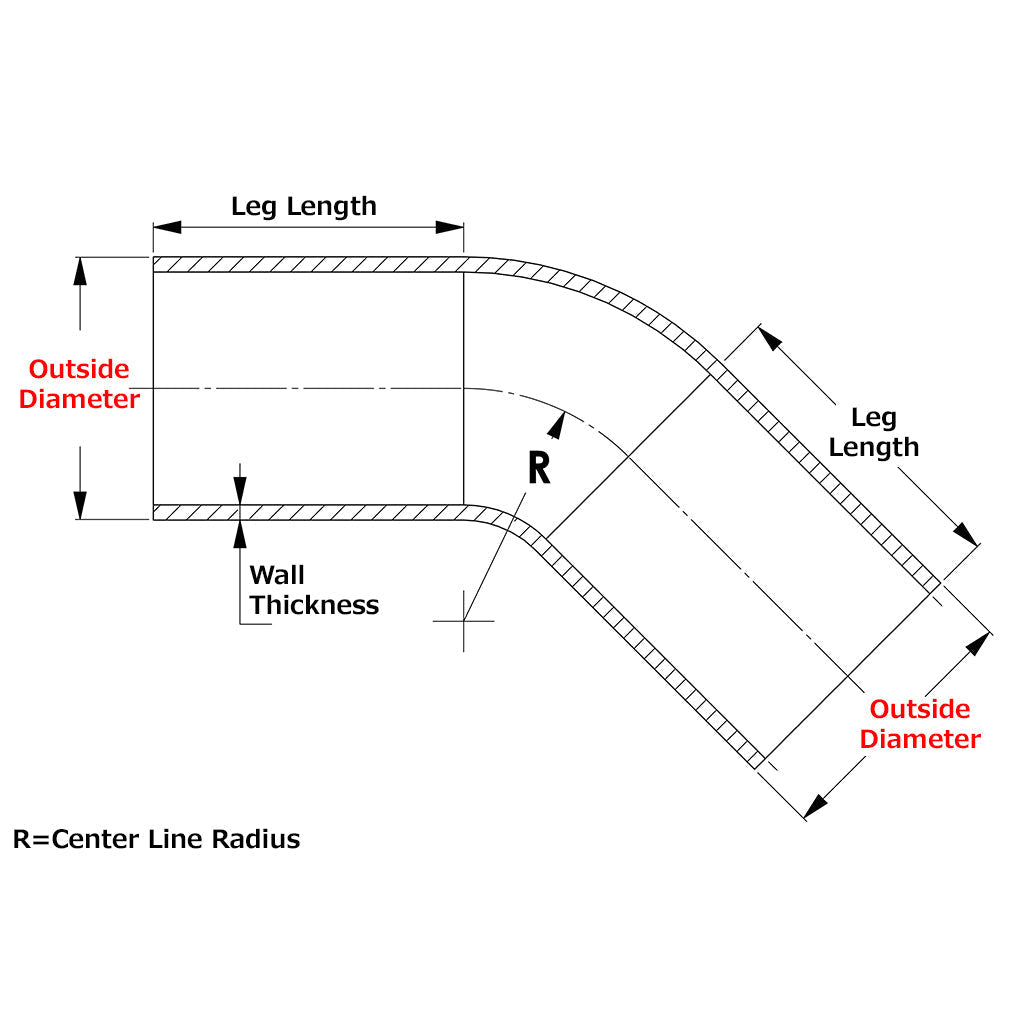

Technical Specification
- Part Number: AT45-238-CLR-312
- Product Type: Mandrel Bent 45 Degree Bend Aluminum Elbow
- Material: 6061-T6 Aluminum (Mill Finish)
- Outside Diameter: 2-3/8" (60mm)
- Center Line Radius: 3-1/8"
- Leg length on each side: 6"
- Wall Thickness: 0.065" (1.65mm)
- Finish: Mill Finish
Remark: HPS does NOT recommend 6061 Aluminum to be used for exhaust systems.
