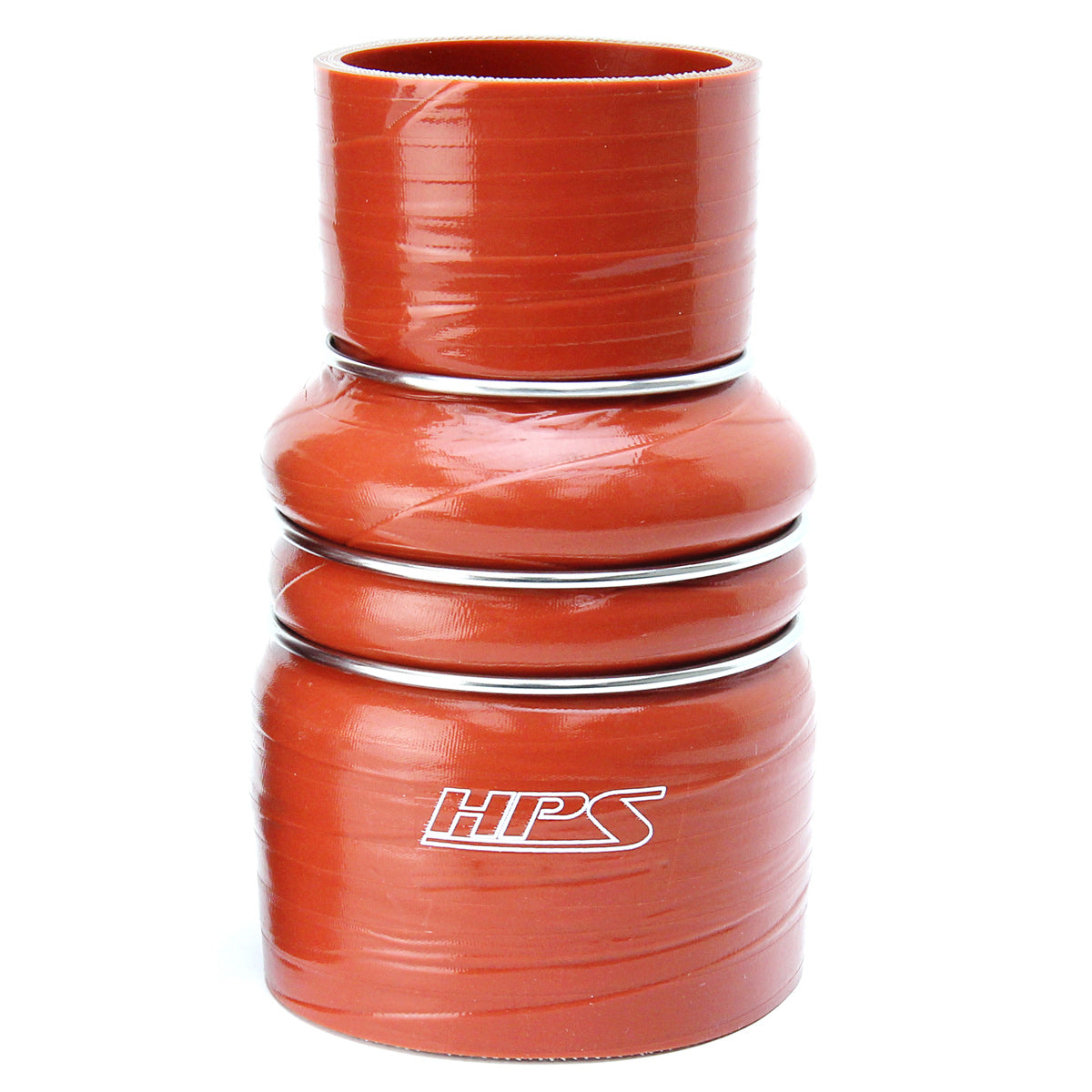

HPS 3" - 4" (76mm - 102mm) Ultra High Temperature 4-ply Aramid Reinforced Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow meet and exceed SAEJ20 industry standards, designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends; great for marine and industrial use, custom turbo or intercooler piping fabrication.
Technical Specification
Product Type: Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow
Temperature Range:- 65 deg. F to + 500 deg. F (260 deg. C)
Reinforced Layer: 4-ply Aramid

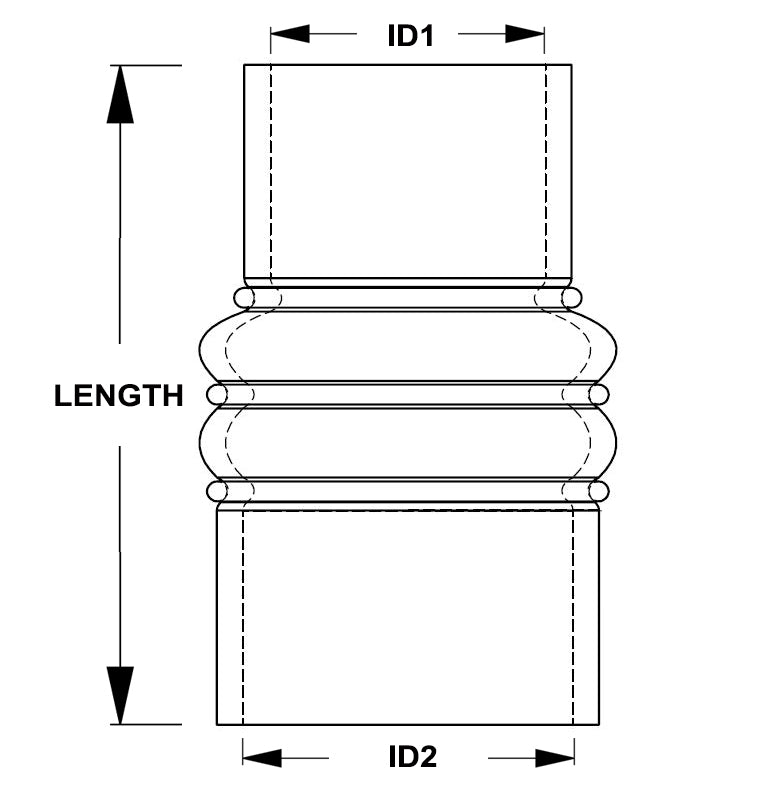

Hose Inside Diameter: 3" - 4" (76mm - 102mm)
Hose Outside Diameter: 3.39" - 4.41" (86mm - 112mm)
Hose Length: 6", 7"
Number of Rings: 3
Wall Thickness: 5mm +/- 0.5mm
UV and ozone resistant
Remark: Silicone hose is NOT compatible with fuel or oil.
