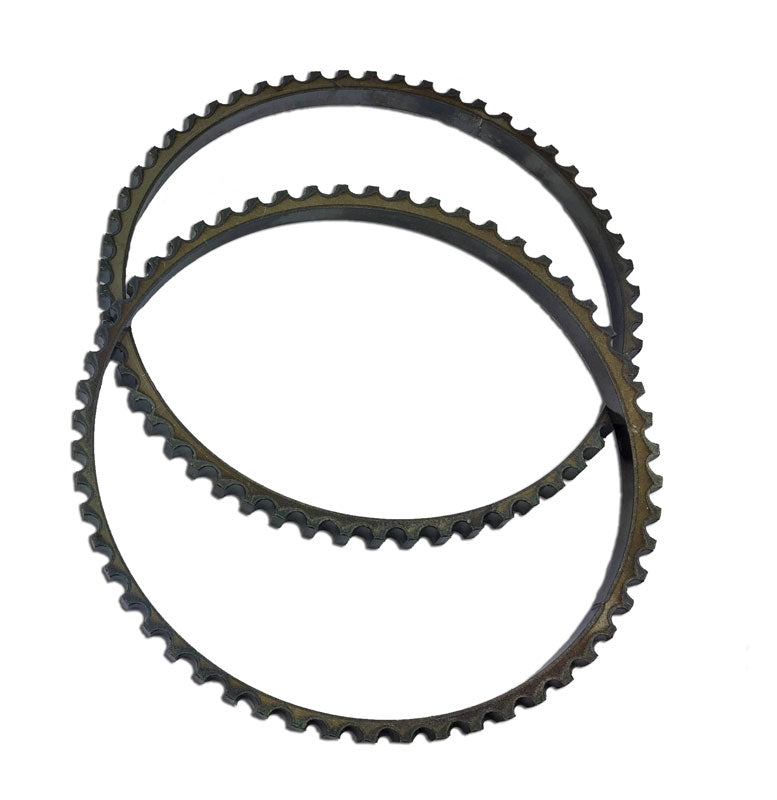

JK 1 Ton Swap 14 Bolt - 60 Tooth Tone Ring
Complete your 1 Ton Swap off by providing the JK computer correct data and eliminating codes and limp mode issues.
**Use of this kit may require an optional tuner which has access to adjusting Gear Ratio and Tire size. Your actual programmer settings may differ from the axle ratio and tire size on your vehicle depending on tone ring tooth count used. If using the 60 tooth option, speedometer may be off 1 - 3%. **

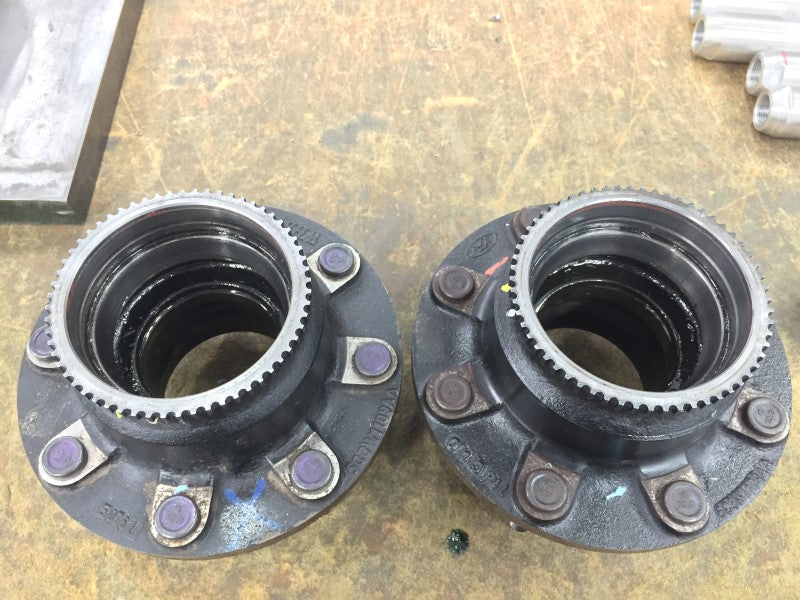

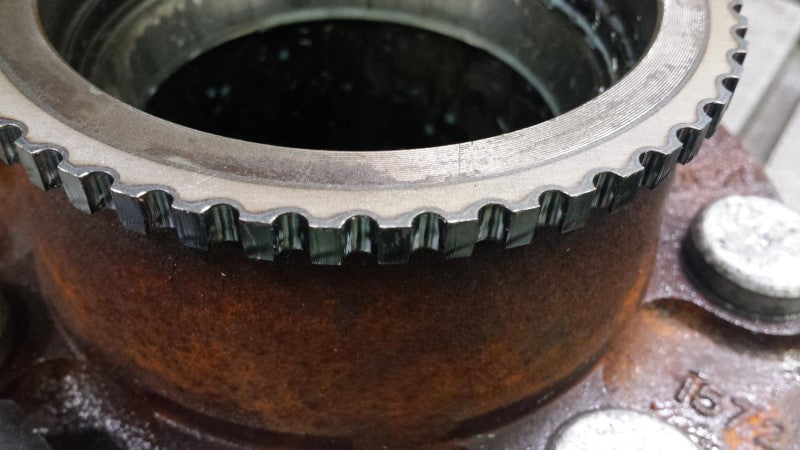

Laser Cut for precision reading from ABS Sensor. Requires machining of Hub and pressing on over machined surface.
- Zinc plated for corrosion resistance and improved sensor feedback
THIS KIT IS INTENDED FOR USE WITH A NEWER STYLE 14 BOLT AXLE WITH RIBBING ON THE CASTING AND HAS A WMS-WMS MEASUREMENT OF 68" OR GREATER. This axle is referred to as an AAM 14 bolt 10.5" ring gear and is found in '99-'06 GM 2500 and 3500 SRW trucks.
14 Bolt Axle with Factory Drum Brakes
BB1420: Kit BB1410 with 52 Tooth tone rings
BB1421: Kit BB1410 with 60 Tooth tone rings

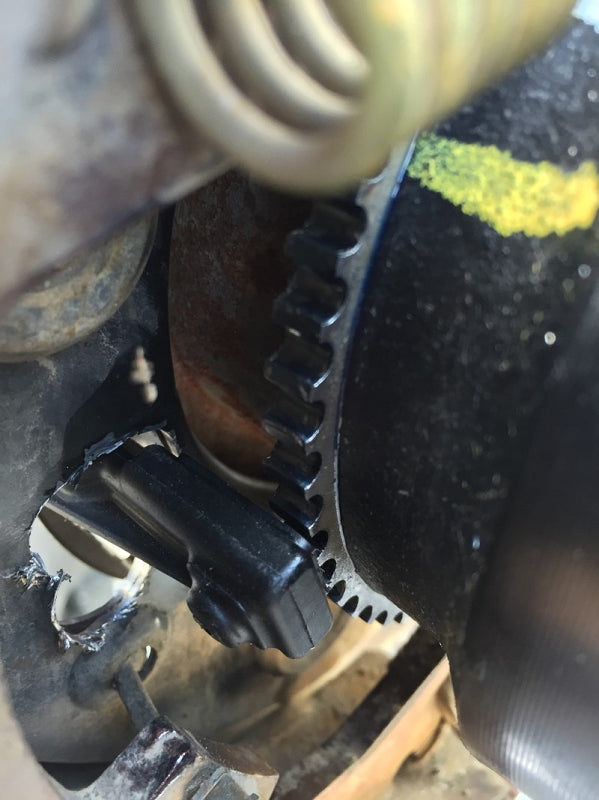

This kit has 2 mounting positions per side for Factory JK Rear ABS Sensors. One from each side will connect to the rear plugs and the other 2 need to be spliced into the front plugs. If using any axle than the 2005+ Superduty, this is the best option.
If using 2005 - 2013 Superduty Front Dana 60 Axle only 2 Rear Sensors can be installed and the front will use the Dodge ABS Sensors** and the 60 Tooth Tone Rings
**Dodge ABS Sensors – Chrysler P/N 5179958AB, Dorman P/N 970-052, or Airtec P/N 5S8491**
Individual parts that are in this kit and available separately:
BB1410: Brake brackets and Dust shield
BB1401: 52 Tooth tone ring 14 bolt
BB1403: 60 Tooth tone ring 14 bolt
Additional items required and not included with Kit:
**Please note this converts to a Top Hat Style Rotor**
Calipers (Choose one of the items listed below)
-Raybestos RC4072 & RC4071
-Napa N4674 & N4673
-Napa N4597 & N4596
Wheel Studs
-Dorman P/N 610-333 – 16 of these are needed(10.9/333 14 x 1.5mm 90.5 mm long)
Rotors (Choose one of the items listed below with a Quantity of 2)
-Network P/N P56828
-Raybestos P/N 55055
-Bendix P/N PRT5260
-58828
14 Bolt Rear Axle with Factory Disc Brakes
BB1430: BB1411 ABS Sensor Mount and 52 Tooth tone rings
BB1431: BB1411 ABS Sensor Mount and 60 Tooth tone rings
-Individual parts that are in this kit and available separately:
BB1411: 14 bolt Sensor mounts
These mounts are used with JK Factory ABS Sensors. Select the Tooth count to match your front axle, Factory JK and aftermarket axles are typically 52 tooth and the 2005+ SuperDuty Dana 60 front utilizes a 60 Tooth tone ring.
If using a front axle without tone rings a second BB1411 can be used to add a second ABS Sensor to each wheel and then splice into the front sensor wiring.
