THIS IS THE HARDEST PART TO KEEP IN STOCK DO TO THE AVAILABILITY OF THE OEM CONNECTOR AS WELL AS THE PINS USED ARE LIMITED IN QUANTITY I CAN ORDER. On top of that. This is the only part that I actually manufacture all in house by myself and or family helps prepped them. All other parts I used machine shops and fab shops to make parts and all I do I pick up and put on shelf !
Fits: 2010+ 4Runner / GX460 / Prado 150 with KDSS
What It Does
-
Gives you manual control over your KDSS system.
-
Lets you open and close the KDSS hydraulic valves electronically.
-
Helps correct or reduce the common “KDSS lean” after a lift.
-
Plug-and-play connection at the KDSS ECU — minimal wiring required.
-
Works with a dash switch or your existing switch controller (Switch-Pro, etc.).
Why You Need It
-
From the factory, KDSS automatically locks above 12 mph for on-road handling and unlocks below 12 mph for off-road flex.
-
That’s great in theory — but in reality, it’s overly stiff at the wrong times and unpredictable after a lift.
-
With this harness, you take control.
-
Flip the switch to unlock the system and let the suspension move freely.
-
Hit the switch again to lock it back up for tighter cornering.
-
Use it to balance the system, cure KDSS lean, and dial in the feel of your suspension on your terms.
How It Works
-
Uses genuine OEM Toyota connectors, pins, and color-matched wiring for perfect fit and reliability.
Connects directly to the KDSS ECU — no cutting or splicing factory wires. -
3D printed resin connector housing (since Toyota never made a true mating connector).
-
Harness is QC-tested before shipping.
-
Simple crimping required to connect to your chosen switch.
Install Notes
-
Harness only — does not include switch or fuse box cover.
-
Add the DRKDSS KDSS Harness Combo for a full plug-and-play setup.
-
Use your own wire extensions, connectors, and mounting hardware if running custom switch locations.
-
Download the full KDSS Control Harness Install PDF for step-by-step guidance.
-
Does not remove KDSS malfunction codes if the system is already faulted.
-

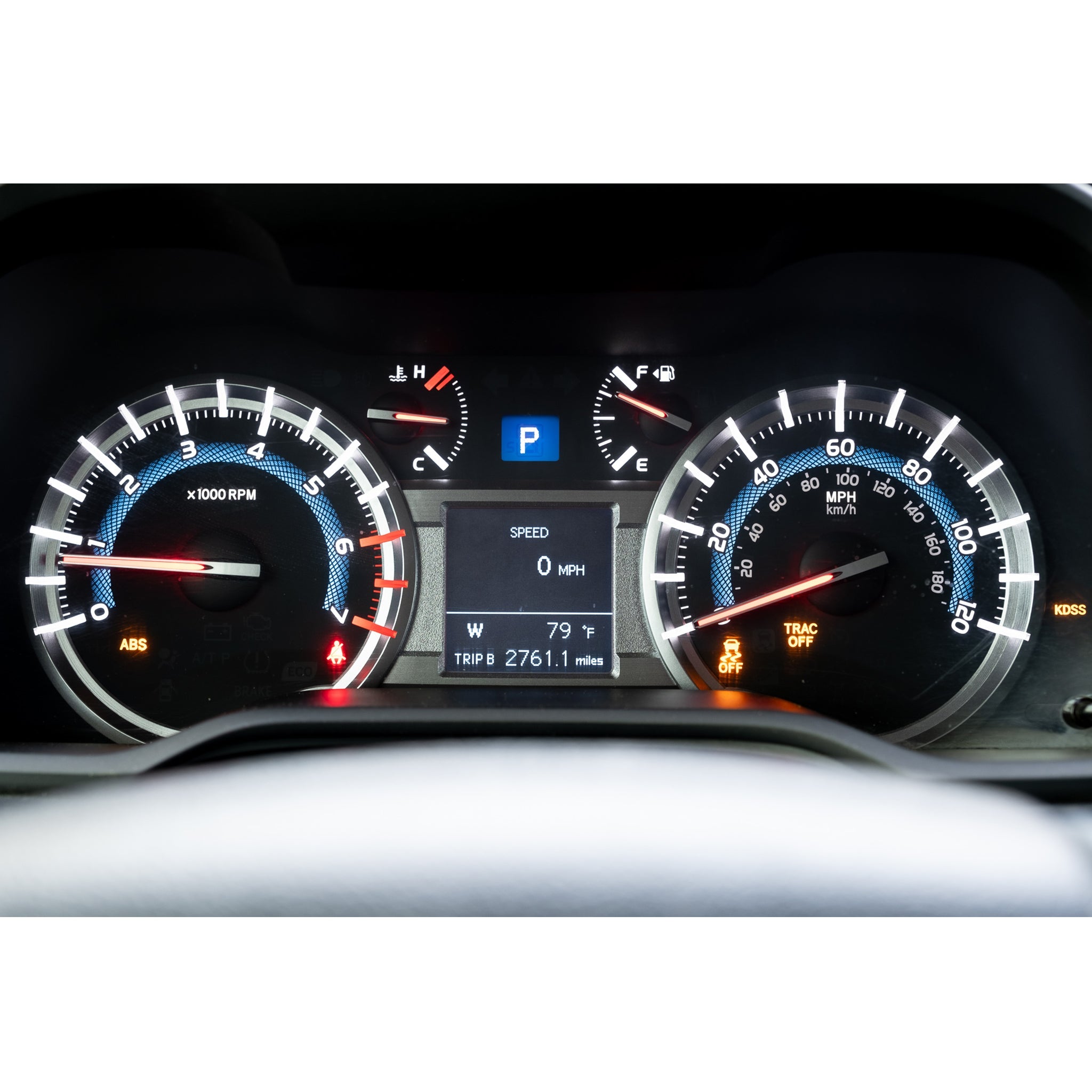

2020+ vehicles will get a kdss malfunction error on the screen, all you need to do is hit ok and be on your way
Check Out our install on Trail4runner.com
Model Year & Prado Compatibility
⚠️ Prado owners — you must check your connector pin layout before ordering!
Look at the wire next to the connector clip:
If the slot next to the clip is empty → Order 2010–2019 version (Picture A)
If a wire is in that slot → Order 2020+ version (Picture B)
Right-hand drive Prados may differ — contact us with a photo before ordering.
Picture A( choose 2010-2019)
Picture B: (choose 2020+)
Benefits
✅ Smooths out harsh KDSS behavior on and off-road.
✅ Helps fix or prevent KDSS lean after lifting.
✅ Improves ride comfort on uneven pavement or washboard trails.
✅ Lets you choose between “comfort” and “sport” handling modes instantly.
✅ Restores system balance naturally through real-world driving.
Included
-

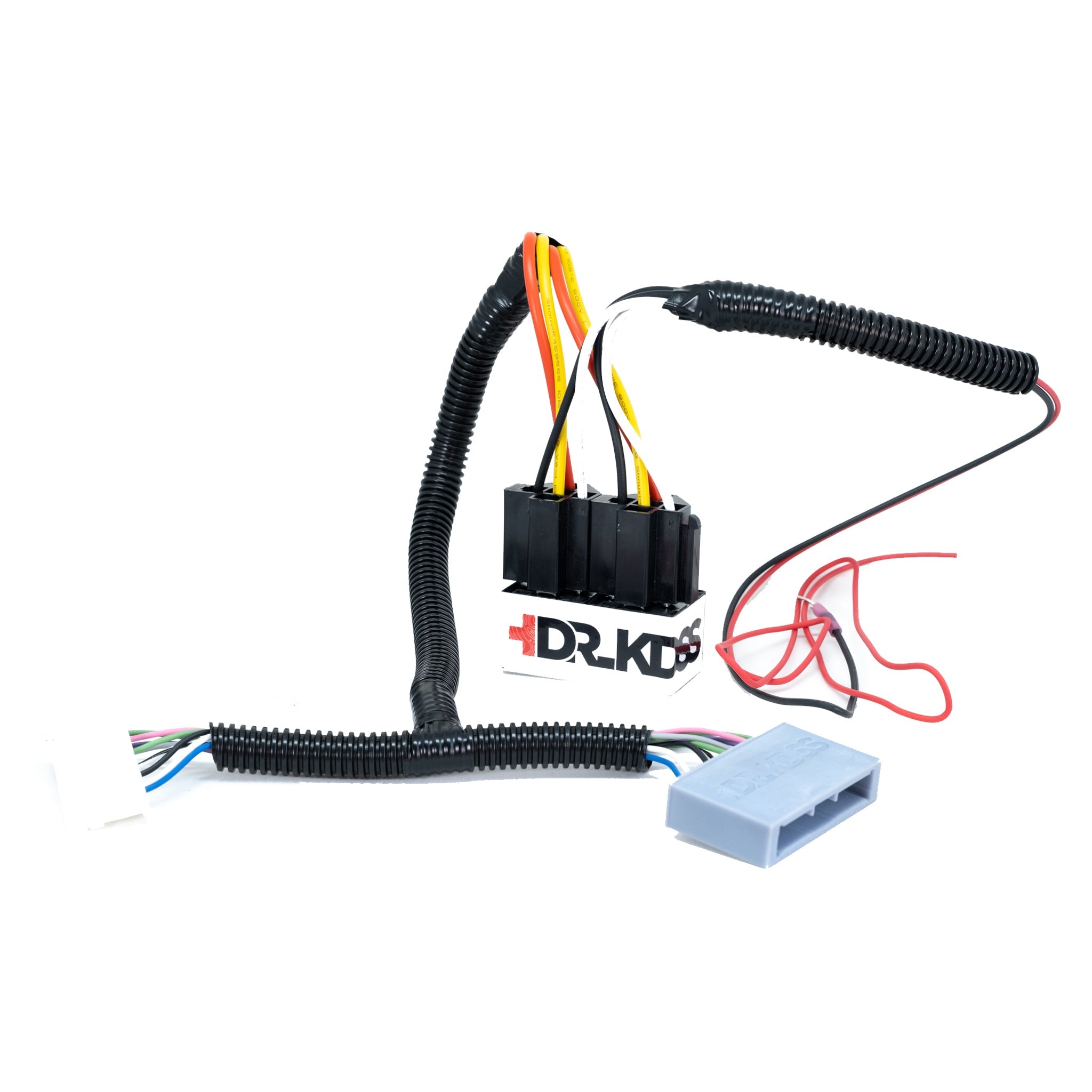

(1) KDSS Control Harness (OEM connectors, color-matched wires, 3D printed housing)
Real Talk
-
If you can add it to cart, it’s in stock.
-
20% restock fee applies (unused parts only).
-
Every harness is built in-house and QC-tested before shipping.
-
Shortage of OEM parts from Japan means restock times vary — get it while it’s available.
-
Built for drivers who actually tune their setup — not just lift and forget it.
Bundle and Save
Complete the Kit with our KDSS Harness Combo - Bundle incudes:
✅ KDSS Control Harness Kit – Plug-and-play solution for managing your KDSS system.
✅ Factory Fit KDSS Dash Switch – OEM-style switch for a factory look and easy operation.
✅ Fuse Box Cover – Allows for a clean installation while protecting your connections.
