Exciting News for Upgraded Axle Options (ONLY)!!
We’ve just expanded our lineup with brand new steering kits for your Jeep, with fitment for Super Duty, Currie, Dynatrac, and Ultimate Dana 60 sizes. Upgrade your ride today!

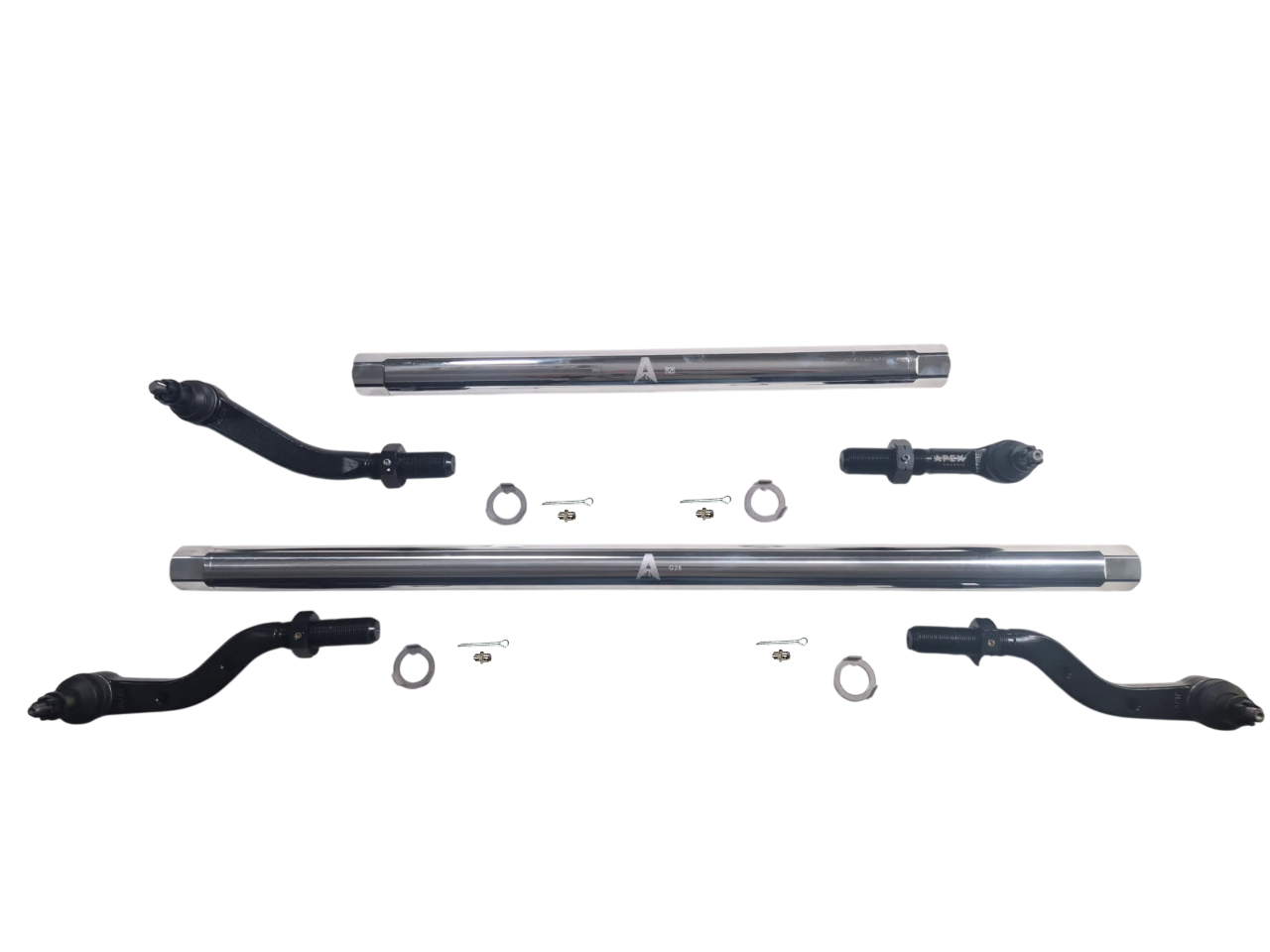

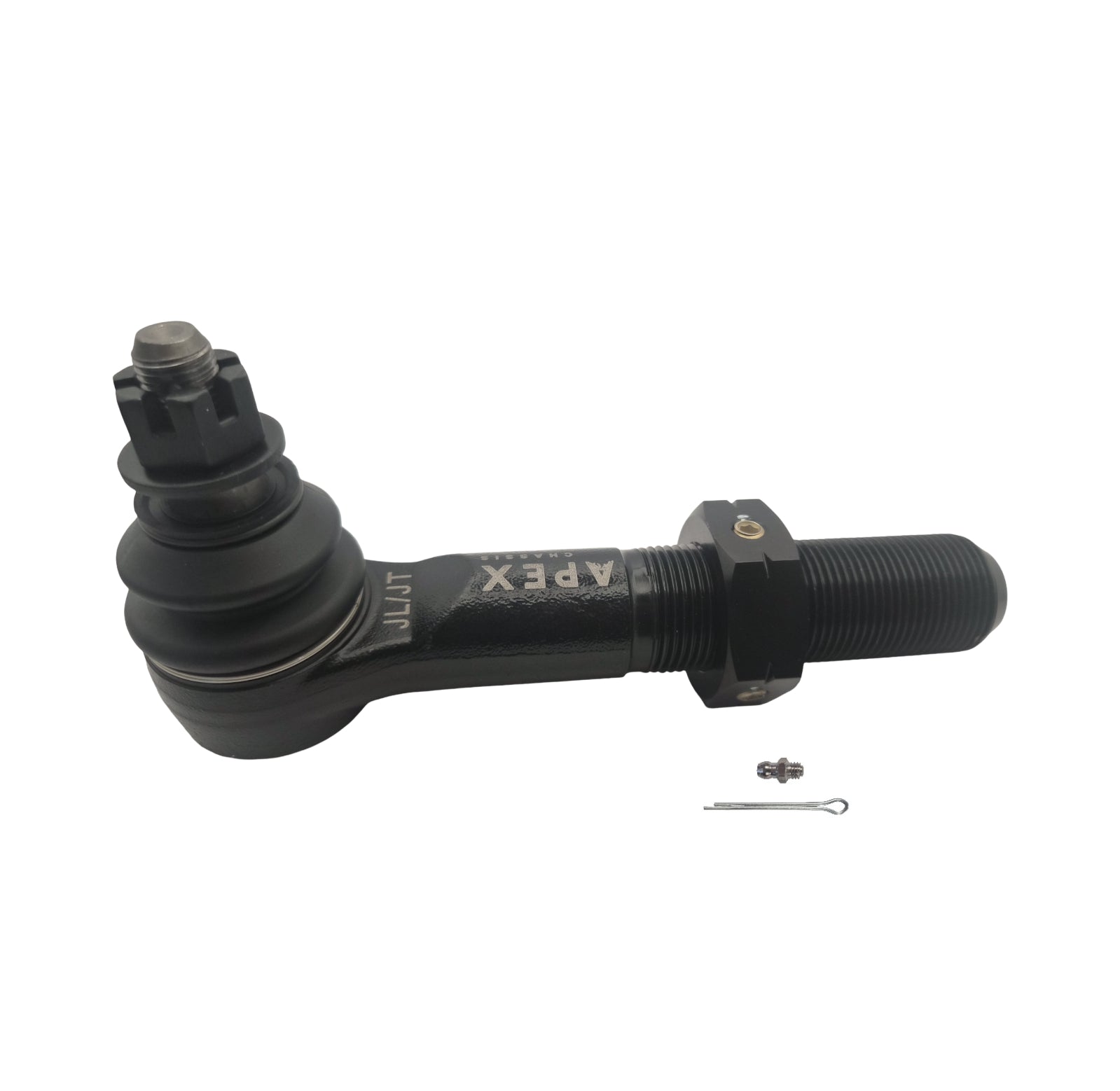

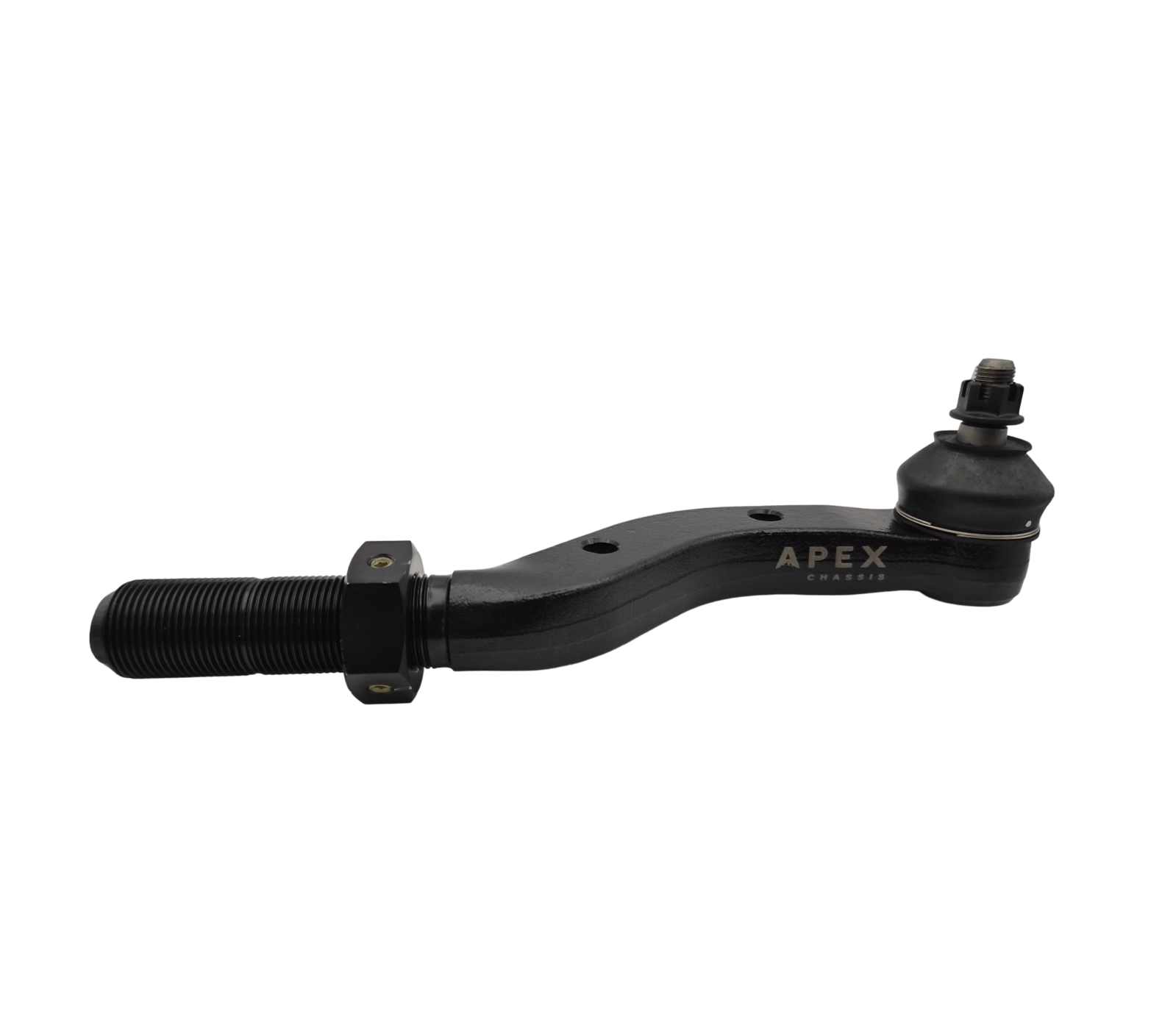

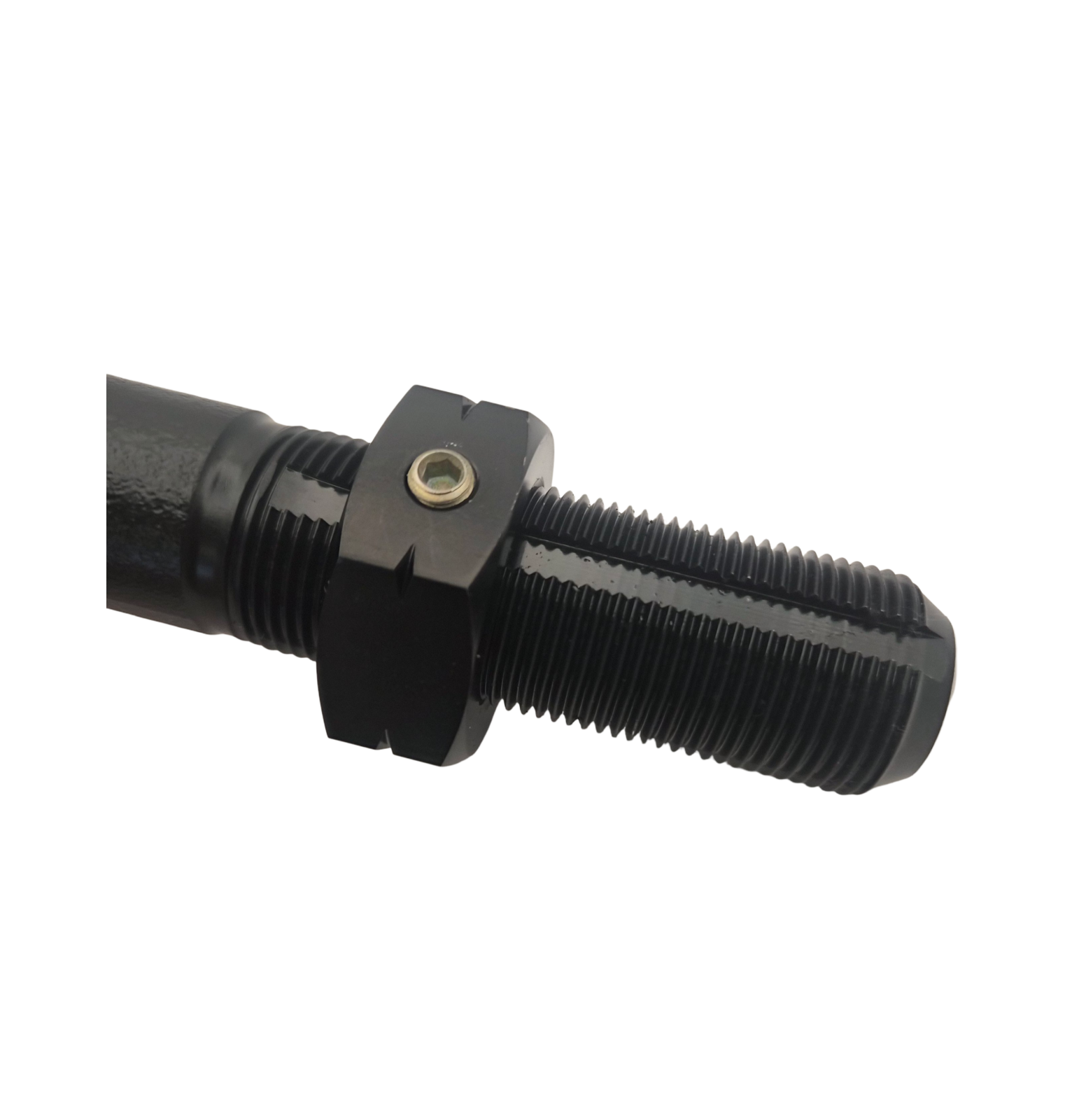

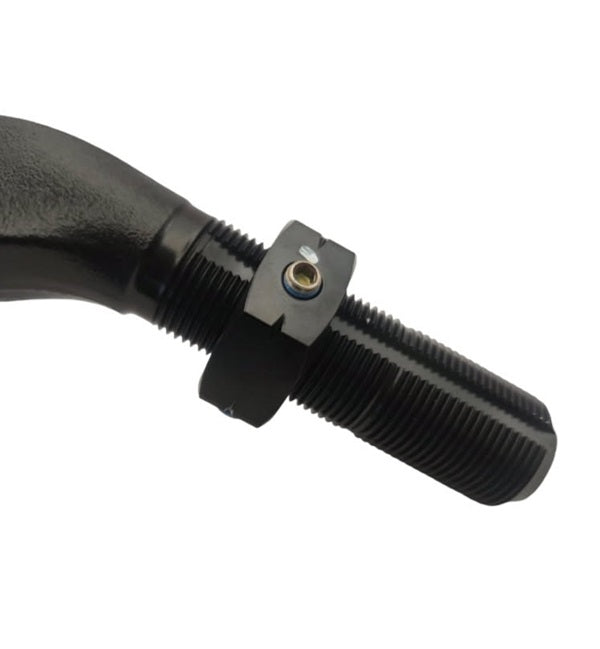

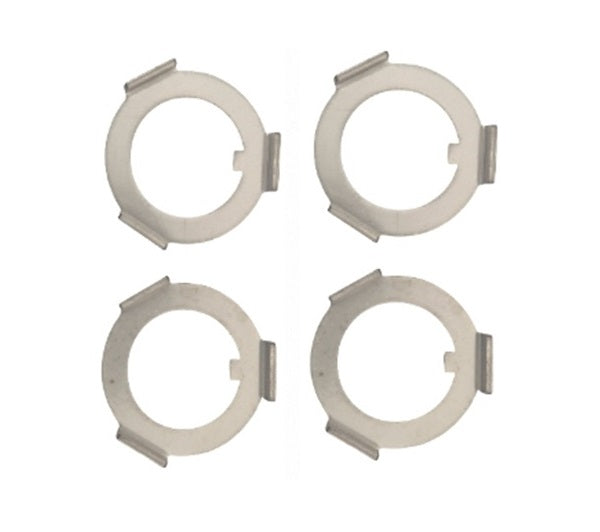

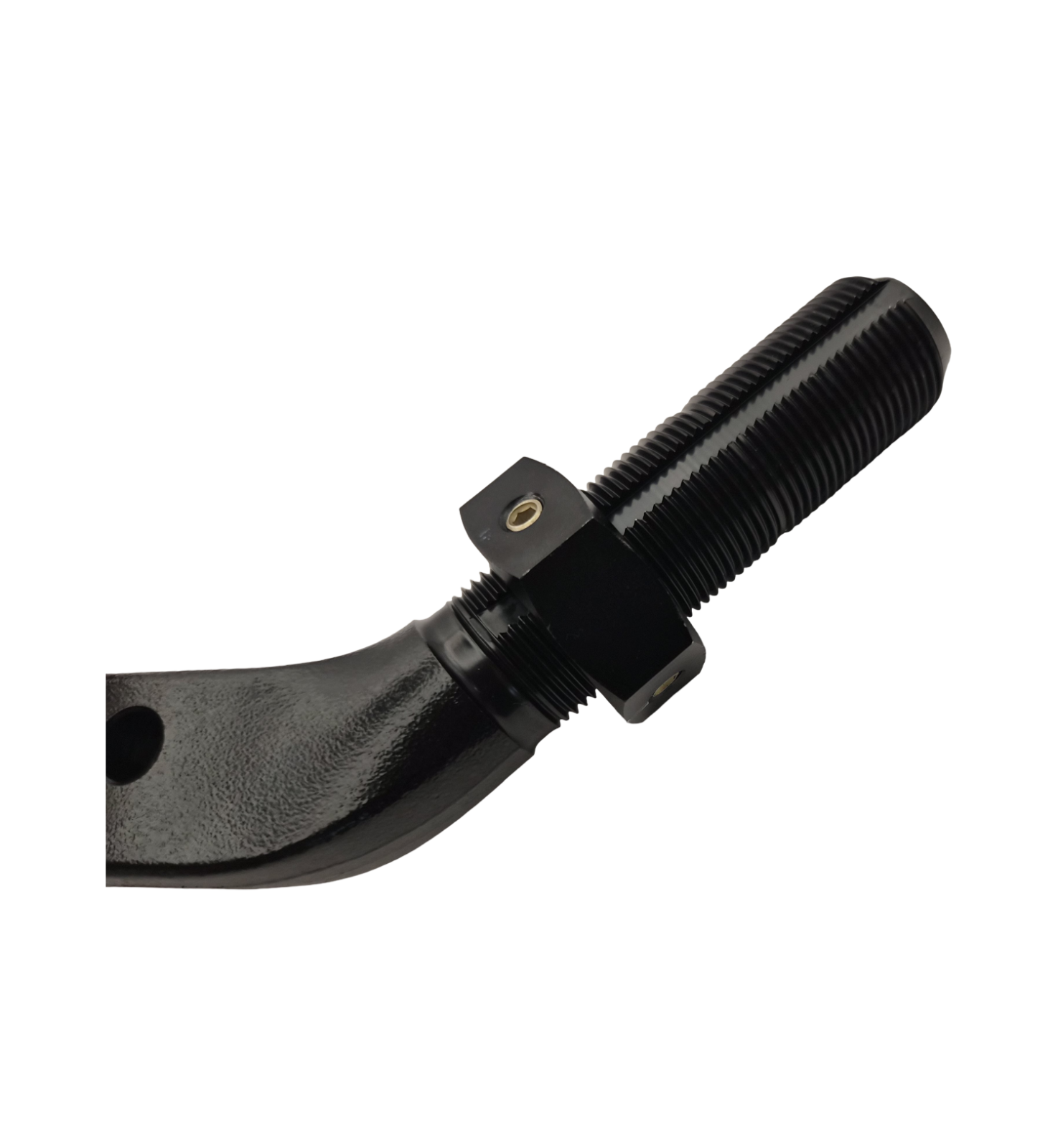

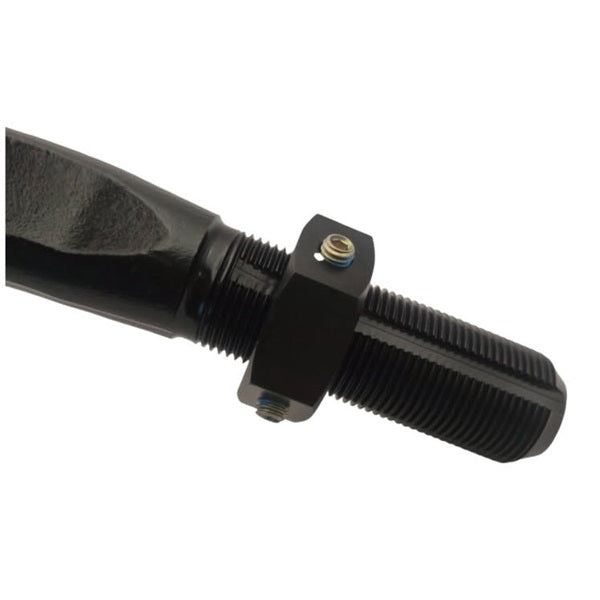

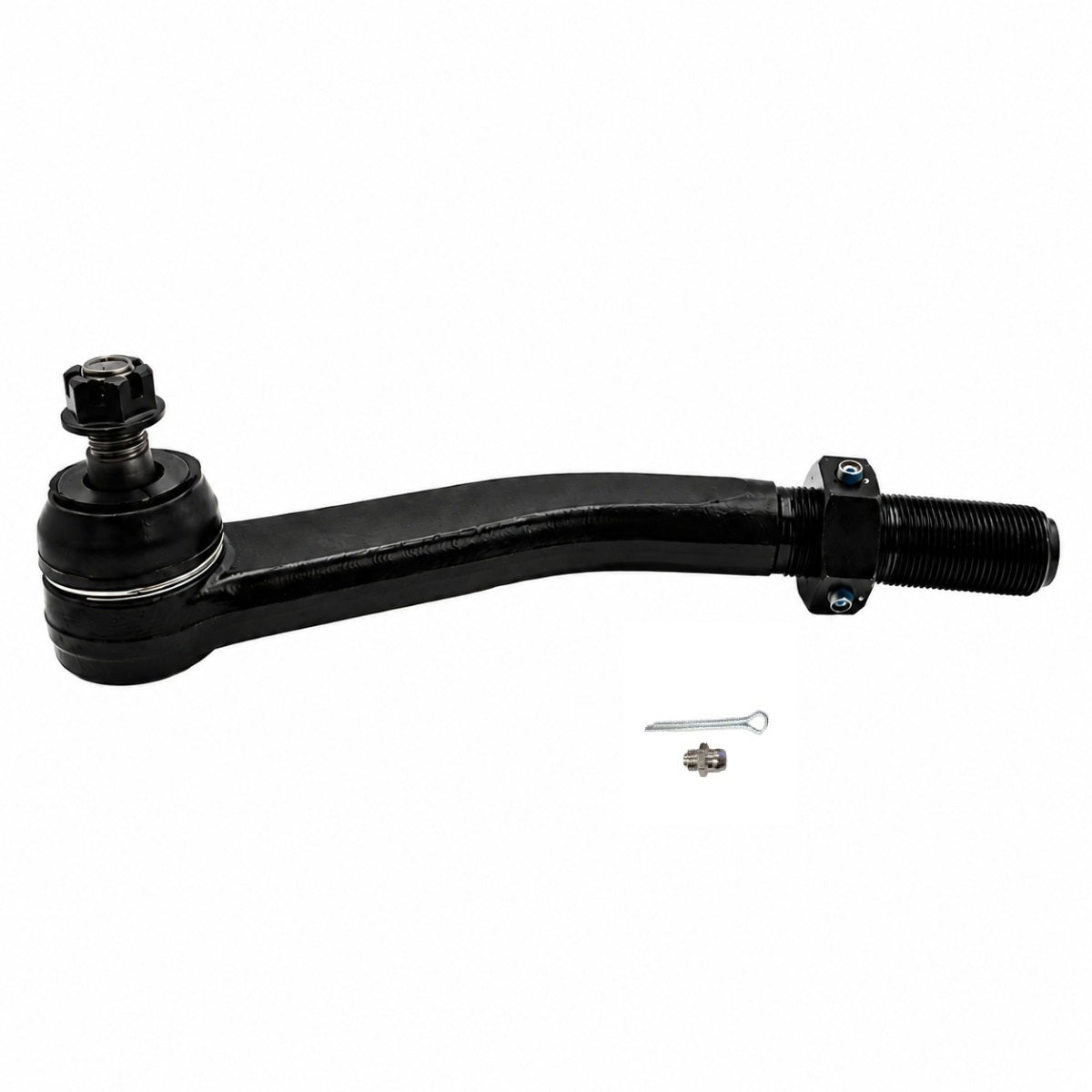

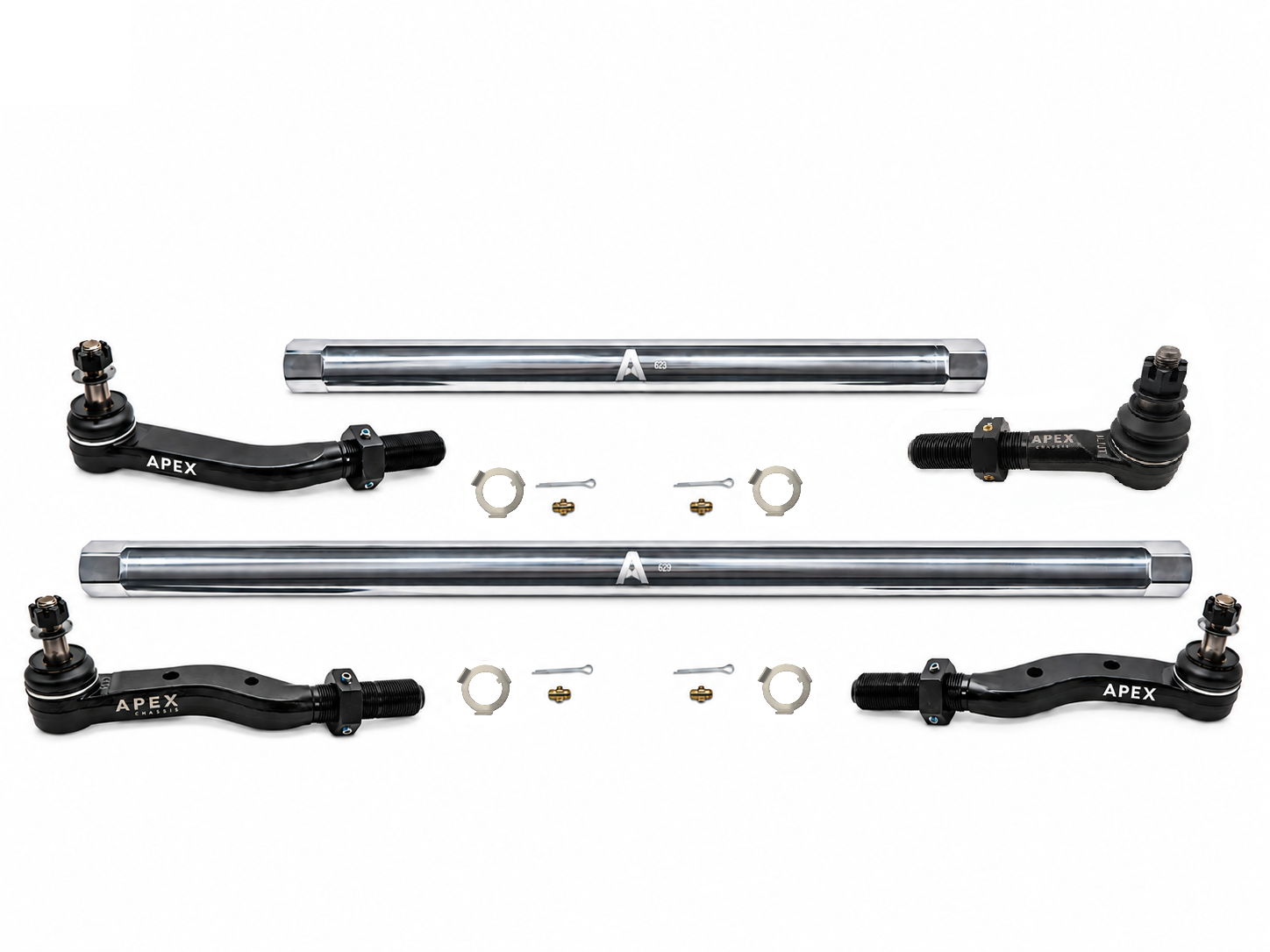

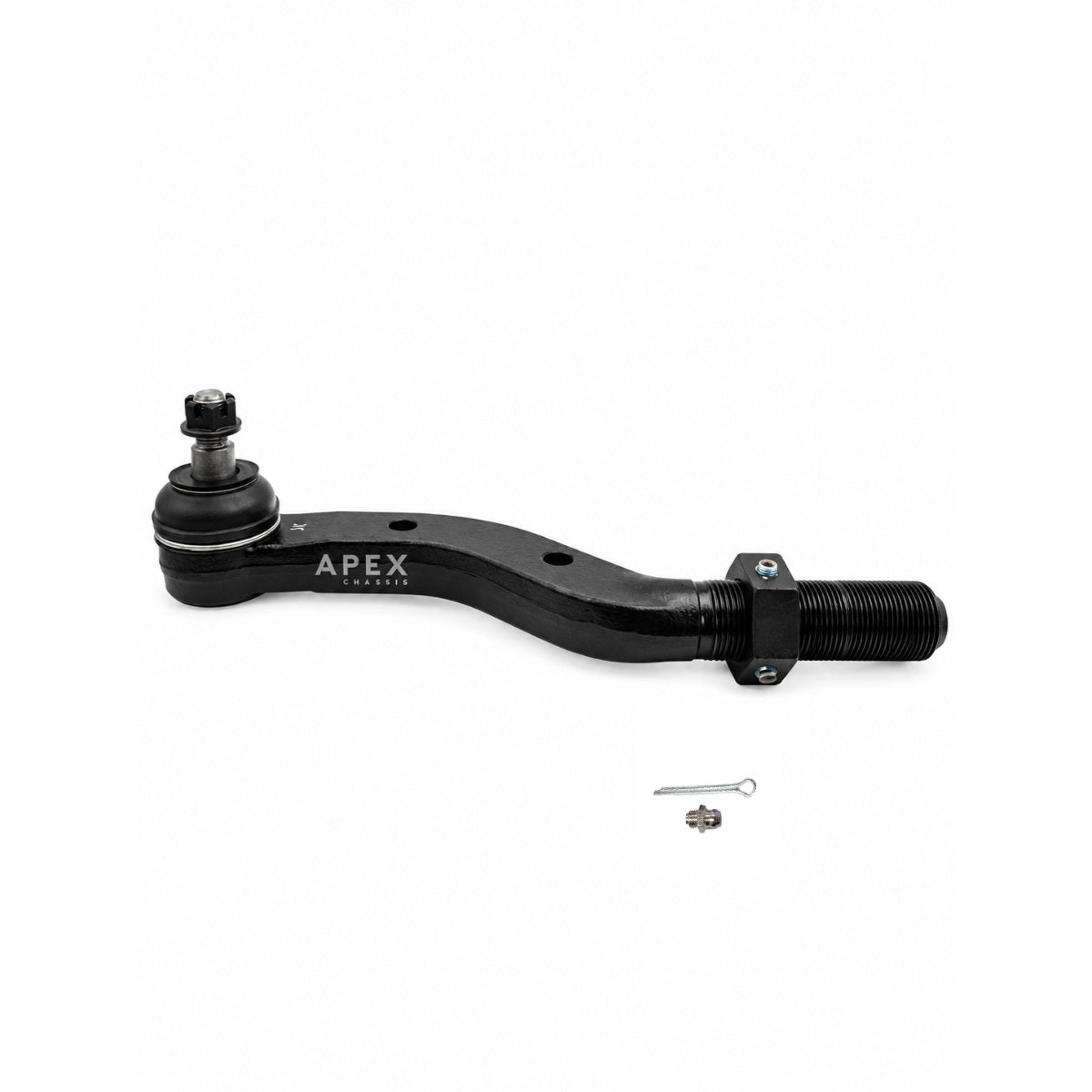

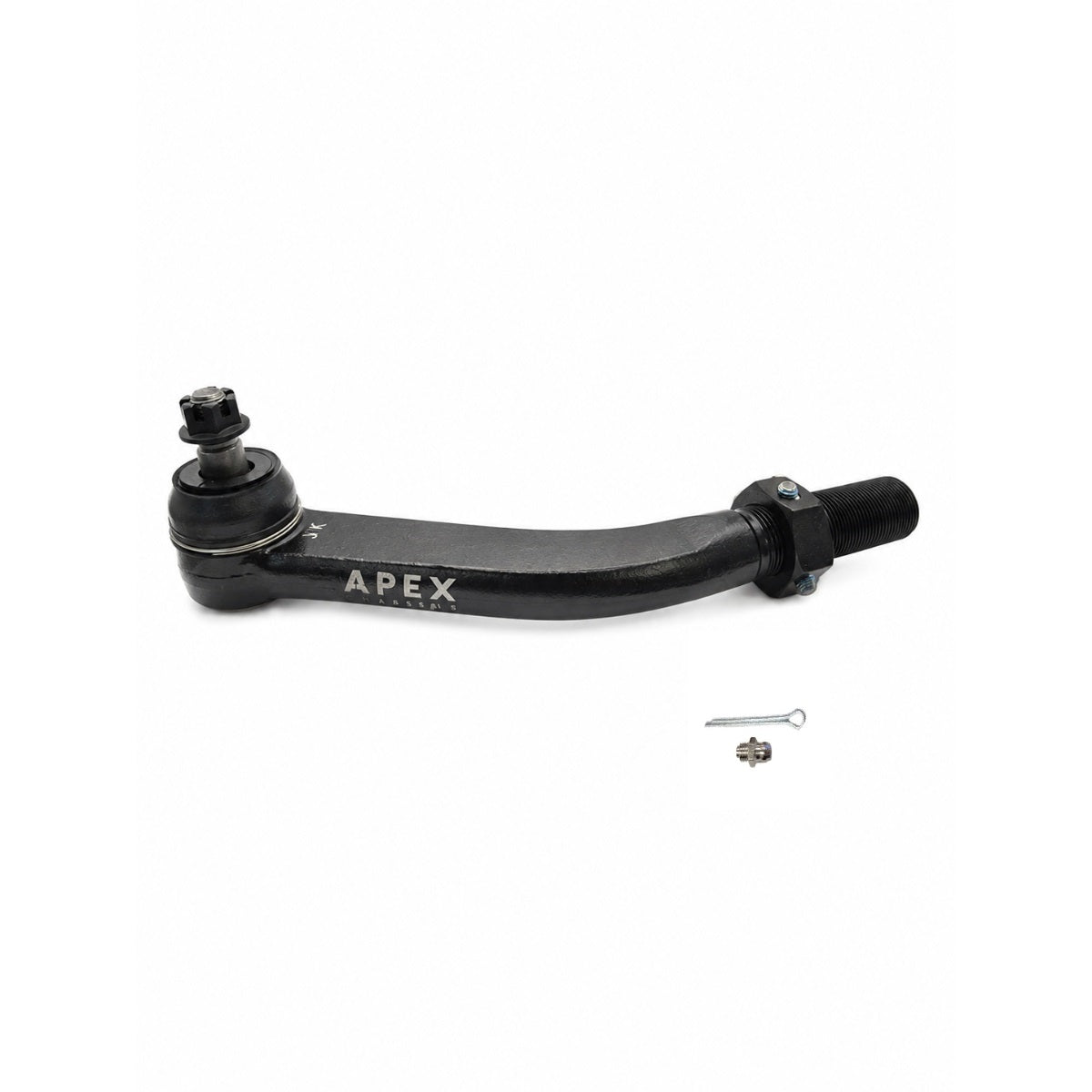

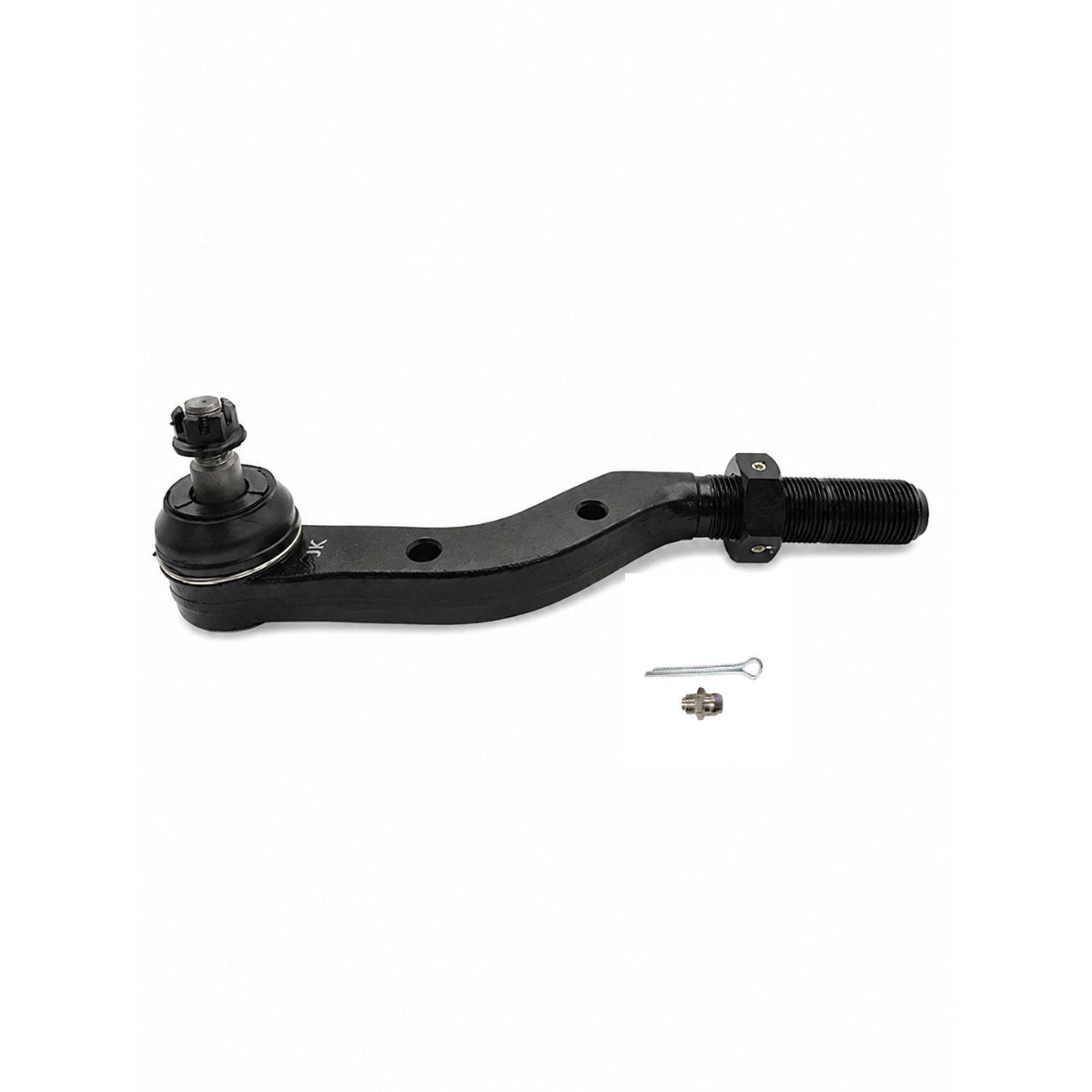

This complete steering kit is designed for your one-ton Dana 60 axle swap, compatible with 2018-2024 Jeep Wrangler JL and 2019-2024 Gladiator JT models. It includes a polished aluminum tie rod, which also serves as the adjusting sleeve, along with left and right forged steel tie rod ends. The kit also features a polished aluminum drag link (which doubles as the adjusting sleeve), and left and right forged steel drag link ends. To complete the setup, four Ninja Lock Washers are included for added durability and secure installation.

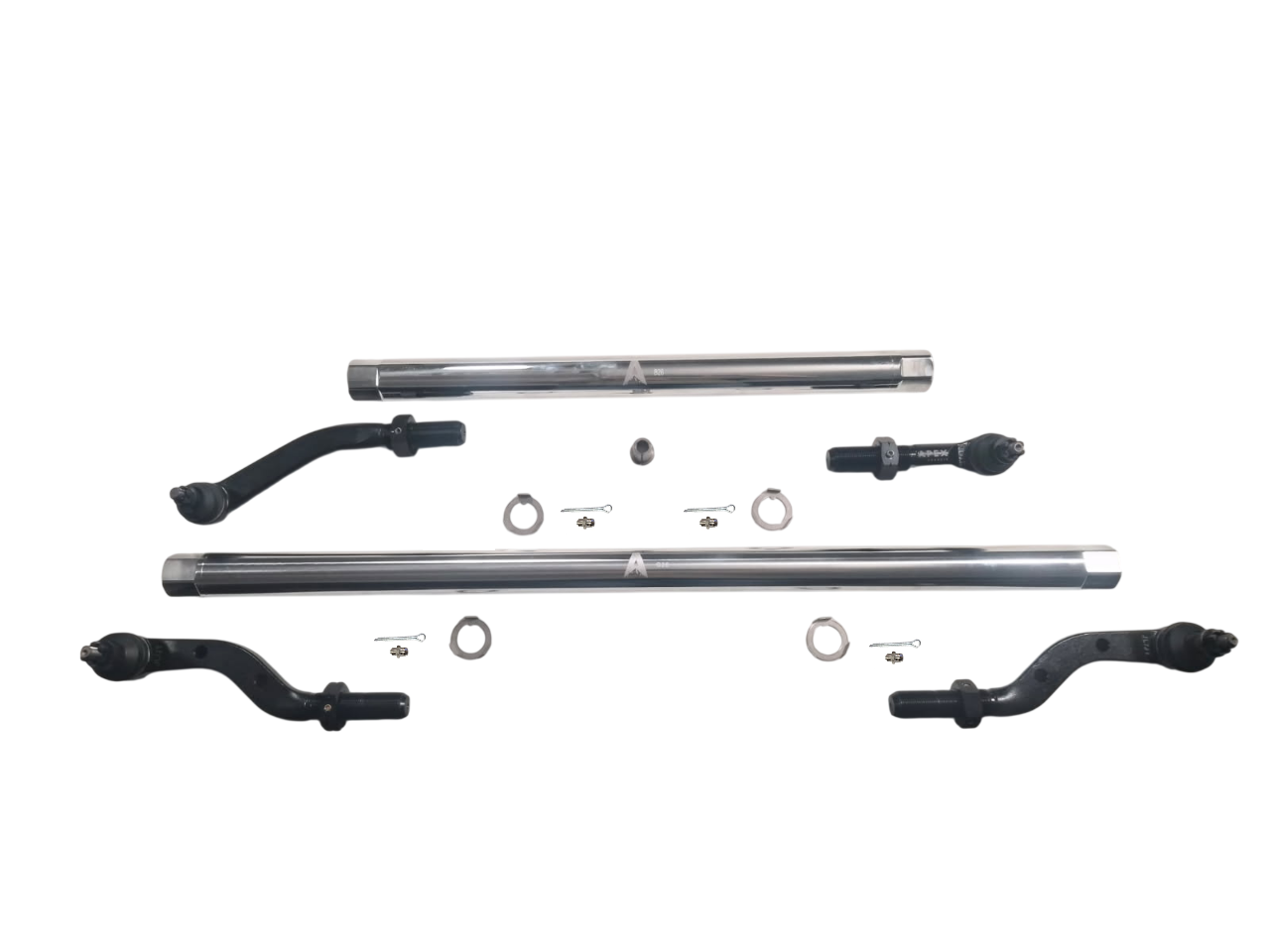

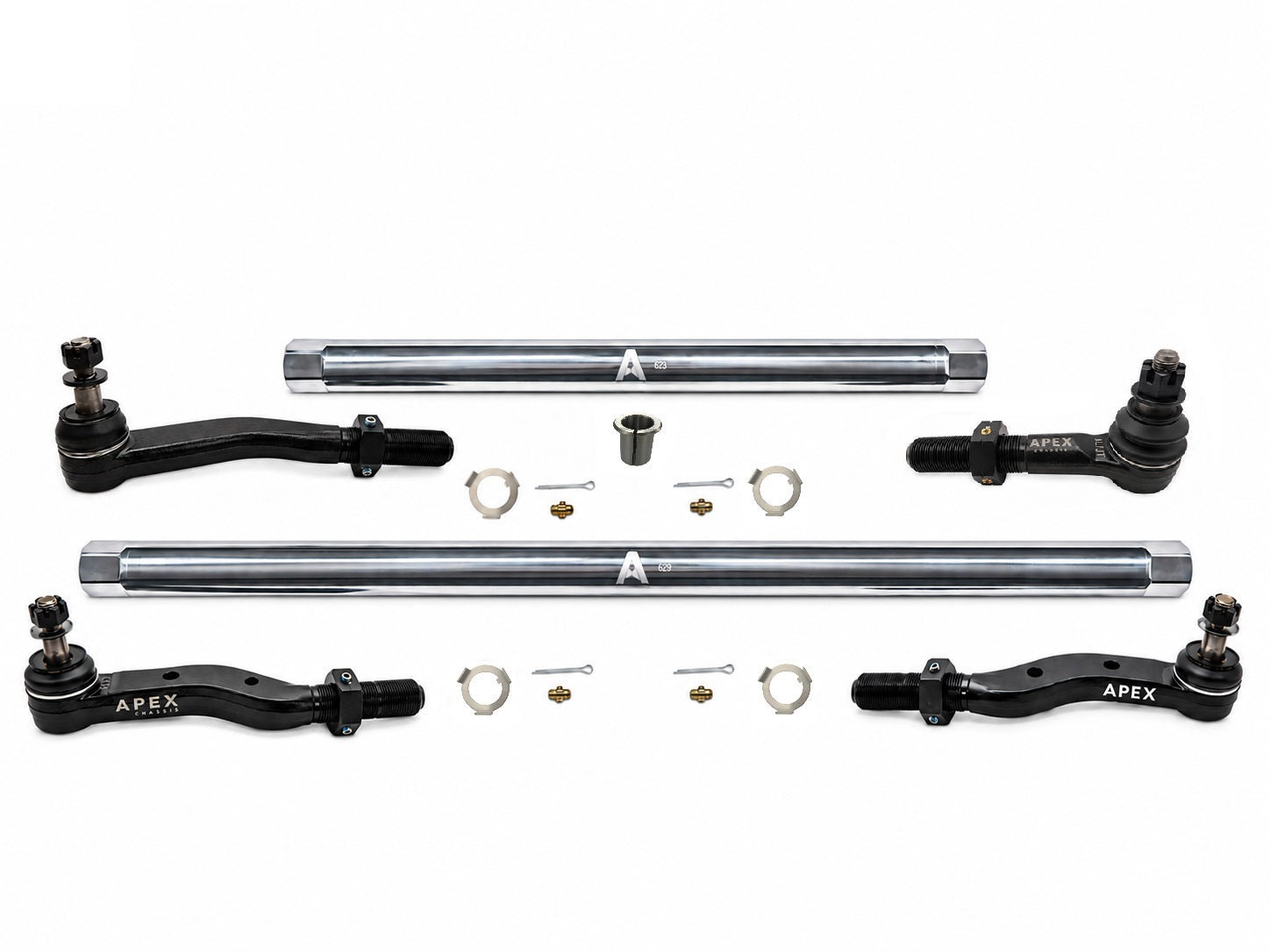

Depending on the options you choose above, it can be sent as an under knuckle mount (standard) or over knuckle mount (flip kit). All Flip Kits include the taper sleeve!!

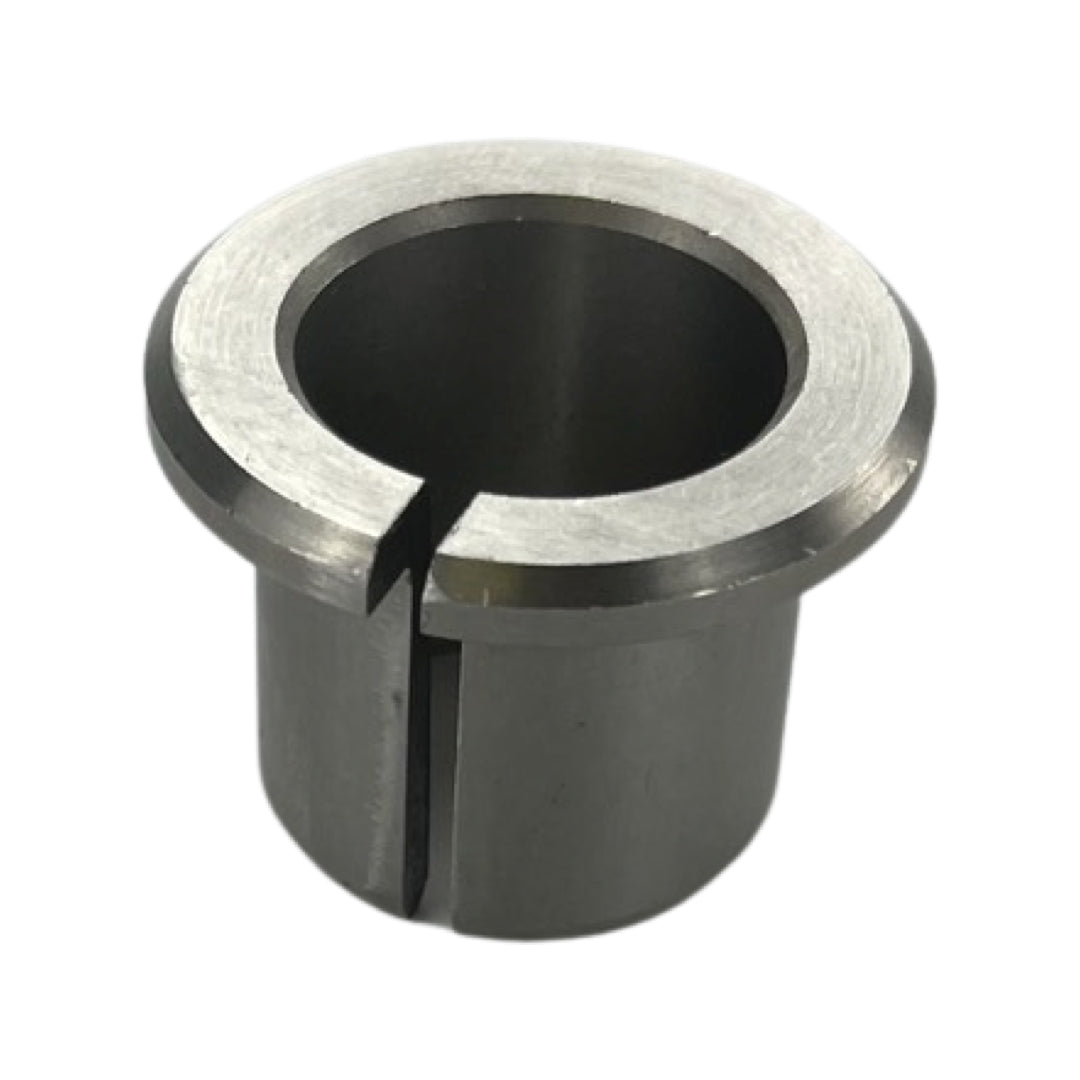

These are the taper sleeves included in each kit above:
NF = Non-flip Kit (Standard, Undermount Drag Link)
F = Flip Kit (Top Mount Drag Link)
Super Duty 05-11 NF: 2x JL/JT Taper Sleeves (Both Tie Rod Mounts)
Super Duty 05-11 F: 2x JL/JT Taper Sleeves 1x JK Taper Sleeve (Both Tie Rod Mounts & Drag Link)
Ultimate Dana 60 68.5" NF: None Required
Ultimate Dana 60 68.5" F: 1x JK Taper Sleeves (Drag Link Passenger Side)
Dynatrac 68.5" NF: 2x JK Taper Sleeves (Both Tie Rod Mounts)
Dynatrac 68.5" F: 3x JK Taper Sleeves (Both Tie Rod Mounts & Drag Link)
Dynatrac 72.5" NF: 2x JK Taper Sleeves (Both Tie Rod Mounts)
Dynatrac 72.5" F: 3x JK Taper Sleeves (Both Tie Rod Mounts & Drag Link)
Currie 70" NF: None Required
Currie 70" F: 1x JK Taper Sleeves (Drag Link Passenger Side)
Currie 72.5" NF: None Required
Currie 72.5" F: 1x JK Taper Sleeves (Drag Link Passenger Side)
Note: Taper Sleeves will require drilling of the knuckle using a straight 7/8" drill bit.

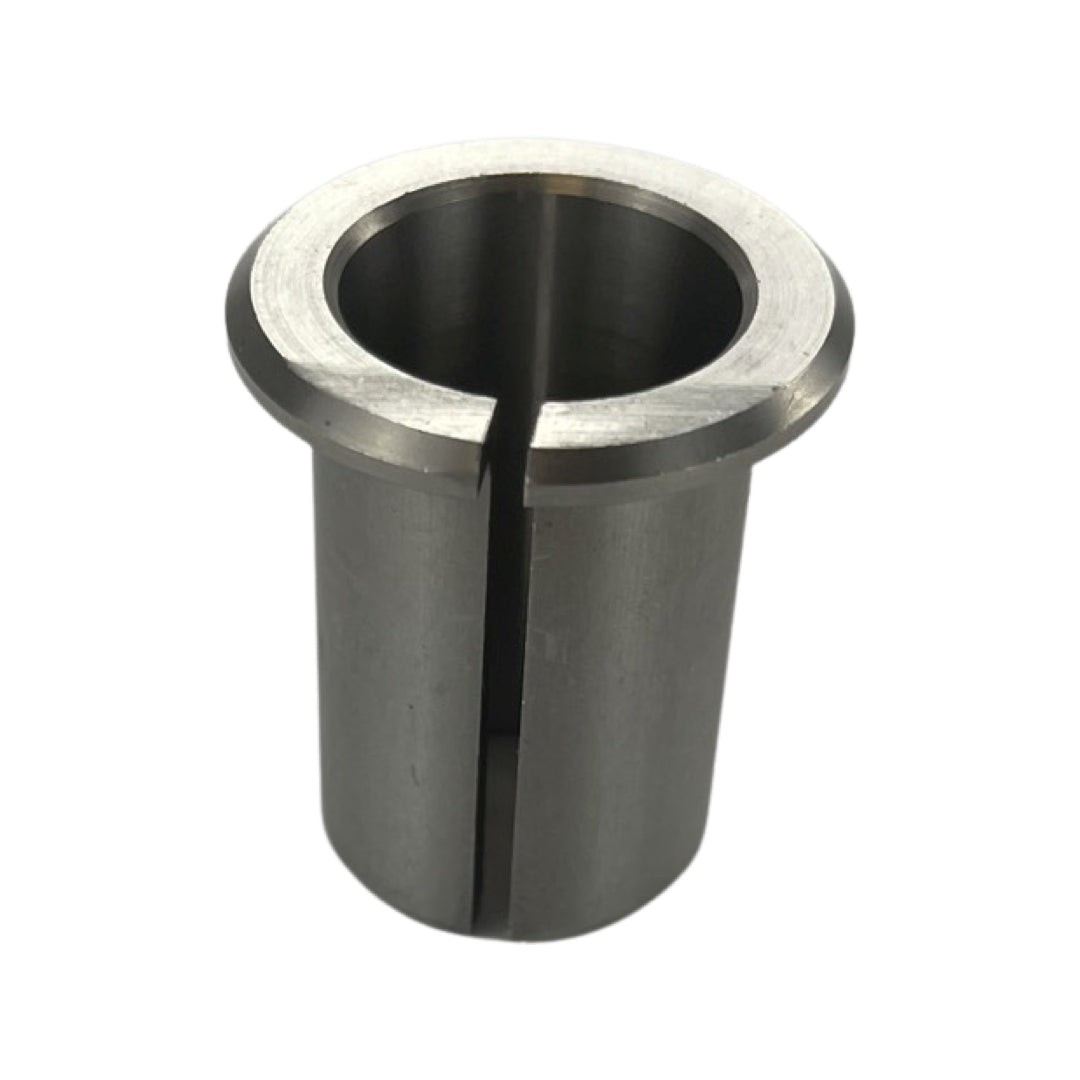

If you need more tapers sleeve for a certain axle XP105 is for JK tapers and XP106 is for JL/JT tapers.
***Orders ship within 10 days.
