The MAXTRAX Flat Rack Mount is designed to mount to your MAXTRAX to your vehicles roof platform or roof rack crossbars. The MAXTRAX Flat Rack Mount can securely attach up to four MAXTRAX MKII (MTXMPS17), 4 MAXTRAX XTREME (MTXXMPS17), or a pair of each (MTXMPSX17).
Designed to work with MAXTRAX MKII, LITE, XTREME, and Mini Recovery Boards.

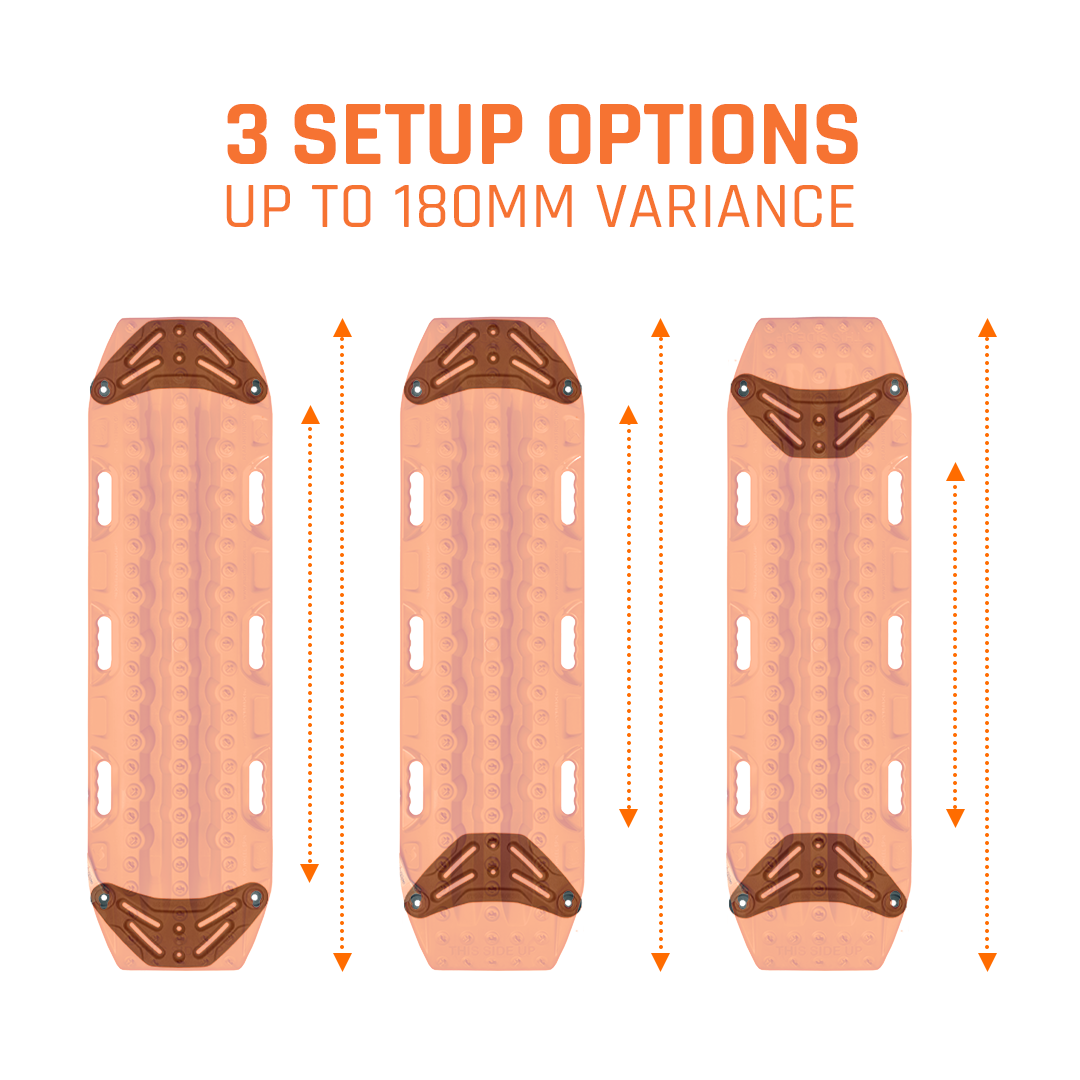

The MAXTRAX Flat Rack Mount provides 180mm of closer adjustment or 180mm of further apart adjustment from the mounting point of the Flat Racks.
The MAXTRAX Flat Rack Mount has the option of 4 x Channel Nuts (Suitable for Rhino Rack Pioneer Platforms and Yakima Locknload Platforms) or 4 x T-Bolts (Suitable for Rola Titan roof platform, roof platforms and roof rack crossbars from most popular Roof Rack Brands).
Note: The Frontrunner Slimline and Slimsport Roof Platform will require 4 x M8 Bolts. Other Roof Rack Brands may require extra mounting harware available from a Specialist Roof Rack supplier.
The package includes the following components:
Channel Nut Option

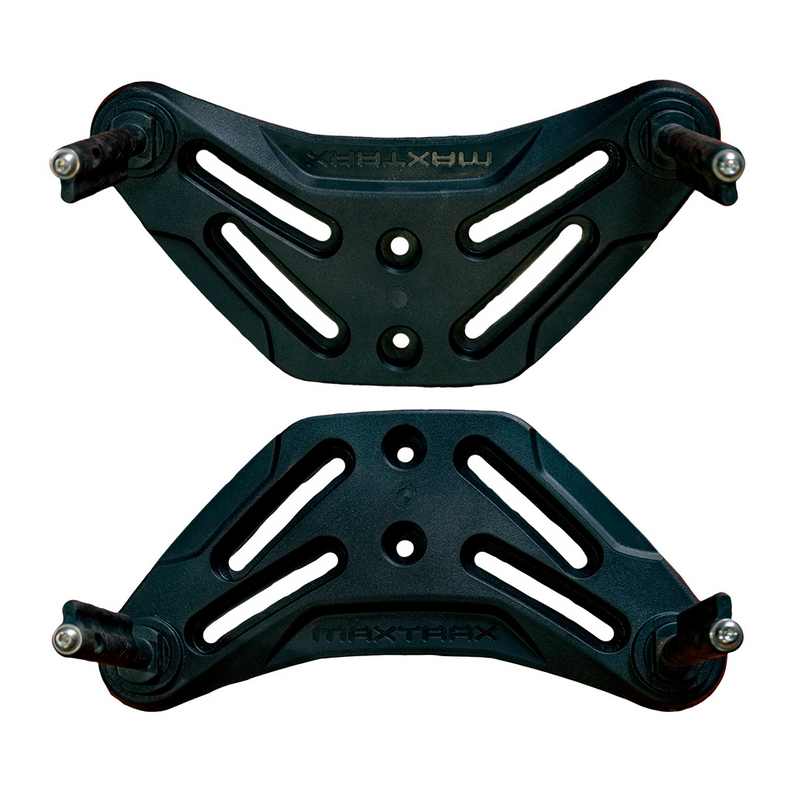

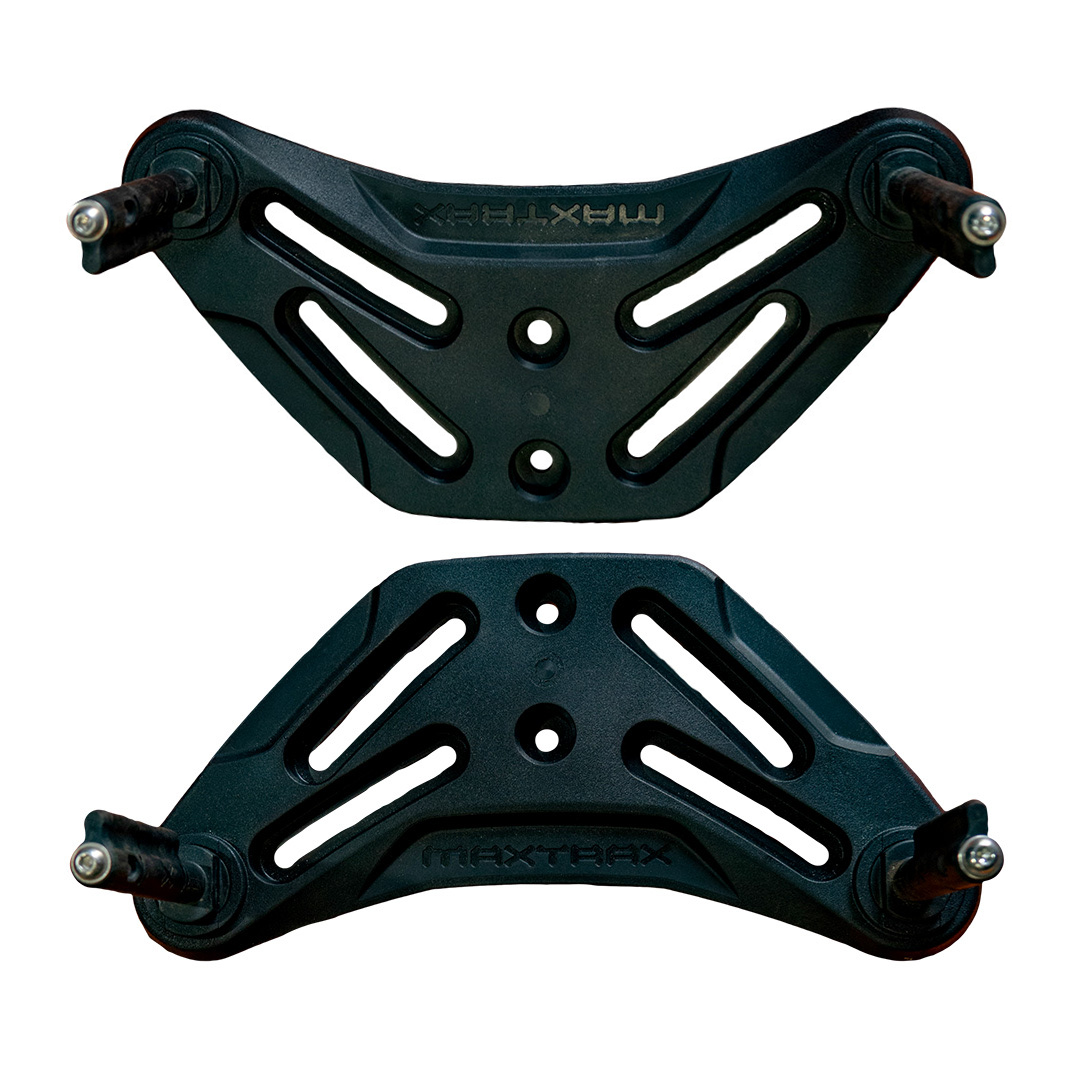

• 2 x Part A: Glass filled Nylon Flat brackets featuring MAXTRAX logo
• 4 x Part B: Channel Nuts, Stainless Steel flat washers, spring washers and Bolts; (Channel Nuts: 40mm x 20mm x 10mm)
• 1 x Part C: MAXTRAX Mounting Pins 17mm (Mk2 - MTXMPS17, Hybrid - MTXMPSX17, XTREME - MTXXMPS17)
T-Bolt Option
• 2 x Part A: Glass filled Nylon Flat brackets featuring MAXTRAX logo
• 4 x Part B: Stainless Steel M8 T-Bolts, flat washers and Nyloc nuts; (T-Bolt: 35mm x 20mm x 4.5mm, M8 x 20mm)
• 1 x Part C: MAXTRAX Mounting Pins 17mm (Mk2 - MTXMPS17, Hybrid - MTXMPSX17, XTREME - MTXXMPS17)
