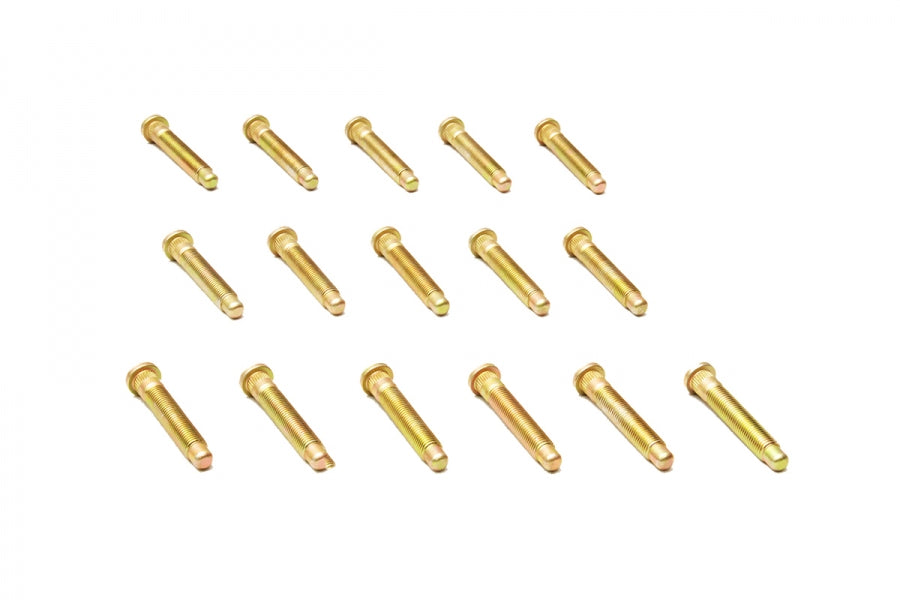

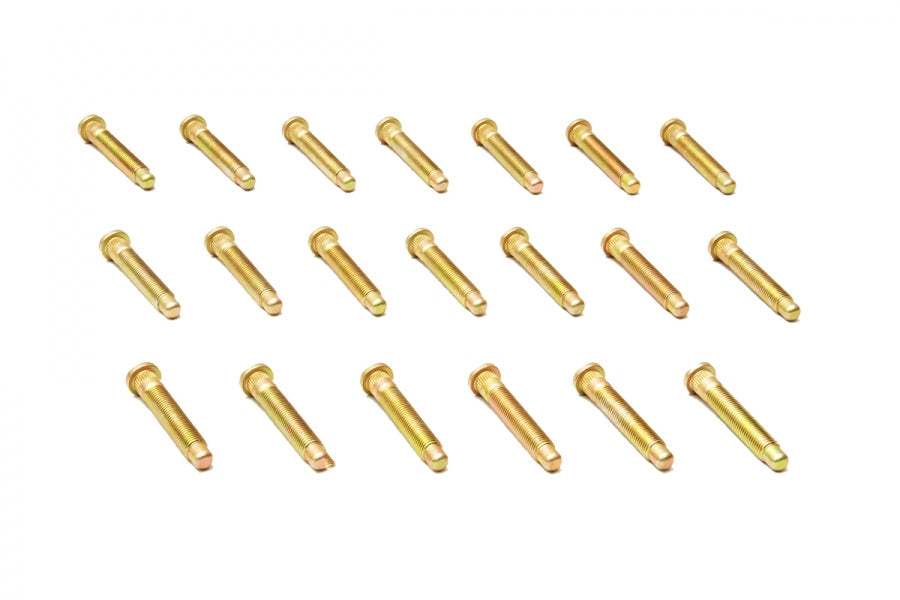

Megan Racing extended wheel studs are made with heat treated high strength chromoly steel. Lost of threading on stock studs can be a major safety issue, these extended studs are essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.
Applications:
- Acura Integra 1990-2001
- Honda Civic 1988-2000
- Package of 16 Extended Wheel Studs
Thread Size: 12mm x 1.5RH
Knurl Size: 12.25mm
Thread Length: 50mm

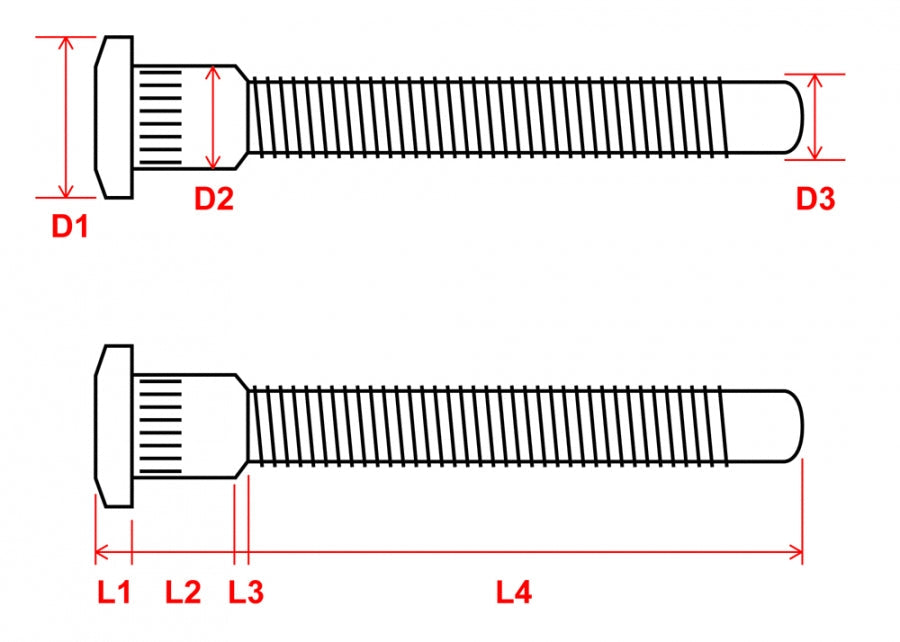

Overall dimension of stud (see diagram)
D1: 17.60mm
D2: 12mm
D3: 11.75mm
L1: 5mm
L2: 11mm
L3: 1.25mm
L4: 60mm
*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with use of torque wrench.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 2001 | Acura | Integra | GS, LS |
| 1992 - 2001 | Acura | Integra | GS-R |
| 1990 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1988 - 1991 | Honda | Civic | Base, RT 4WD |
| 1989 - 2000 | Honda | Civic | CX, Si |
| 1990 - 2000 | Honda | Civic | EX |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1988 - 2000 | Honda | Civic | LX, DX |
| 1988 | Honda | Civic | SE |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1988 - 1989 | Honda | Civic | Wagovan |
