We are proud to introduce the new Megan Racing high performance aluminum radiator. Anytime an individual introduces their car to a racing/drifting environment, the temperature of the vehicles engine will skyrocket. One common and effective method of reducing engine temperature is to employ an aluminum radiator.
This is a cost effective upgrade which can ultimately save an engine during competition or spirited driving. Often times, a temperature drop of twenty degrees or more will be noticed when using an aluminum radiator. Also included is a 1.1 BAR radiator cap.
ATTN: Please FLUSH the radiator before installation and properly take all the air pockets out. If its not properly installed, might cause the motor to over heat due to low coolant or air pockets in the cooling system.
- Upper two mounting posts should be 24 3/4" apart, the same distance as the two mounting points on the radiator support.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2000 - 2009 | Honda | S2000 | Base |
| 2008 - 2009 | Honda | S2000 | CR |

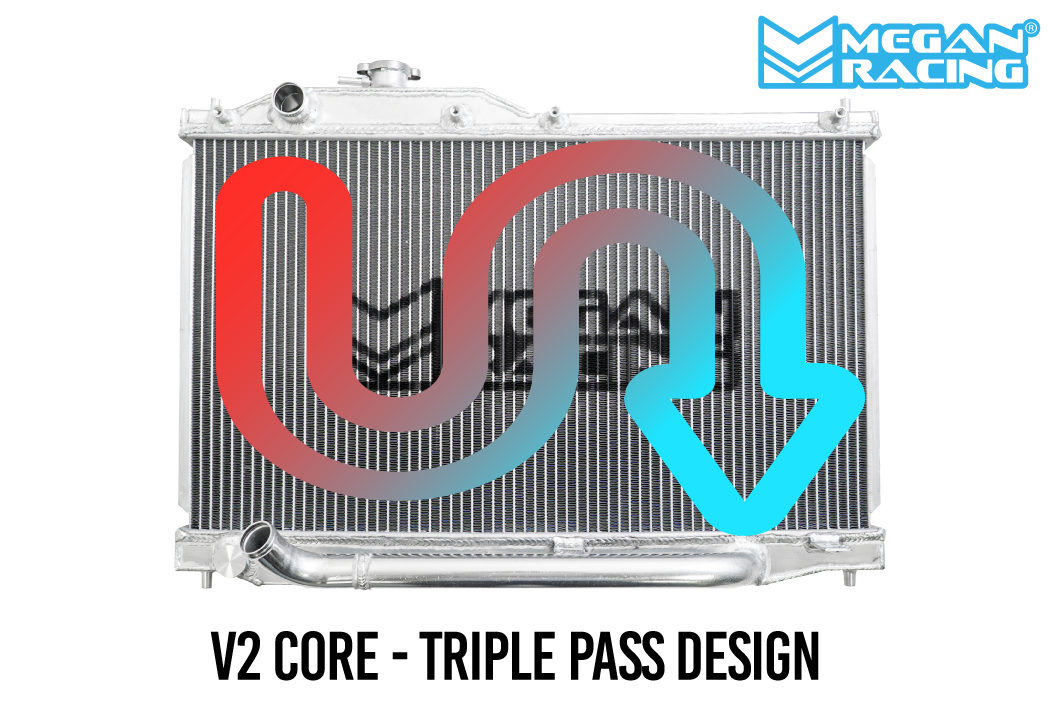

Our new ""V2"" radiators introduce a multi-pass internal flow construction forcing the engine coolant through the exchange element 3 times allowing for a greater heat exchange especially during track and/or forced induction applications. Cooling is absolutely crucial during high performance driving. Maintained high load, high RPM instances dramatically increases heat produced by the engine requiring a lot more from the vehicle's cooling system.
Megan Racing Radiators are comprised completely of aluminum. From the tanks to the primary core. Aluminum tanks are a great upgrade over the plastic usually found on factory radiators which are known to crack and leak especially as they age. The larger heat exchanging core is not only more efficient at transferring heat from the coolant, but also increases total coolant carrying capacity.
Designed to as a complete bolt-on application, Our radiators are designed to comply with factory components such as fans and A/C condensers however due to the slight increase in overall size. Upgrading to high capacity, slim radiator fans is suggested.
Note: Lower radiator hose must be trimmed 60mm
Applications:
- Honda S2000 2000-2009
Specifications & Features:
- All Aluminum Construction
- Triple-Pass Internal Design
- 50mm Heat Exchanger Thickness
- Radiator Cap Included
- Direct Bolt-On
- 1-Year Warranty Against Manufacturer Defects
