CURRENT LEAD TIME: 4-6 WEEKS

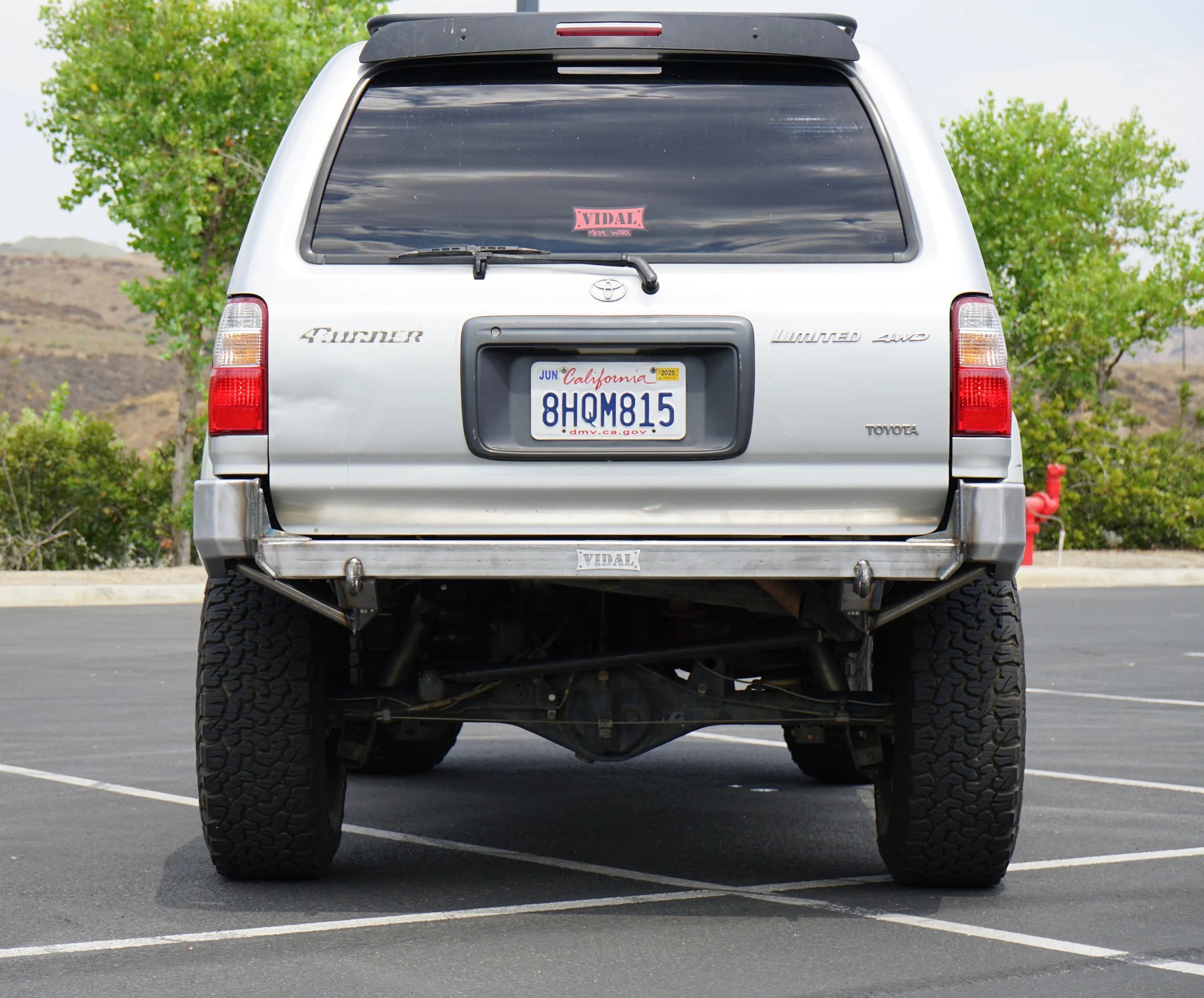

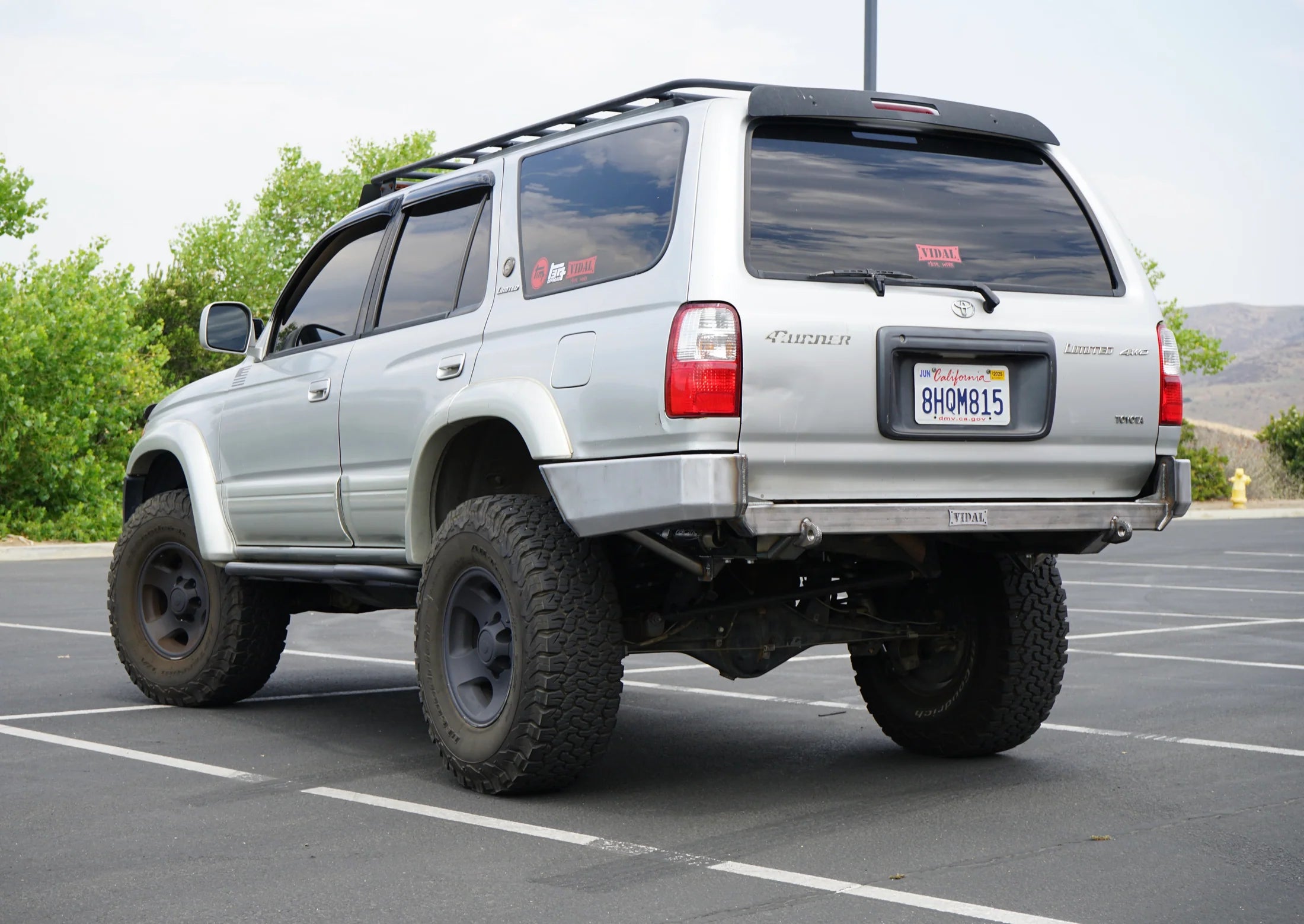

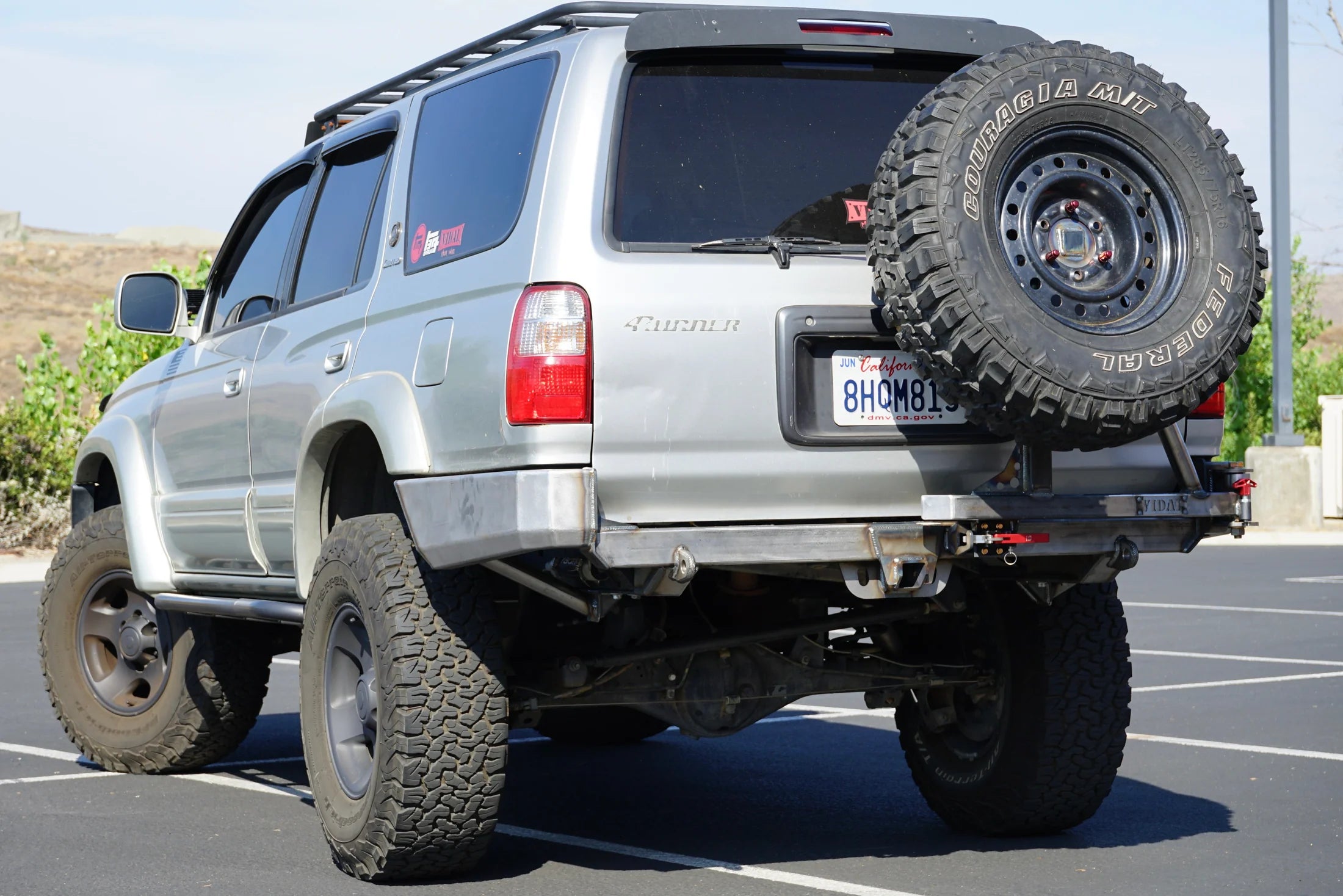

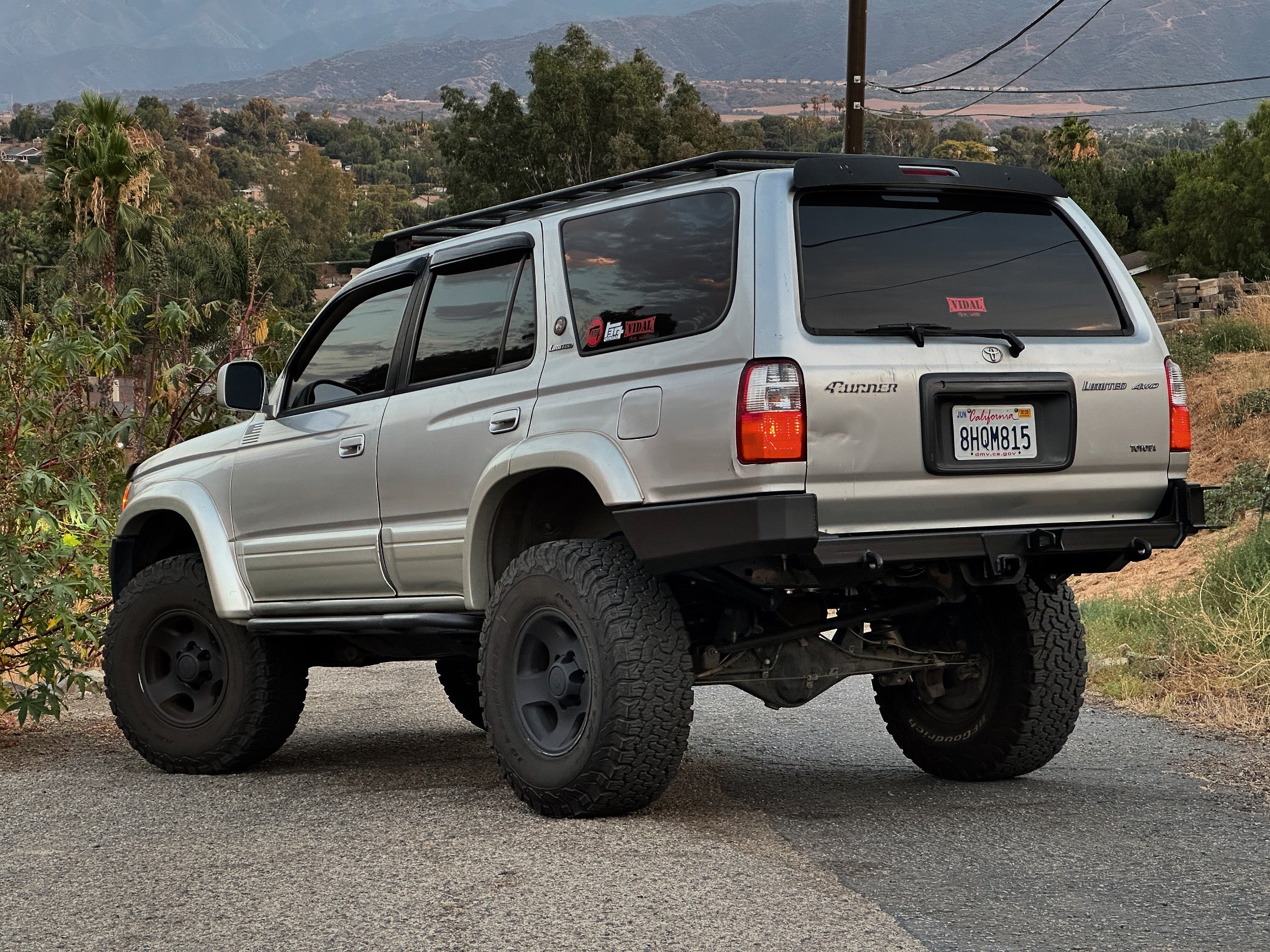

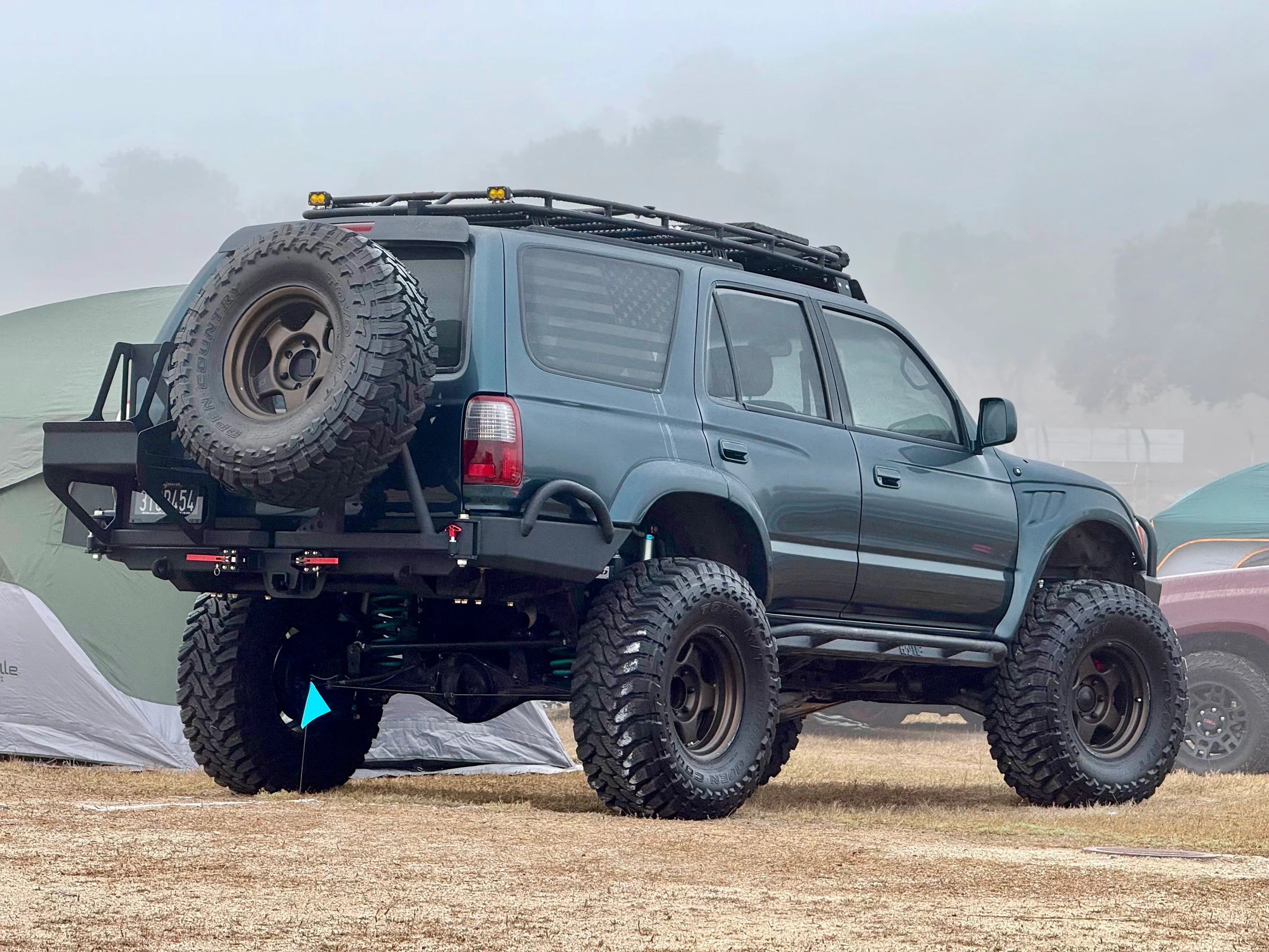

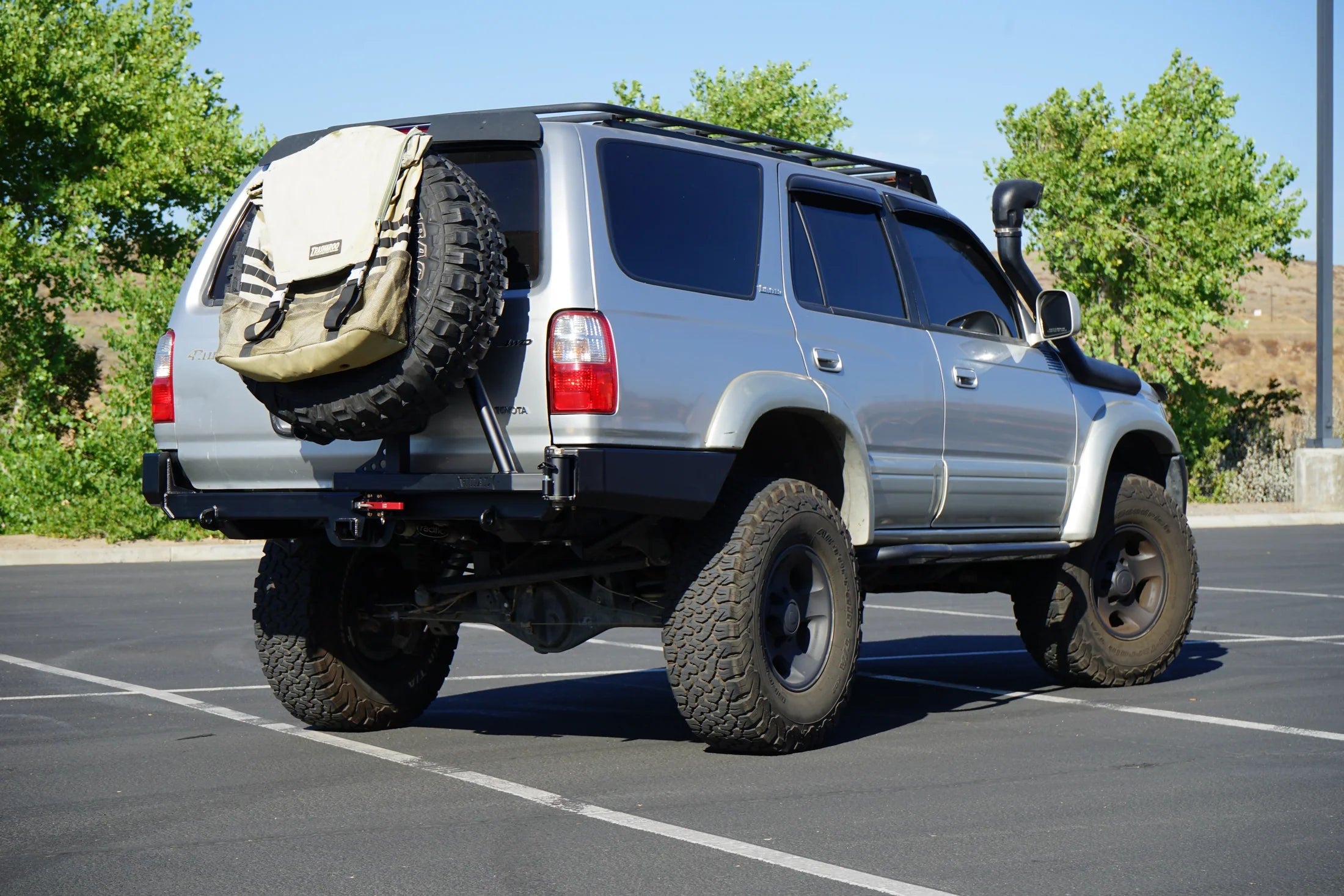

Introducing the NIGHTHAWK rear bumper. This bumper is fully bolt on so no need for any additional trimming or welding to the frame. All of our bumpers are proudly made in SoCal U.S.A.

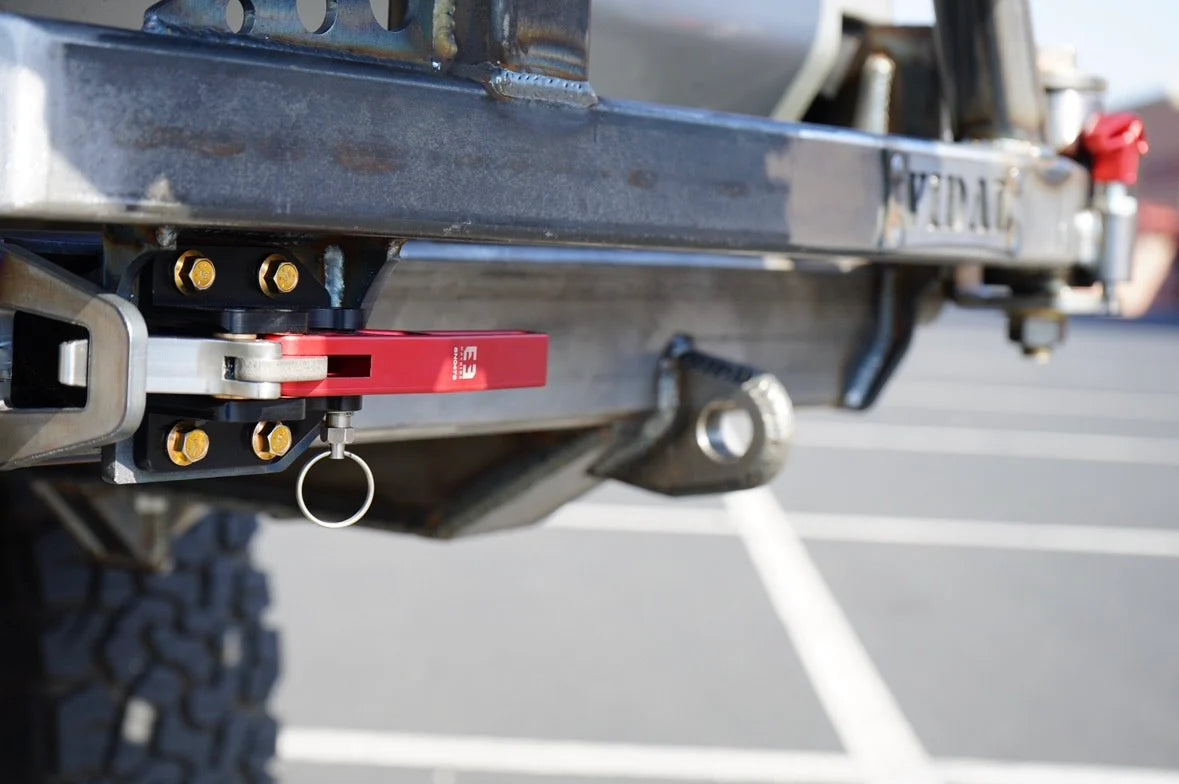

Our bumpers come standard with the best latches in the industry! The E3 Machine Ultimate Billet Latch is a compression latch with a spring pin for that positive lock you crave. The design also features a pad lock hole if you want to keep your belongings safe.
*PLEASE CHOOSE LATCH COLOR AT CHECKOUT

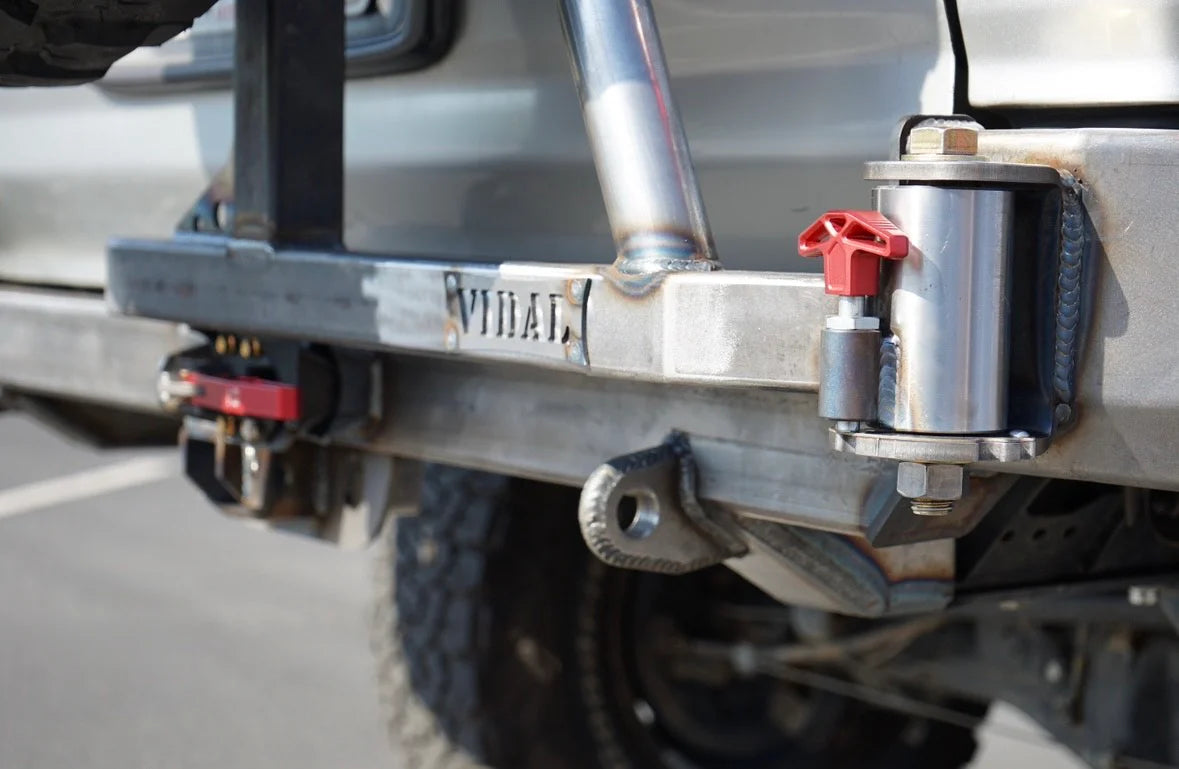

Swing Out options also come standard with Ratha Sochenda's Heavy Duty Hinge Kit Assembly.
Features:

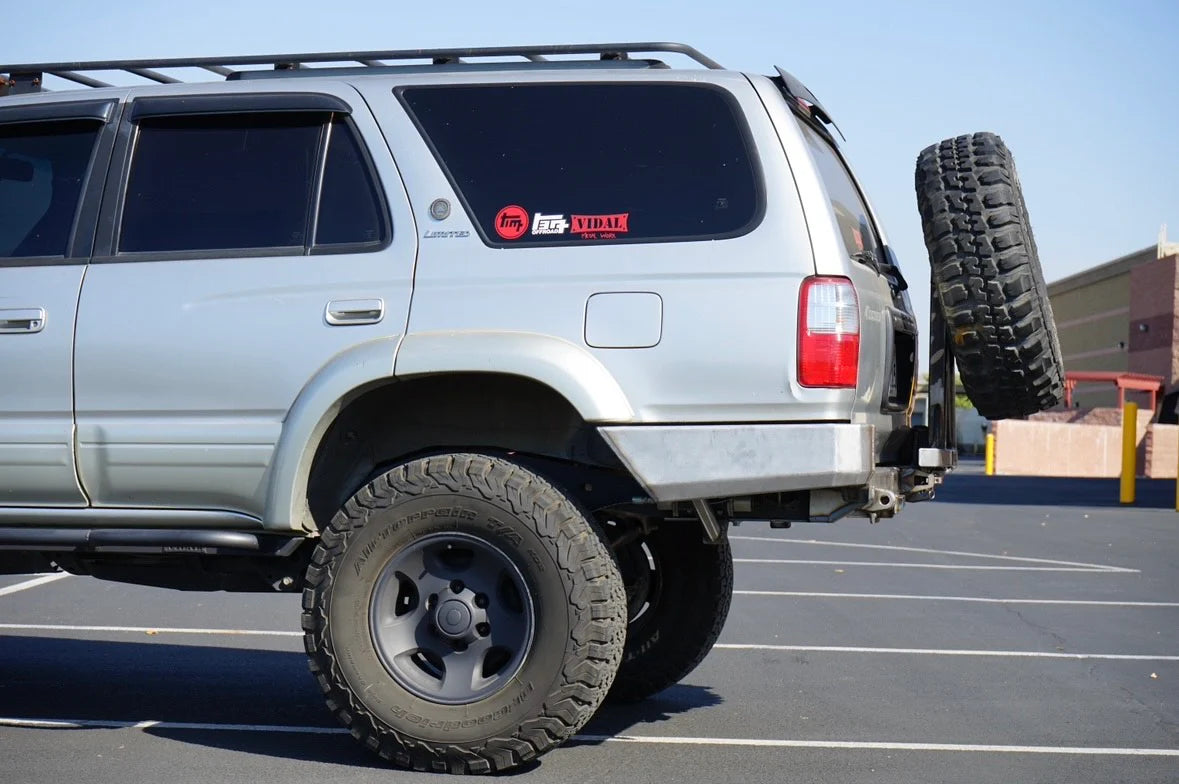

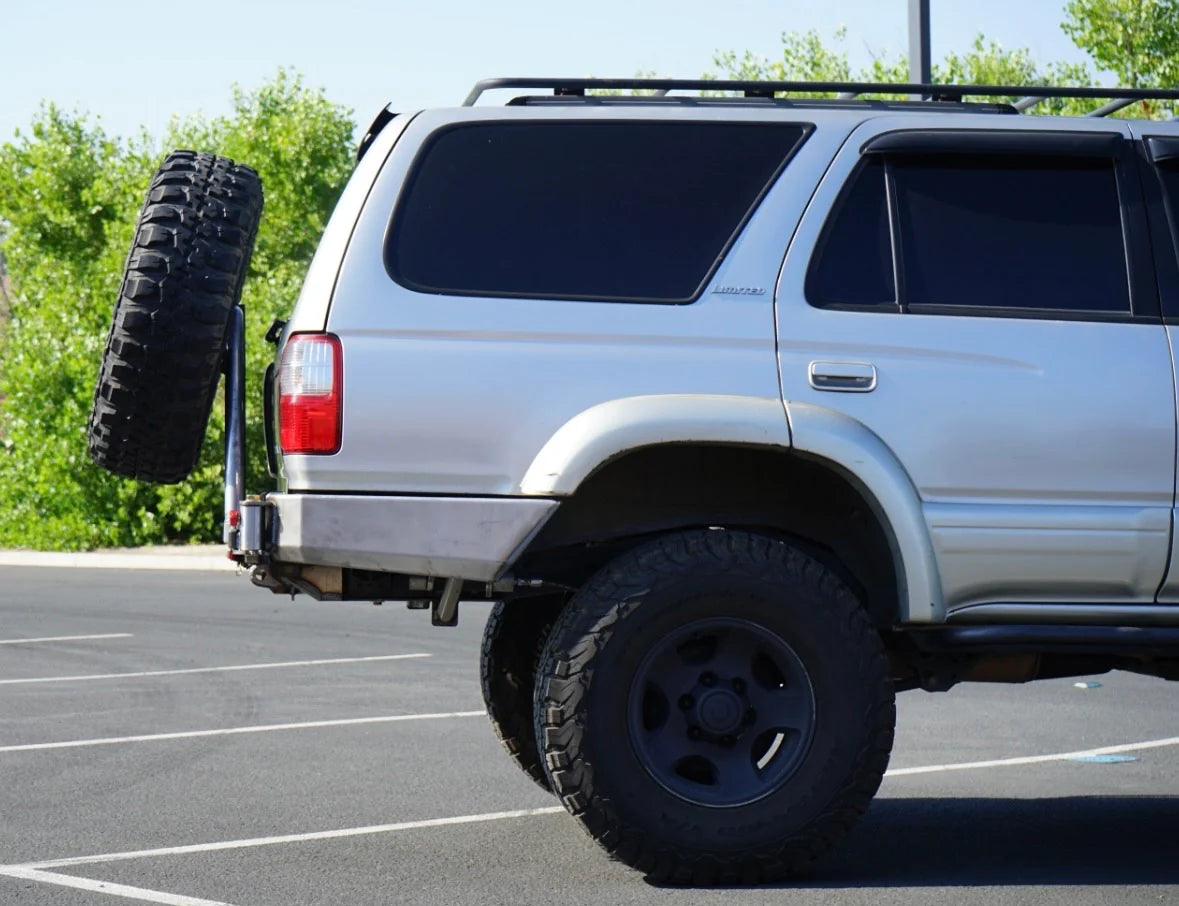

- Can open and lock to 90 or 120 degrees which means it’ll help clear your liftgate.
- Comes with the option to have the plunger pin in the lock or free open position based of the wear pad of choice
- Lower profile design
- Hinge Bracket is laser cut 5/16″ thick steel
- Stainless Steel Wear Pad with Socket Head Screw
- High Quality 1000# Koyo Taper Roller Bearings
- 3/4″ Grade 8 Bolt and Nylon Lock Washer
- 2.375″ Diameter x 4″ Tall FULLY machine Hinge Body
- Double Lip Dust Seals
Ultimate T Handle Can be added.
Features:
- 6061 Aluminum T-Handle
- Handle Comes in Anodize Red or Black
- Serrations on the T-Handle provides additional grip in wet conditions
Customize your bumper!

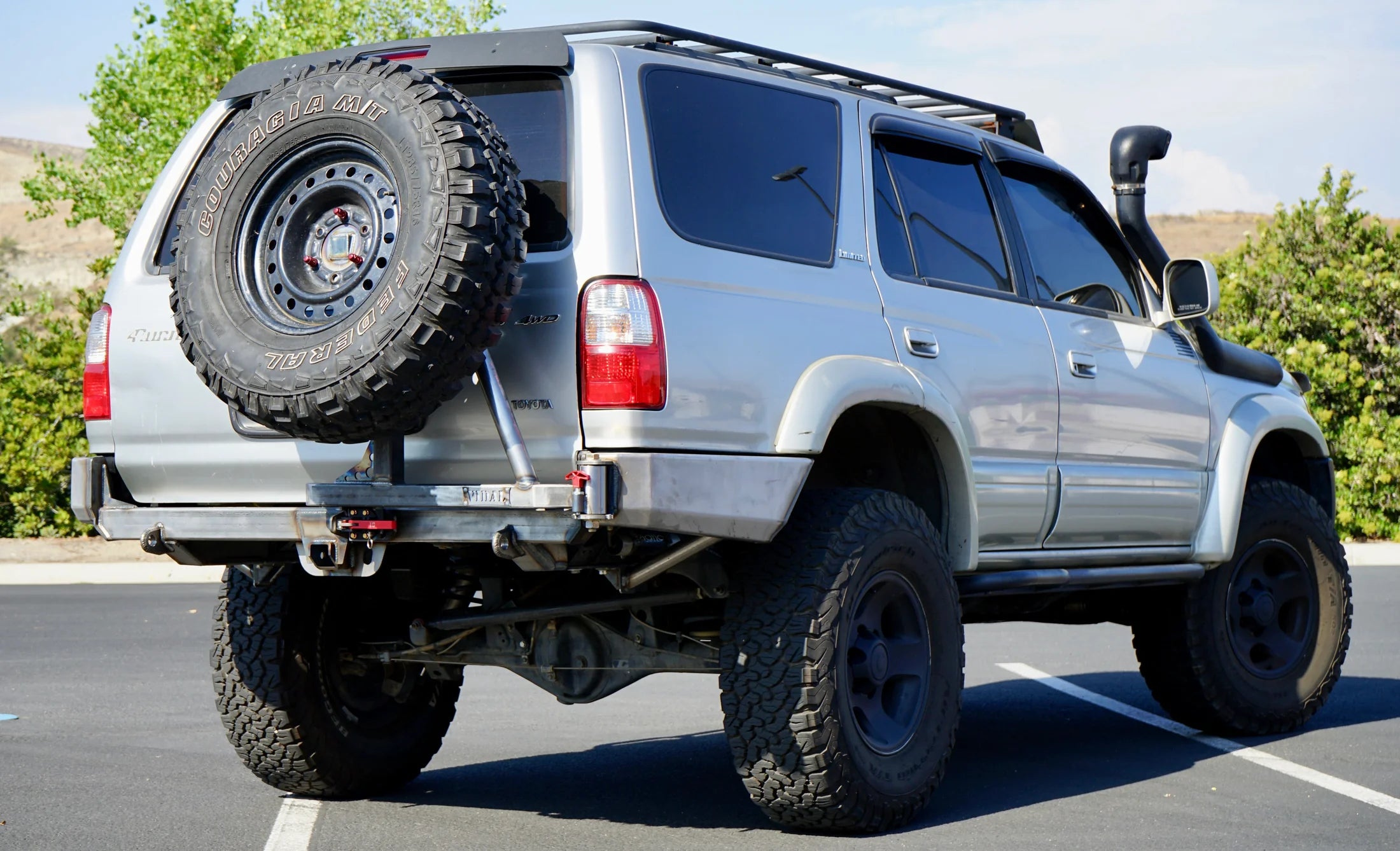

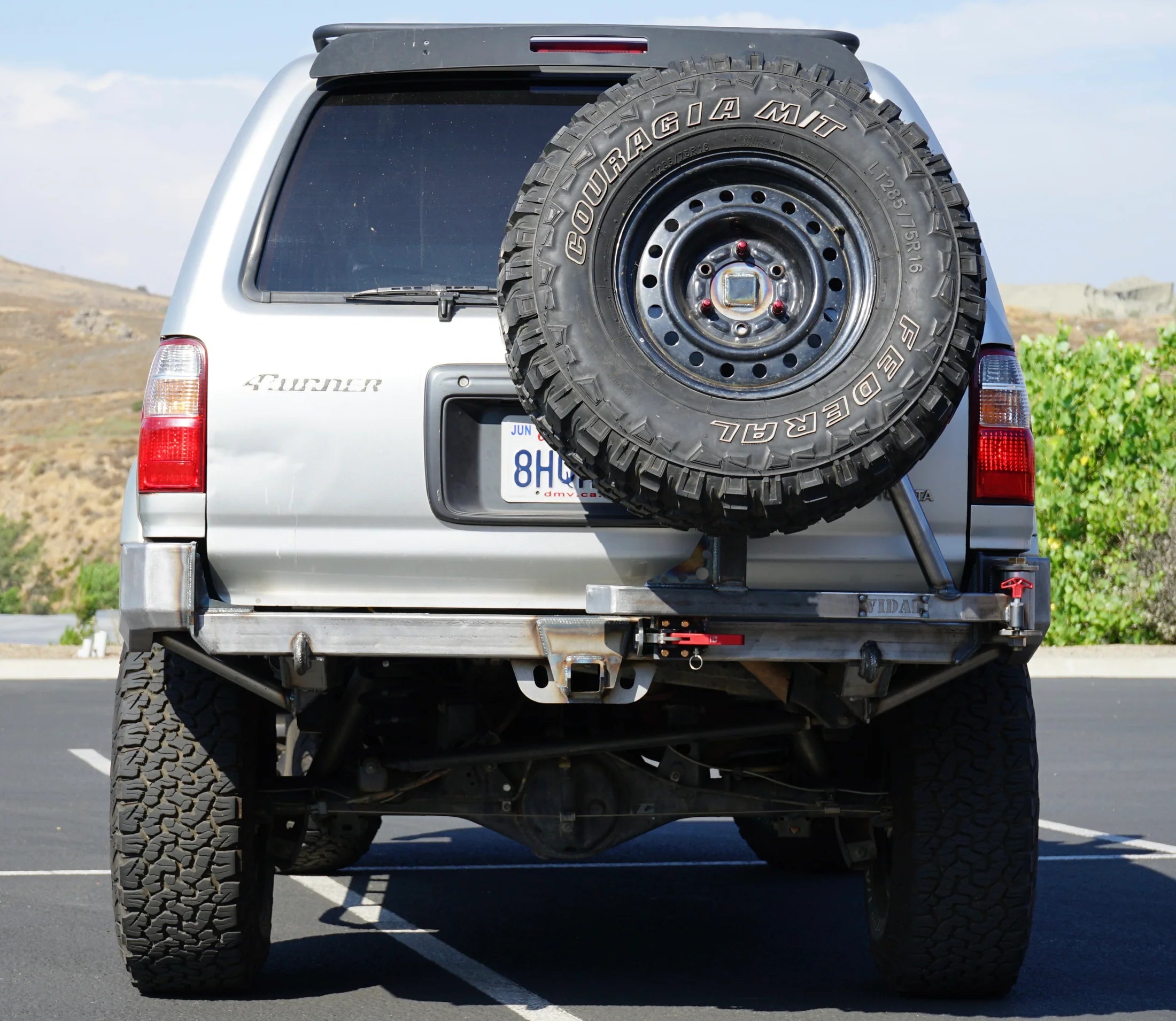

- Single Swing Out - Half Arm
- Single Swing out - Full Arm

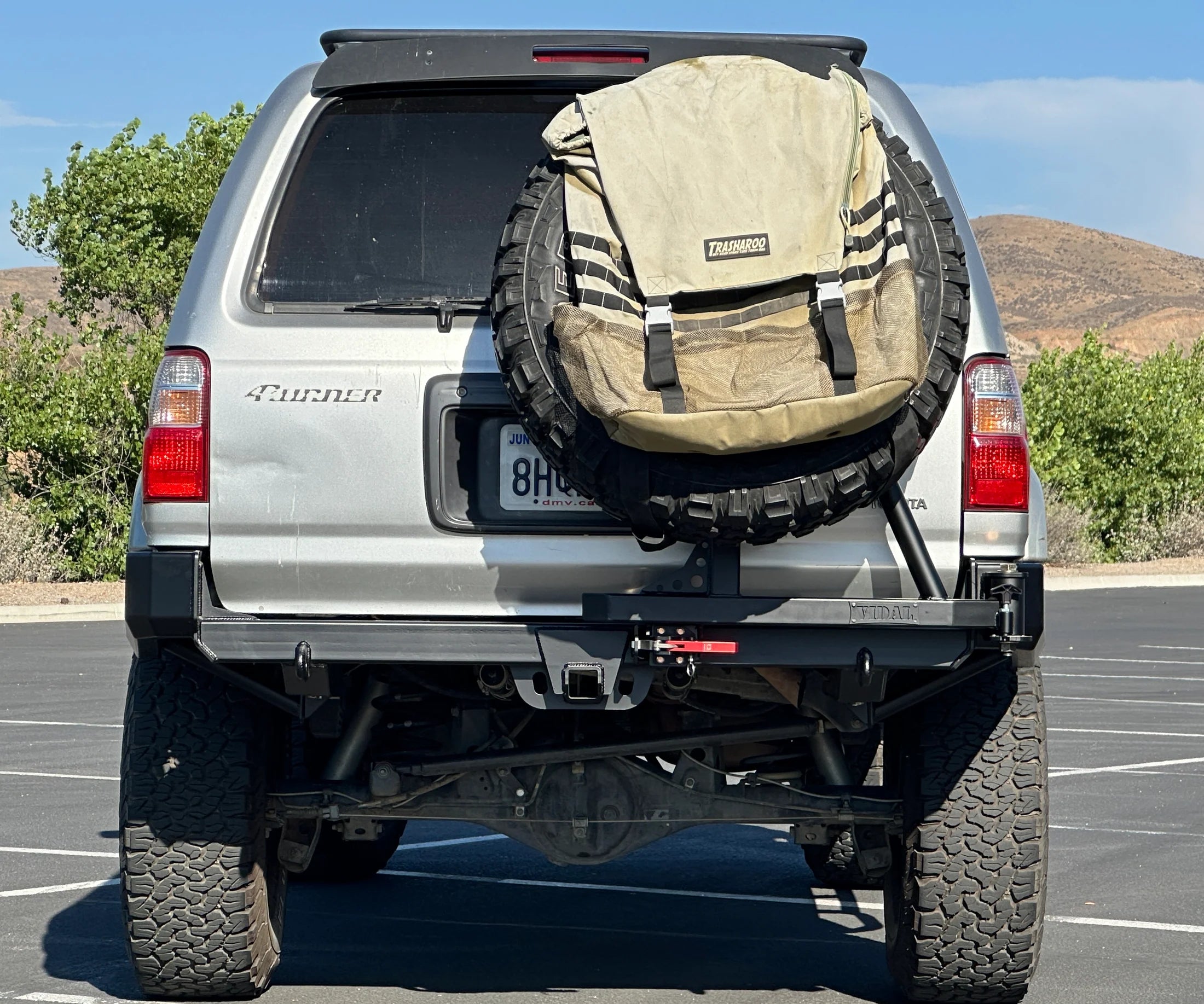

- Dual Swing out - Single/Dual Jerry Can Holder

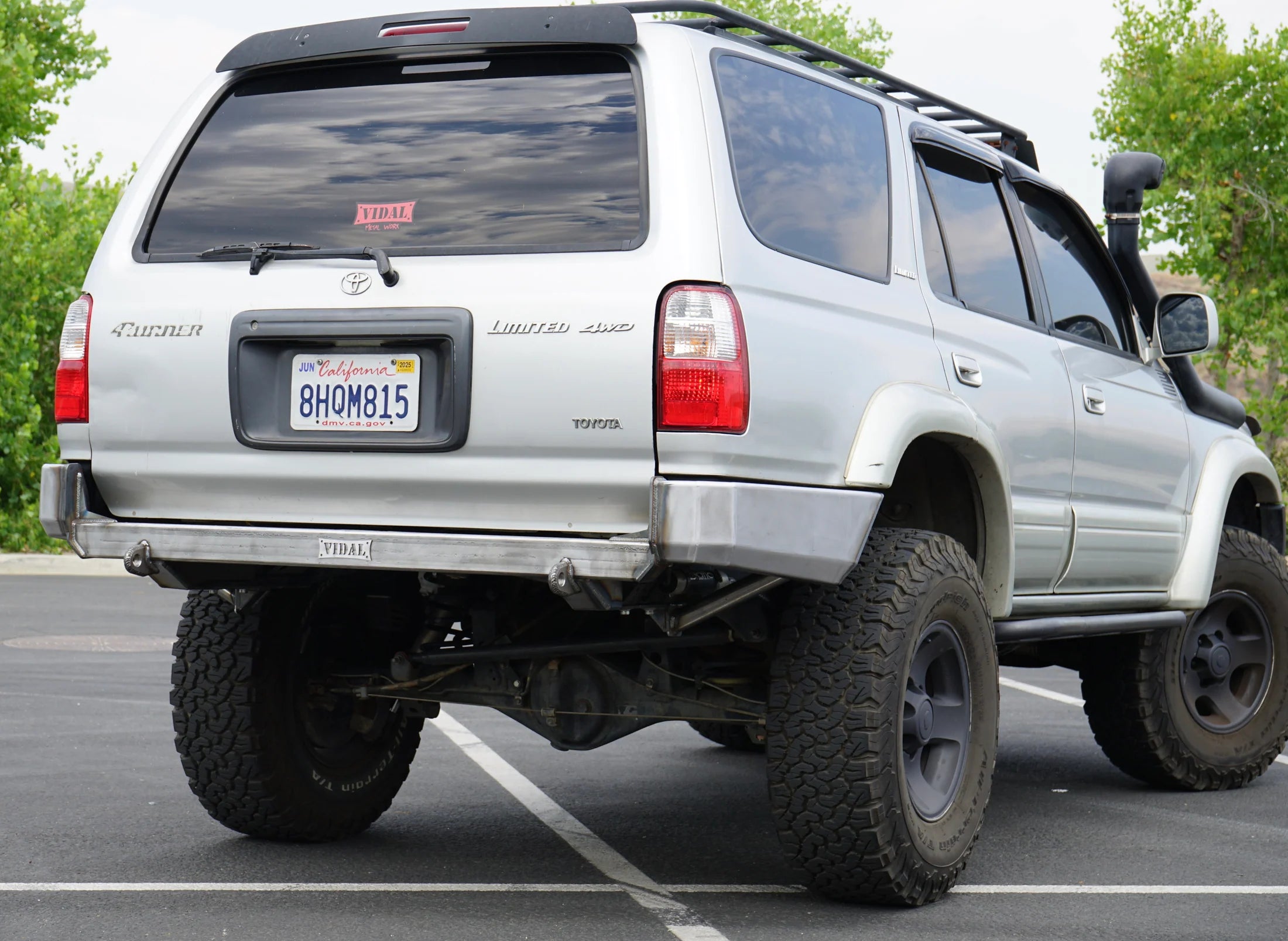

- Quarter Panel Hoops
- Hitch Receiver Tube
- Welded and ready for you to paint
Specs:
- Side Panels - Laser Cut 3/16" HRP&O
- Mounting Bracket to frame - 1/4" HRP&O
- Main Support Square Tubing - 2x3" 3/16" Square Tubing
- Quarter Panel Hoops - 1.75 x .120 DOM
Rear Body Mounts! - **Rear body mounts MUST be installed prior to installing the NIGHTHAWK rear bumper**
"Please be aware that 3rd generation 4Runners may have varying rear main frame measurements due to factors such as age, accidents, or manufacturing differences. Vidal Metal Worx considers these variations to ensure proper fitment for the NIGHTHAWK Rear Bumper. Adding an aftermarket bumper may result in excessive flex due to minimal support from the rear body mounts. For enhanced stability, Vidal Metal Worx suggests replacing the OEM rear body mounts with Energy Suspension Universal Mounts , known for effectively reducing movement for a secure fitment."
*LOCAL PICK UP AND INSTALL AVAILABLE *
*SHIPPING: Kindly be informed that to minimize shipping expenses, the NIGHTHAWK rear bumper will be delivered to your designated FedEx Freight facility. VIDAL METAL WORX is a small company, and at this time, we do not have shipping rates comparable to larger brand-name companies, which is why pickup from the FedEx Freight location is required.*
***You will receive an email or phone call when your order is ready for Local Pick Up. Please disregard "Usually ready in 5+ days" in Product page.***
Disclaimer: Towing receiver tube does not have a tow rating. Bumper is designed for off-road use only.
