Offset Chassis Link Brackets

Offset Chassis Link Brackets

One-piece offset frame link brackets for outboard mounting solutions.

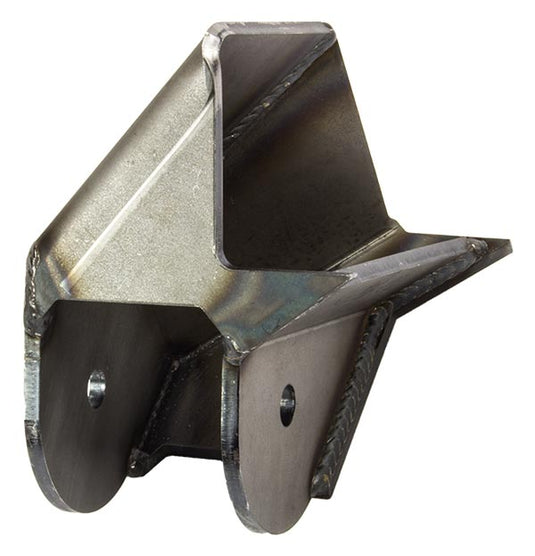

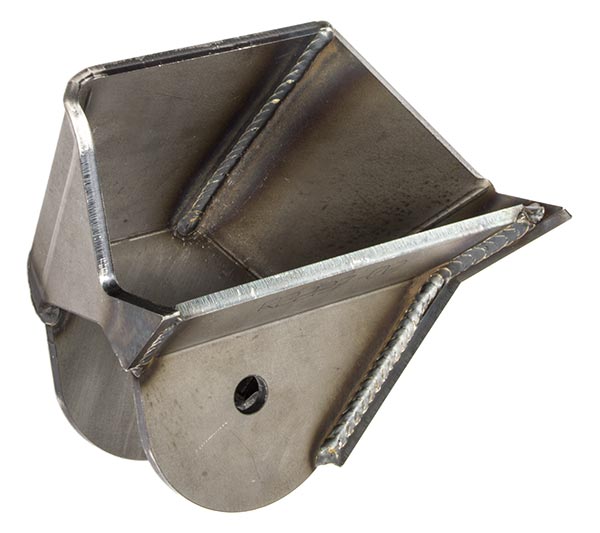

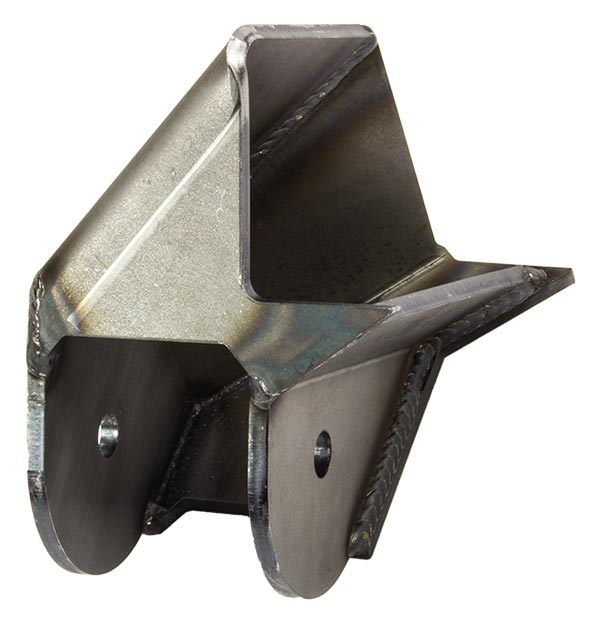

These offset chassis link brackets solve the problem of mounting lower frame-side link brackets where they can’t be placed directly under the frame. A common example is trailing arms that need to be outboarded—these brackets eliminate the need for a separate platform or heavy gusseting by combining our frame outriggers and chassis link brackets into one stronger, simpler design.

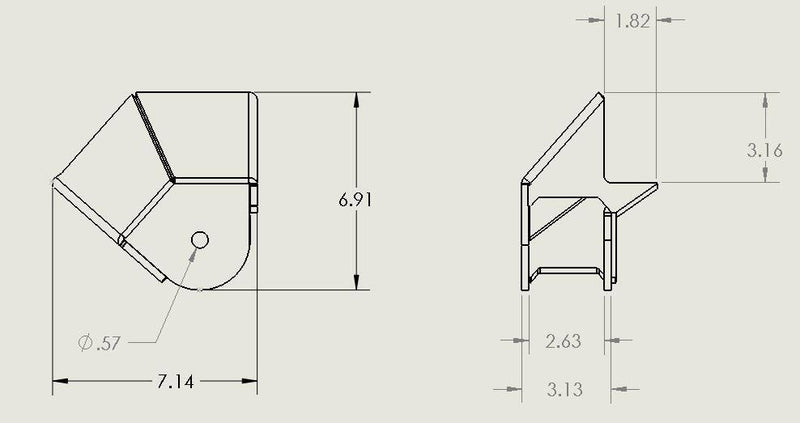

The joint mounting width can be set between 2"–3" depending on where the inside plate is welded. At the 3" width, these brackets can also be used as outboard spring hangers for Chevy and Toyota springs, while the most common width of 2.625" fits our 1.25" heims. Built from heavy-duty steel, they are sold in pairs and shipped unwelded for custom placement.

Key Features

• Part Number: R2227
• Offset design eliminates the need for separate outriggers or gussets
• Adjustable joint mounting width: 2"–3"
• Common 2.625" width fits 1.25" heims
• Can double as outboard spring hangers for Chevy/Toyota springs
• Heavy-duty steel construction

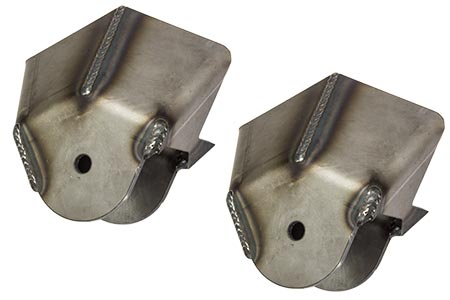

• Sold in pairs

What's Included

• (2) Offset Chassis Link Brackets

Notes

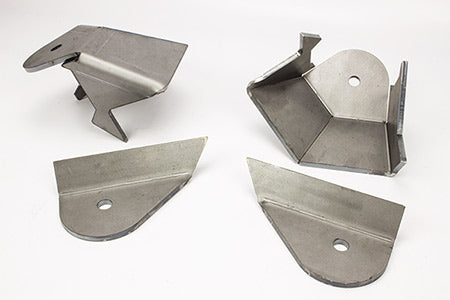

• Brackets are shipped unwelded—welding required for installation.
