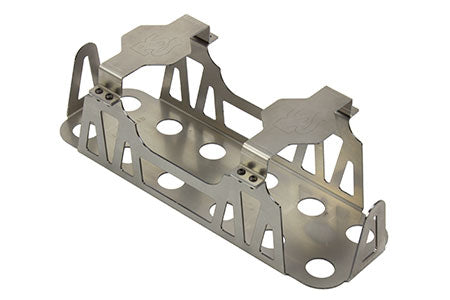

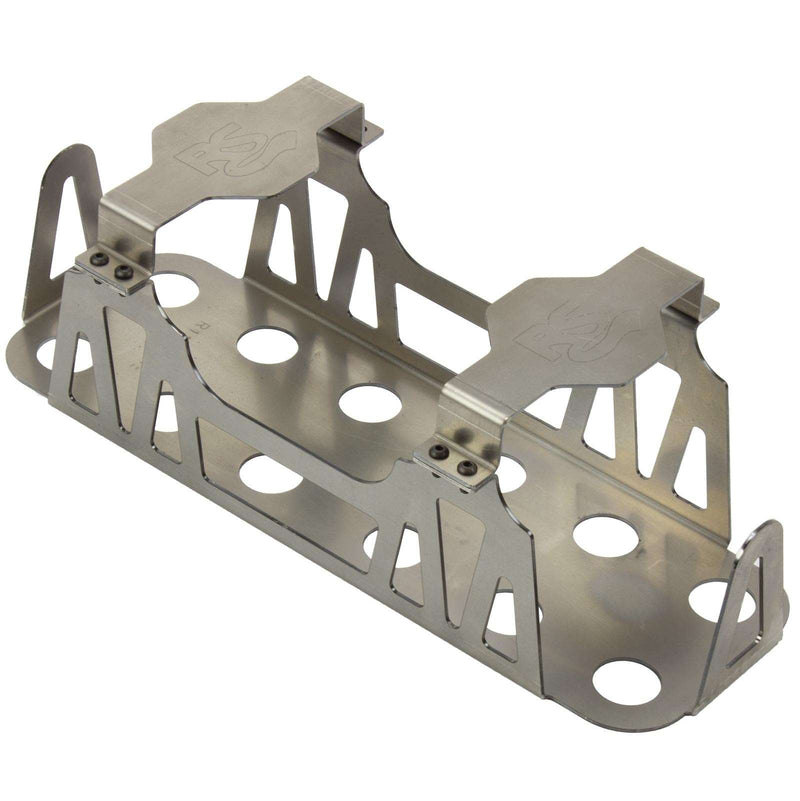

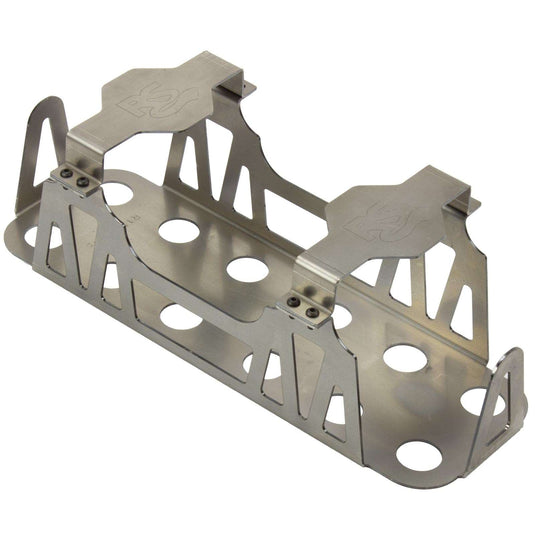

Optima Dual Battery Box, Lengthwise

Optima Dual Battery Box - Lengthwise

Heavy-duty dual battery box for Optima 34/78 batteries.

This dual battery box is built to eliminate the weak points found in many other designs. Constructed from 12-gauge steel (about 1/10" thick) with a MIG-welded center tab, it's made to withstand vibration and stress without cracking or failure. The close-tolerance fit ensures that the batteries stay secure without shifting, providing durability without unnecessary bulk or cost.

Designed specifically for Optima 34/78 batteries, the box measures 20" x 7 1/8" and holds two batteries lengthwise. The top plate is shaped to match the newer Optima style but will also work with older models. No mounting holes are pre-drilled, allowing you to weld or bolt the box in place exactly as your project requires.

Key Features

• Part Number: R1174
• Fits dual Optima Group 34/78 batteries
• Constructed from 12-gauge steel for strength
• MIG-welded center tab for durability
• Close-tolerance design prevents battery movement
• Works with both new and old Optima designs
• No pre-drilled holes for flexible installation

What's Included

• 1 - Optima Dual Battery Box – Lengthwise
• 1 - Top Plate

Notes

• Battery box dimensions: 20" x 7 1/8"
• Designed for Optima 34/78 batteries (W: 6.94" L: 10.06" H: 7.88")
• Mounting holes are not pre-drilled—weld or bolt to fit your project
