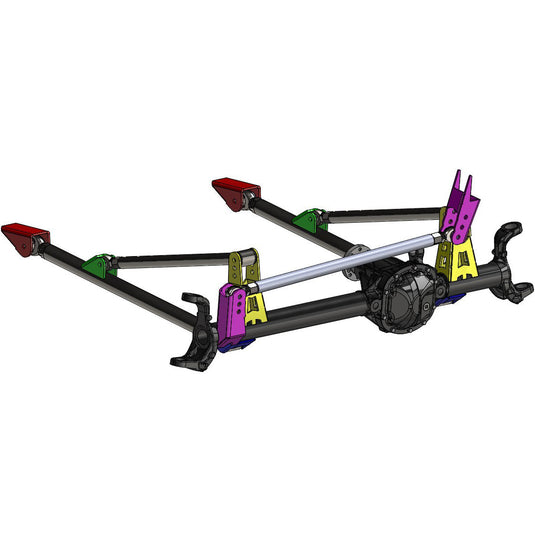

Radius Arm Link Kit with Track Bar

Radius Arm Link Kit with Track Bar

Complete DOM radius arm kit with track bar—simplifies link suspension setup and saves space.

Radius arms have long been a go-to for OEM and custom suspension setups, especially when space is limited between the frame rails. By tying the upper link into the lower arm, you eliminate the need to mount upper links to the frame, making it ideal for tight builds with clearance challenges around exhaust, motor mounts, or crossmembers. This kit expands on our long-standing radius arm setup by including a complete track bar system, giving you everything needed to center the axle and keep geometry in check.

Built from heavy-wall DOM tubing with heat-treated heims, bushings, and adjustable brackets, this kit is designed for serious trail use and long-term reliability. It includes both inside and outside frame options for the track bar, centered or offset axle brackets, and adjustable axle-side link brackets to fit your setup just right. Strong, simple, and proven.

Key Features

• Part Number: R2219
• Includes complete radius arm setup and track bar components
• DOM tubing: 2" x .25" wall and 1.5" x .25" wall for links and track bar
• Heat-treated 1.25" and 7/8" heims with 9/16" misalignment spacers
• Upper links mount to lower arms—eliminates tight frame clearance issues

What's Included

• (2) 38" of 2" x .25" wall DOM tubing (lower links)
• (2) 24" of 1.5" x .25" wall DOM tubing (upper links)
• (1) 43" of 1.5" x .25" wall DOM tubing (track bar)
• (2) 1.25" heat-treated heims w/ 9/16" misalignments
• (4) 7/8" heat-treated heims (2 with narrow 9/16" misalignments, 2 standard)
• (4) 2-5/8" wide bushed DOM sleeves with 9/16" inner sleeves
• (2) Adjustable axle mount link towers (0° or 10°, upper)
• (2) 3.0" tube radius axle brackets (0° or 10°, lower)
• (2) Radius arm brackets
• (2) Chassis link brackets (9/16" holes)
• (1) Frame-side track bar bracket (inside or outside frame mount)
• (1) Axle-side track bar bracket (center or offset mount)
• (1) Bag of 9/16" grade 8 hardware

Notes

• Tri Flow is the only approved lubricant for servicing rod ends—use of WD-40 or similar products will void warranty
