Ruffstuff 1.50" OD Steering Tube Clamp

Ruffstuff 1.50" OD Steering Tube Clamp

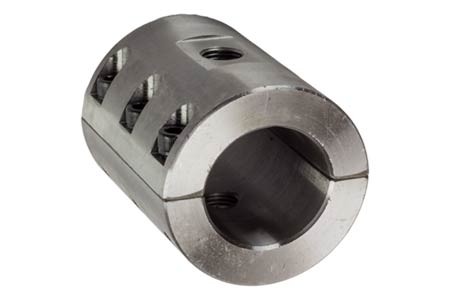

Heavy-duty 6-bolt clamp for secure mounting on 1.5" OD tubes.

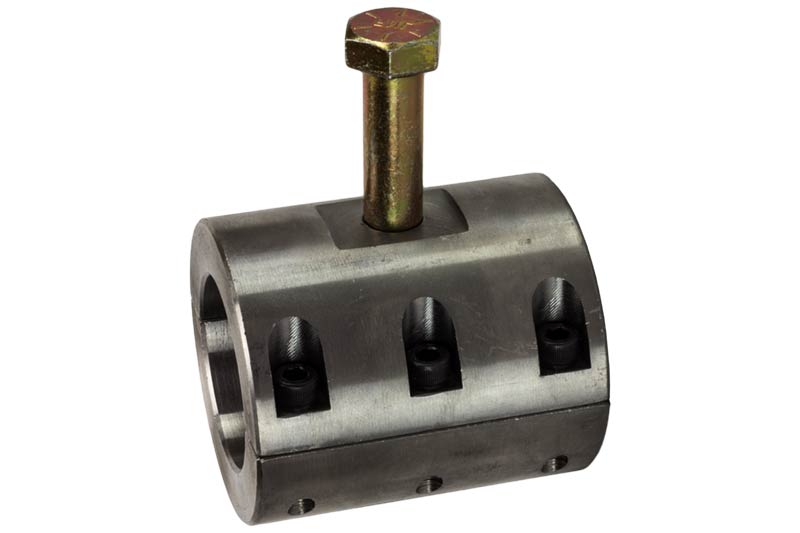

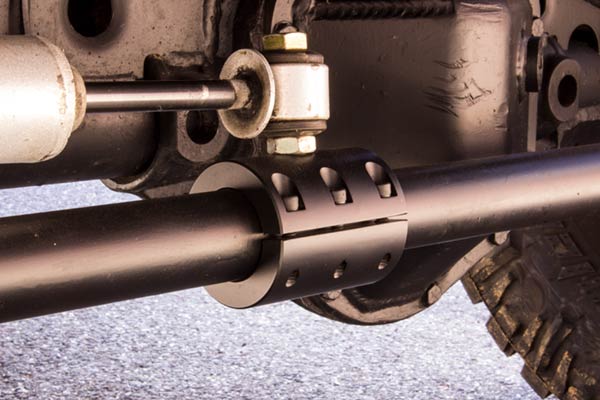

This tube clamp is perfect for mounting steering stabilizers to our steering kits, creating removable racks, engine braces, or any application requiring a removable tab or bracket. Built to handle serious loads, this clamp has been tested up to 12,000 lbs before slipping on the tube, making it ideal for demanding off-road builds.

Made from 1/2" wall DOM tube with a 1.5" ID and 2.5" OD design. Uses 1/4" allen head bolts for secure clamping. Clamp bolt torque specification is 8-10 ft-lbs. Note: 1/2x20TPI stabilizer mounting bolt not included.

Key Features

• Part Number: R1697
• Fitment: Universal - fits 1.5" OD tubes
• Material: 1/2" wall DOM steel construction
• Dimensions: 1.5" ID, 2.5" OD, 6-bolt design
• Special features: Tested to 12,000 lbs, removable mounting solution

What's Included

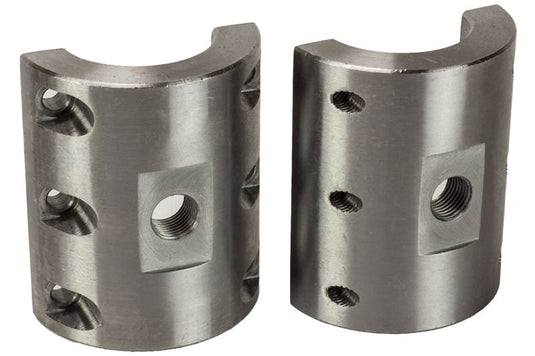

• 1x 6-bolt tube clamp
• 1/4" allen head bolts (qty as needed)

Notes

• Do not use 1/2" threaded bolt for Hydro Assist Steering applications
• Weld additional tabs for double shear when using with hydro assist mounting
• 1/2x20TPI stabilizer mounting bolt sold separately
