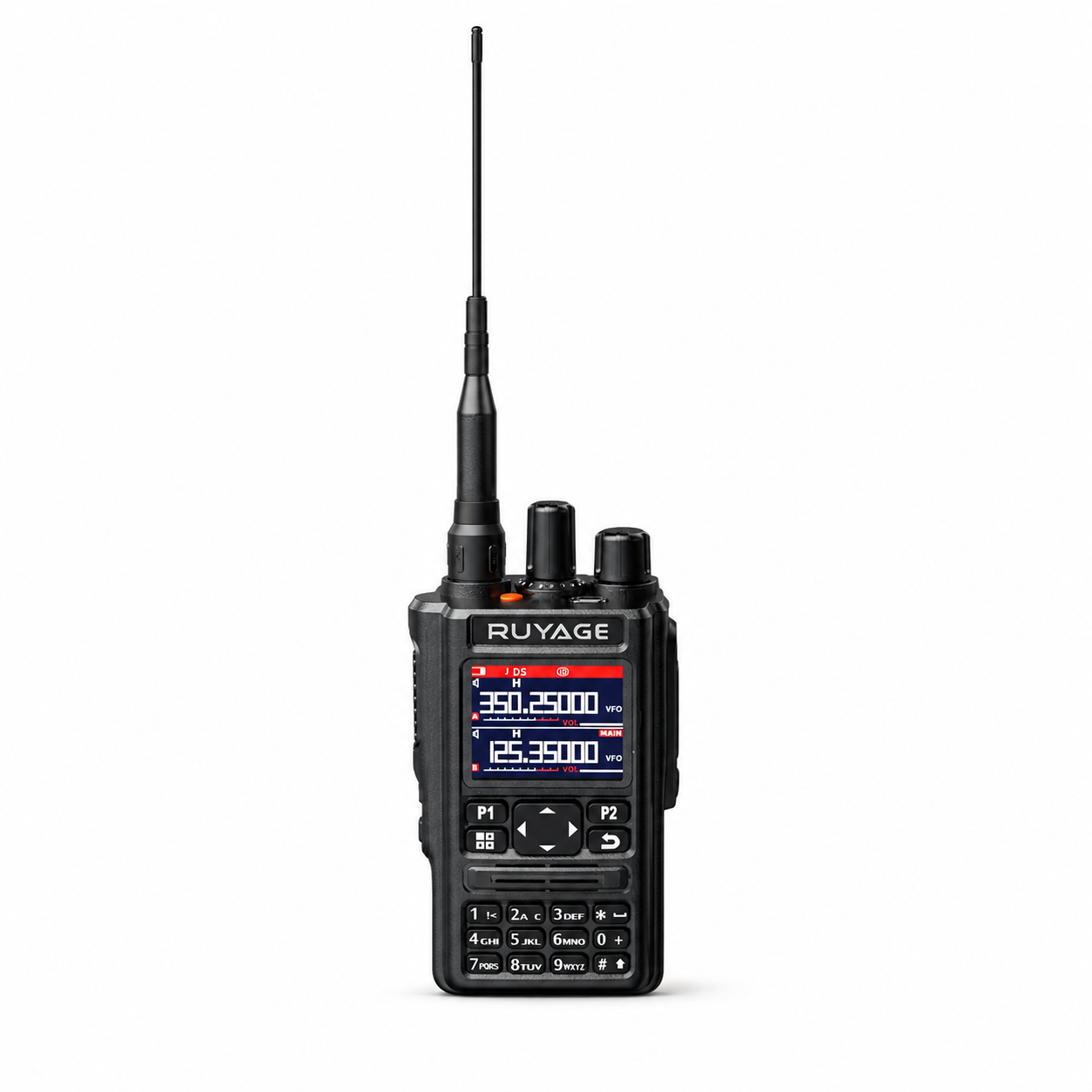

RUYAGE UV9D 6-Band GPS Bluetooth Analog Walkie Talkie

$65.69

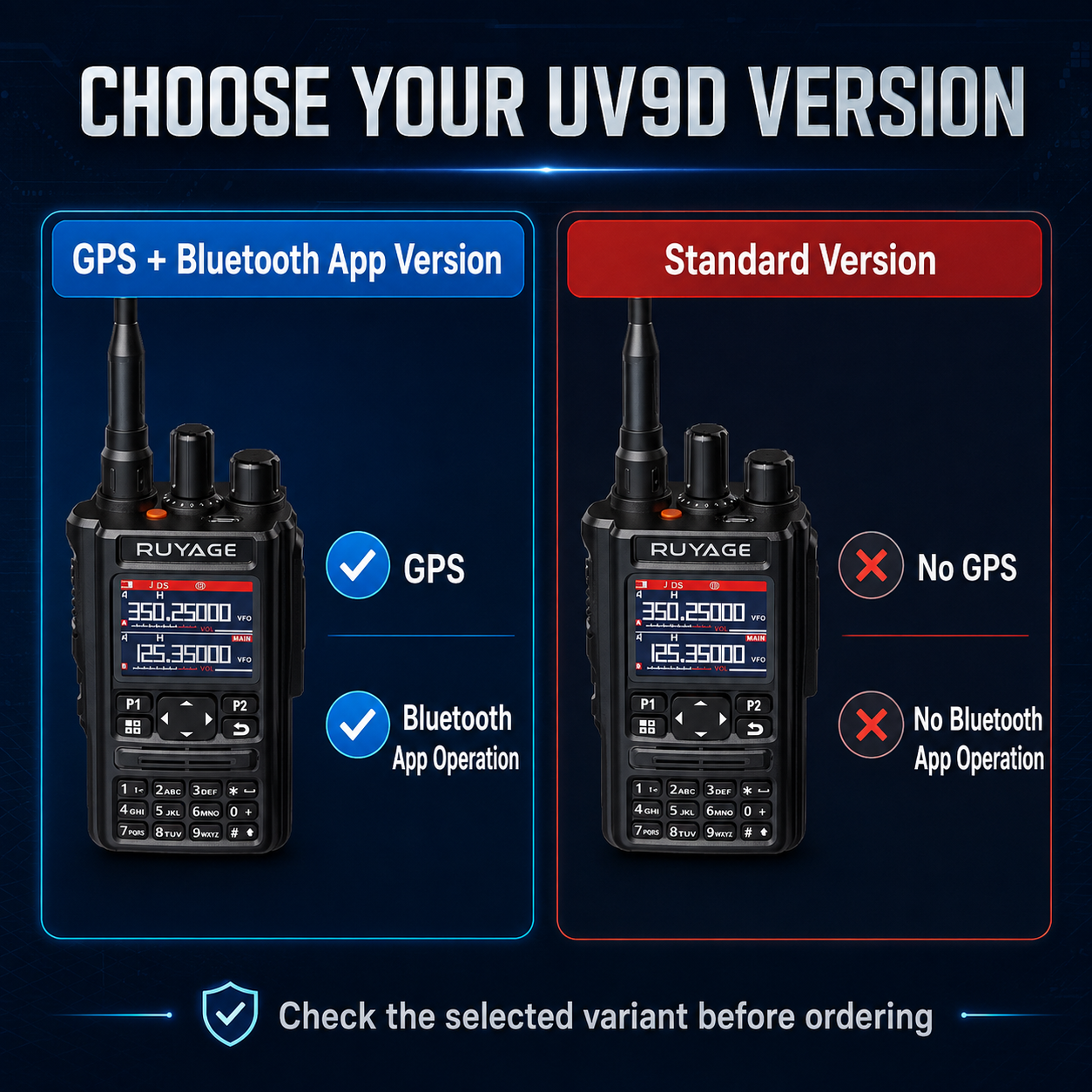

Select specification

GPS GPS

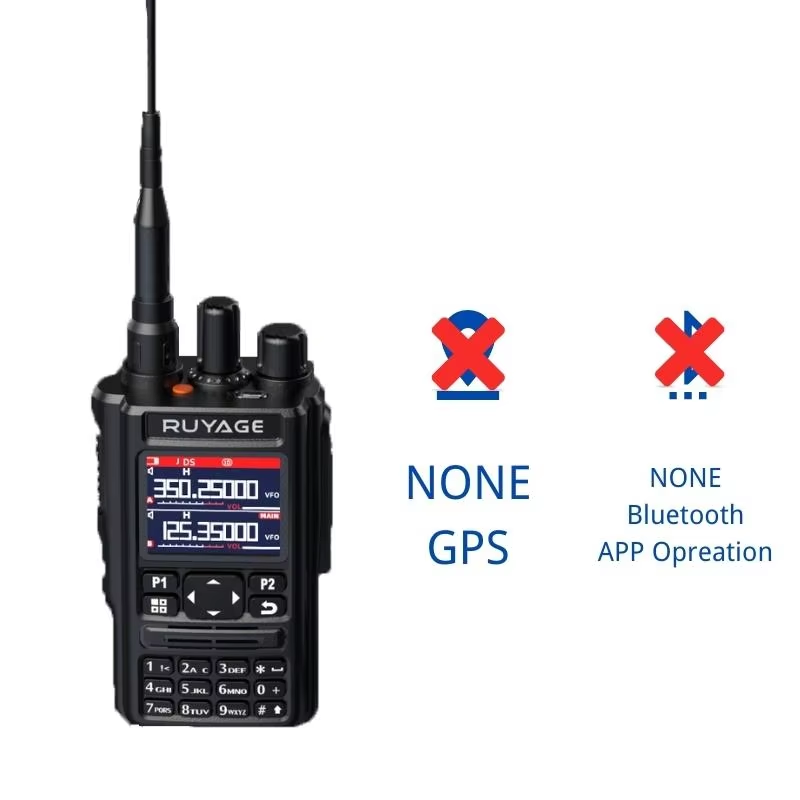

NO GPS NO GPS

Quantity

Description

The RUYAGE UV9D 6-band GPS Bluetooth analog walkie talkie combines four manufacturer-listed transmit and receive ranges with AM aviation-band and FM broadcast reception. It features 256 programmable channel memories, local GPS location viewing, Bluetooth app programming, VOX, automatic frequency matching and multiple scanning modes.

The UV9D communicates directly with compatible analog radios and does not require cellular service, WiFi, a SIM card, Zello or a monthly communication plan. Bluetooth can be used with a compatible smartphone app to configure supported radio parameters.

Available transmit frequencies and permitted power levels depend on regional firmware, programming, equipment authorization, user licence and local regulations. Frequency coverage does not authorize transmission across every listed frequency.

RUYAGE UV9D Key Features

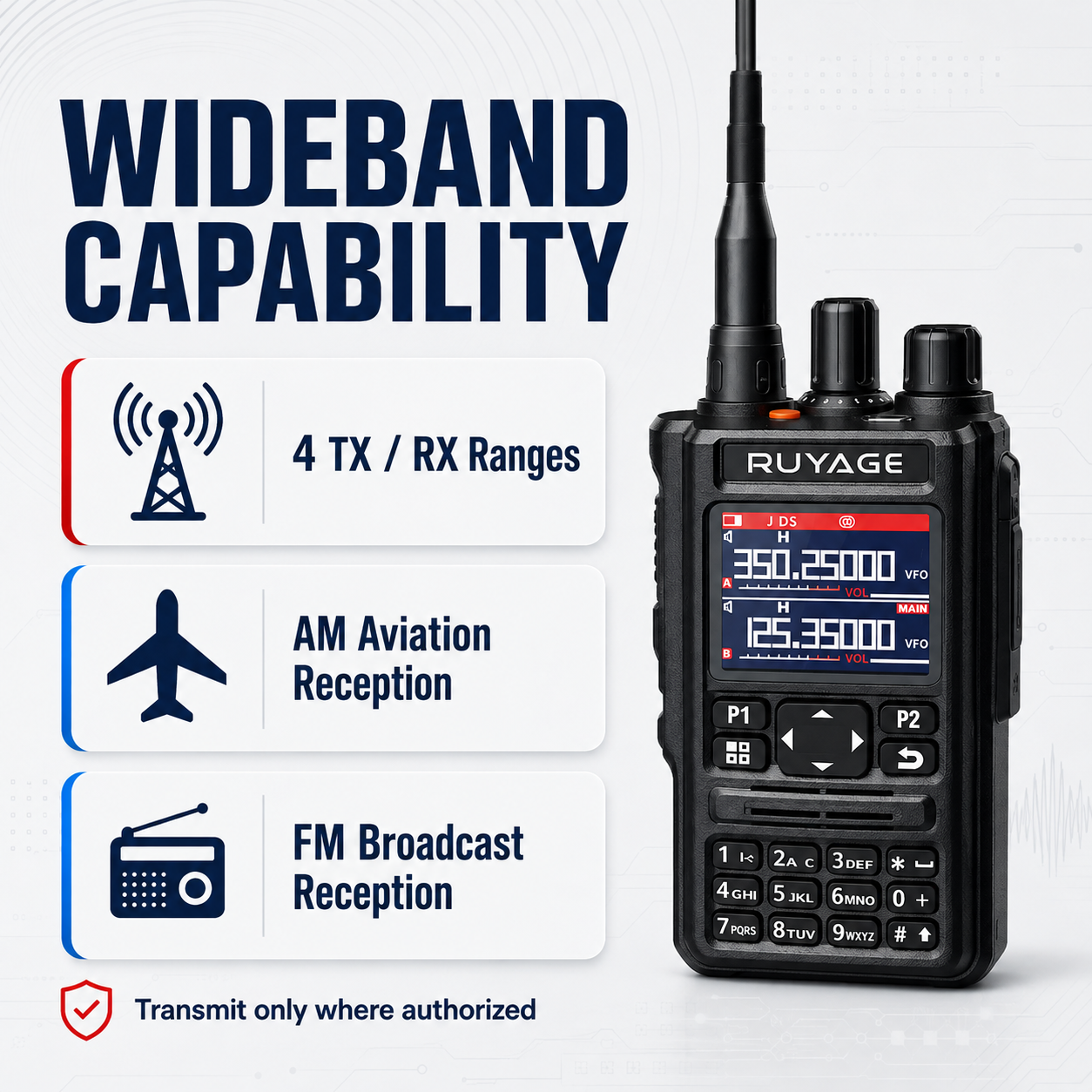

Six Listed Frequency Bands

The UV9D is marketed as a six-band radio because it combines four listed transmit and receive ranges with two additional receive-only services:

136–180 MHz: Transmit and receive
200–260 MHz: Transmit and receive
350–400 MHz: Transmit and receive
400–520 MHz: Transmit and receive
108–136 MHz AM Airband: Receive only
66–108 MHz FM Broadcast: Receive only

The UV9D should not be described as transmitting on all six bands because the AM airband and FM broadcast ranges are receive-only.

Actual transmit availability may be restricted by regional firmware, equipment certification and local spectrum regulations. Large portions of the listed ranges are not available for general or unlicensed transmission.

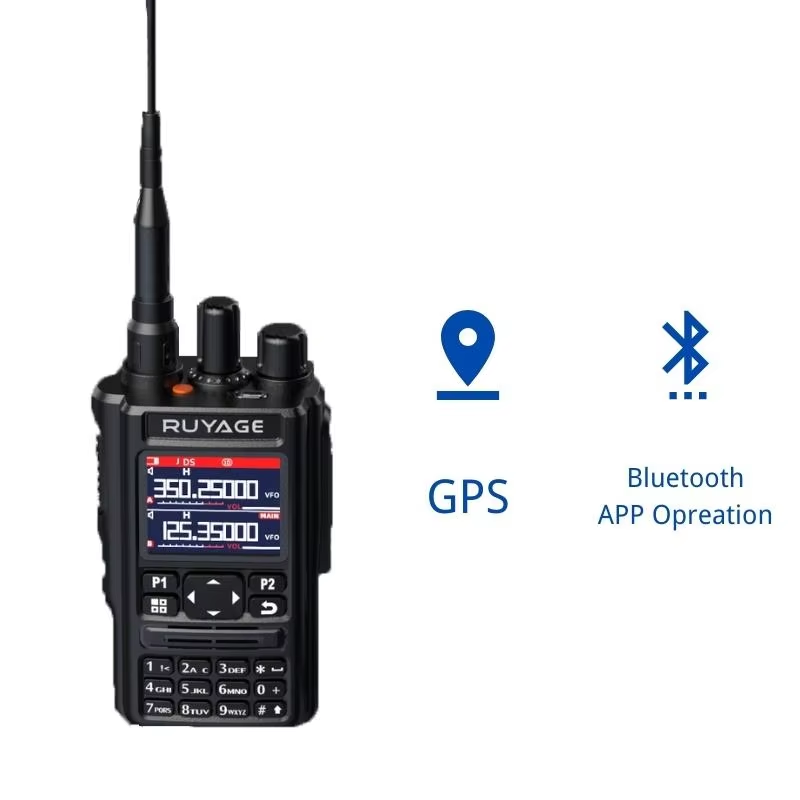

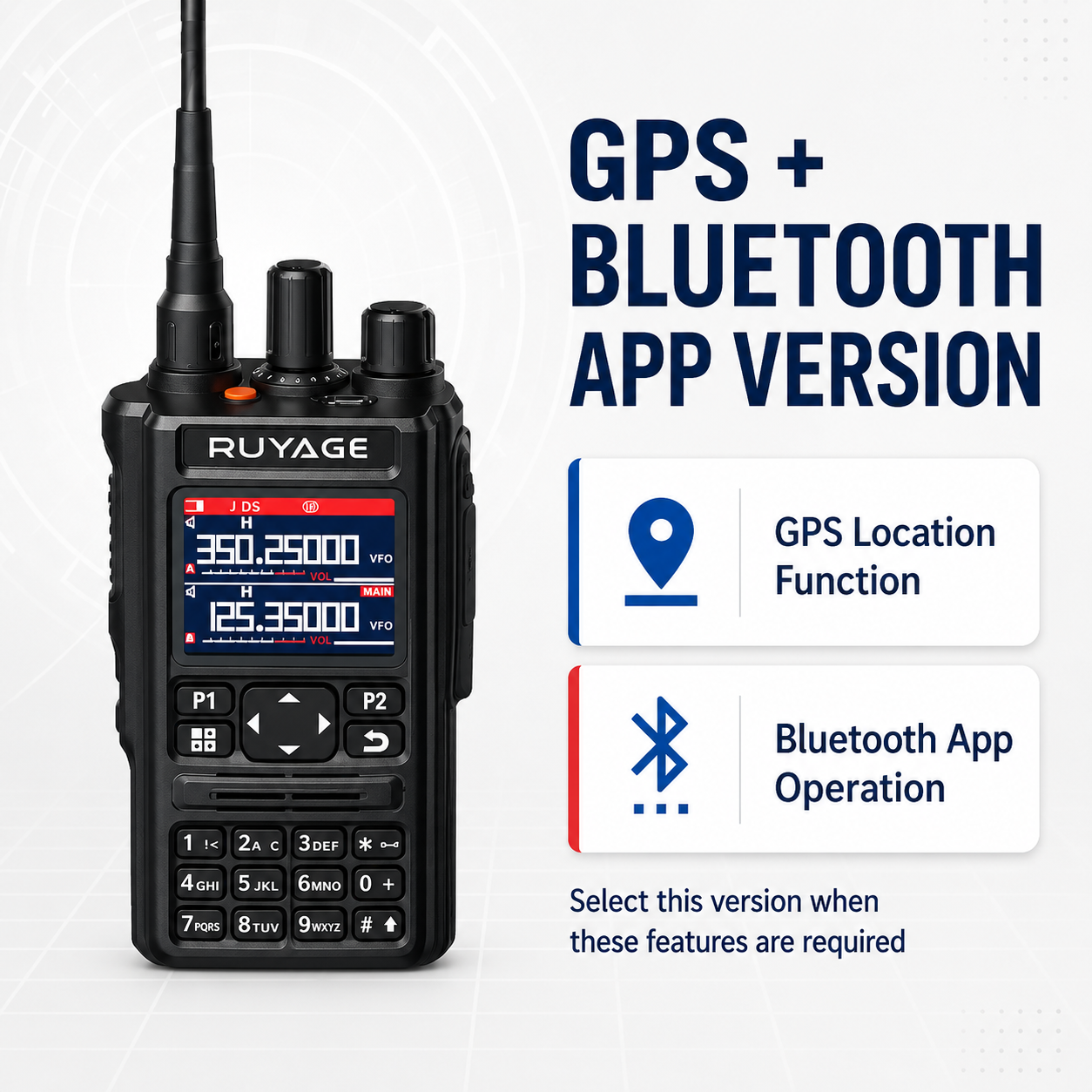

Built-In GPS Location Display

The built-in GPS receiver allows users to view the radio's location information when sufficient satellite signals are available.

Local GPS coordinate display
No cellular data required for satellite positioning
Useful for supplemental outdoor location awareness
Location information displayed through the radio interface

GPS reception generally works best outdoors with a clear view of the sky. Buildings, terrain, antenna position and satellite availability can affect acquisition time and accuracy.

The supplied specifications do not confirm remote GPS tracking, automatic position transmission, team-location sharing or app-based map tracking. The feature should therefore be advertised as GPS location viewing, not real-time GPS tracking.

Bluetooth Smartphone App Programming

Bluetooth connectivity allows supported UV9D settings to be configured using a compatible smartphone and programming app.

Wireless Bluetooth connection
Compatible channel and frequency configuration
Supported parameter adjustment from a smartphone
No programming cable required for supported app functions

App availability, operating-system compatibility and supported settings may vary by hardware and firmware version. Customers should be given the exact official app name, download source and setup instructions before purchase.

Bluetooth is used for supported radio programming. It should not be advertised as Bluetooth audio, headset support or wireless voice communication unless those functions are separately confirmed.

256 Programmable Channel Memories

Store and organize up to 256 channel memories, arranged as two manufacturer-listed groups of 128 memories.

256 channel memory capacity
Frequency display mode
Channel-number display mode
Channel-name display mode
Editable channel parameters
Channel storage and organization

The 256-channel capacity describes the number of memory positions in the radio. It does not mean that 256 frequencies are automatically licensed or authorized for transmission.

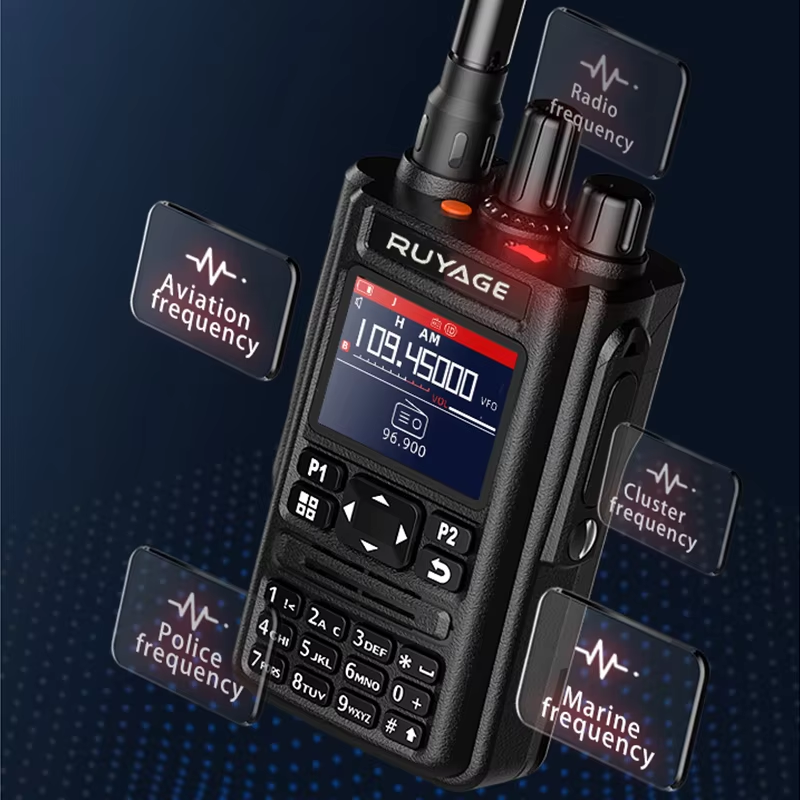

AM Airband Receive-Only Function

The UV9D supports AM aviation-band reception from 108–136 MHz, allowing users to receive compatible civil aviation communications where monitoring is legally permitted.

108–136 MHz AM reception
Receive-only aviation-band function
Compatible aviation communication monitoring
No cellular or internet connection required

The airband feature is receive-only. Never transmit on aviation frequencies, and always comply with the reception and monitoring laws applicable in your location.

66–108 MHz FM Broadcast Radio

The built-in FM receiver provides access to compatible FM broadcast stations within the listed 66–108 MHz coverage range.

FM reception depends on local broadcast availability, antenna position, terrain, interference and regional frequency allocation.

Automatic Frequency Matching

The automatic frequency-matching function helps detect compatible analog frequency and signaling settings from a nearby radio, making supported setup faster and more convenient.

Compatible analog frequency detection
Supported signaling detection
Convenient radio-to-radio configuration
Useful for matching compatible analog radios

Successful matching depends on signal strength, modulation, bandwidth, signaling and radio compatibility. Detecting or copying a frequency does not authorize transmission on that frequency.

Dual Watch and Dual Frequency Display

The UV9D can display two configured frequencies or channels and use dual watch to monitor activity across two selected settings.

Dual frequency or channel display
Dual-watch monitoring
Frequency, channel and channel-name modes
Automatic backlight control

Dual watch normally alternates monitoring between two configured settings. It should not be described as playing two received audio signals simultaneously unless that behavior is confirmed by the applicable manual.

CTCSS and DCS Tone Signaling

The UV9D includes 50 CTCSS tones and 105 DCS codes for use with compatible analog radio systems.

50 CTCSS tone settings
105 DCS code settings
Compatible tone-squelch filtering
Flexible group configuration

CTCSS and DCS can filter unwanted received audio, but they do not create a private channel, prevent interference or encrypt a transmission.

Frequency-Hopping Voice Privacy Function

The manufacturer lists a frequency-hopping voice privacy function for use between compatible radios configured with matching settings.

This function should not be advertised as secure, military-grade or cryptographic encryption unless its algorithm, key management and security certification are documented. It may reduce casual intelligibility but should not be used for confidential, safety-critical or legally protected communications.

VOX Hands-Free Operation

The VOX function allows voice-operated transmission without pressing the push-to-talk button each time.

VOX sensitivity and performance depend on microphone position, background noise, audio level and menu configuration. VOX should not be relied upon in situations where accidental transmission could create a safety or privacy risk.

Three Scanning Modes

The UV9D provides three manufacturer-listed scanning behaviors for locating compatible active channels and signals.

Time-operated scan
Carrier-operated scan
Search scan

Scanning performance depends on programmed ranges, step size, squelch, signal strength and firmware settings.

Flexible Channel and Frequency Configuration

The UV9D includes multiple settings for compatible radio and repeater configurations.

Frequency and channel mode switching
Editable channel parameters
Frequency offset adjustment
Offset-direction selection
DTMF signaling
Computer programming support
Eight selectable frequency steps

The listed frequency steps are 2.5, 5, 6.25, 10, 12.5, 20, 25 and 50 kHz. Available settings may depend on the selected band and firmware.

High and Low Power Selection

Selectable high and low power settings allow users to balance radio performance and battery consumption.

High and low power selection
Flexible battery management
Direct radio-to-radio communication
No cellular network required

The exact rated maximum RF output is not confirmed in the supplied specifications. Although the current URL and search listing use “10W,” do not promise a specific output until the applicable manual or a documented RF test confirms it for the exact hardware version being sold.

Control and Alert Functions

The UV9D includes several everyday radio control and alert functions.

Local emergency alarm
Transmission time-out timer
Busy channel lockout
Low-battery warning
Battery-voltage display
Power-saving mode
Automatic backlight control
Customizable startup display

The emergency alarm is a local radio function. It does not contact emergency services, transmit a GPS location to a rescue center or replace a mobile phone, satellite messenger, emergency beacon or certified life-safety device.

Suitable for Radio and Outdoor Applications

When properly programmed to compatible and authorized frequencies, the UV9D can support a variety of radio and monitoring applications.

Licensed amateur radio operation where permitted
Radio monitoring and enthusiast use
Camping, hiking and outdoor activities
Property and field communication
Compatible licensed event and team communication
Aviation-band and FM broadcast reception
Emergency preparedness and backup communication

No confirmed waterproof or IP rating has been provided. Keep the radio dry and protect it from rain, immersion and excessive moisture.

RUYAGE UV9D Specifications

Brand	RUYAGE
Model	UV9D
Radio Type	6-Band Analog Handheld Two-Way Radio with GPS and Bluetooth
Communication Method	Direct Analog Radio-to-Radio Communication
Listed Transmit / Receive Coverage	136–180 MHz 200–260 MHz 350–400 MHz 400–520 MHz
Receive-Only Coverage	108–136 MHz AM Airband 66–108 MHz FM Broadcast
Transmit Availability	Depends on Regional Version, Programming, Equipment Authorization, User Licence and Local Regulations
Power Selection	High / Low
Rated Maximum RF Output	Not Confirmed in the Supplied Product Specifications
Channel Capacity	256 Channel Memories / Two Groups of 128
GPS Function	Local GPS Location Information Display
Remote GPS Tracking	Not Confirmed
Bluetooth	Compatible Smartphone App Programming
Bluetooth Audio	Not Confirmed
Airband Function	108–136 MHz AM Aviation-Band Reception Only
FM Radio	66–108 MHz FM Broadcast Reception
Automatic Frequency Matching	Supported for Compatible Analog Signals and Radios
Monitoring	Dual Watch / Time Scan / Carrier Scan / Search Scan
CTCSS	50 Tone Settings
DCS	105 Code Settings
Additional Signaling	DTMF
Voice Privacy	Manufacturer-Listed Frequency-Hopping Function; Not Confirmed as Cryptographic Encryption
VOX	Supported
Frequency Steps	2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz
Programming	Bluetooth Smartphone App / Computer Programming
Display Modes	Frequency / Channel Number / Channel Name
Battery Capacity	Not Provided in the Supplied Specifications
Charging Method	Not Provided in the Supplied Specifications
Cellular Service Required	No
WiFi Required	No
Water Resistance	No Confirmed Waterproof or IP Rating

Frequently Asked Questions

Is the RUYAGE UV9D an analog or digital radio?

The UV9D is an analog handheld two-way radio. It is not listed as a DMR digital radio, PoC radio or Zello radio.

Does the UV9D transmit on all six listed bands?

No. The UV9D has four manufacturer-listed transmit and receive ranges. The 108–136 MHz AM airband and 66–108 MHz FM broadcast ranges are receive-only.

Does the UV9D have 10W output?

The current product URL and search listing use “10W,” but the supplied technical specifications only confirm high and low power selection. Verify the exact hardware version using the official manual or a documented RF output test before promising 10W.

Can the UV9D track another person's GPS location?

The supplied information only confirms local GPS location viewing. Remote tracking, position transmission and team-location sharing are not confirmed.

What can the UV9D Bluetooth function do?

Bluetooth is listed for compatible smartphone app programming and wireless parameter adjustment. Bluetooth headset audio and radio voice streaming are not confirmed.

Can the UV9D receive aviation communications?

The UV9D has listed AM airband reception from 108–136 MHz. This is a receive-only function. Never transmit on aviation frequencies.

Does the UV9D provide secure encrypted communication?

The manufacturer lists a frequency-hopping voice privacy function, but no cryptographic algorithm, key management or security certification has been provided. It should not be treated as secure encryption.

Do CTCSS and DCS create private channels?

No. CTCSS and DCS can mute unwanted received audio but do not prevent other compatible radios from receiving a transmission.

Can the UV9D communicate with other analog radios?

It may communicate with compatible analog radios when both devices use the same authorized frequency, modulation, bandwidth and signaling settings. Wide frequency coverage alone does not guarantee compatibility.

Does the UV9D require cellular service or WiFi?

No. The UV9D communicates directly with compatible analog radios and does not require cellular data, WiFi, a SIM card or a monthly PoC subscription.

Is the RUYAGE UV9D waterproof?

No confirmed waterproof or IP rating has been provided. Keep the radio, battery and charging accessories dry.

Does the UV9D require a radio licence?

Licensing requirements depend on the country, programmed frequency, transmit power, equipment authorization and intended use. The UV9D should not be advertised as universally licence-free.

Important Frequency, GPS and Safety Notice

The RUYAGE UV9D is a programmable multi-band radio. Frequency coverage does not authorize transmission across every supported range.

Users are responsible for lawful programming, licensing and operation. Do not transmit on aviation, emergency-service, public-safety, government, maritime, broadcast or other restricted frequencies without authorization.

GPS location information should be treated as a supplemental navigation aid. It does not replace a dedicated navigation device, emergency beacon, satellite messenger or certified life-safety communication system.
