The RUYAGE UV6D 6 band VHF/UHF analog walkie talkie with GPS combines three manufacturer-listed transmit ranges with segmented wideband reception from 50–560 MHz. It features 999 programmable channel memories, local GPS location display, AM aviation-band reception, FM broadcast radio, wireless frequency copy, dual watch, VOX and USB Type-C charging.

The UV6D communicates directly with compatible analog radios and does not require cellular service, WiFi, a SIM card, Zello or a monthly communication plan. The built-in GPS function can display the radio's location information when sufficient satellite signals are available.

Available transmit frequencies and permitted power levels depend on the regional version, programming, equipment authorization, user licence and local regulations. Receiving or programming coverage does not authorize transmission across every listed frequency.

RUYAGE UV6D Key Features

6 Band Transmit and Receive Coverage

The RUYAGE UV6D provides manufacturer-listed transmit and receive capability across three frequency ranges:

• 136–173.975 MHz
• 350–399.975 MHz
• 400–469.975 MHz

This makes the UV6D more accurately described as a 6 band analog handheld radio. It should not be advertised as transmitting continuously from 136–560 MHz because parts of that range are listed as receive-only.

Actual transmit availability may be restricted by regional firmware, programming, certification and local spectrum regulations. Large portions of the listed ranges are not available for general or unlicensed transmission.

50–560 MHz Segmented Wideband Reception

In addition to the three listed transmit ranges, the UV6D provides broad segmented reception across multiple VHF and UHF frequency ranges.

• 50–76 MHz reception
• 65–108 MHz FM broadcast reception
• 108–136 MHz AM aviation-band reception
• 136–173.975 MHz transmit and receive
• 174–349.975 MHz receive-only coverage
• 350–399.975 MHz transmit and receive
• 400–469.975 MHz transmit and receive
• 470–560 MHz receive-only coverage

Reception performance depends on frequency, modulation, antenna, signal strength, terrain, interference and regional firmware. Wideband reception does not mean that every signal within the coverage range can be received equally well.

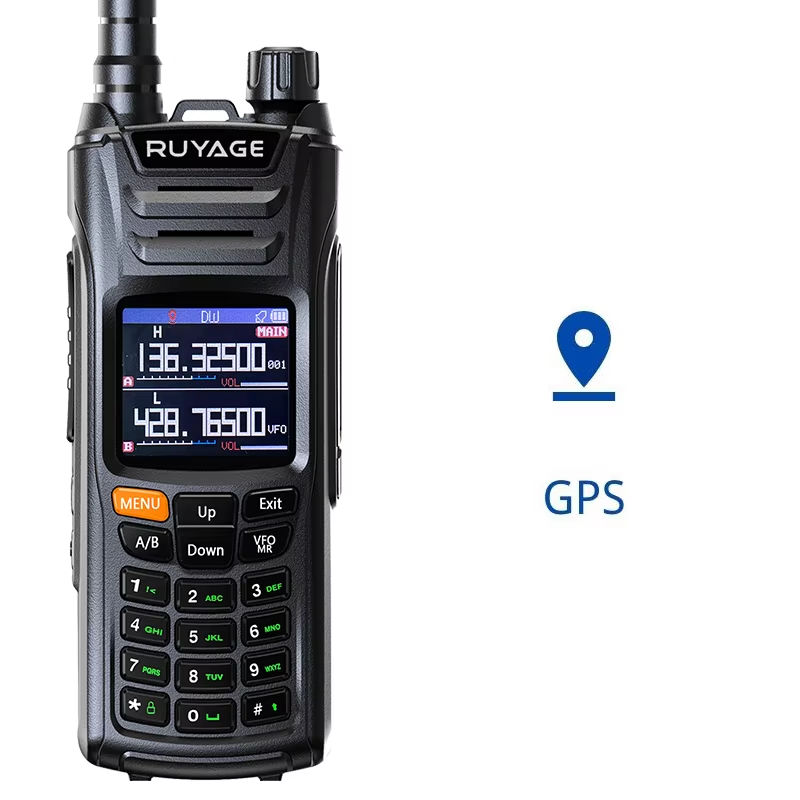

Built-In GPS Location Display

The built-in GPS receiver allows users to view the radio's current location information directly from the UV6D menu.

To access the listed GPS function: Menu → GPS System → Location Information → Open.

• Local GPS coordinate display
• No cellular network required for satellite positioning
• Useful for outdoor location awareness
• Location information displayed directly on the radio

GPS reception generally works best outdoors with a clear view of the sky. Buildings, terrain, weather, antenna position and satellite availability can affect acquisition time and accuracy.

The supplied specifications do not confirm remote GPS tracking, automatic position transmission, team-location sharing or location reporting to an app. The GPS function should therefore be advertised as GPS location viewing, not as real-time GPS tracking.

999 Programmable Channel Memories

Store and organize up to 999 channel memories for compatible frequencies, signaling settings and operating configurations.

• 999 channel memory capacity
• Frequency, channel and channel-name display modes
• Channel scanning and storage
• Channel addition and deletion
• Flexible organization for radio users and teams

The 999-channel capacity describes the number of memory positions in the radio. It does not mean that 999 frequencies are automatically licensed or authorized for transmission.

AM Airband Receive-Only Function

The UV6D supports AM aviation-band reception from 108–136 MHz, allowing users to receive compatible civil aviation communications where monitoring is legally permitted.

• 108–136 MHz AM reception
• Receive-only aviation-band function
• Compatible aviation communication monitoring
• No cellular or internet connection required

The airband feature is receive-only. Never transmit on aviation frequencies, and always comply with the reception and monitoring laws applicable in your location.

65–108 MHz FM Broadcast Radio

The built-in FM receiver provides access to compatible FM broadcast stations within the listed 65–108 MHz coverage range.

FM reception depends on local broadcast availability, antenna position, terrain, interference and regional frequency allocation.

Wireless Frequency Copy

The wireless frequency-copy function helps detect compatible analog frequency and signaling settings from a nearby radio, making supported configuration faster and more convenient.

• Compatible analog frequency detection
• Supported tone and signaling detection
• Convenient radio-to-radio setup
• No computer required for supported copying functions

Successful copying depends on signal strength, modulation, bandwidth, signaling and radio compatibility. Copying a detected frequency does not authorize transmission on that frequency.

Wireless Radio Replication

The UV6D includes manufacturer-listed wireless replication compatibility with supported UV3D radios. This can help copy selected programming settings without configuring every compatible radio individually.

Compatibility may depend on hardware version, firmware and programming. Because the UV3D and UV6D have different channel capacities and functions, do not assume that every setting can be transferred between them.

Listed Cross-Band Communication Mode

The UV6D includes a manufacturer-listed cross-band transmit and receive mode for compatible and properly programmed configurations.

Exact operation depends on firmware, selected bands and menu settings. This function should not be described as an automatic cross-band repeater unless the official manual confirms that the radio automatically receives a signal on one band and retransmits it on another.

Dual Display and Dual Watch

The large LCD screen can display two configured frequencies or channels, while the dual-watch function helps monitor activity across two selected settings.

• Dual frequency or channel display
• Dual-watch monitoring
• Frequency, channel and channel-name modes
• Automatic backlight control
• Voice prompts and keypad lock

Dual watch normally alternates monitoring between two configured settings. It should not be described as playing two received audio signals simultaneously unless that behavior is confirmed by the applicable manual.

VOX and Analog Signaling Functions

The UV6D provides multiple analog signaling and operating functions for compatible radio systems.

• VOX voice-operated transmission
• CTCSS and DCS signaling
• DTMF tone support
• 1750Hz call tone
• Adjustable squelch
• Wide and narrow bandwidth selection
• Frequency and channel mode switching
• Offset-frequency settings

CTCSS and DCS can help filter unwanted received audio, but they do not encrypt a transmission or prevent other compatible radios from receiving it.

PC Programmable Settings

The RUYAGE UV6D supports PC programming for managing compatible channels, frequencies and radio settings.

• Channel and frequency configuration
• CTCSS and DCS settings
• Wide and narrow bandwidth selection
• Scan and busy-channel settings
• Custom channel organization

Programming software and cable compatibility may vary by hardware version. Do not advertise full CHIRP compatibility unless it has been verified for the exact RUYAGE UV6D hardware and firmware version being sold.

Local Alarm and Work-Alone Functions

The UV6D includes manufacturer-listed automatic and manual alert options, local or remote alarm settings and a work-alone function.

• Automatic and manual radio alert
• Manufacturer-listed local or remote alarm function
• Work-alone timer function
• Busy channel lock
• Transmission time-out timer
• Keypad lock

Exact alarm behavior depends on radio programming and compatibility. These functions do not contact emergency services, transmit a GPS location to a rescue center or replace a certified lone-worker or life-safety system.

1600mAh Rechargeable Battery

The included 1600mAh rechargeable lithium-ion battery supports portable everyday operation.

• 1600mAh rechargeable lithium-ion battery
• USB Type-C charging support
• Desktop charging-base support
• Removable battery design

Actual operating and standby time depends on transmit power, battery age, GPS use, scanning, display use, audio volume, temperature and the amount of time spent transmitting.

Suitable for Radio and Outdoor Applications

When properly programmed to compatible and authorized frequencies, the UV6D can support a range of radio and monitoring applications.

• Licensed amateur radio operation where permitted
• Radio monitoring and enthusiast use
• Camping, hiking and outdoor activities
• Property and field communication
• Compatible licensed event and team communication
• Aviation-band and FM broadcast reception
• Emergency preparedness and backup communication

No confirmed waterproof or IP rating has been provided. Keep the radio dry and protect it from rain, immersion and excessive moisture.

RUYAGE UV6D Specifications

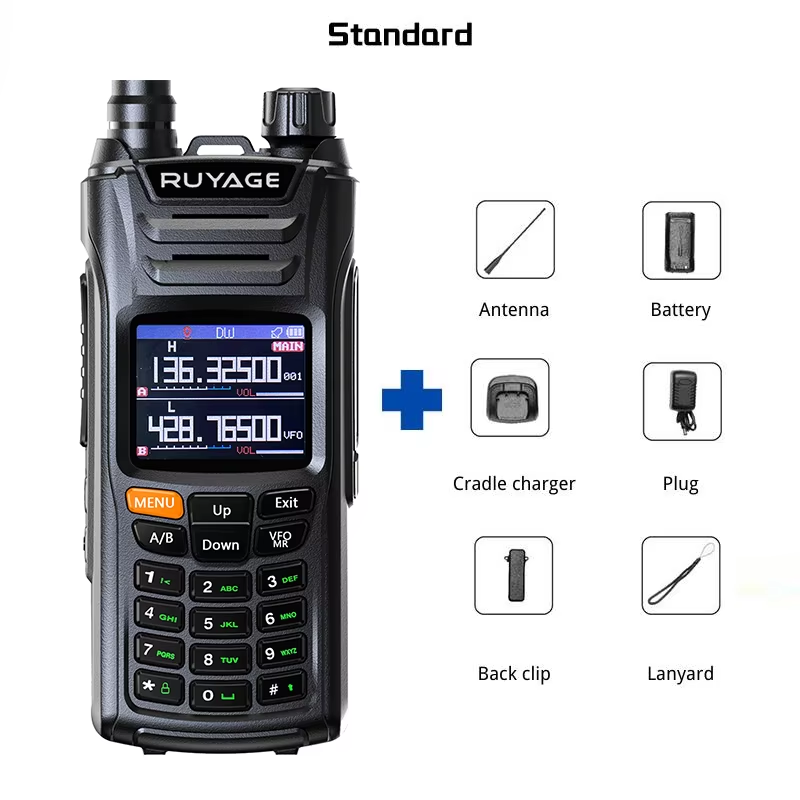

Package Includes

• 1 × RUYAGE UV6D Analog Walkie Talkie
• 1 × 1600mAh Rechargeable Lithium-Ion Battery
• 1 × Antenna
• 1 × Desktop Charging Base
• 1 × Belt Clip
• 1 × User Manual

USB cables, power adapters and charger-plug types may vary by destination or selected product option. Confirm the exact package contents and local plug compatibility before ordering.

Frequently Asked Questions

Is the RUYAGE UV6D an analog or digital radio?

The UV6D is an analog handheld two-way radio. It is not listed as a DMR digital radio, PoC radio or Zello radio.

Does the UV6D transmit continuously from 136–560 MHz?

No. The specifications list transmission across 136–173.975 MHz, 350–399.975 MHz and 400–469.975 MHz. The 174–349.975 MHz and 470–560 MHz ranges are listed as receive-only.

Is the UV6D a tri-band or six-band radio?

The product is marketed as a multi-band or six-band radio, but the supplied specifications identify three transmit ranges. For customer clarity, it is more accurately described as a tri-band analog transmitter with segmented wideband reception.

Does the UV6D have 10W output?

The current product URL and search listing use “10W,” while other historical listings have used different wattage claims. The supplied technical specifications do not confirm an exact maximum RF output. Confirm the applicable hardware version using the official manual or a documented RF test before promising 10W.

Can the UV6D track another person's location?

The supplied information only confirms that the radio can display its own GPS location information. Remote tracking, position transmission and team-location sharing are not confirmed.

Does GPS require cellular service?

Satellite positioning does not normally require cellular data, WiFi or a SIM card. The radio needs sufficient satellite reception, which generally works best outdoors with a clear view of the sky.

Can the UV6D receive aviation communications?

The UV6D has listed AM airband reception from 108–136 MHz. This is a receive-only function. Never transmit on aviation frequencies.

Does the UV6D work as a cross-band repeater?

A cross-band transmit and receive mode is listed, but automatic relay behavior depends on firmware and programming. Repeater operation should be confirmed in the official manual before being promised.

Can the UV6D communicate with other analog radios?

It may communicate with compatible analog radios when both devices use the same authorized frequency, modulation, bandwidth and signaling settings. Wide frequency coverage alone does not guarantee compatibility.

Does the UV6D require cellular service or WiFi?

No. The UV6D communicates directly with compatible analog radios and does not require cellular data, WiFi, a SIM card or a monthly PoC subscription.

Does the UV6D provide encrypted communication?

No secure cryptographic encryption is listed. CTCSS and DCS can filter unwanted received audio but do not prevent other compatible radios from receiving the transmission.

Is the RUYAGE UV6D waterproof?

No confirmed waterproof or IP rating has been provided. Keep the radio, battery and charging accessories dry.

Does the UV6D require a radio licence?

Licensing requirements depend on the country, programmed frequency, transmit power, equipment authorization and intended use. The UV6D should not be advertised as universally licence-free.

Important Frequency, GPS and Safety Notice

The RUYAGE UV6D is a programmable multi-band radio. Receiving or programming coverage does not authorize transmission across every available frequency.

Users are responsible for lawful programming, licensing and operation. Do not transmit on aviation, emergency-service, public-safety, government, maritime or other restricted frequencies without authorization.

GPS location information should be treated as a supplemental navigation aid. It does not replace a dedicated navigation device, emergency beacon, satellite messenger or certified life-safety communication system.
