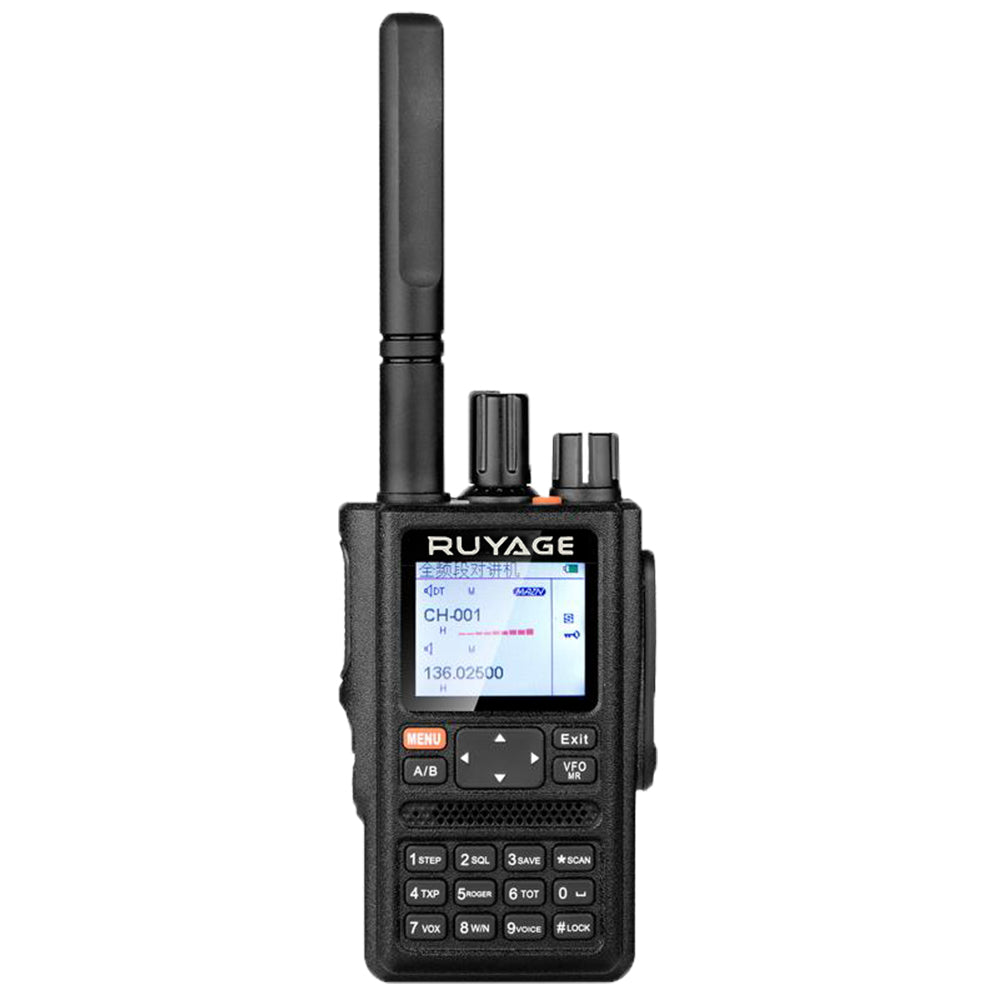

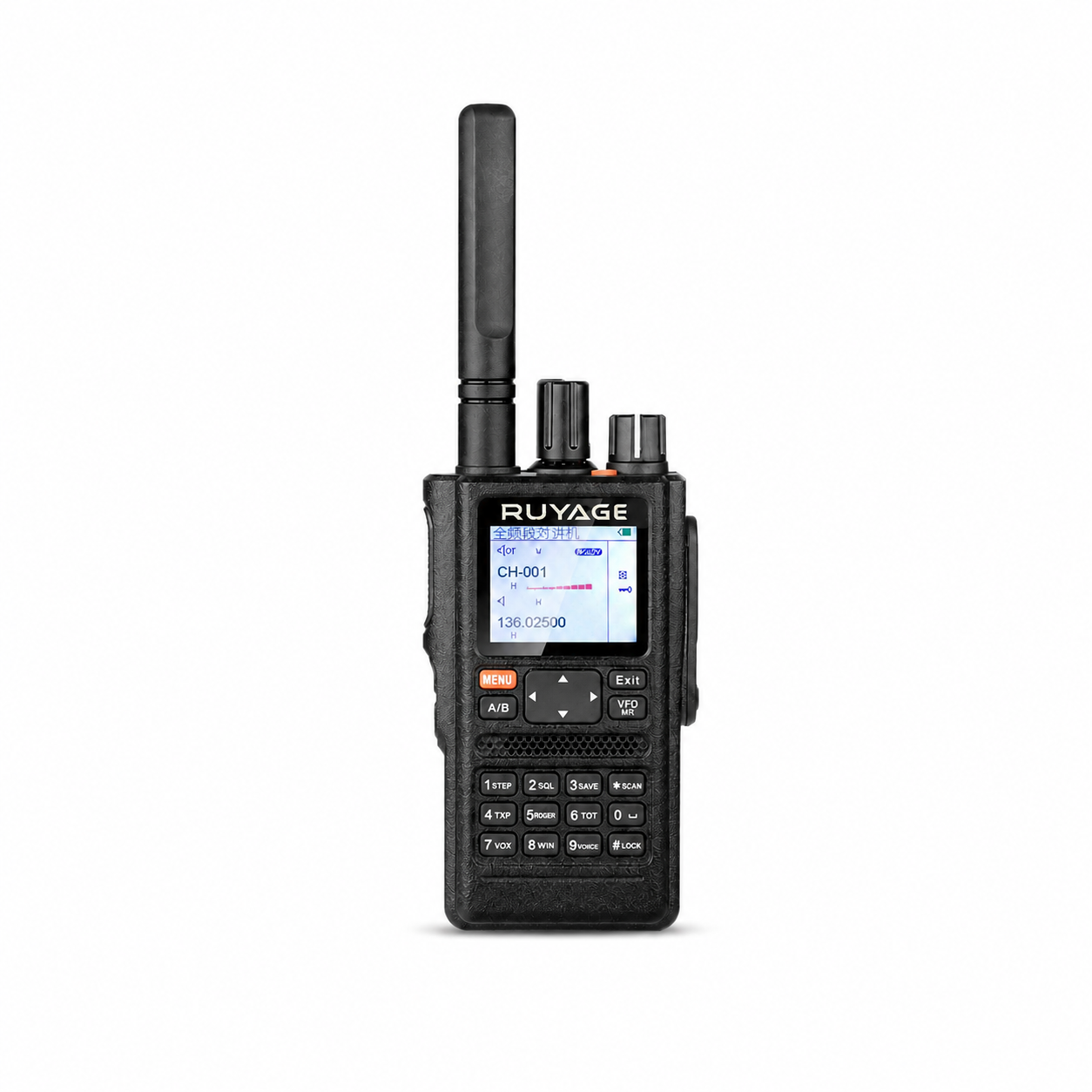

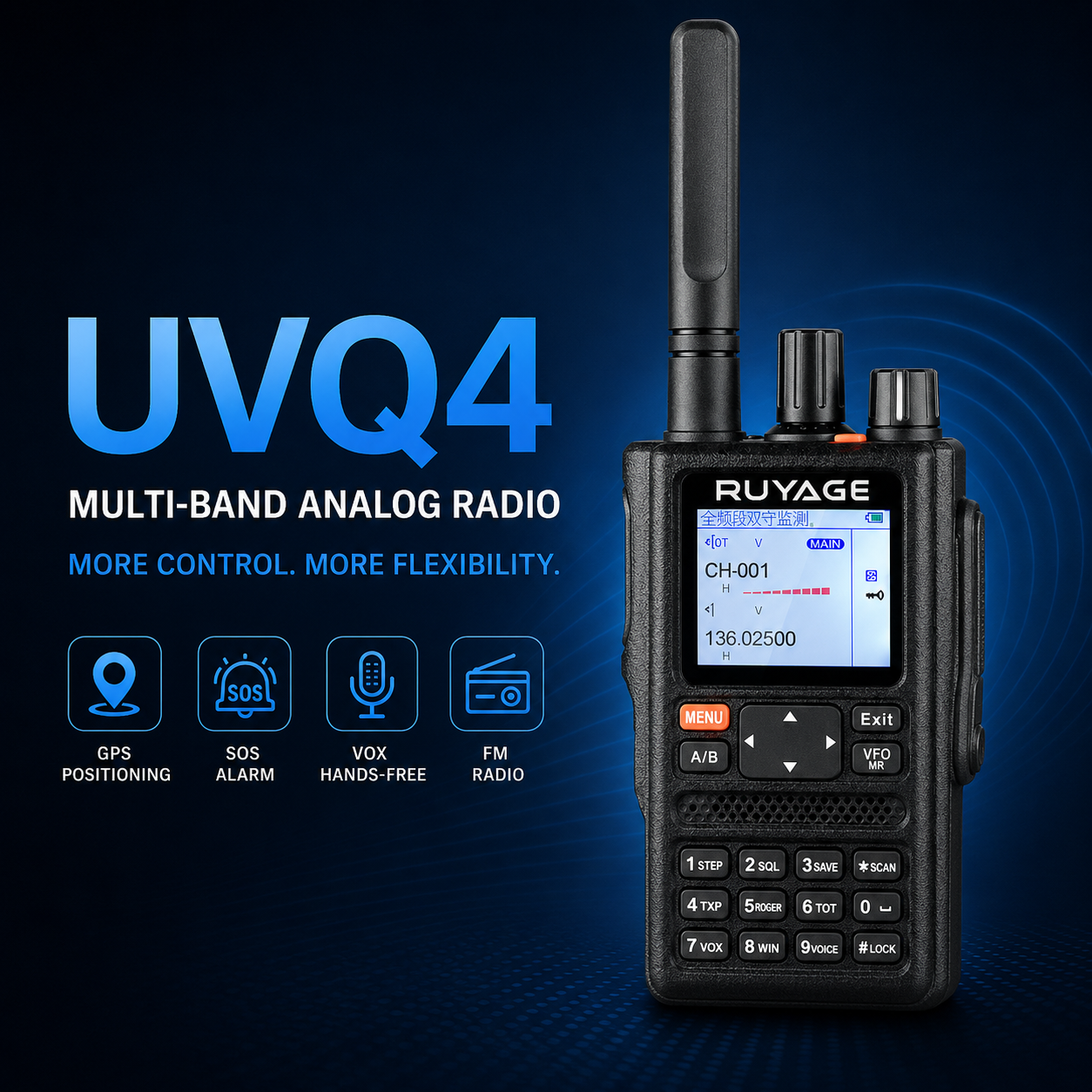

RUYAGE UVQ4 6-Band GPS Analog Walkie Talkie

The RUYAGE UVQ4 is a feature-rich 6-band GPS analog walkie talkie designed for radio enthusiasts, outdoor users and professional teams that need flexible, direct radio-to-radio communication.

Featuring built-in GPS functionality, 999 programmable channel memories, a 1.77-inch color LCD display, frequency scanning, VOX hands-free operation, CTCSS/DCS signaling and an SOS alert, the UVQ4 combines advanced radio controls in a portable handheld design.

As an analog two-way radio, the UVQ4 communicates directly with compatible radios and does not require cellular service, WiFi, a SIM card or a Push-to-Talk app. Frequency availability and permitted transmission depend on the regional version, radio configuration and local regulations.

---

Key Features

6-Band Frequency Coverage

The UVQ4 provides wide multi-band frequency coverage divided across the following listed ranges:

• 136–174MHz
• 175–220MHz
• 230–250MHz
• 300–350MHz
• 350–400MHz
• 400–520MHz

This broad coverage gives experienced users flexible frequency management for compatible radio applications.

Important: The listed hardware frequency coverage does not mean that every frequency is available for transmission. Depending on the regional model, firmware, equipment authorization and programmed configuration, some frequencies may be receive-only, restricted or unavailable.

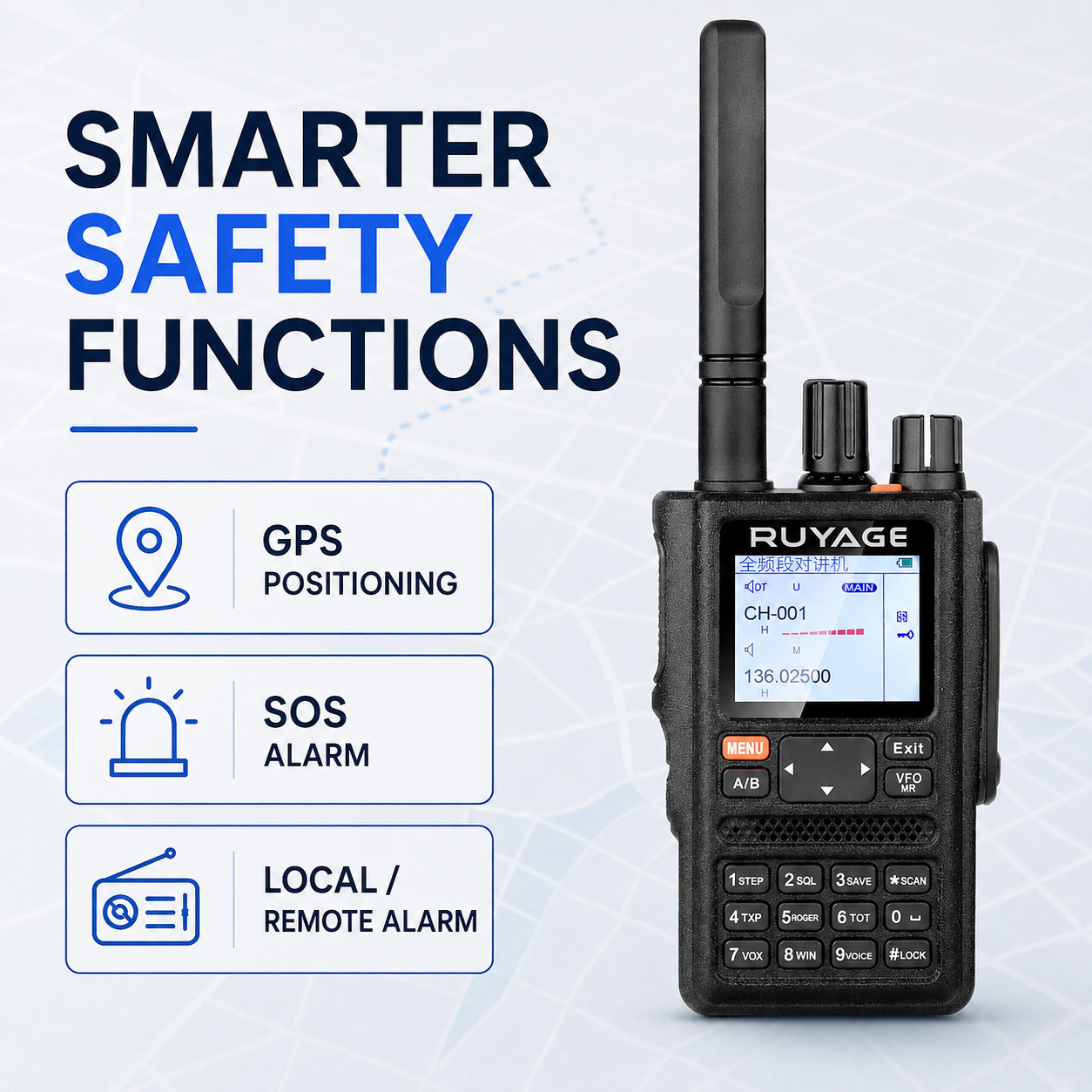

Built-In GPS Location Function

The integrated GPS function supports location information for outdoor activities, field operations and other situations where position awareness may be useful.

• Built-in satellite positioning function
• Useful for outdoor and field communication
• Supports compatible GPS information features
• No cellular network required for basic GPS reception

Available coordinate display or position-sharing functions may depend on the firmware and radio configuration. The UVQ4 should not be described as providing live fleet tracking, satellite messaging or automatic emergency location sharing unless those functions are confirmed in the product manual.

999 Programmable Channel Memories

Store and organize up to 999 programmable channel memories for different frequencies, teams and radio configurations.

• Large channel memory capacity
• Convenient organization of programmed frequencies
• Fast switching between saved channels
• Suitable for experienced radio users and multi-group communication

The 999-channel specification refers to memory capacity and does not mean that 999 separate frequencies are automatically authorized for transmission.

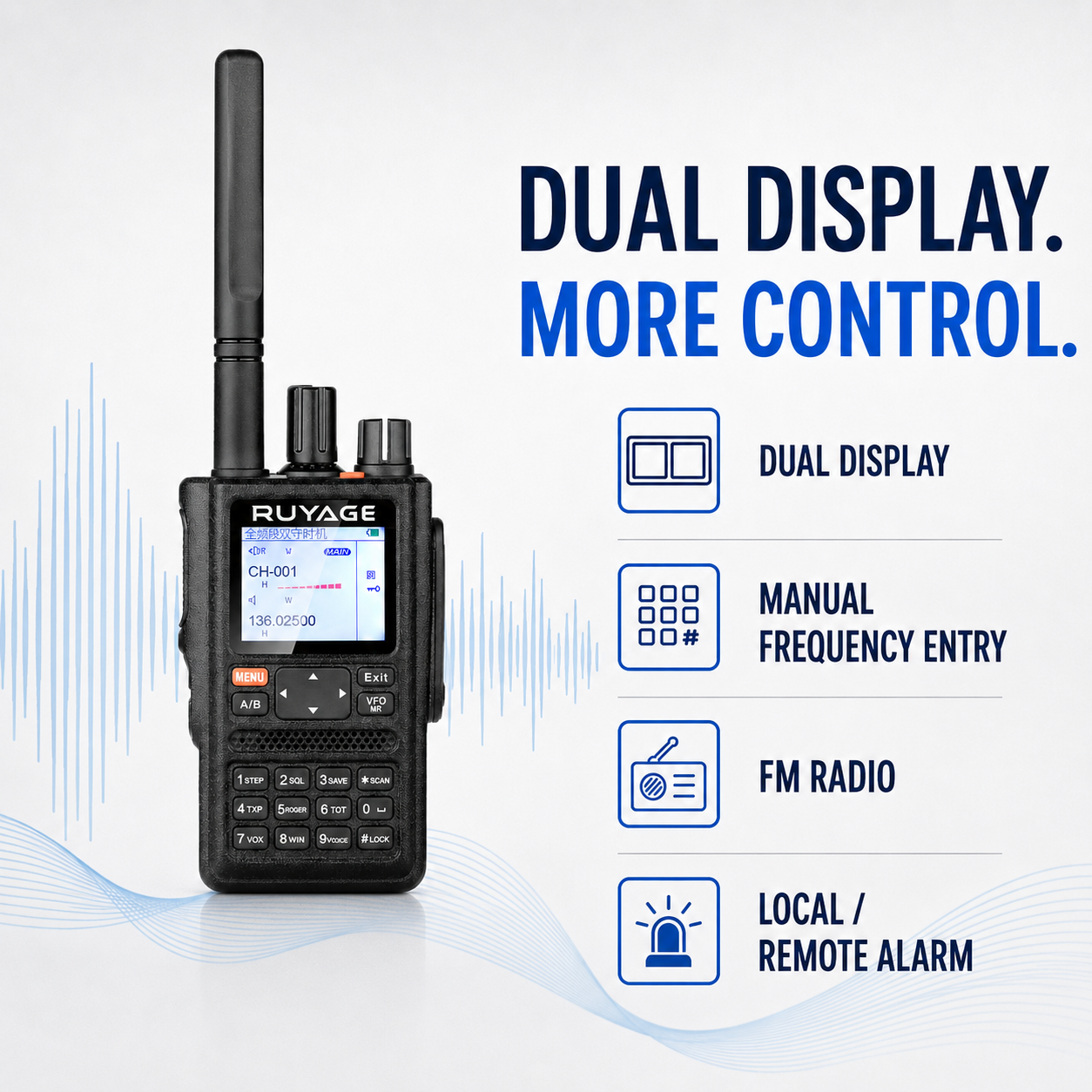

1.77-Inch Color LCD Display

The UVQ4 features a clear 1.77-inch color LCD display that shows important operating information and makes radio settings easier to manage.

• Clear frequency and channel information
• Visible operating status
• Multiple display background colors
• Chinese and English interface options

CTCSS, DCS and DTMF Signaling

Advanced signaling controls provide additional flexibility when communicating through shared analog radio channels.

• CTCSS encode and decode
• DCS encode and decode
• Automatic CTCSS/DCS scanning
• Programmable non-standard CTCSS/DCS
• DTMF encoding and decoding

CTCSS and DCS can help filter unwanted channel audio, but they do not encrypt conversations or make analog communication private.

Frequency and Priority Channel Scanning

The UVQ4 includes several scanning and monitoring functions for faster channel management.

• Frequency scanning
• Priority channel scanning
• CTCSS/DCS scanning
• Monitor function
• Busy Channel Lockout (BCLO)

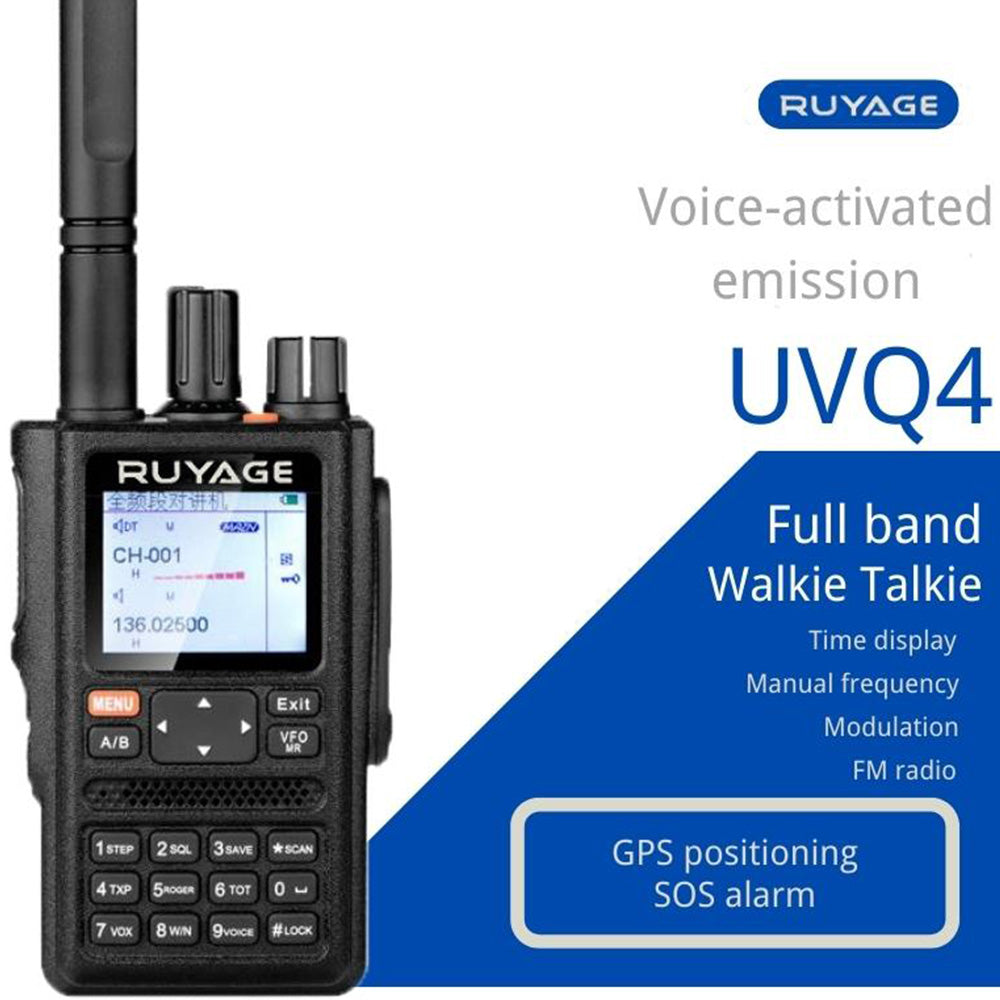

VOX Hands-Free Communication

The built-in VOX function supports voice-activated transmission, allowing compatible hands-free operation without pressing the PTT button for every transmission.

VOX performance and sensitivity may vary according to the surrounding noise level, microphone position and radio settings.

SOS Radio Alert

The SOS function provides an additional local radio alert option for outdoor activities and backup communication.

The SOS feature is not a satellite emergency beacon, personal locator beacon or automatic connection to emergency services. Its effectiveness depends on radio configuration, communication range and whether another compatible radio is monitoring the selected channel.

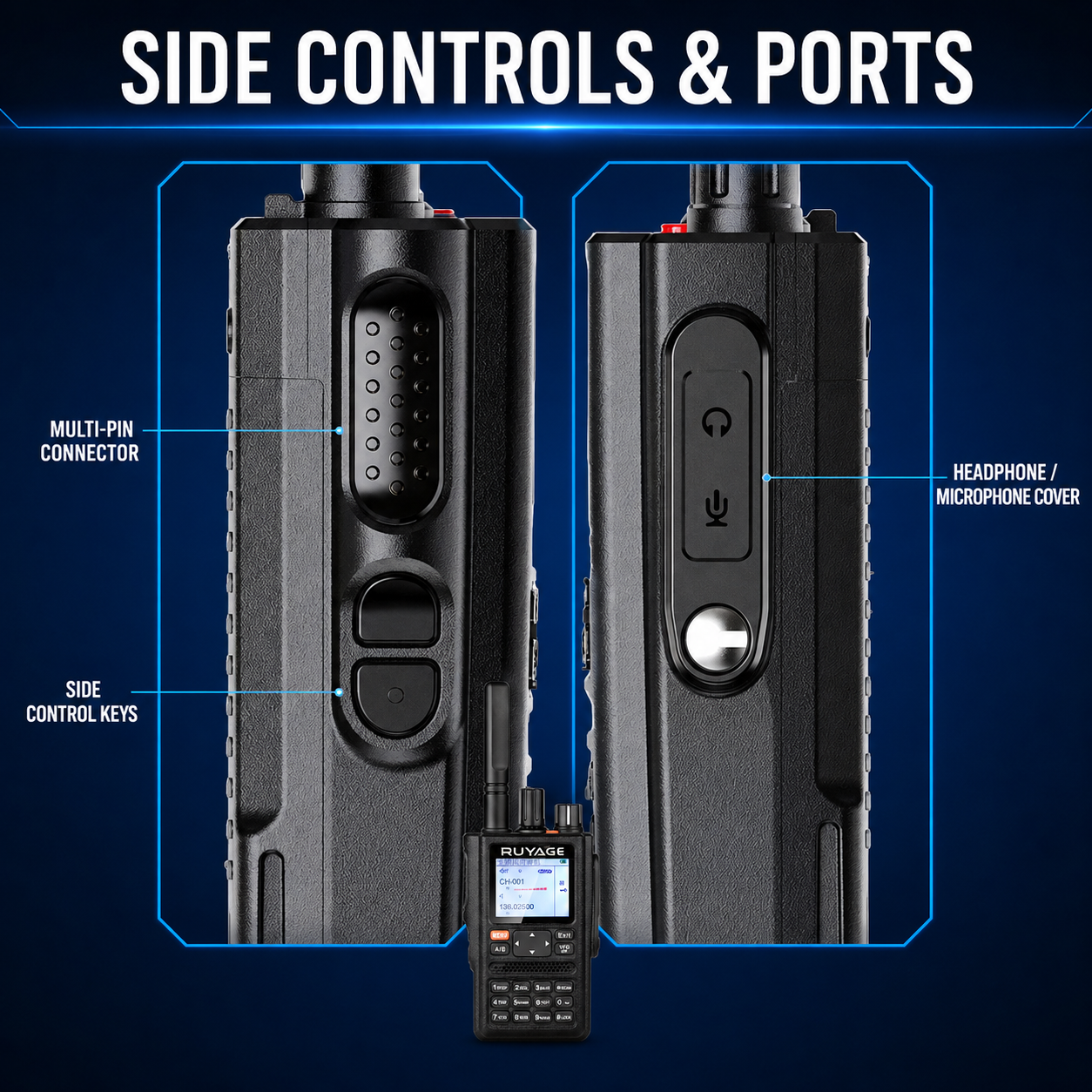

Customizable Controls and PC Programming

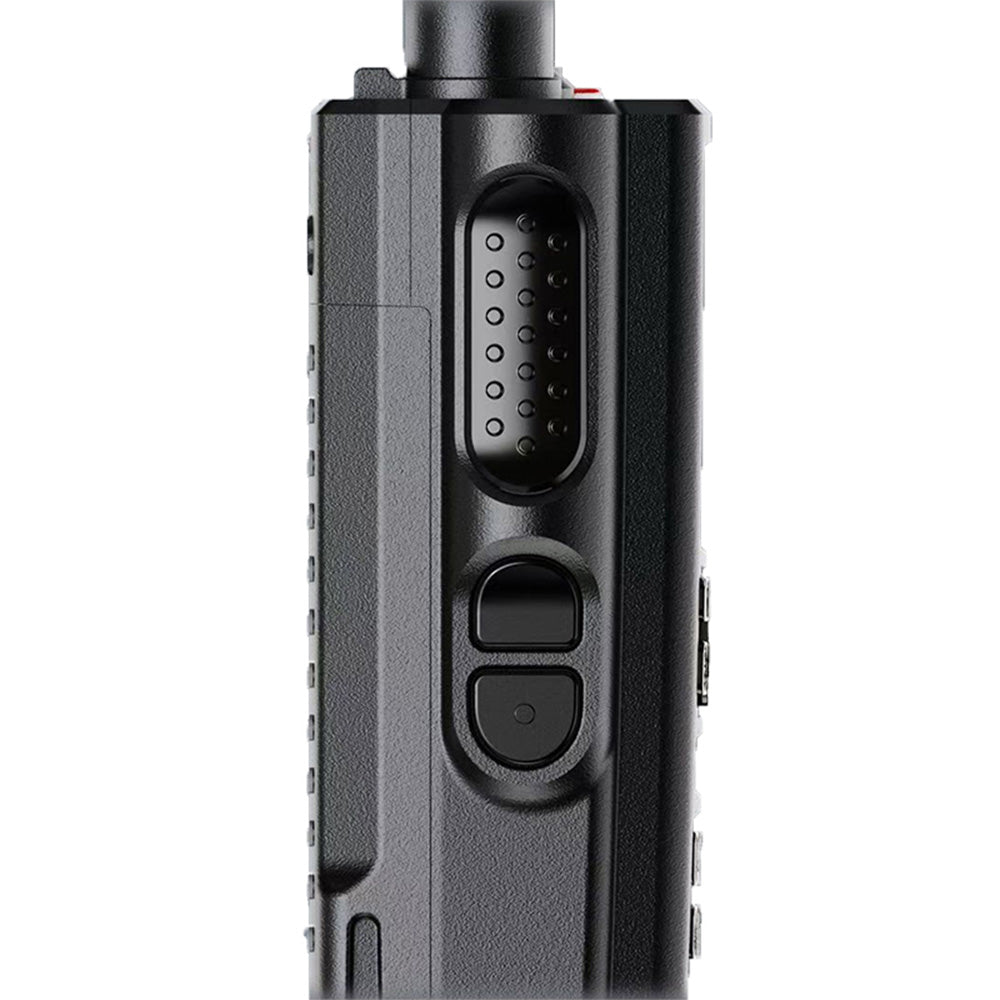

Programmable side keys and PC programming support allow experienced users to customize frequently used functions and channel settings.

• PC programming support
• Programmable side buttons
• Multiple keypad lock modes
• Chinese and English voice prompts
• Chinese and English display interface
• Wide and narrow bandwidth selection

Smart Power and Transmission Management

The UVQ4 includes practical operating functions designed to improve battery management and reduce accidental or excessive transmission.

• Battery-saving mode
• Low-battery alert
• Time-Out Timer (TOT)
• Busy Channel Lockout (BCLO)
• PTT ID function
• Keypad lock

---

RUYAGE UVQ4 Technical Specifications

---

Ideal Applications

• Licensed amateur radio operation where permitted
• Outdoor activities and hiking
• Field and property communication
• Event and team coordination
• Radio enthusiasts and technical users
• Emergency preparedness and backup communication

---

Frequently Asked Questions

Does the UVQ4 transmit on all six frequency bands?

Not necessarily. The listed six-band specification describes the radio's frequency coverage. Actual receiving and transmitting capability may differ by band, regional version, firmware and programmed configuration. Only transmit on frequencies permitted by your licence and local regulations.

Does the UVQ4 GPS provide real-time tracking?

The UVQ4 includes a built-in GPS function for supported location information. Do not assume that it provides live online tracking, automatic position sharing or satellite messaging unless those functions are specifically confirmed for your firmware version.

Does the UVQ4 require cellular service or WiFi?

No. The UVQ4 is an analog handheld radio and communicates directly with compatible radios. Basic radio operation and GPS satellite reception do not require cellular data, WiFi or a SIM card.

Can the UVQ4 communicate with other analog radios?

It may communicate with compatible analog radios when both devices are programmed to the same authorized frequency, channel bandwidth and signaling settings.

Are CTCSS and DCS private or encrypted?

No. CTCSS and DCS help filter unwanted audio on shared channels, but other radios monitoring the same frequency may still receive the conversation.

Does the UVQ4 require a radio licence?

Licensing requirements depend on the country, programmed frequency, transmit power, equipment authorization and intended use. The UVQ4 should not be advertised as universally licence-free.

---

Important Frequency and Regulatory Notice

The UVQ4 is a programmable multi-band radio. The hardware frequency coverage does not authorize transmission on every listed frequency.

Users are responsible for obtaining any required radio licence, using legally authorized frequencies and power levels, and complying with local equipment regulations. Do not transmit on frequencies assigned to public safety, emergency services, aviation, maritime, government or other restricted users.

The SOS and GPS functions are supplementary features and should not replace a dedicated emergency communication device or official emergency service.

---
