VHF/UHF Dual-Band DMR Communication with GPS and SMS

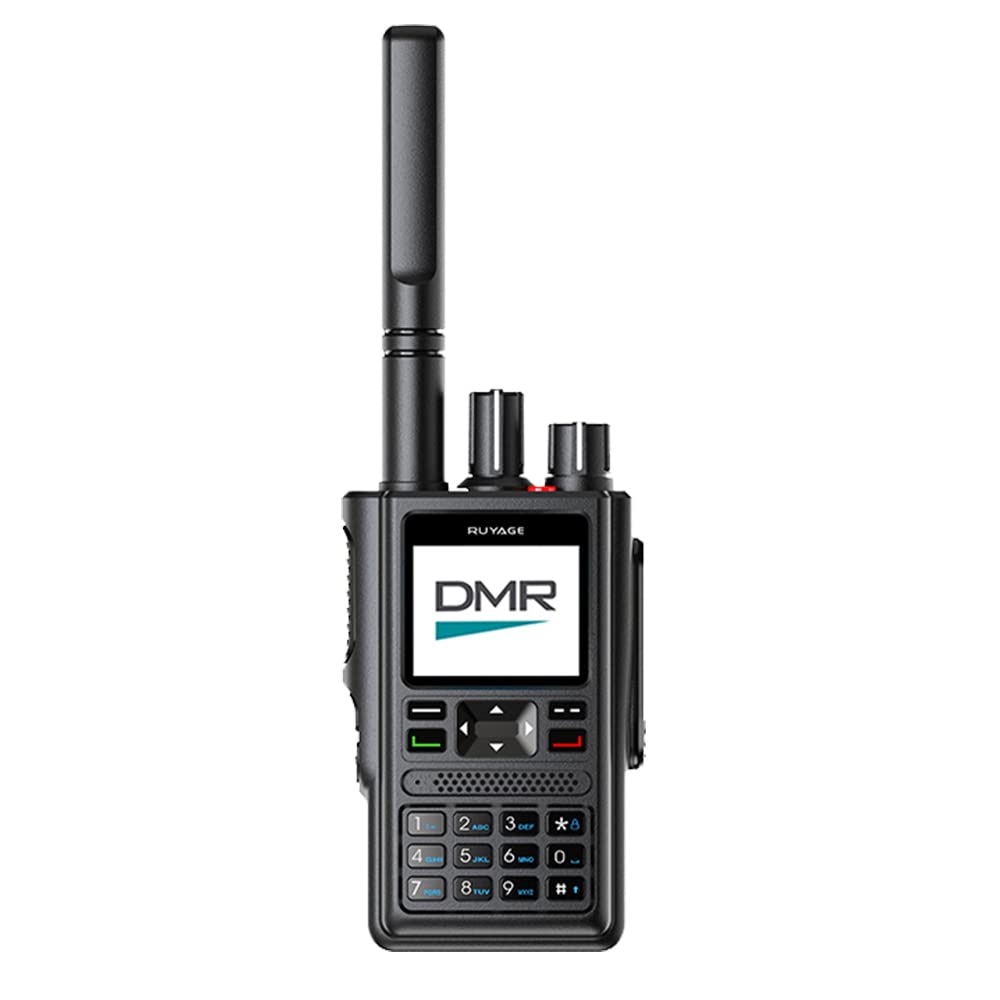

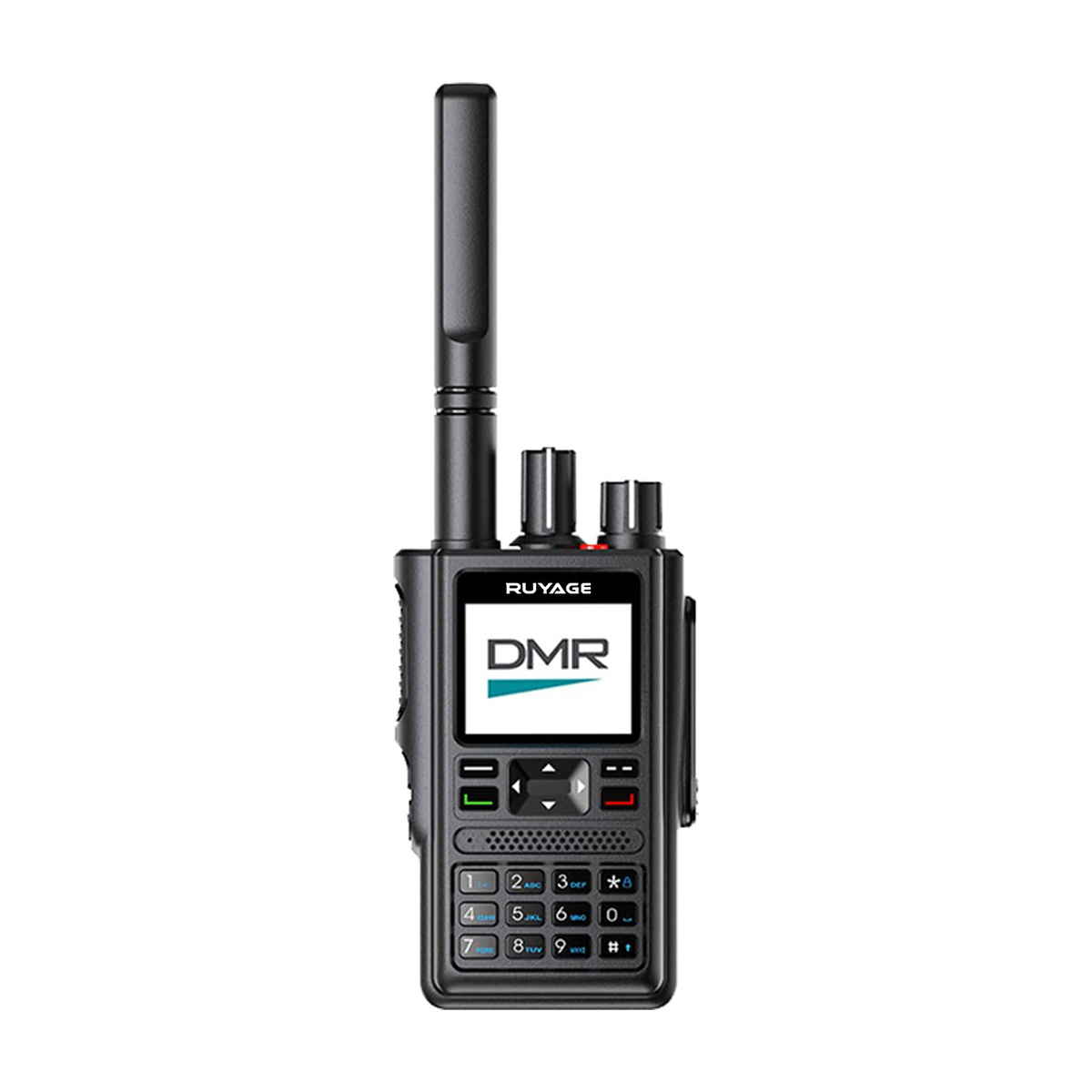

The RUYAGE DP10 is a professional VHF/UHF dual-band DMR digital two-way radio designed for reliable voice communication in business, outdoor, and team environments.

This GPS-equipped handheld radio combines DMR digital voice communication, VHF/UHF dual-band capability, satellite GPS positioning, DMR text messaging, a 1.77-inch color display, up to 1000 programmable channels, and a 2000mAh rechargeable battery.

Unlike 4G LTE PoC or Zello radios, the DP10 communicates through programmed radio frequencies. Basic radio-to-radio communication does not require a SIM card, cellular data plan, WiFi connection, or monthly service fee.

Key Features

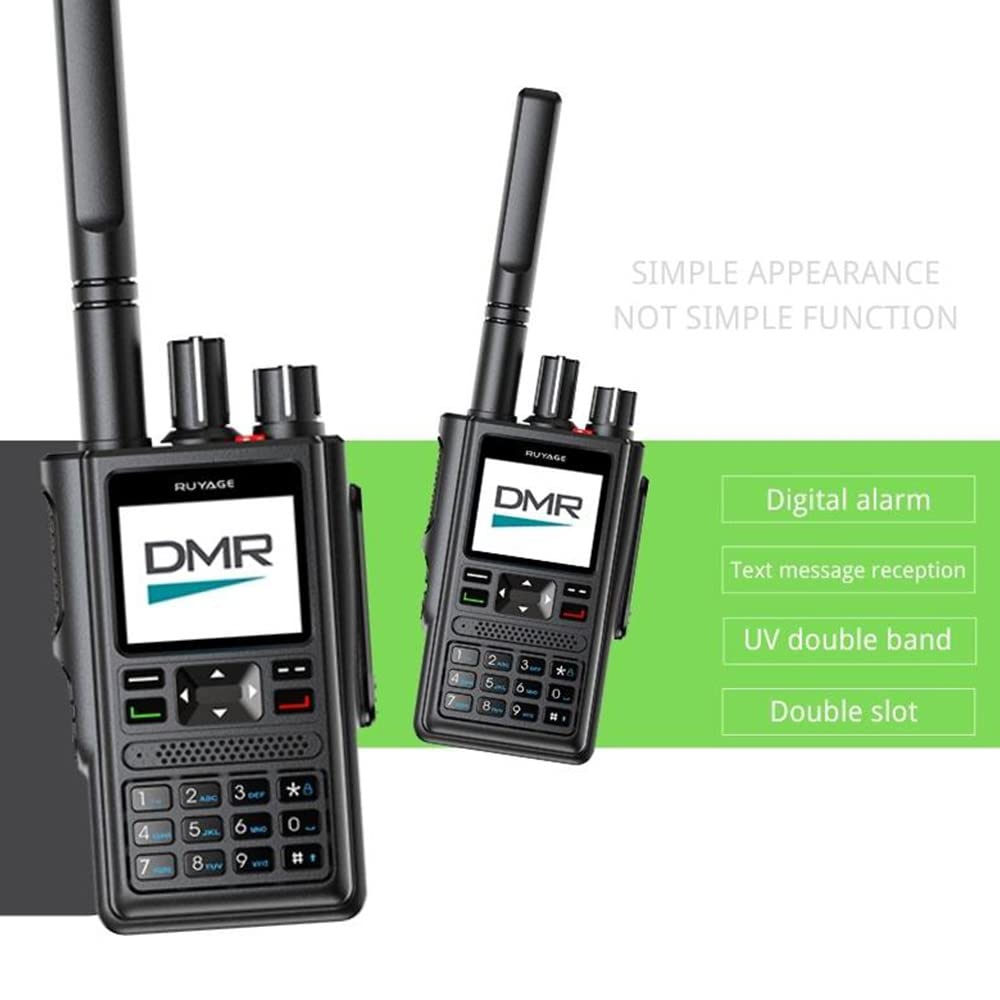

VHF/UHF Dual-Band Communication

The RUYAGE DP10 supports both VHF and UHF frequency bands, providing greater flexibility for different communication environments and compatible radio systems.

• Supports VHF and UHF frequency bands
• Programmable for compatible DMR channels and radio systems
• Suitable for professional, business, industrial, and outdoor communication
• No cellular network or internet connection required for direct radio communication

The active programmed channel determines which frequency band is used. Dual-band capability does not mean the radio transmits on VHF and UHF simultaneously.

DMR Digital Voice Communication

DMR digital technology provides efficient Push-to-Talk communication and clear, consistent voice performance within the radio’s usable coverage area.

The DP10 is designed for fast individual and team communication in security, construction, warehouses, events, outdoor operations, and other professional environments.

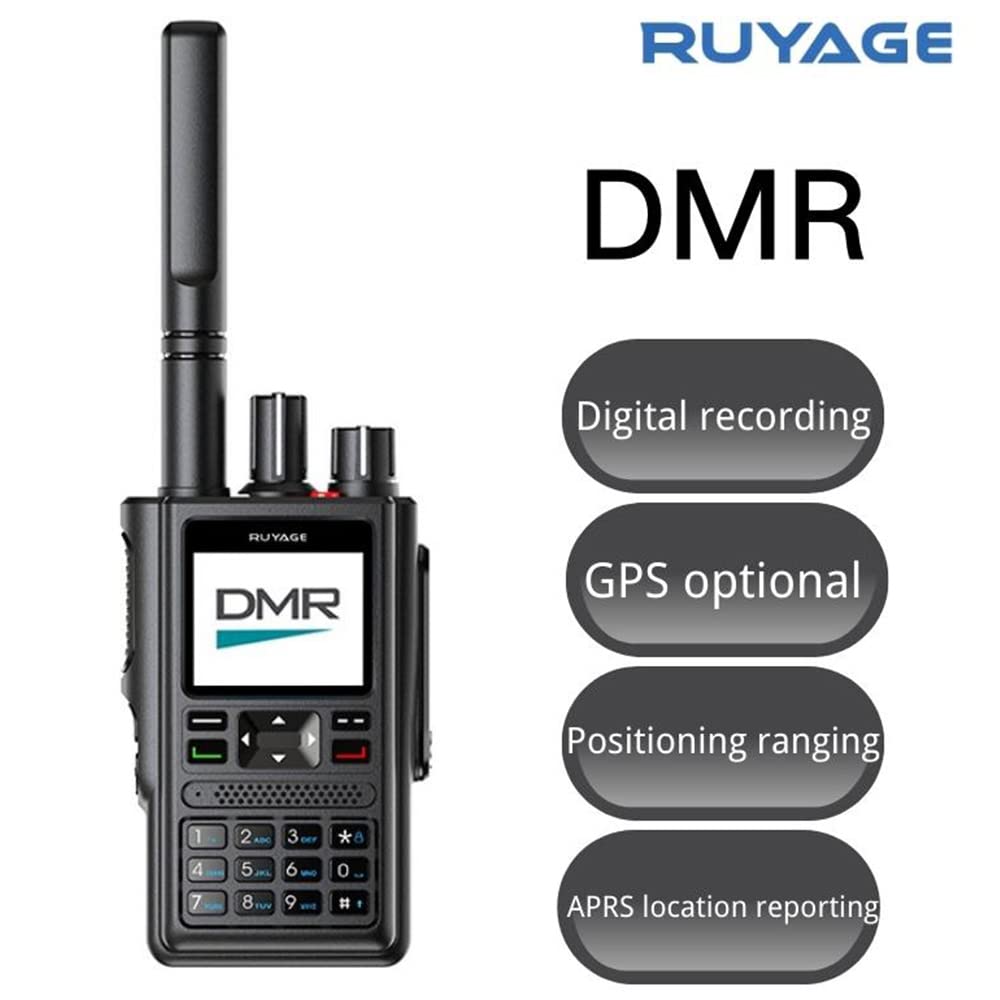

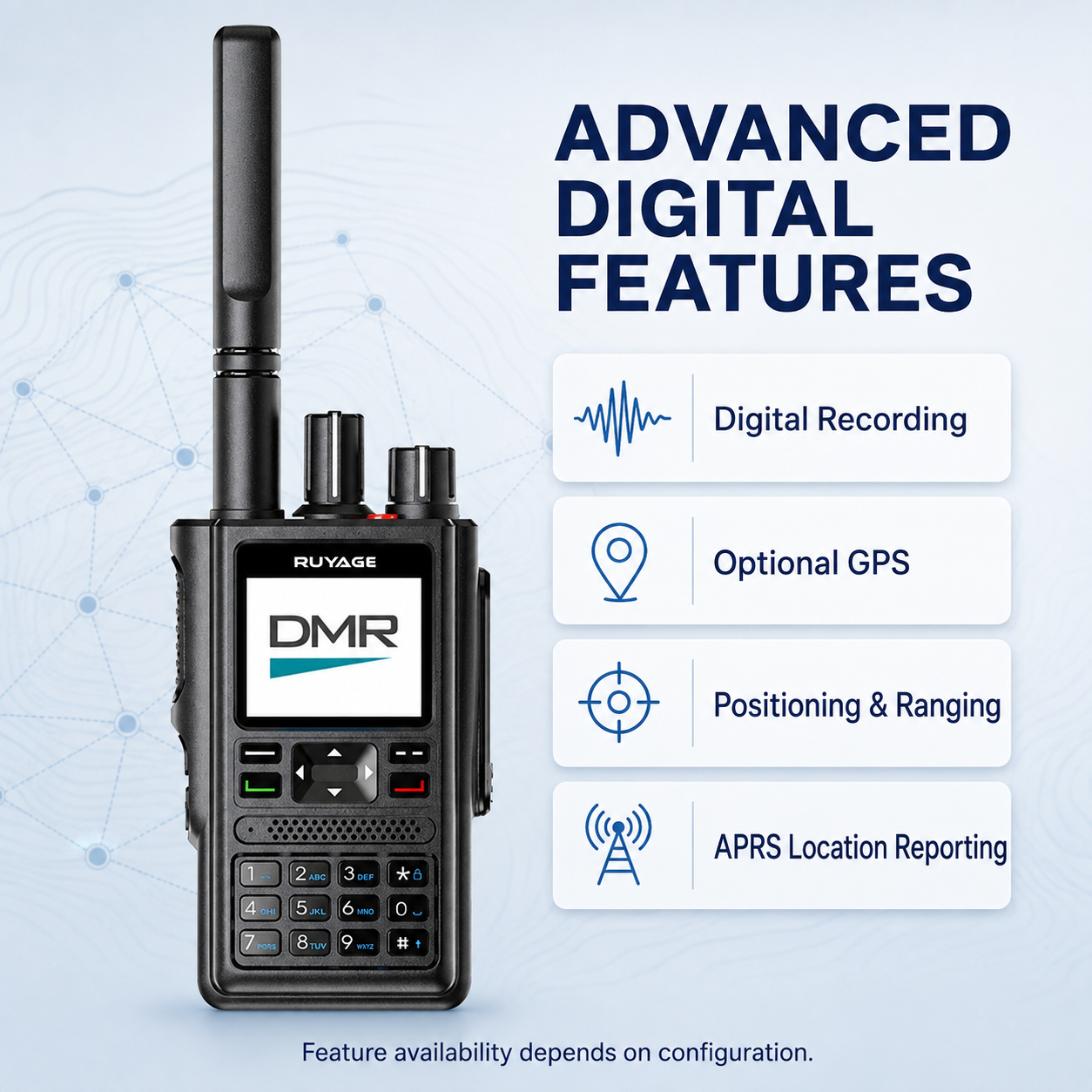

Built-In GPS Positioning

The GPS-equipped DP10 can receive satellite positioning data without relying on cellular service, mobile data, or WiFi.

Available GPS coordinates and positioning information can be viewed on the radio. Location transmission, remote tracking, or position sharing depends on the radio’s programming, firmware, and compatibility with the receiving DMR equipment or dispatch system.

DMR Text Messaging

The DP10 supports sending and receiving short text messages between compatible and correctly programmed DMR radios or communication systems.

This is a DMR radio messaging function. It does not send conventional cellular SMS messages to mobile phone numbers.

Up to 1000 Programmable Channels

Support for up to 1000 programmable channels makes it easier to organize different teams, departments, locations, frequencies, and communication requirements.

Channel names, contacts, talk groups, color codes, time slots, frequencies, and other settings can be configured using compatible programming software.

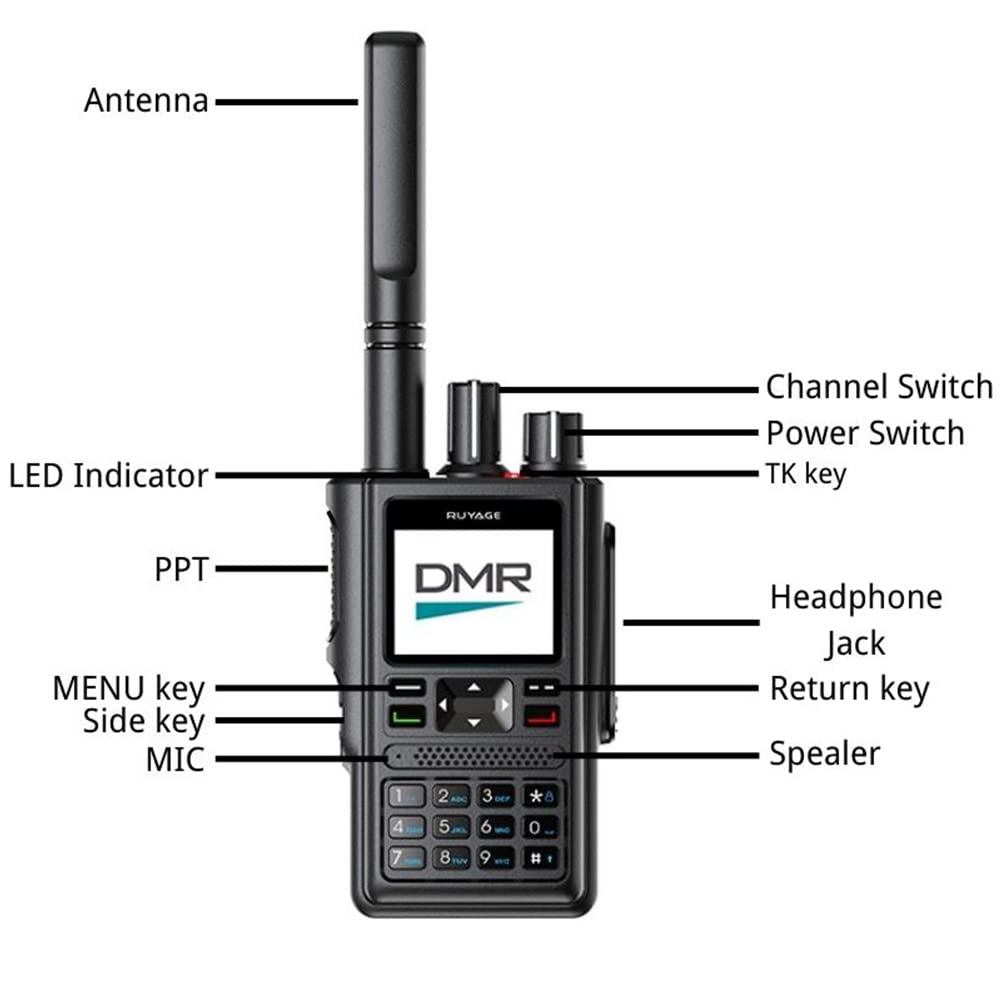

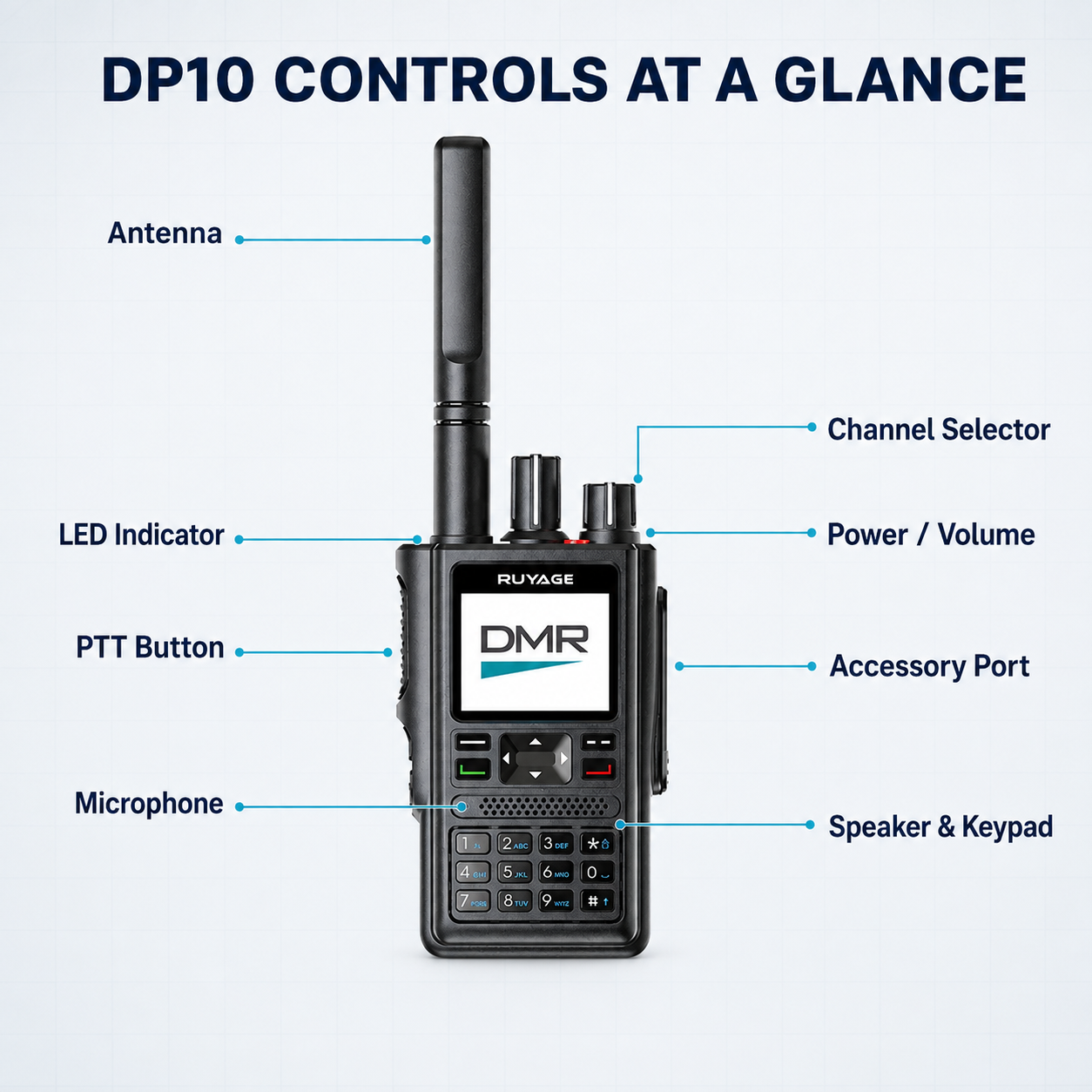

1.77-Inch Color Display and Full Keypad

The 1.77-inch color screen displays important operating information such as channel settings, contacts, battery level, menus, and available GPS data.

The full keypad and navigation controls provide convenient access to radio functions and programmable settings.

Long-Range Two-Way Radio Communication

Under ideal open and unobstructed conditions, the DP10 may provide communication at distances of up to 10 miles.

Actual communication range is not guaranteed and may be substantially shorter. Performance depends on the selected VHF or UHF frequency, output power, antenna, terrain, buildings, interference, radio position, weather, and surrounding environment.

2000mAh Rechargeable Battery

The rechargeable 2000mAh battery is designed for extended daily operation and may provide up to approximately 36 hours of use under suitable operating conditions.

Actual battery runtime depends on transmit frequency, output power, GPS use, screen usage, signal conditions, temperature, battery age, and other operating factors.

Programmable for Different Communication Systems

The DP10 can be programmed using a compatible K-type programming cable and the appropriate programming software.

The programming cable is not included. Please contact RUYAGE support if you need assistance confirming the correct cable, software, frequency range, or programming requirements.

Technical Specifications

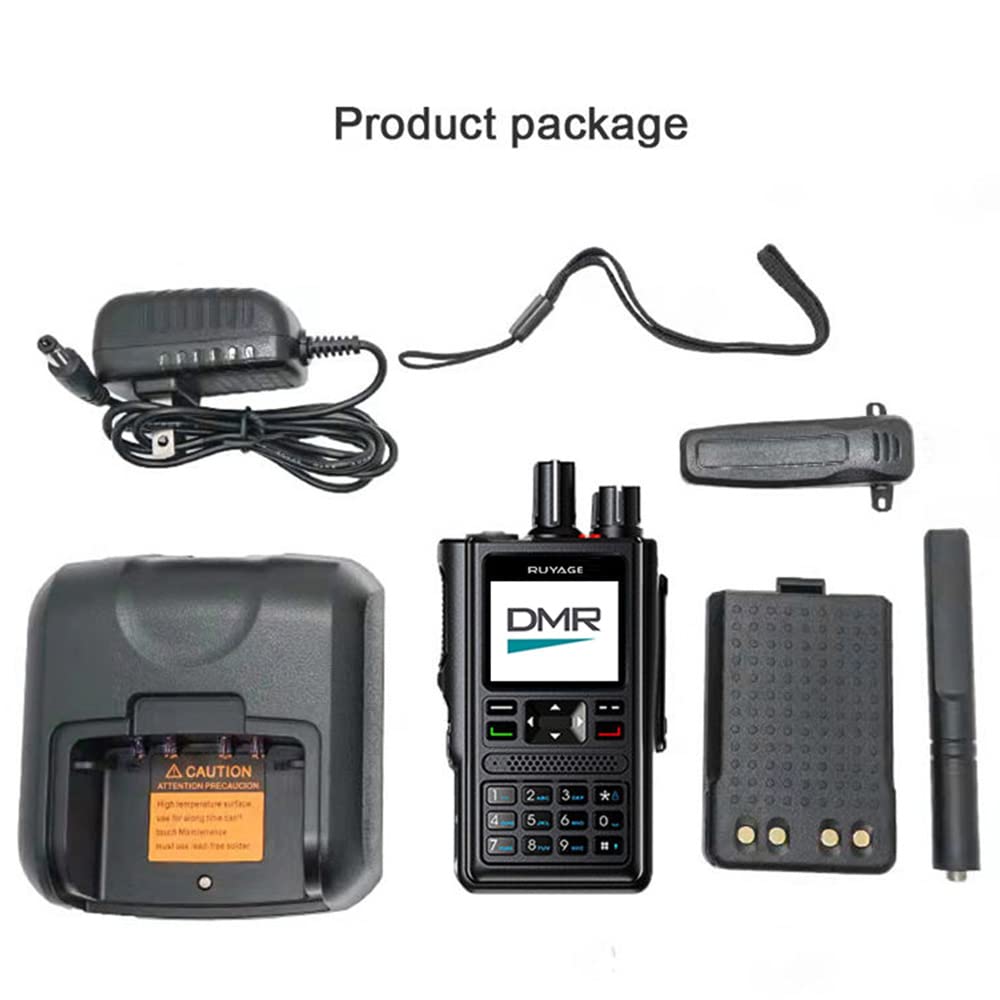

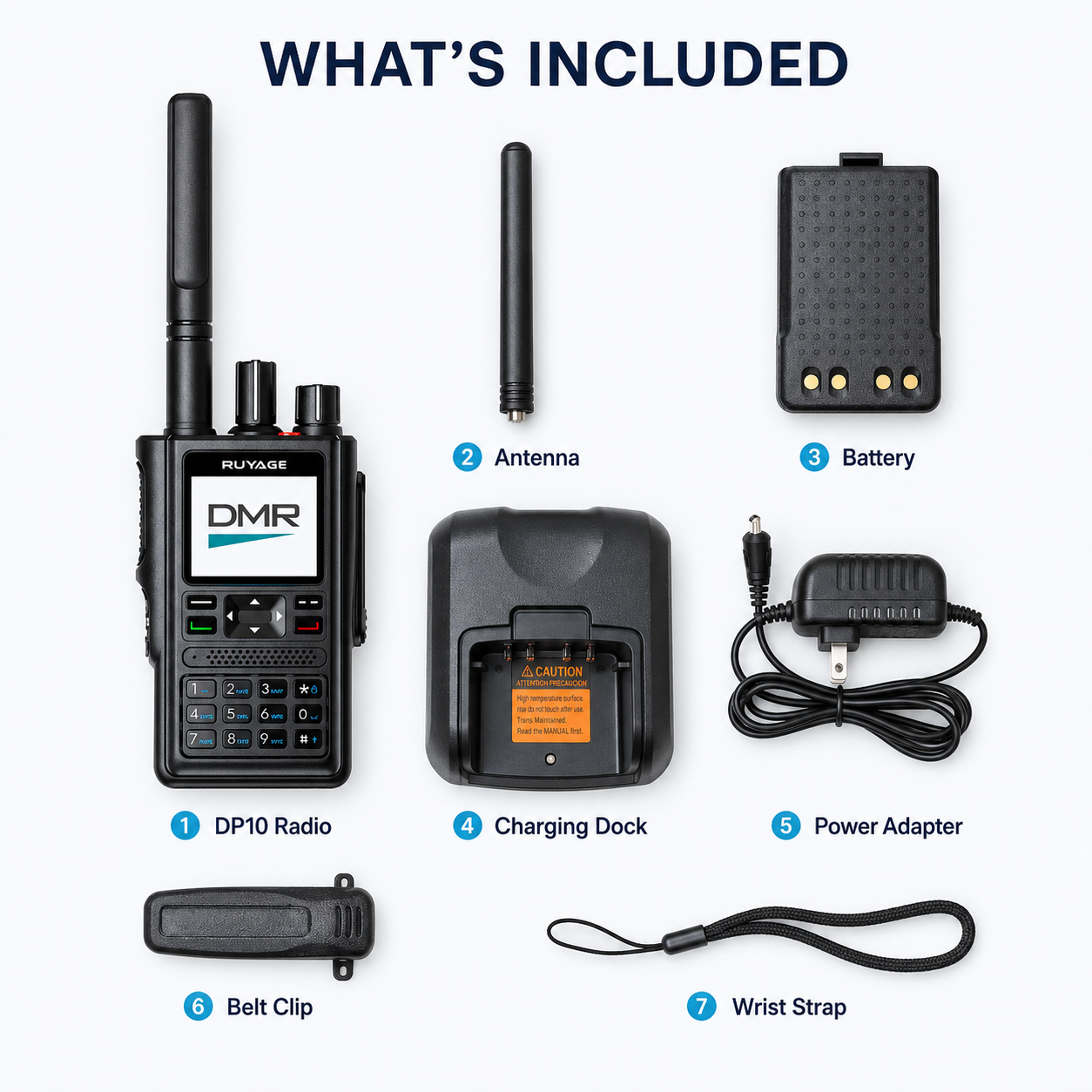

Package Includes

• 1 × RUYAGE DP10 VHF/UHF DMR Digital Two-Way Radio
• 1 × 2000mAh Rechargeable Battery
• 1 × Antenna
• 1 × Charging Base and Charger
• 1 × Belt Clip
• 1 × Lanyard
• 1 × User Manual

Programming cable is not included.

Ideal Applications

• Security and patrol communication
• Construction and industrial operations
• Warehouse and facility management
• Event and venue coordination
• Outdoor group communication
• Hospitality and property management
• Business and professional team communication

Important Compatibility Information

Two radios are not automatically compatible simply because both support DMR or operate on VHF/UHF frequencies.

For successful communication, the radios must use compatible frequency bands and matching settings, which may include:

• Programmed frequency
• DMR color code
• Time slot
• Talk group or contact ID
• Channel bandwidth
• Other codeplug settings

Please confirm the exact VHF and UHF frequency ranges and programming requirements before connecting the DP10 to an existing radio system.

Frequency Licensing Notice

Radio-frequency use is regulated differently in each country. Some VHF and UHF frequencies may require an operator, business, or radio system license.

The purchaser and operator are responsible for using authorized frequencies, suitable programming, and compliant equipment under applicable local regulations.

The DP10 should not be used as the only communication method for life-safety or emergency situations.

Frequently Asked Questions

Does the RUYAGE DP10 support both VHF and UHF?

Yes. The DP10 is a dual-band radio that supports both VHF and UHF frequency bands. The selected programmed channel determines which band is used.

Does the DP10 require a SIM card or monthly plan?

No. The DP10 is a frequency-based DMR digital radio. Basic direct radio communication does not require a SIM card, cellular service, WiFi, or a monthly subscription.

Is the DP10 compatible with every DMR radio?

Not automatically. The radios must operate on compatible frequency bands and use matching frequencies, color codes, time slots, talk groups, and other programming settings.

Does the GPS provide automatic real-time tracking?

The built-in GPS receiver can obtain satellite position data. Remote tracking, location reporting, or position sharing requires compatible programming and receiving equipment or a supported dispatch system.

Can the DP10 communicate up to 10 miles?

Up to 10 miles may be possible only under ideal open and unobstructed conditions. Buildings, hills, vegetation, interference, antenna position, frequency band, and radio settings can significantly reduce the actual range.

Does the DP10 work with Zello or 4G LTE PoC platforms?

No. The DP10 is a VHF/UHF DMR radio-frequency two-way radio. It is not a Zello walkie talkie and does not use 4G LTE PoC service.

Choose the RUYAGE DP10

The RUYAGE DP10 VHF/UHF Dual-Band DMR Two-Way Radio combines digital voice communication, built-in GPS, DMR text messaging, flexible channel programming, and a color display in one professional handheld radio.

Browse more RUYAGE digital two-way radios or contact our support team for frequency compatibility and programming assistance before ordering.
