UHF DMR Tier II Communication for Professional Teams

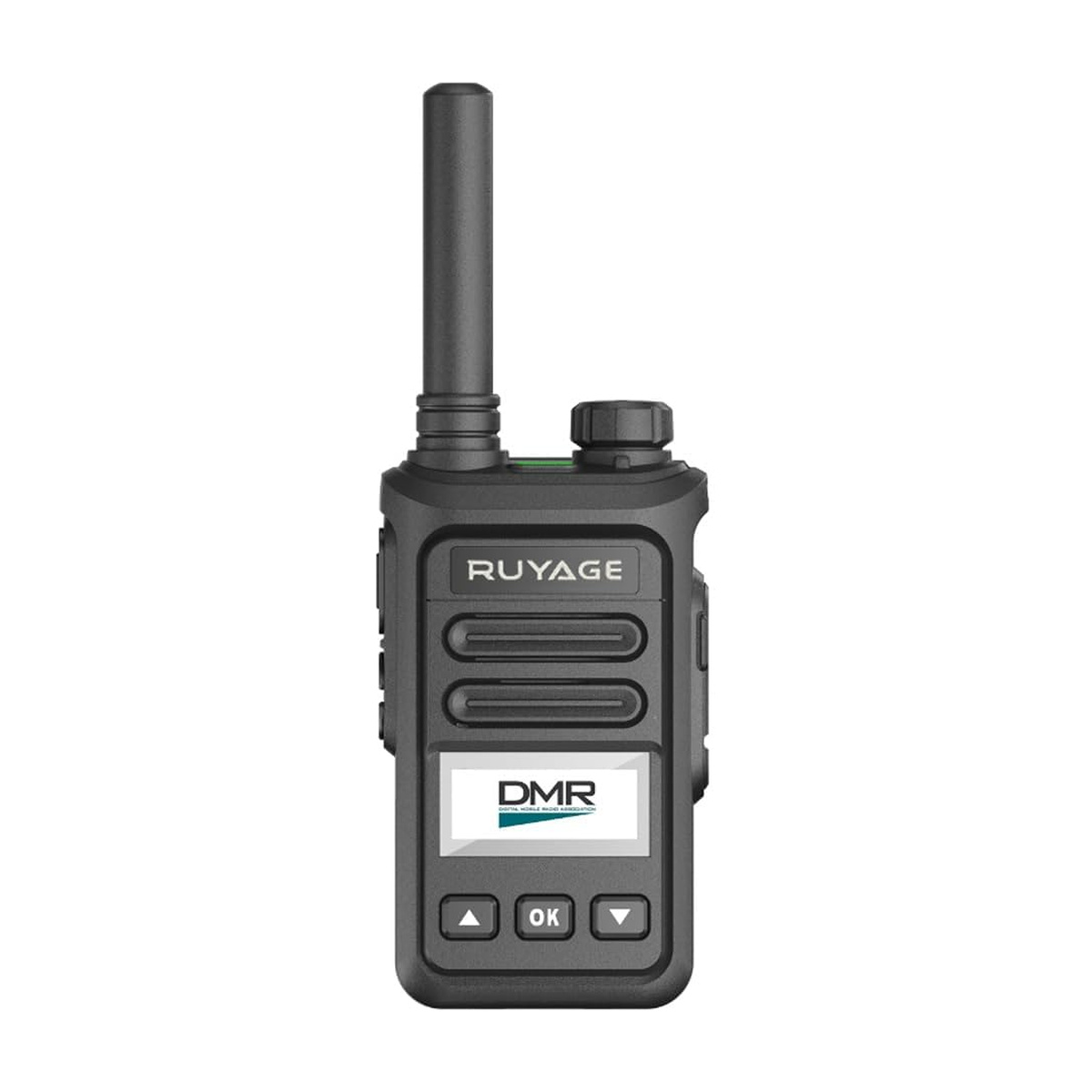

The RUYAGE DP20 is a professional UHF DMR Tier II digital two-way radio designed for clear and efficient Push-to-Talk communication in business, industrial, outdoor, and team environments.

Featuring two-slot TDMA technology, 1024 programmable channels, a 2000mAh rechargeable battery, voice control, optional 32-bit ARC4 privacy, and an included programming cable, the DP20 provides a flexible digital radio solution for daily communication.

When the frequency band and programming settings match, the DP20 can communicate with selected UHF Motorola MOTOTRBO DMR Tier II radios. Compatibility is not guaranteed with every Motorola radio or every MOTOTRBO feature.

The DP20 is a radio-frequency communication device. It does not require a SIM card, cellular data, WiFi, or a monthly service plan for direct radio-to-radio communication.

Key Features

DMR Tier II Digital Radio

The RUYAGE DP20 supports DMR Tier II digital communication for conventional radio-to-radio or compatible repeater operation.

DMR digital technology is designed to provide efficient spectrum use and consistent voice performance within the radio’s usable coverage area.

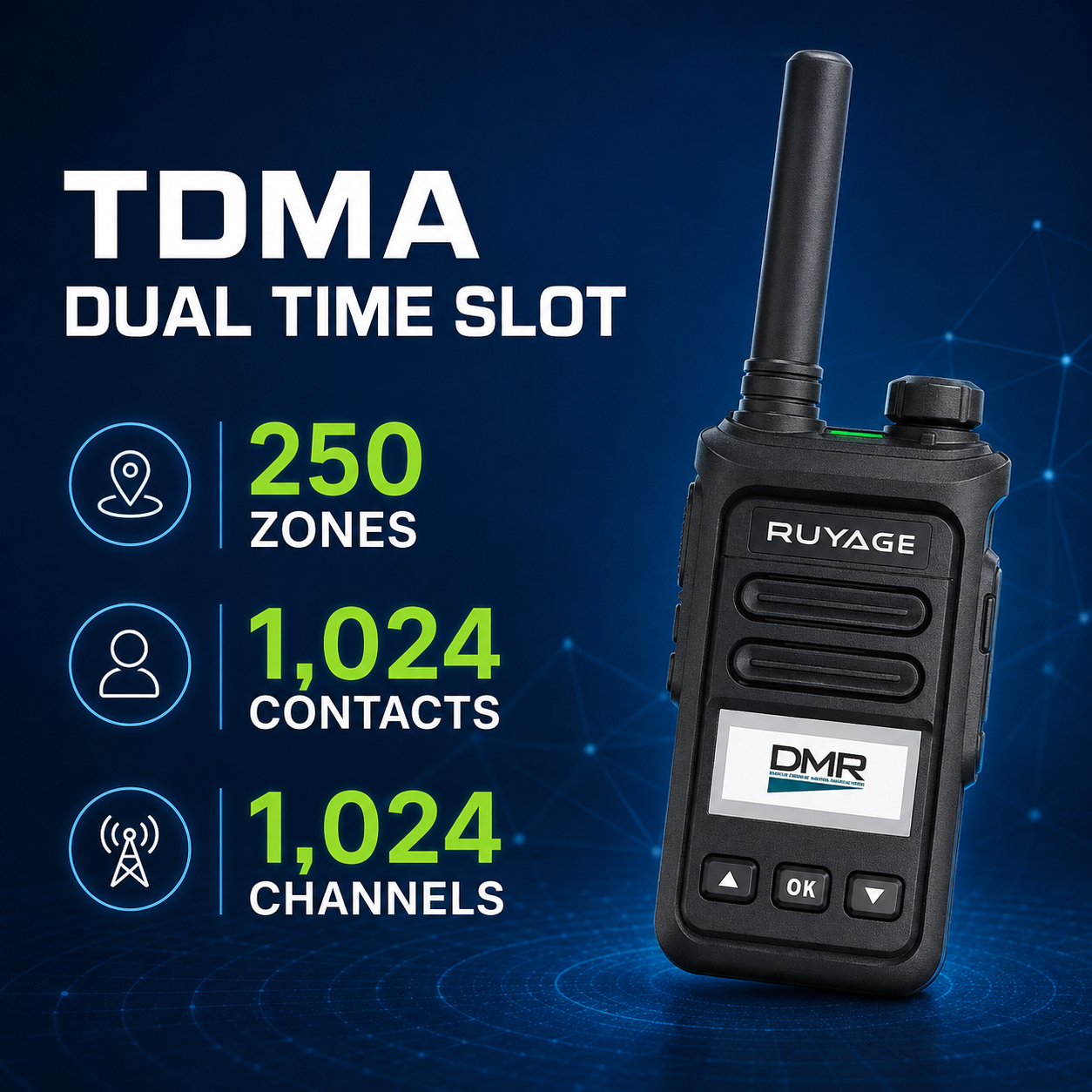

Two-Slot TDMA Technology

DMR Tier II uses two-slot TDMA technology on a 12.5 kHz radio channel. With compatible equipment and proper system configuration, the two time slots can improve channel capacity and communication efficiency.

• Efficient use of available radio spectrum
• Support for organized team communication
• Flexible configuration for different users and departments
• Direct radio and compatible repeater applications

Compatible with Selected Motorola MOTOTRBO DMR Radios

The DP20 can provide conventional digital voice communication with selected UHF Motorola MOTOTRBO DMR Tier II radios when both radios are correctly programmed with compatible settings.

The following settings may need to match:

• UHF frequency range
• Transmit and receive frequencies
• DMR color code
• Time slot
• Talk group or contact ID
• Channel bandwidth
• Repeater or direct-mode settings
• Privacy or encryption settings

Cross-brand compatibility normally applies to supported conventional DMR voice functions. Proprietary Motorola features, trunked systems, roaming functions, encryption systems, text messaging, remote control, and other advanced features may not be compatible.

1024 Programmable Channels

The DP20 supports up to 1024 programmable channels, providing flexible channel organization for different teams, departments, frequencies, locations, and operating requirements.

Channels and DMR parameters can be configured using the included programming cable and compatible programming software.

UHF Two-Way Radio Communication

The DP20 operates on the UHF frequency band, making it suitable for properly authorized business, commercial, indoor, and outdoor radio applications.

Before ordering, confirm that the exact UHF frequency range of the DP20 matches your existing radios and the frequencies authorized for use in your country.

Long-Range Communication Under Suitable Conditions

Under ideal open and unobstructed conditions, the DP20 may provide communication at distances of up to approximately 2 kilometers.

Actual range is not guaranteed and may be substantially shorter. Communication performance depends on:

• Programmed frequency and output power
• Antenna position and condition
• Buildings, walls, hills, and other obstacles
• Radio interference and surrounding equipment
• Weather and environmental conditions
• Whether direct mode or a compatible repeater is used

2000mAh Rechargeable Battery

The rechargeable 2000mAh lithium-ion battery is designed to provide reliable power for daily work, field operations, and team communication.

Actual operating and standby time depends on transmit frequency, output power, signal conditions, voice-control use, screen usage, temperature, battery age, and the amount of time spent transmitting.

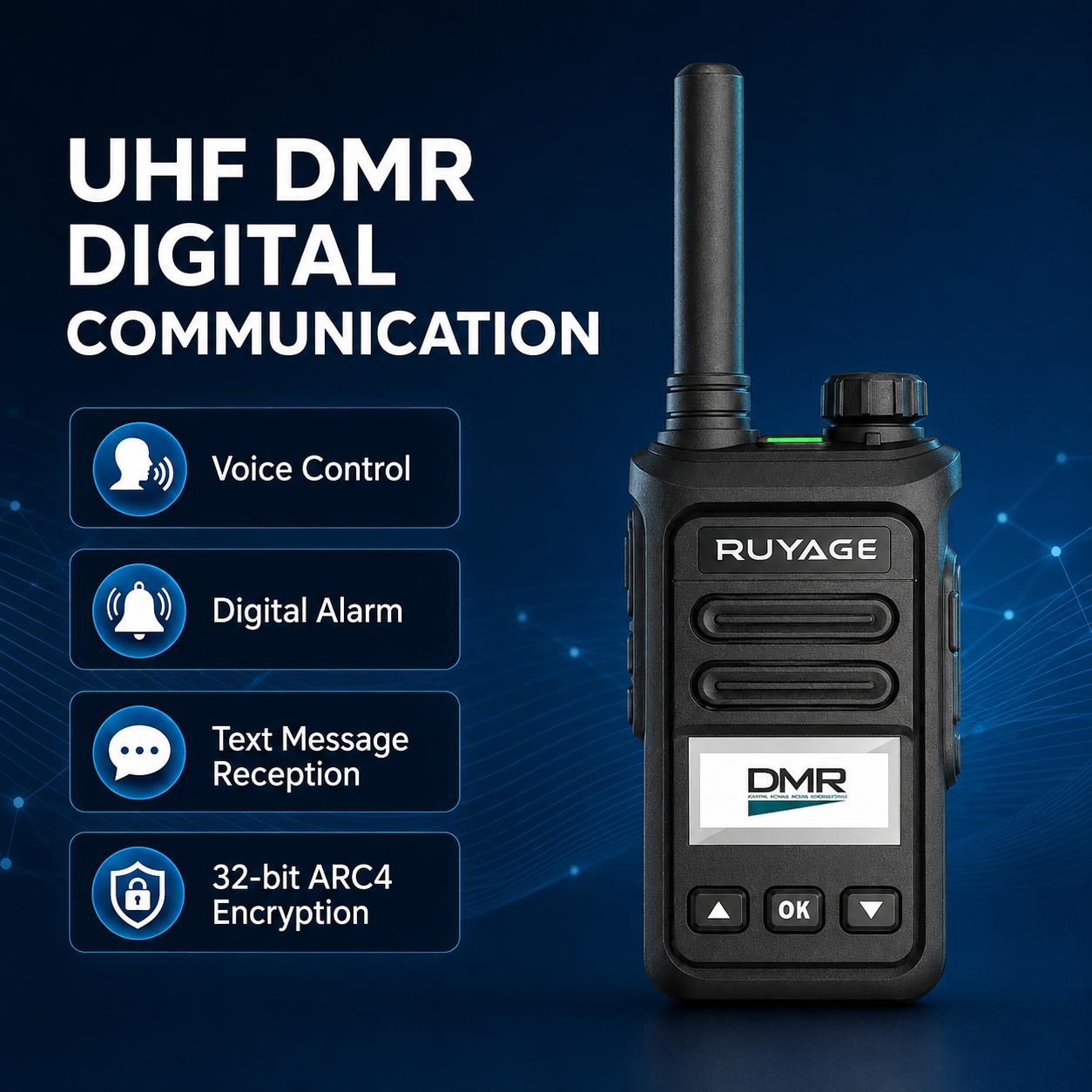

32-Bit ARC4 Digital Privacy

The DP20 supports an optional 32-bit ARC4 digital privacy function for compatible radio configurations.

All radios must use compatible privacy settings and matching keys. ARC4 interoperability with Motorola radios or other DMR equipment is not guaranteed. For cross-brand communication, clear DMR mode is recommended unless the privacy configuration has been tested.

Availability and permitted use of radio privacy or encryption functions may vary by country and application.

Voice-Control Function

The available voice-control function can provide an additional operating option when correctly enabled and configured.

Feature behavior may depend on the radio programming, sensitivity settings, compatible accessories, and surrounding noise level.

Programming Cable Included

A compatible programming cable is included, allowing qualified users to configure channels, contacts, color codes, time slots, talk groups, and other supported radio settings.

Programming software, drivers, and configuration requirements may vary. Contact RUYAGE support if you need programming information.

Technical Specifications

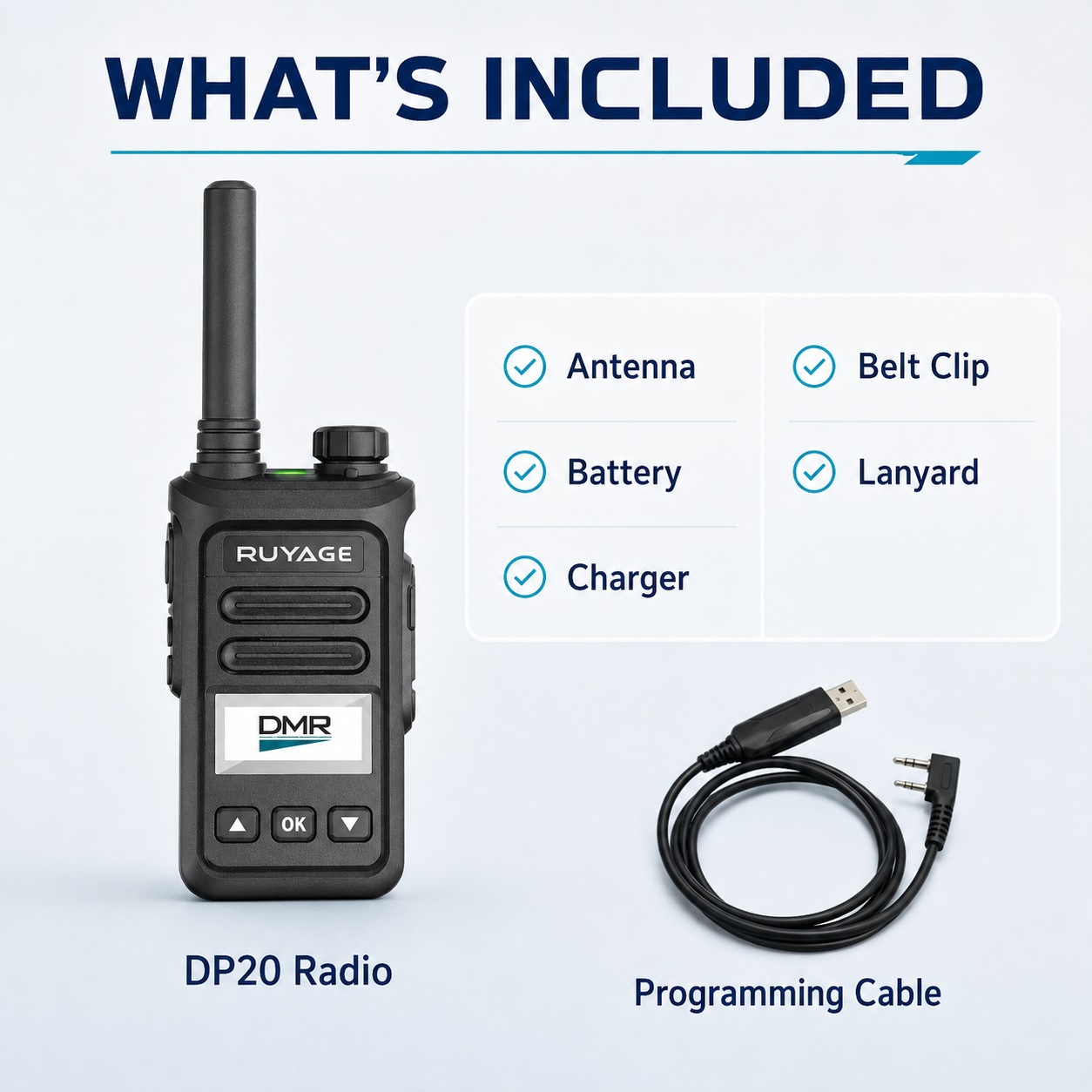

Package Includes

• 1 × RUYAGE DP20 UHF DMR Digital Two-Way Radio
• 1 × Antenna
• 1 × 2000mAh Rechargeable Lithium-Ion Battery
• 1 × Charger
• 1 × Belt Clip
• 1 × Lanyard
• 1 × User Manual
• 1 × Programming Cable

Charger plug type may vary by selected version or destination. Confirm the required plug type before ordering.

Ideal Applications

• Security and patrol teams
• Construction and industrial operations
• Warehouse and logistics communication
• Retail and shopping centers
• Hotels, restaurants, and hospitality teams
• Event and venue coordination
• Facility and property management
• Outdoor group communication

Motorola Compatibility Notice

The DP20 is not compatible with every Motorola two-way radio.

Compatibility is intended for selected UHF Motorola MOTOTRBO radios using conventional DMR Tier II communication and matching radio settings.

Compatibility is not claimed for Motorola P25, APX, TETRA, incompatible analog systems, different frequency bands, proprietary trunking systems, or advanced MOTOTRBO functions unless they have been specifically tested.

Before ordering for use with an existing Motorola radio fleet, provide RUYAGE with the exact Motorola model number, frequency range, and current programming information for compatibility confirmation.

Frequency and Licensing Notice

Radio-frequency use is regulated differently in each country. DMR Tier II and business UHF frequencies may require an operator or business radio license.

The purchaser and operator are responsible for using authorized frequencies, compliant equipment, and suitable programming under applicable local regulations.

The DP20 should not be used as the only communication method for life-safety or emergency situations.

Frequently Asked Questions

Can the RUYAGE DP20 communicate with Motorola digital radios?

Yes, the DP20 can communicate with selected UHF Motorola MOTOTRBO DMR Tier II radios when the frequency range, transmit and receive frequencies, color code, time slot, talk group, contact ID, bandwidth, and other required settings match.

Does the DP20 work with every Motorola radio?

No. Motorola produces DMR, P25, TETRA, analog, trunked, VHF, and UHF radio systems. The DP20 is intended for compatible conventional UHF DMR Tier II communication only.

Will Motorola proprietary features work on the DP20?

Not necessarily. Basic conventional DMR voice may be compatible when correctly programmed, but proprietary features, encryption, trunking, text messaging, remote commands, roaming, and other advanced functions may not be supported.

Does the DP20 require programming?

Yes. The DP20 and the radios it communicates with must be programmed with compatible settings. A programming cable is included.

Does the DP20 require a SIM card or monthly fee?

No. The DP20 communicates through UHF radio frequencies and does not require cellular data, WiFi, a SIM card, or a monthly communication plan.

How far can the DP20 communicate?

Communication may reach up to approximately 2 km only under ideal open conditions. Actual range depends on the frequency, output power, antenna, buildings, terrain, interference, and system configuration.

Choose the RUYAGE DP20

The RUYAGE DP20 UHF DMR Digital Two-Way Radio combines DMR Tier II communication, 1024 programmable channels, a rechargeable 2000mAh battery, digital privacy options, voice control, and an included programming cable in one compact handheld radio.

When correctly programmed, it provides a practical cross-brand communication option for selected Motorola MOTOTRBO DMR radio systems.

Browse more RUYAGE digital two-way radios or contact our support team before ordering for Motorola compatibility assistance.

Trademark Notice

Motorola Solutions and MOTOTRBO are trademarks of Motorola Solutions, Inc. RUYAGE is not affiliated with, sponsored by, or endorsed by Motorola Solutions. References to Motorola and MOTOTRBO are used only to describe compatibility with selected products.
