Dual-Mode 4G LTE PoC and 5W UHF Communication

The RUYAGE X30 dual-mode two-way radio combines 4G LTE Push-to-Talk over Cellular (PoC) communication with a 5W UHF analog radio in one handheld device.

Use 4G LTE PoC mode to communicate across supported cellular coverage areas, or switch to UHF analog mode for direct local radio-to-radio communication. This flexible design makes the X30 suitable for security teams, construction crews, logistics operations, transportation, warehouses, events and outdoor group coordination.

The X30 also features an IP54-rated housing, a built-in display, up to 100 configured channels and a rechargeable 7.4V battery system.

Key Features

• 4G LTE PoC and 5W UHF Dual Mode: Combines wide-area cellular Push-to-Talk with direct UHF analog communication, giving teams two communication options in one radio.
• Wide-Area 4G LTE Push-to-Talk: PoC mode provides instant voice communication wherever compatible LTE data coverage and a configured PoC service are available.
• 5W UHF Analog Radio Output: UHF analog mode supports direct radio-to-radio communication without relying on cellular coverage. Actual range depends on terrain, buildings, antenna performance, interference, frequency configuration and permitted transmit power.
• Local Communication Without LTE: When cellular service is unavailable, properly configured X30 radios can communicate locally through compatible UHF analog channels.
• Up to 100 Configured Channels: Supports up to 100 channels. Channel availability and configuration depend on the radio programming and selected PoC platform.
• IP54 Dust and Splash Protection: The IP54-rated housing provides protection against limited dust ingress and water splashes during everyday use. The X30 is not waterproof and must not be submerged.

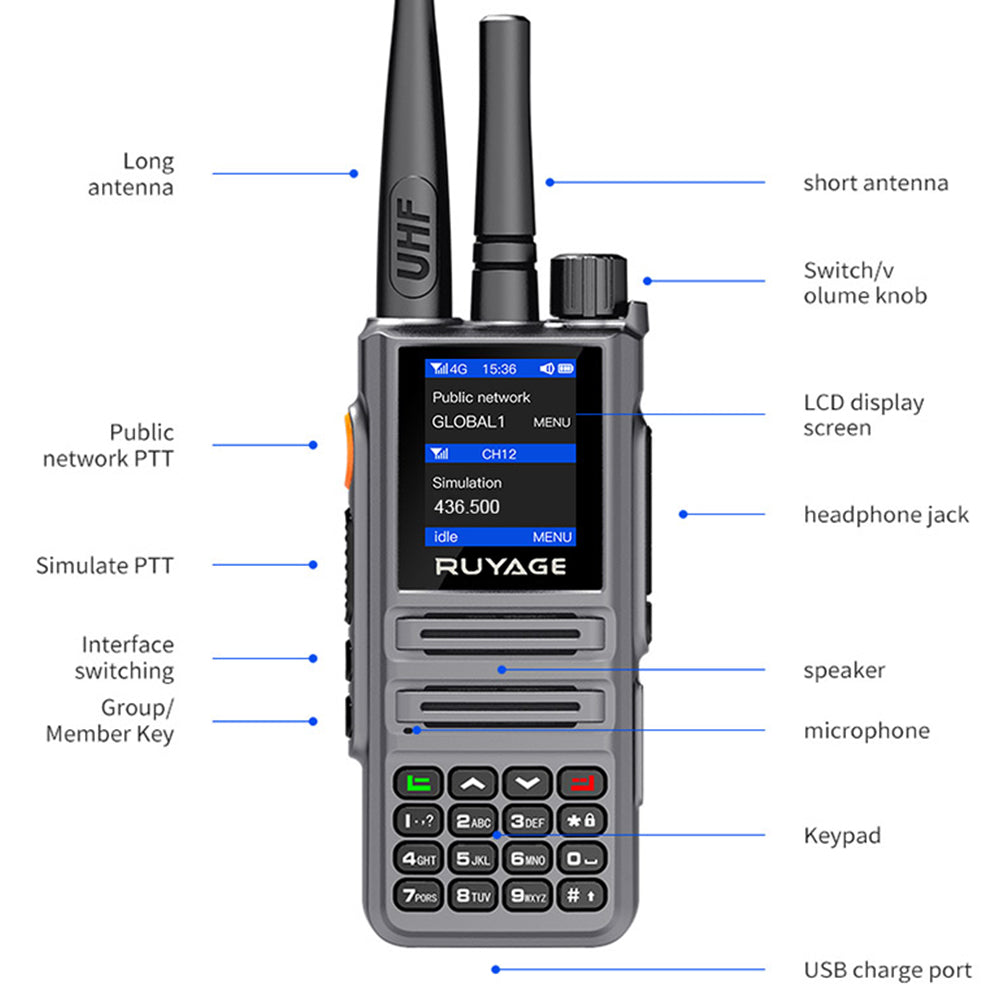

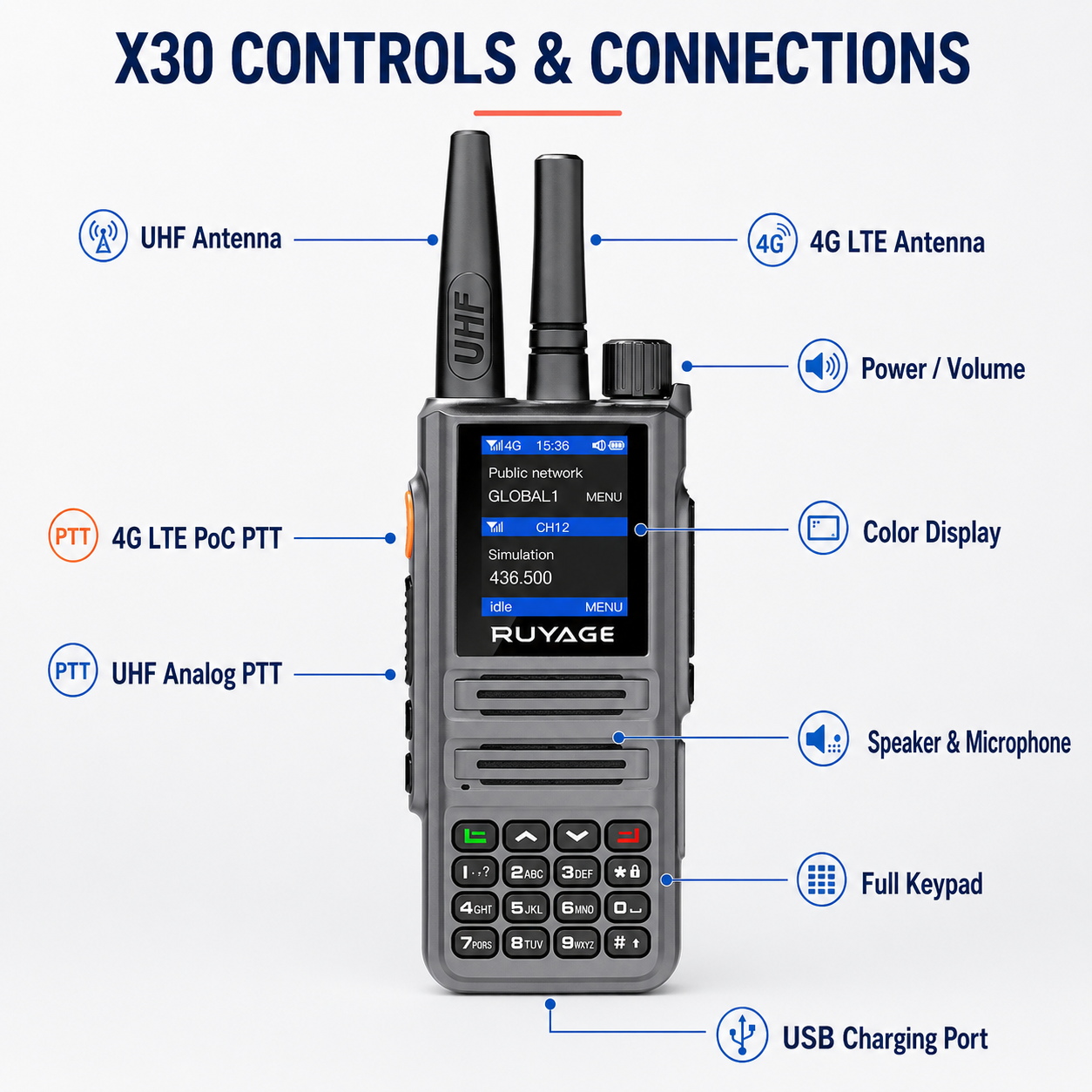

• Built-In Display and Physical Controls: The display and button layout provide convenient access to radio status, channels and communication functions.
• Rechargeable 7.4V Battery System: Includes a rechargeable battery and compatible charger. Actual operating time depends on battery capacity, transmit power, LTE signal strength and usage.

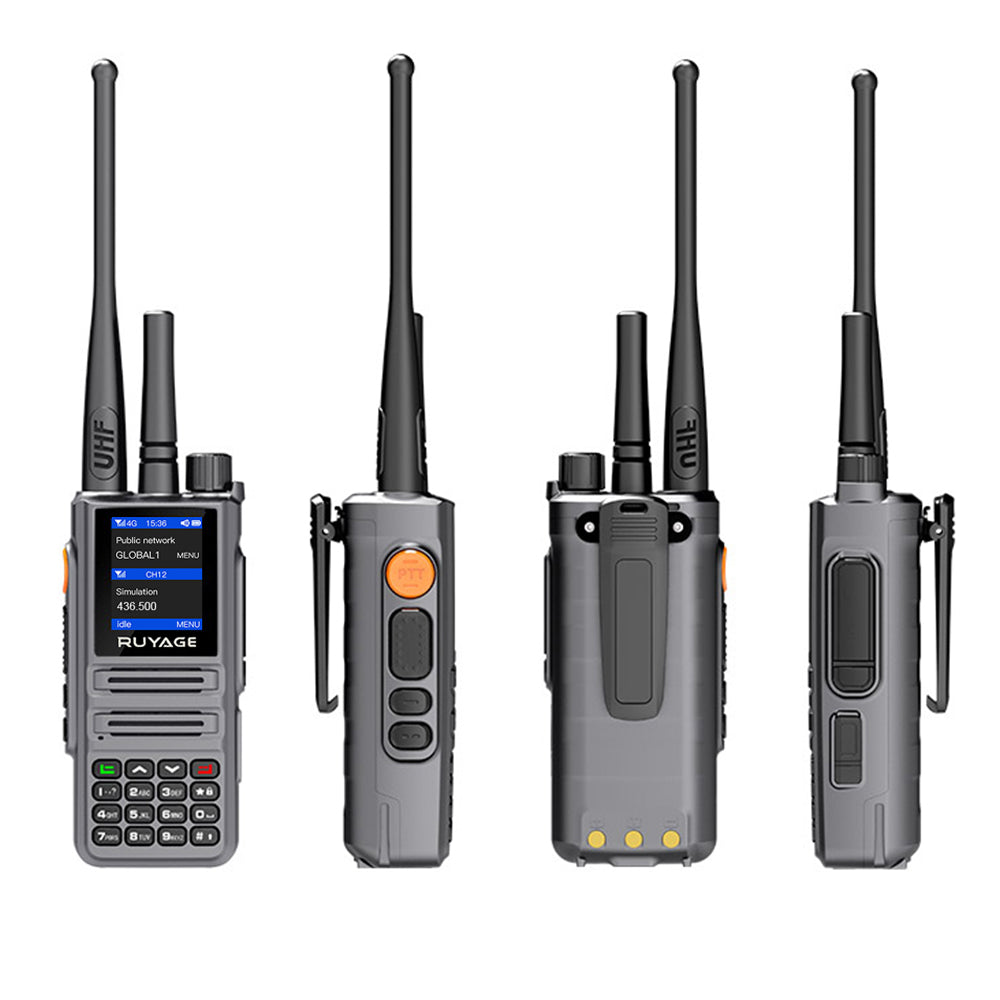

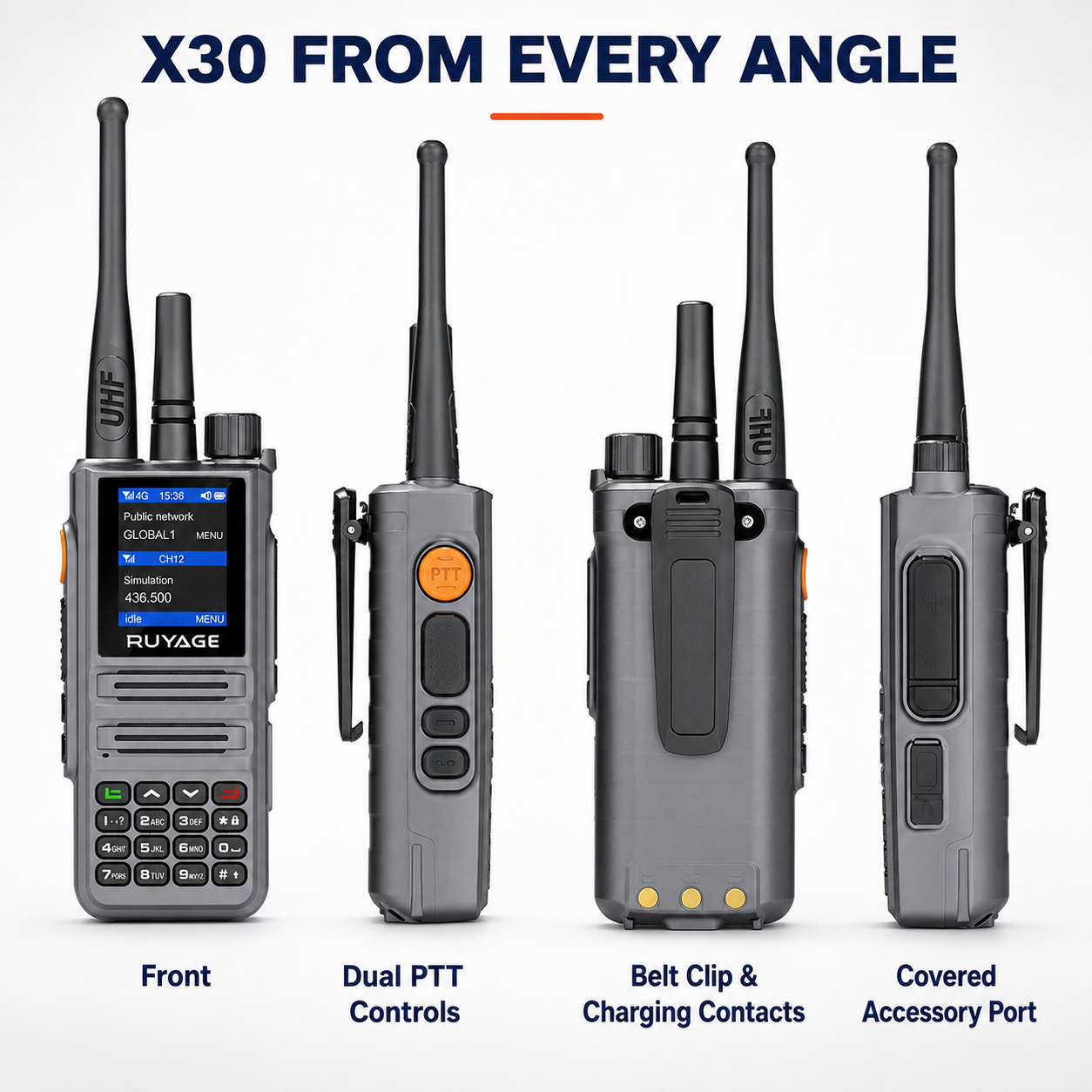

• Compact Handheld Design: Measuring approximately 1.5"D × 2.3"W × 4.8"H, the X30 is designed for portable daily communication.

Choose the Right Communication Mode

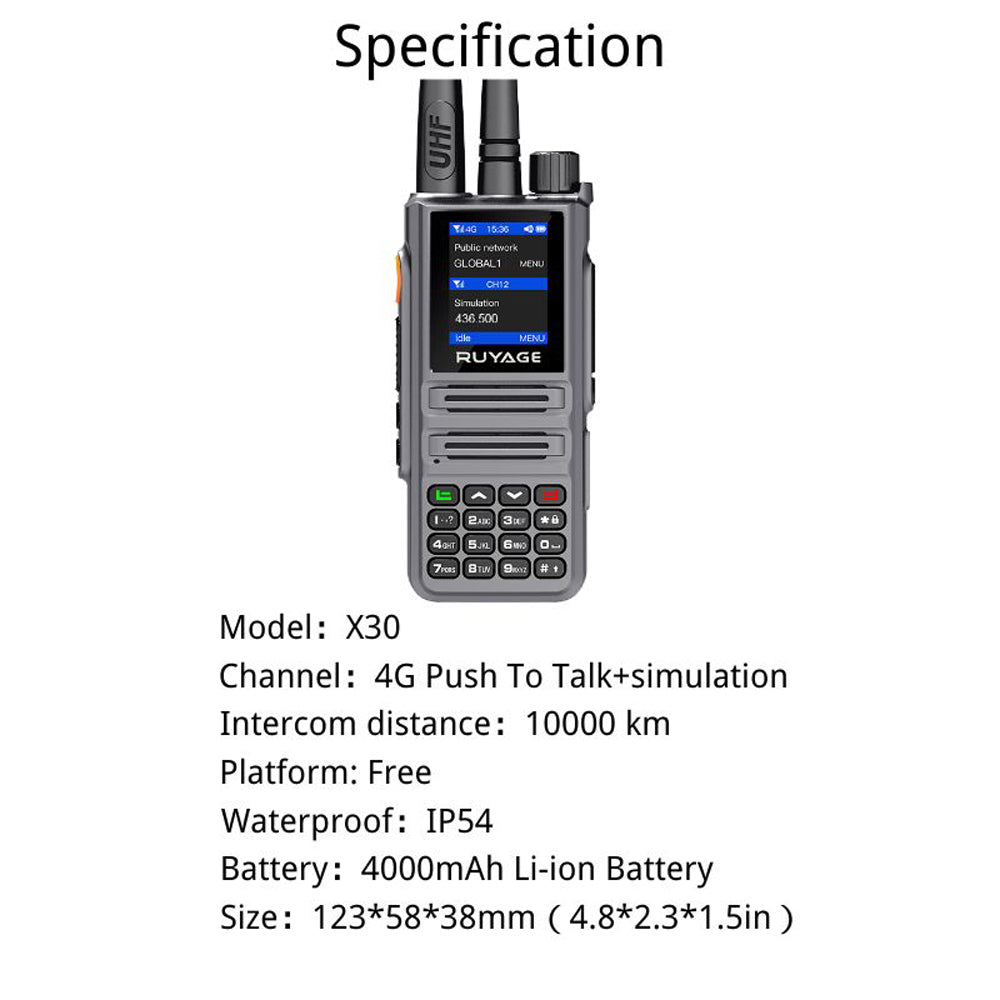

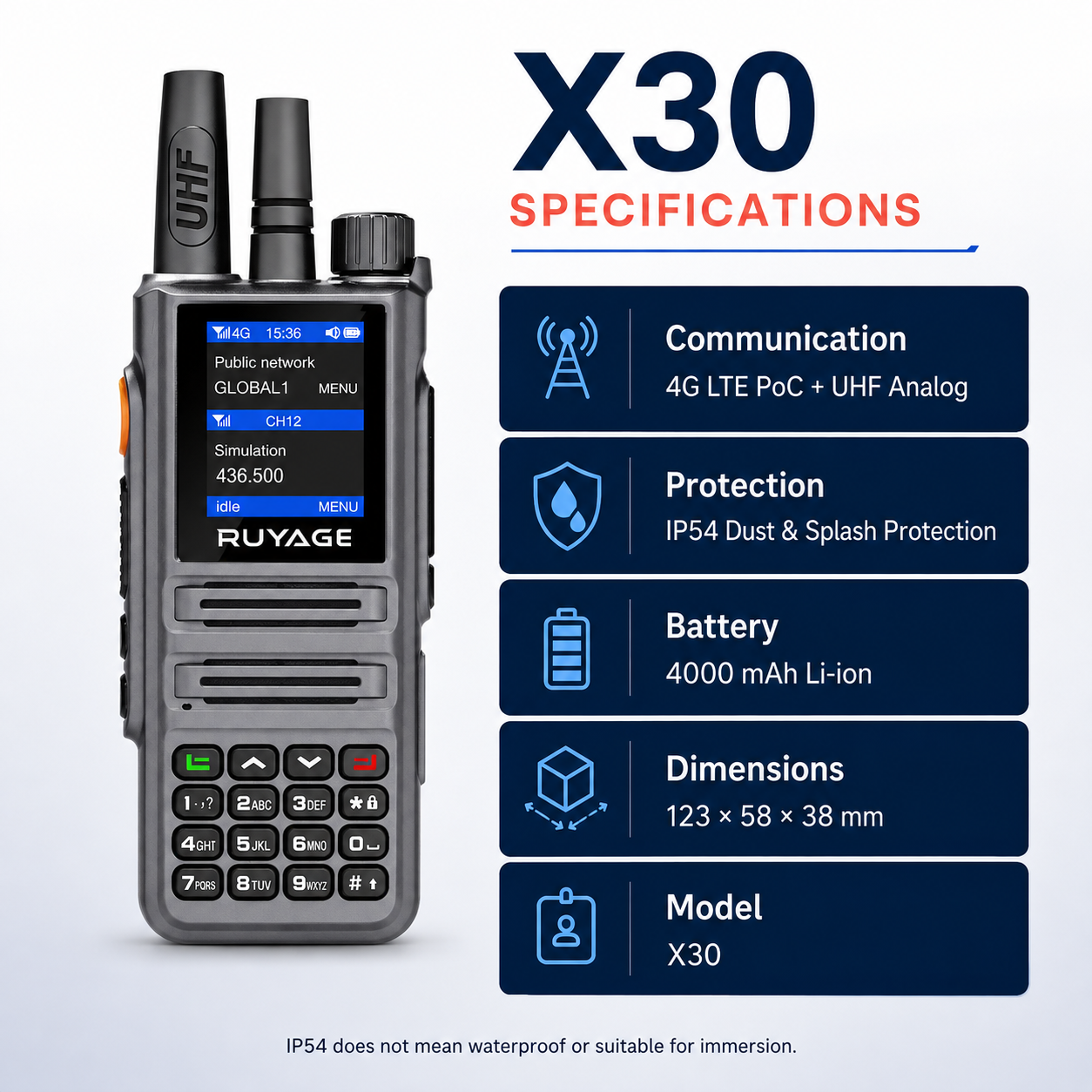

RUYAGE X30 Specifications

What’s Included

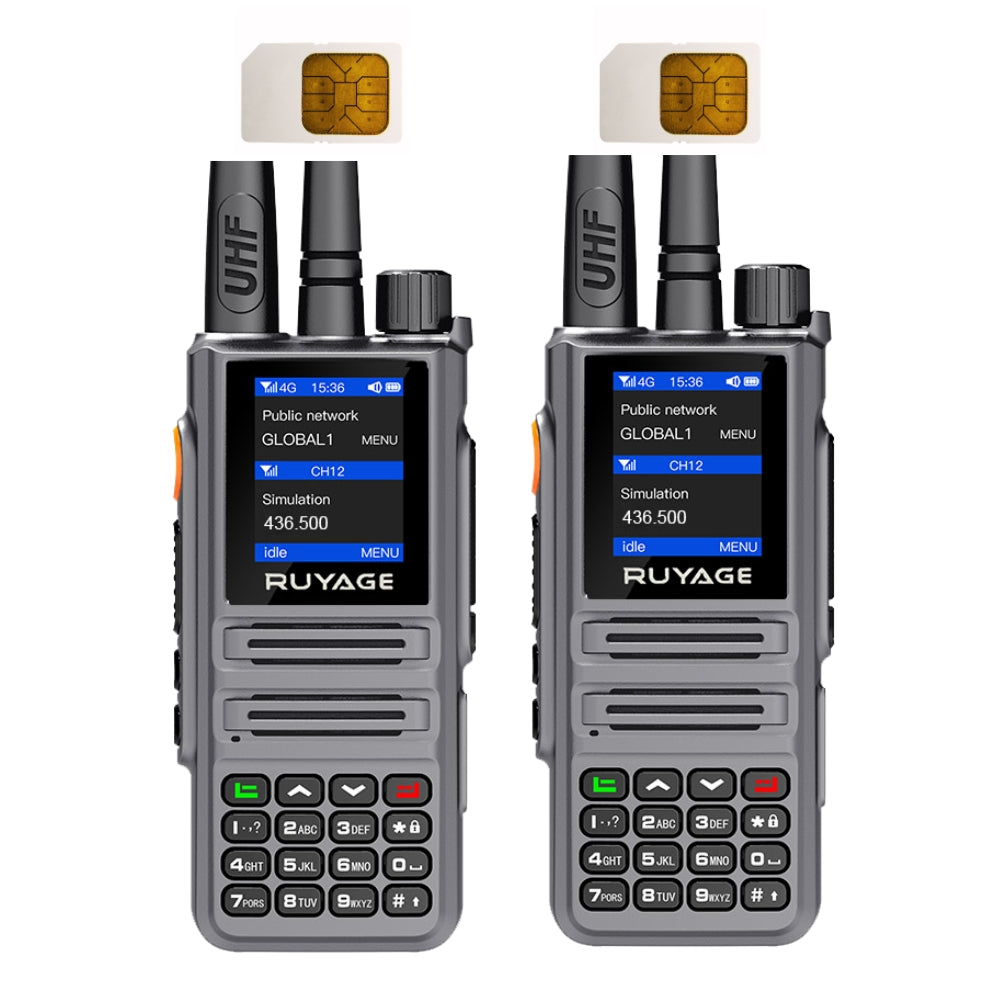

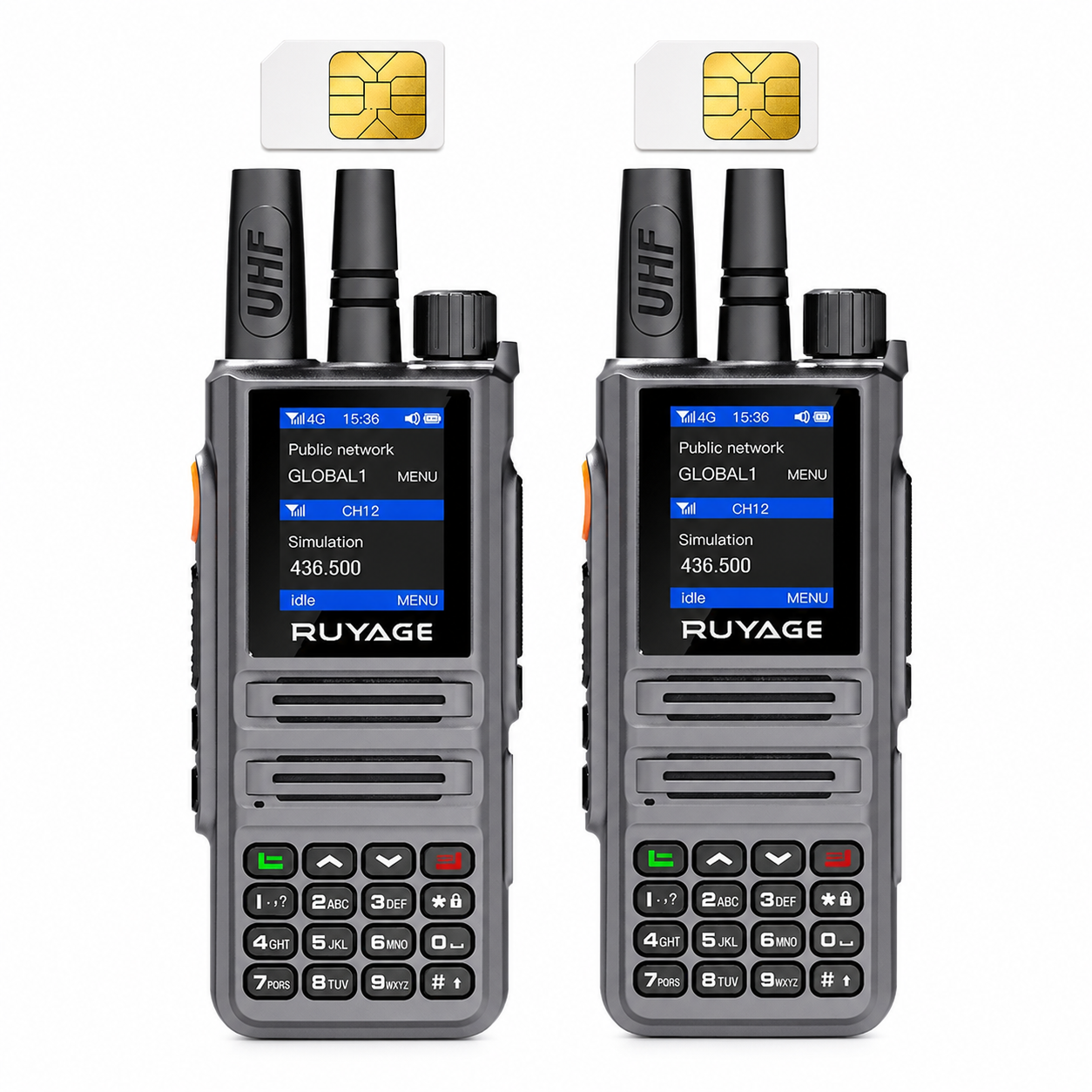

• 2 × RUYAGE X30 Dual-Mode Radio
• 2 × Rechargeable Battery
• 2 × Antenna
• 2 × Charger
• 2 × Belt Clip
• 2 × Lanyard

Please note: A SIM card or PoC service plan is not listed as included. Confirm the selected package and regional LTE network compatibility before ordering.

Recommended Applications

• Security and patrol teams
• Construction and industrial operations
• Warehouses and facility management
• Transportation and logistics teams
• Event and venue coordination
• Hospitality and property management
• Outdoor group communication

Important Network and Regulatory Information

• LTE PoC communication requires compatible cellular coverage, LTE bands, SIM service and a configured PoC platform.
• The UHF mode must be programmed to compatible frequencies used by the other radios in your team.
• UHF analog communication range varies and cannot be guaranteed as a fixed number of miles.
• UHF frequencies and permitted transmit power vary by country and radio service. A radio licence or frequency authorization may be required.
• IP54 provides limited dust and splash protection but does not make the radio waterproof or suitable for immersion.
• Dual-mode capability does not automatically mean that LTE PoC and UHF users can communicate through a cross-mode bridge.

Frequently Asked Questions

What does dual mode mean on the RUYAGE X30?

Dual mode means that the X30 supports both 4G LTE Push-to-Talk over Cellular communication and 5W UHF analog radio communication. The exact method for changing between the two modes depends on the radio configuration.

Can the X30 work without cellular coverage?

Yes. The X30 can provide local direct communication through its 5W UHF analog mode without LTE coverage. Both radios must use compatible, properly programmed and legally authorized UHF frequencies.

How far can the RUYAGE X30 communicate?

There is no single guaranteed distance. PoC mode depends on supported LTE network coverage. UHF analog range depends on terrain, buildings, frequency, transmit power, antenna performance, interference and radio configuration.

Does the X30 require a SIM card?

A compatible SIM card, mobile data service and PoC platform are required for LTE PoC mode. A SIM card is not required when using the UHF analog mode.

Is the RUYAGE X30 waterproof?

No. The X30 has an IP54 rating for limited dust and water-splash protection, but it must not be submerged or exposed to high-pressure water.

What do the 100 channels include?

The available channel configuration depends on the radio programming and selected PoC platform. The number may include configured UHF channels, PoC channels or talk groups depending on the system setup.

Can the X30 communicate with other UHF radios?

It may communicate with compatible UHF analog radios when the frequency, bandwidth, channel settings and signaling configuration match. Local regulations must also permit use of the selected frequency and transmit power.

Can PoC users communicate directly with UHF users?

Not necessarily. Dual-mode operation does not automatically provide communication bridging between LTE PoC and UHF networks. Only advertise cross-mode communication if this function has been confirmed for the X30 hardware and platform.
