Tacoma Rear Shock Relocation Kit – 2005–2023 Toyota Tacoma
Unlock More Travel, More Performance

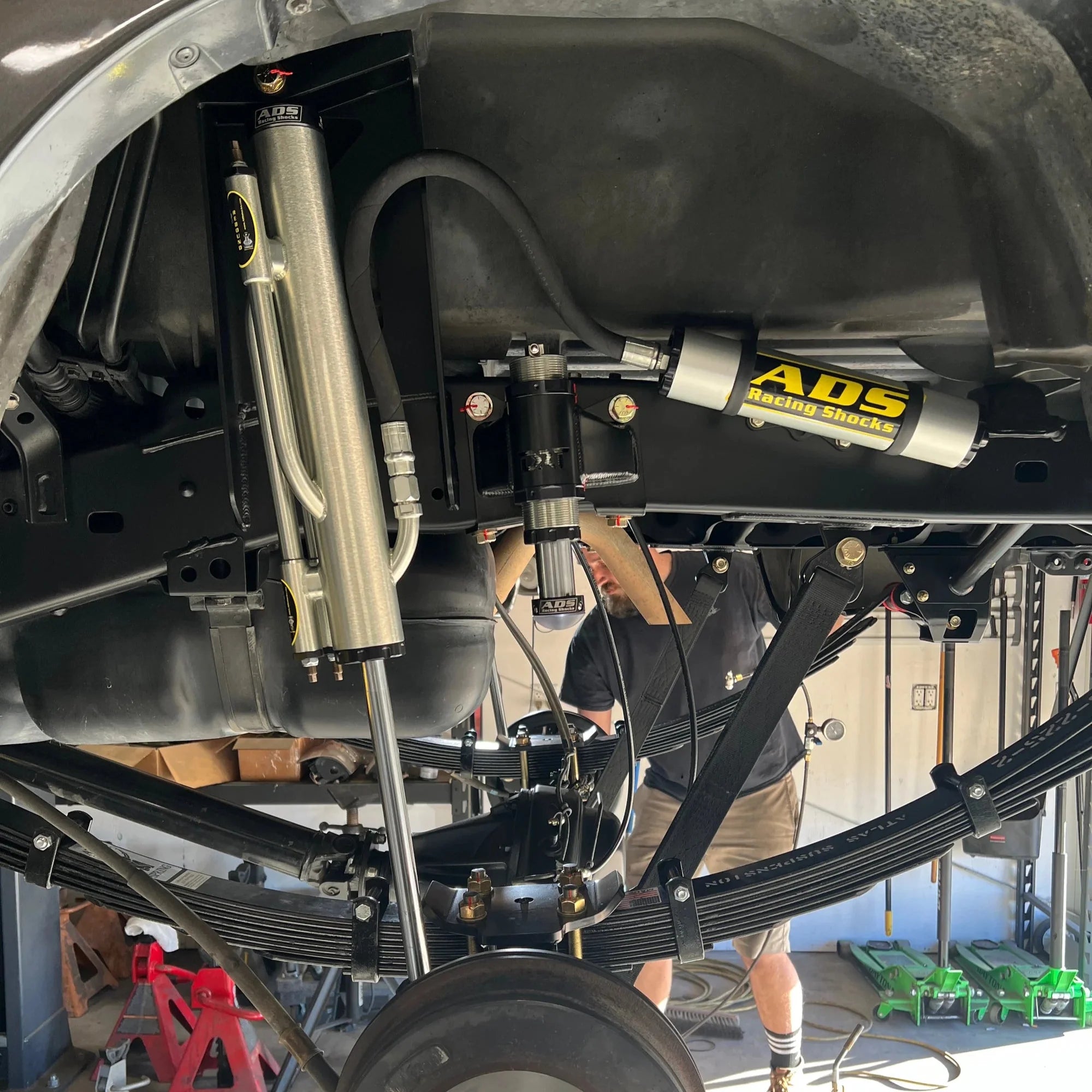

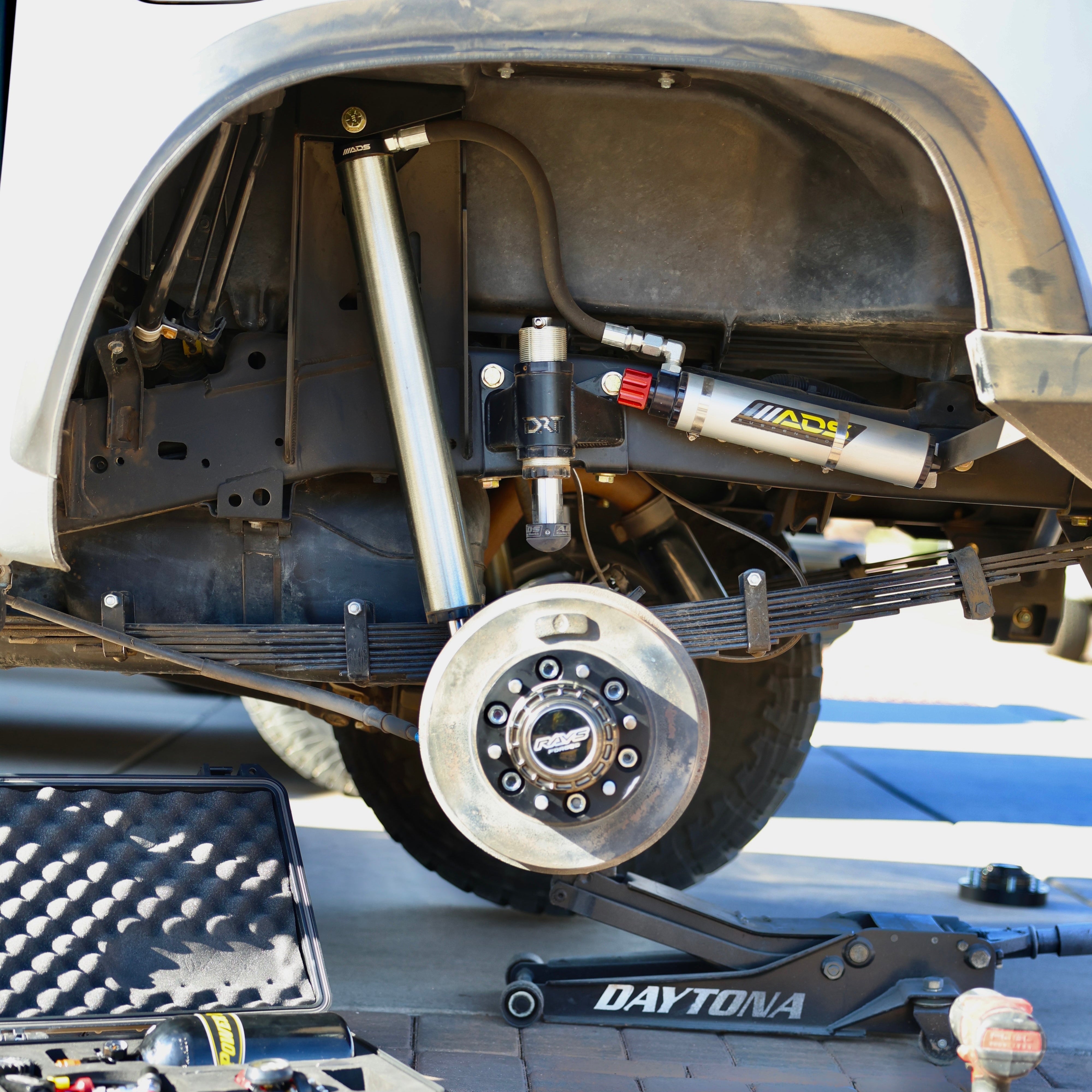

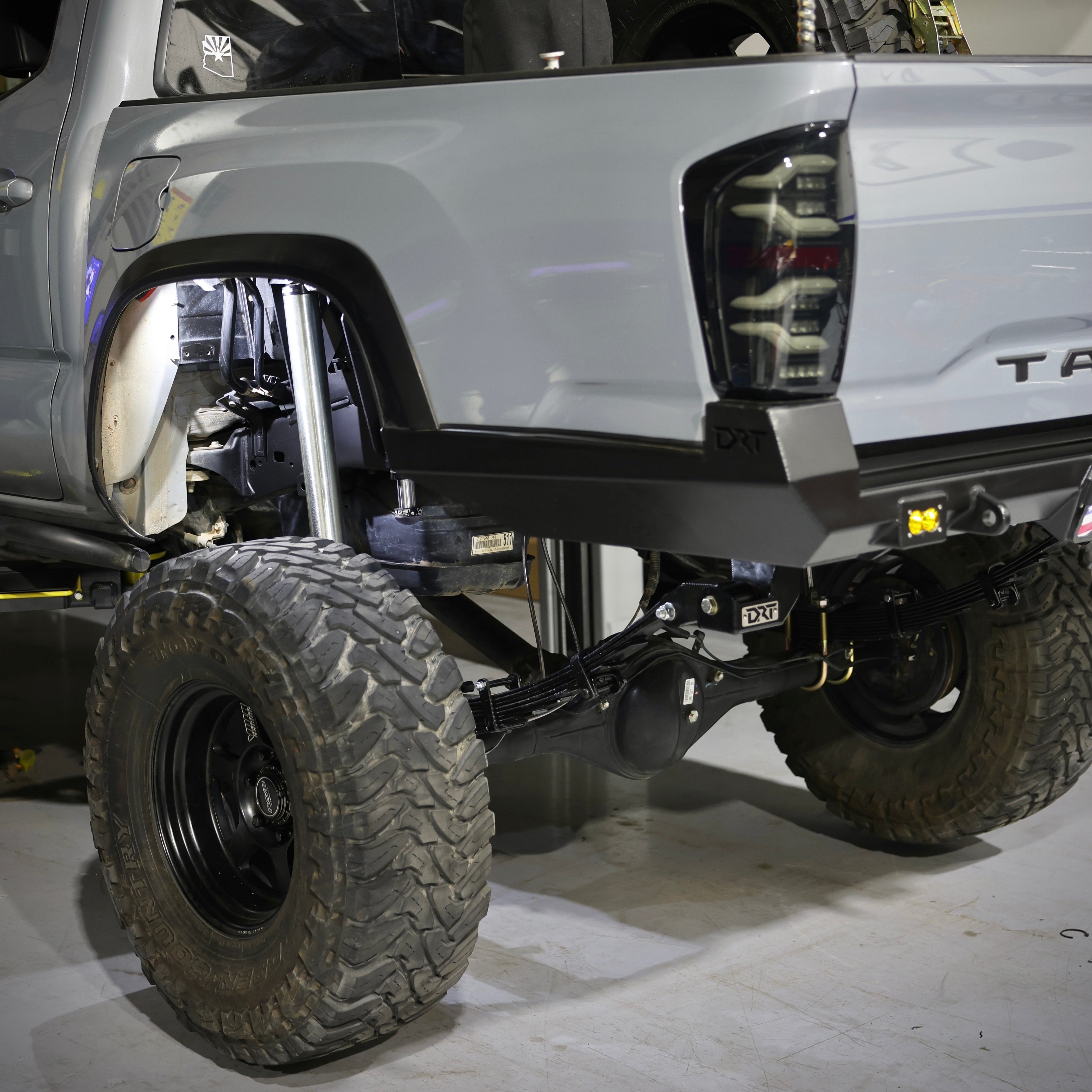

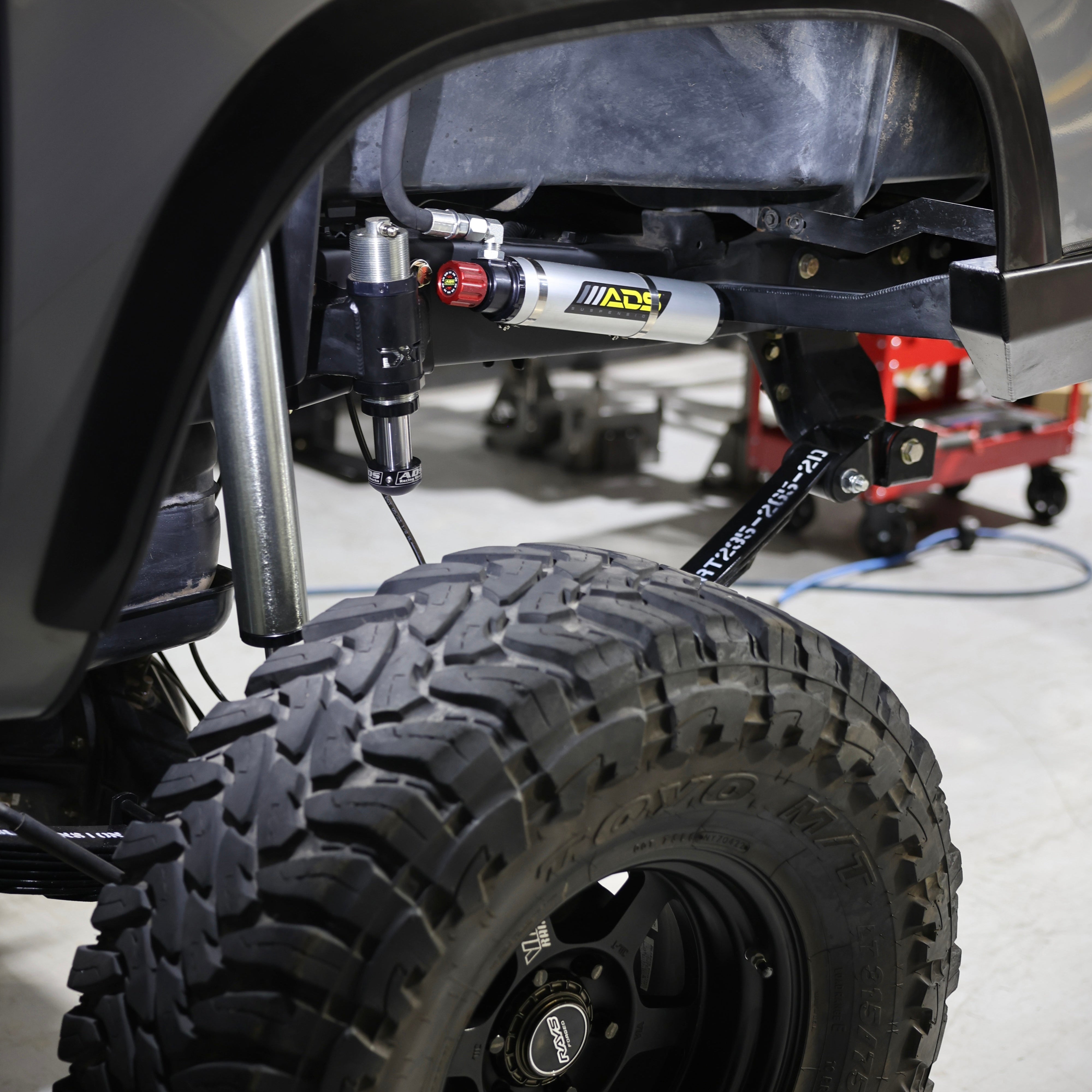

The DRT Fabrication Rear Shock Relocation Kit is designed for 2005–2023 Toyota Tacoma models and engineered to work with 2.5 x 12–14” shocks. By relocating the rear shocks, this kit increases down travel while maintaining or even improving up travel, giving your Tacoma the suspension performance it deserves.
Built for Strength and Durability
Constructed from 3/16” and ¼” heavy-duty steel, this kit is powder coated in satin black for corrosion resistance and reinforced with frame overlay plates for long-term strength. Designed for harsh off-road use, it delivers reliability where it matters most.

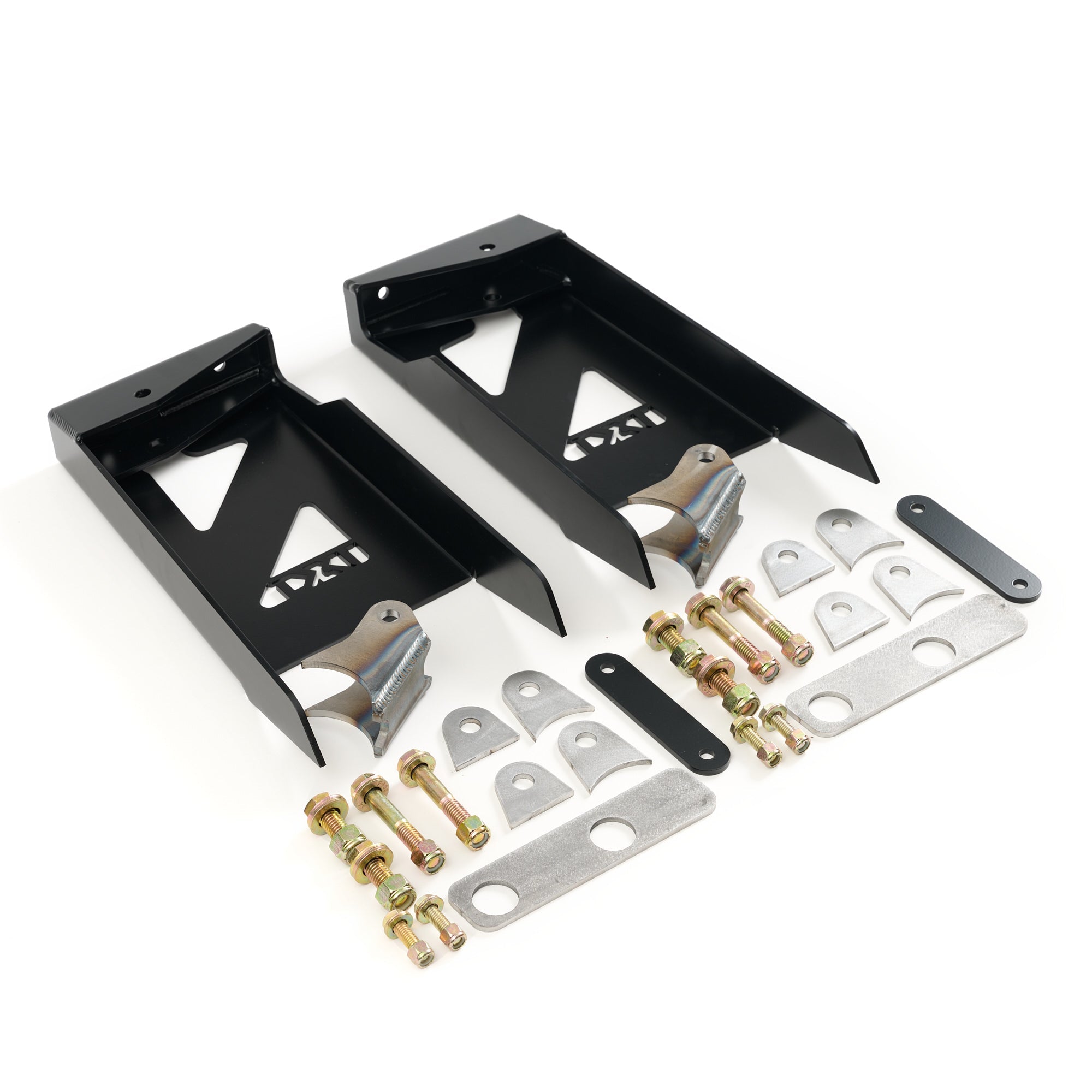

Complete Package
- Includes limit strap tabs
- All necessary Grade 8 hardware included
- Compatible with long-travel leaf packs
- Capable of achieving 13+ inches of wheel travel (leaf pack dependent)
Proven By Hundreds of Customers
Join the hundreds of Tacoma owners who have already installed this shock relocation kit and experienced the dramatic improvement in suspension performance for themselves. Whether you’re chasing desert whoops, crawling rocks, or simply demanding more from your truck, this kit transforms how your Tacoma handles.
Specs
- Fitment: 2005-2023 Toyota Tacoma
- Shock Size: Designed for 2.5 x 12-14" shocks (12" recommended)
- Travel: Capable of 13"+ wheel travel with 12" shocks (leaf pack dependent)

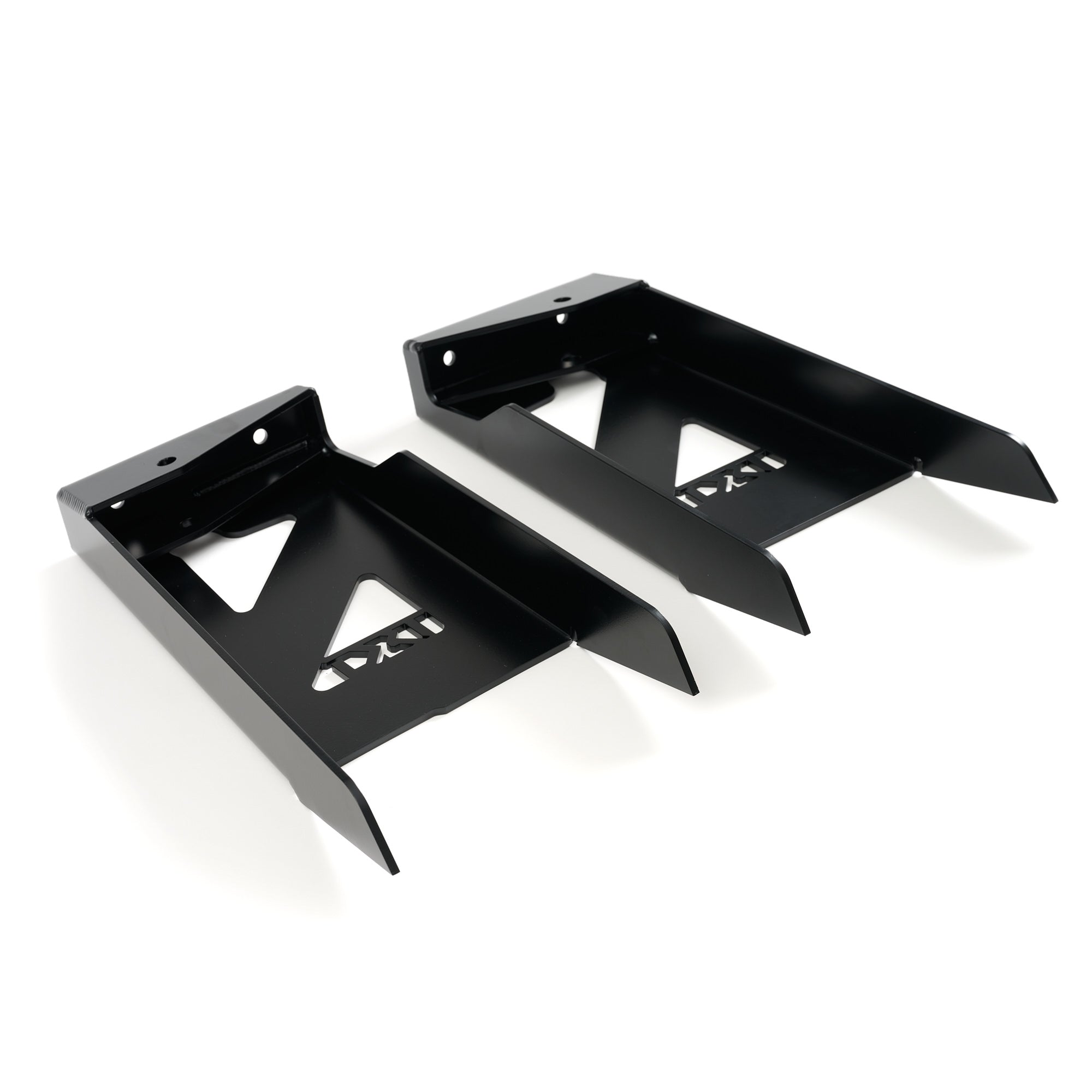

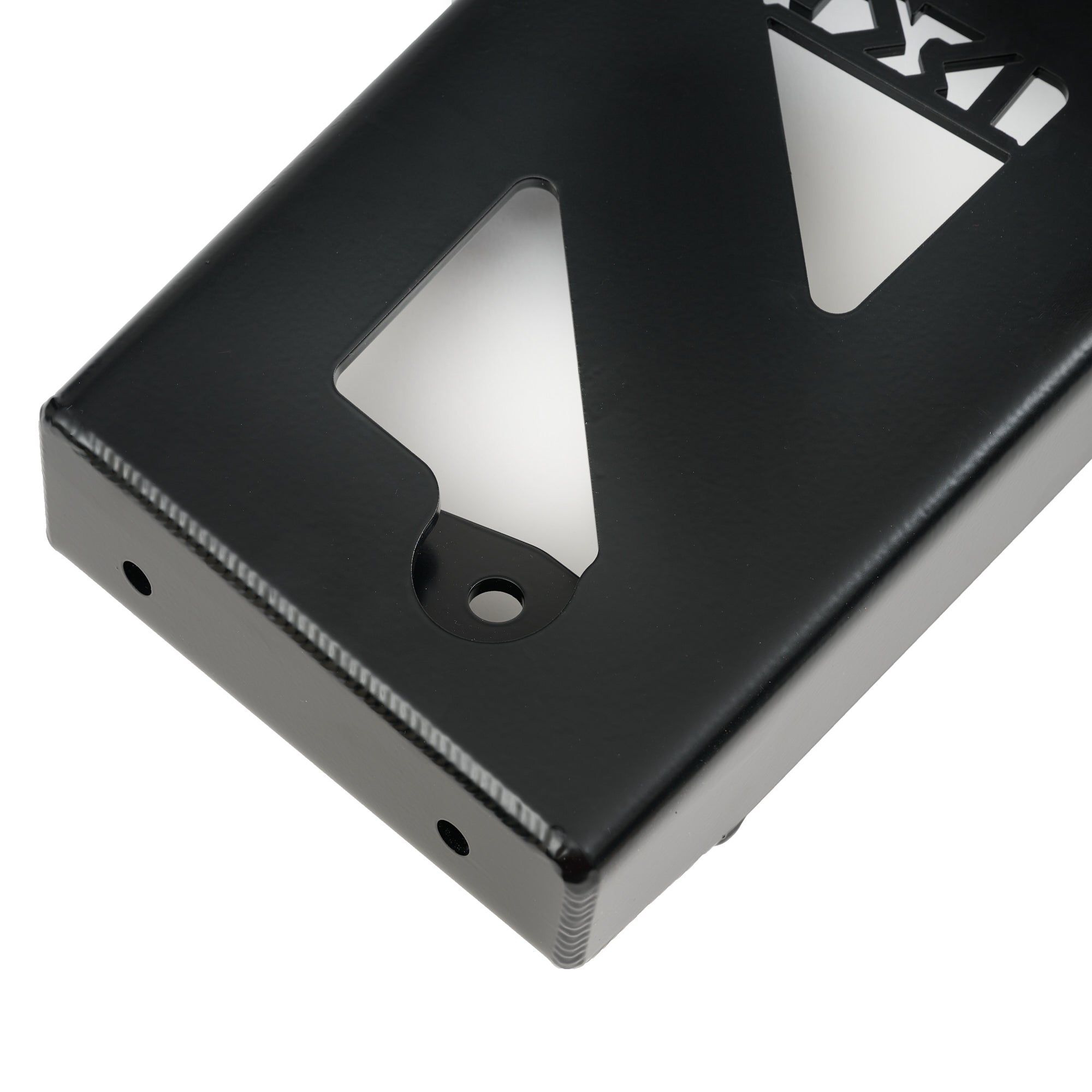

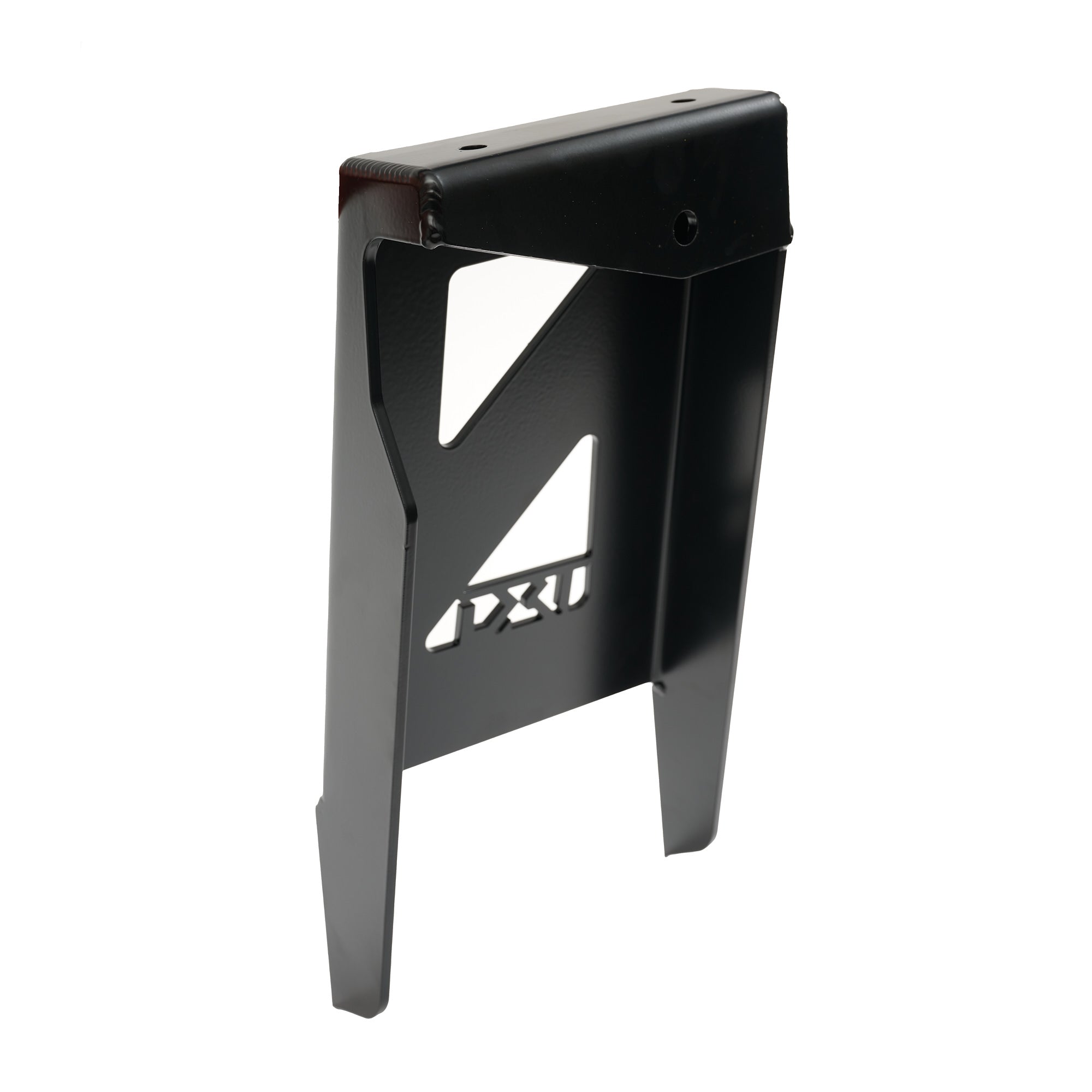

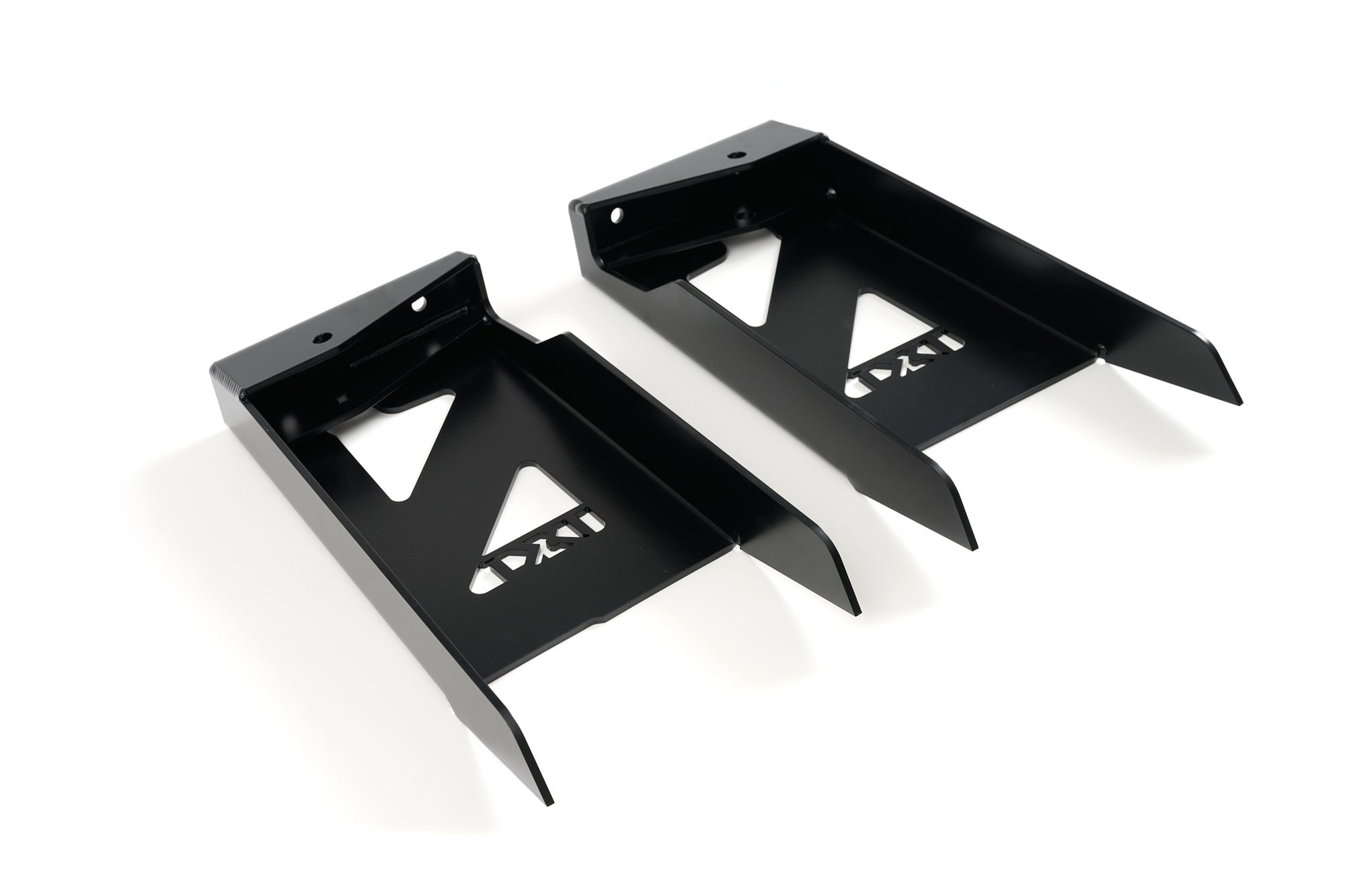

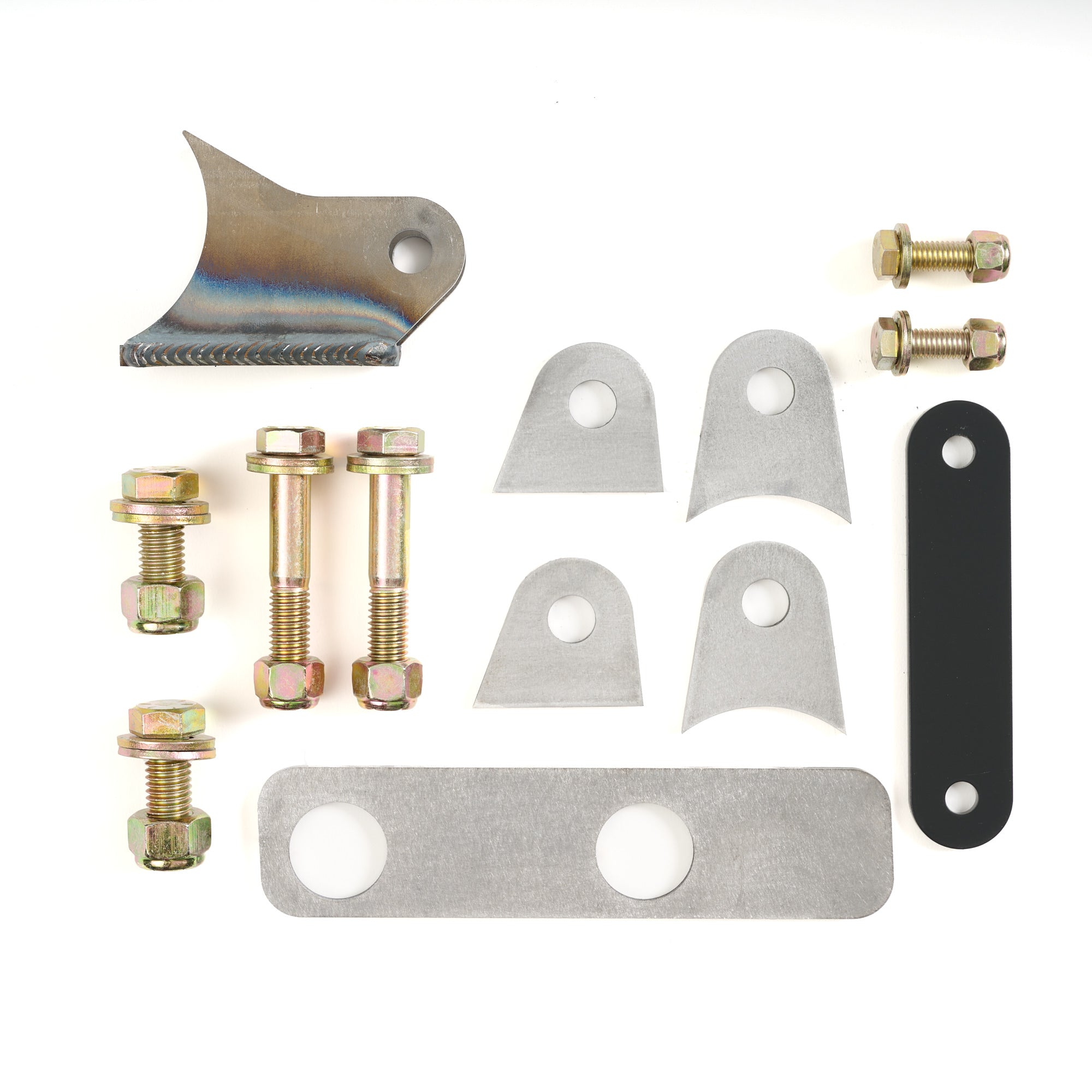

- Construction: 3/16" shock towers and 1/4" lower shock mounts, with limit strap tabs and frame overlay plates
- Hardware: Grade 8 hardware included
- Spacer Requirements: 1.5" spacers for 2.5" smooth bodies on 0 offset; 2" spacers for 2.5" triple bypass on 0 offset
- Shock Fitment Notes: Smooth body needs a straight fitting top cap, 1.5" eyelet spacing, 1/2" bolt; bypasses need a remote reservoir with forward tube layout (piggybacks will not fit)
- Finish: Powder-coated satin black
- Lead Time: 3-4 weeks
