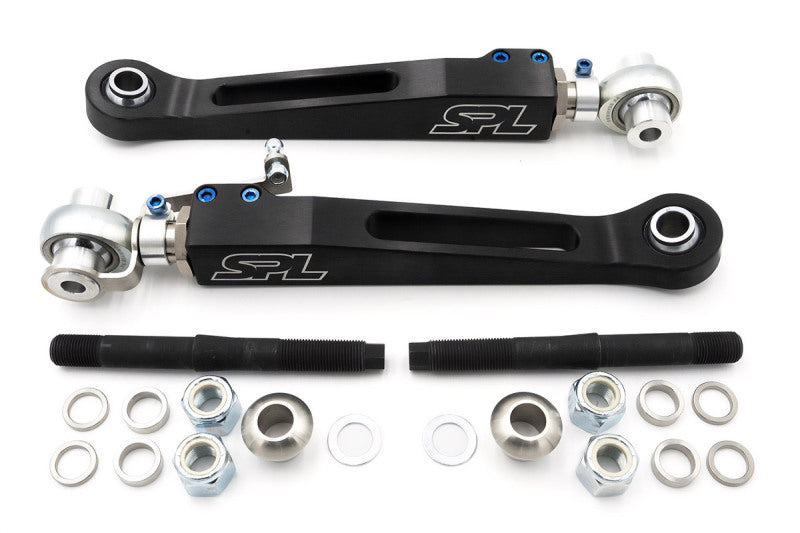

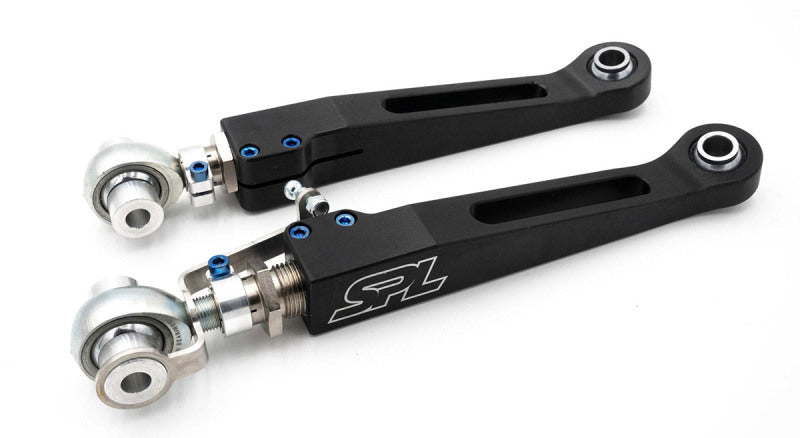

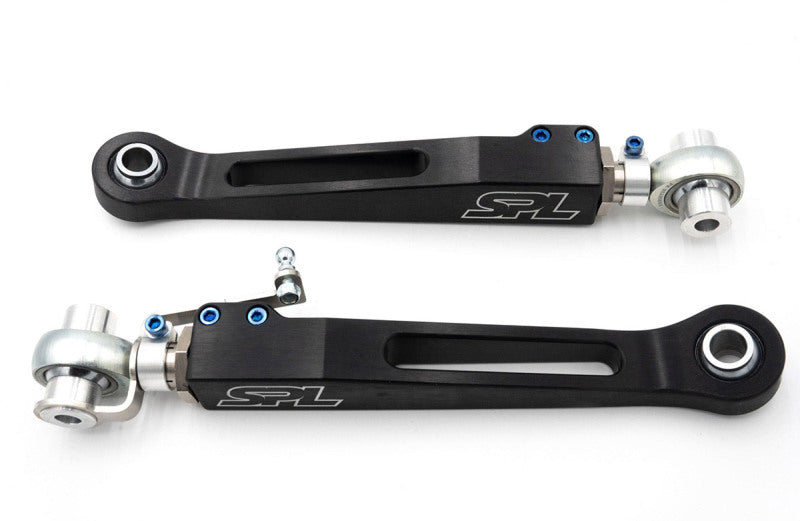

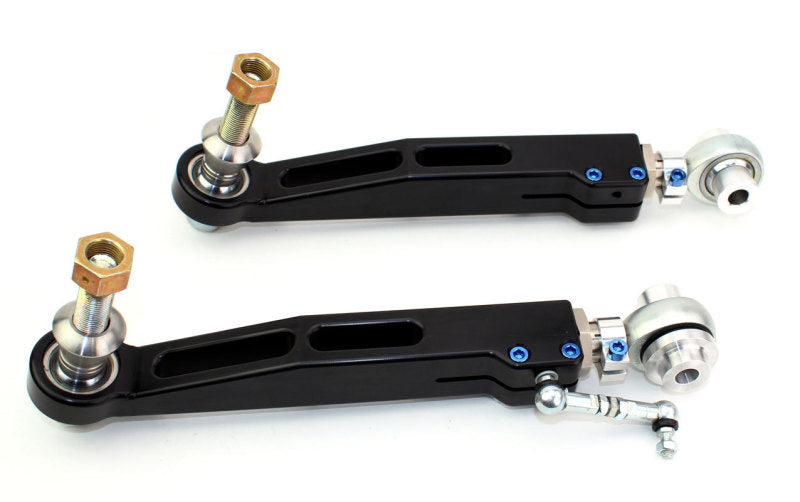

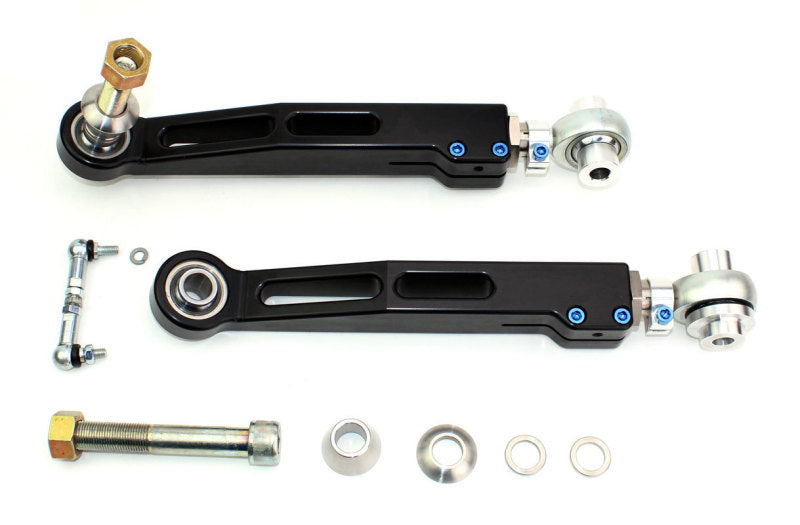

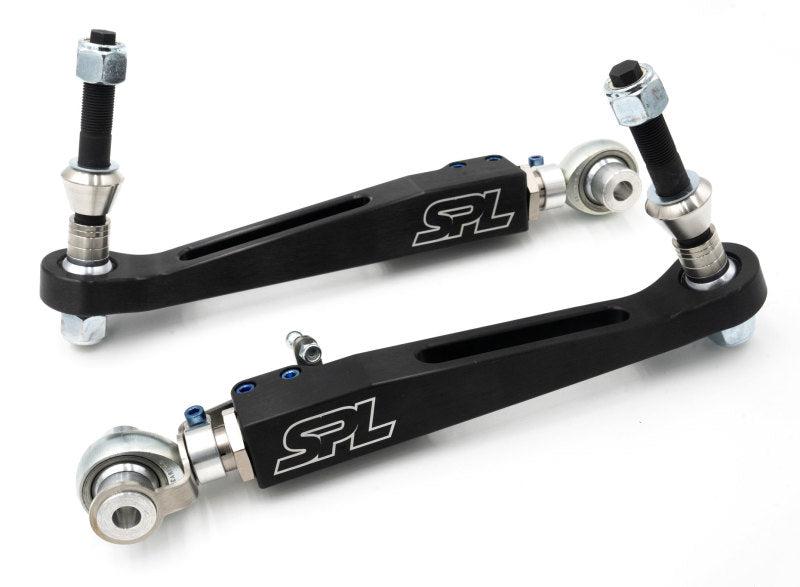

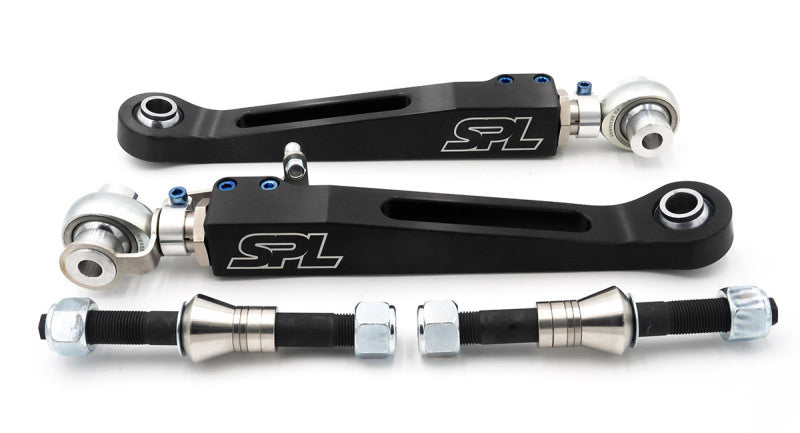

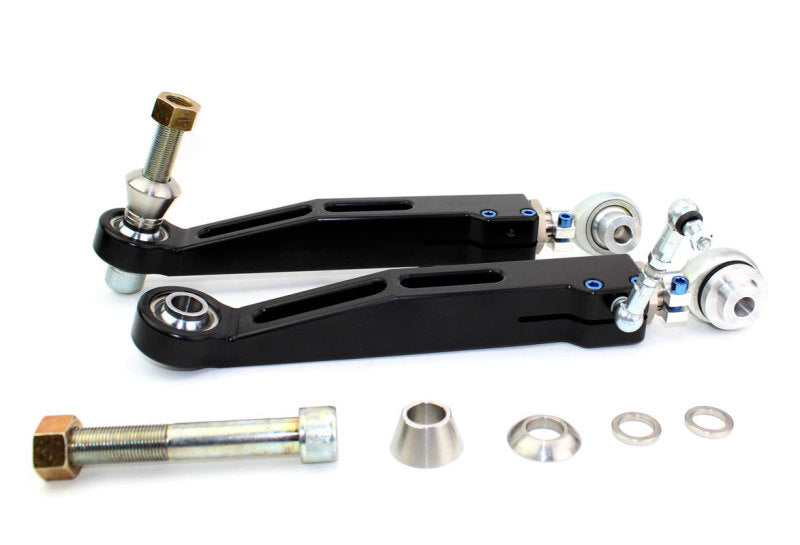

BMW F8X Front Lower Control Arms (FLCA) provide roll center, camber, and track width adjustment for the F8X BMW M2/M3/M4, and allow for full articulation with the proper ball joint angle. The main arm is slotted to allow the use of pinch bolts, and our rotating clamps on SPL Parts' exclusive Double Adjuster lock down camber and track width settings. No more jam nuts!! Long gone are the days of fumbling with multiple wrenches to tighten jam nuts in place while trying to keep your bearings oriented correctly.

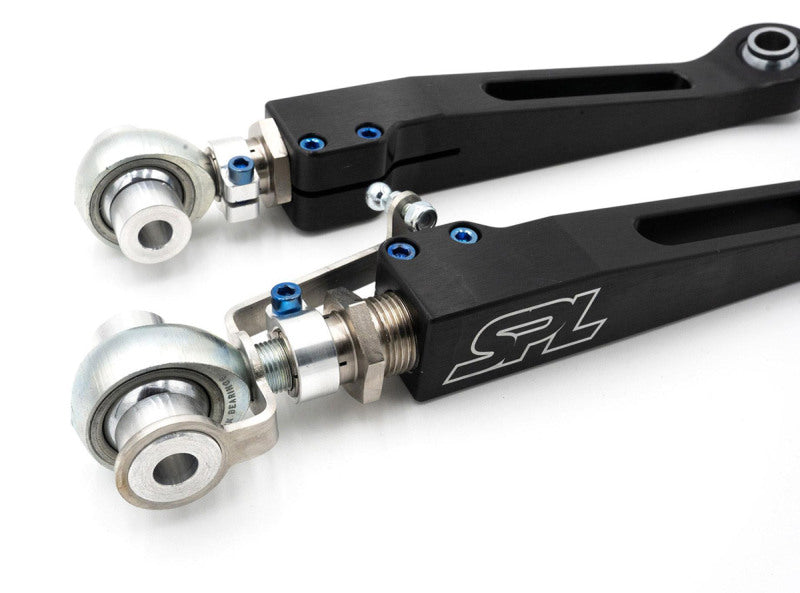

Our Double Adjuster is machined from 4130 Chromoly; gun drilled to reduce weight, then electroless nickel plated for corrosion resistance. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms without compromising strength. Stainless Steel spacers are provided to correct roll center for lowered vehicles. The use of FK Rod Ends and High Misalignment Spherical Bearings eliminates the flex and binding found in the OEM control arms, while allowing smooth articulation. The street version includes the headlight adjusting rod.
Sold as a pair.
Made in the USA!
BMW F8X Front Lower Control/Trailing Arms Feature:
• Lightweight 6061-T6 Billet Aluminum and Titanium Hardware
• Electroless nickel plated 4130 Chromoly Double Adjuster for quick adjustment
• Correct ball joint angle for full articulation
• Rotating Clamp design allows for easy access to lock down alignment settings
• Low friction 3 piece Teflon lined FK sphericals and Heim joints/rod ends
• Multiple size Stainless Steel roll center spacers for precise adjustment
Applications:
2014 - 2021
F80, F82, F83, F87
Need a replacement rod end?
SPL Parts Rod Ends
Installation Instructions:
SPL Parts FLCA F8X
