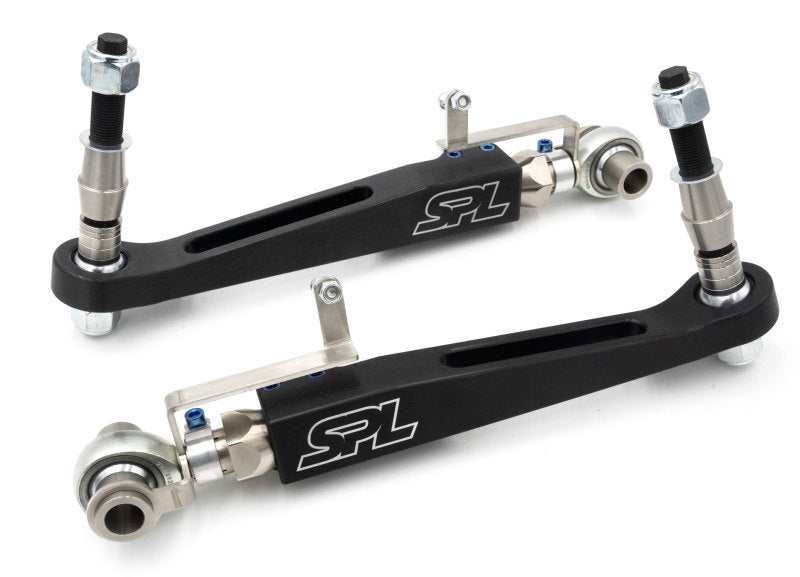

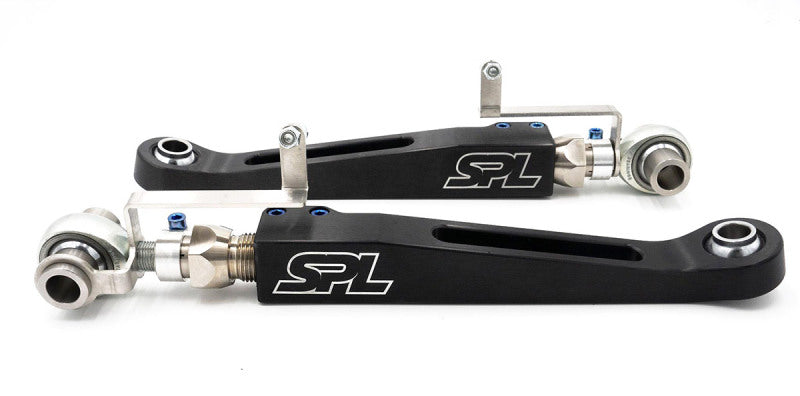

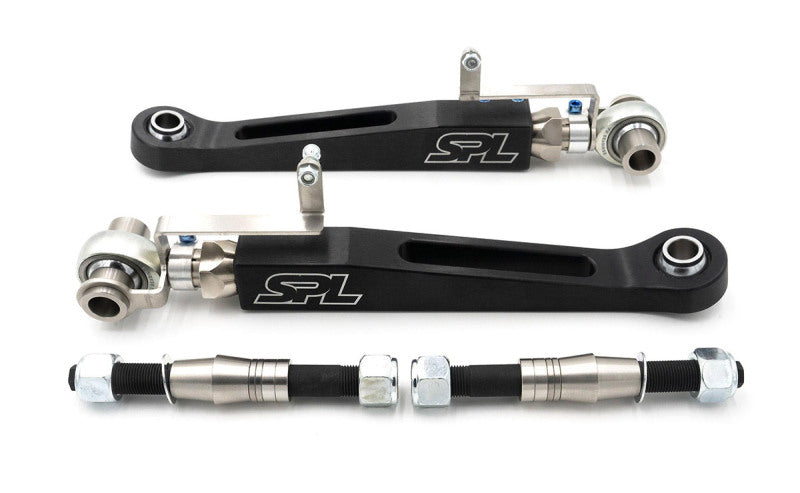

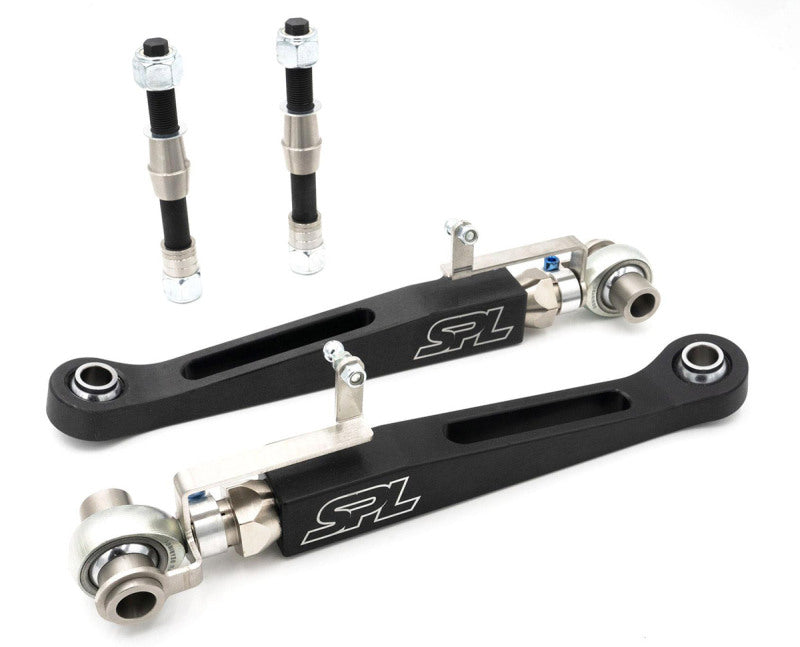

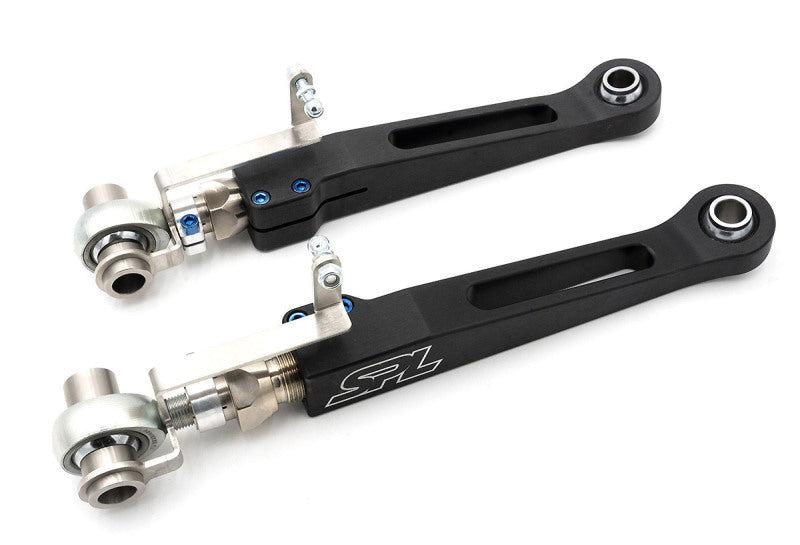

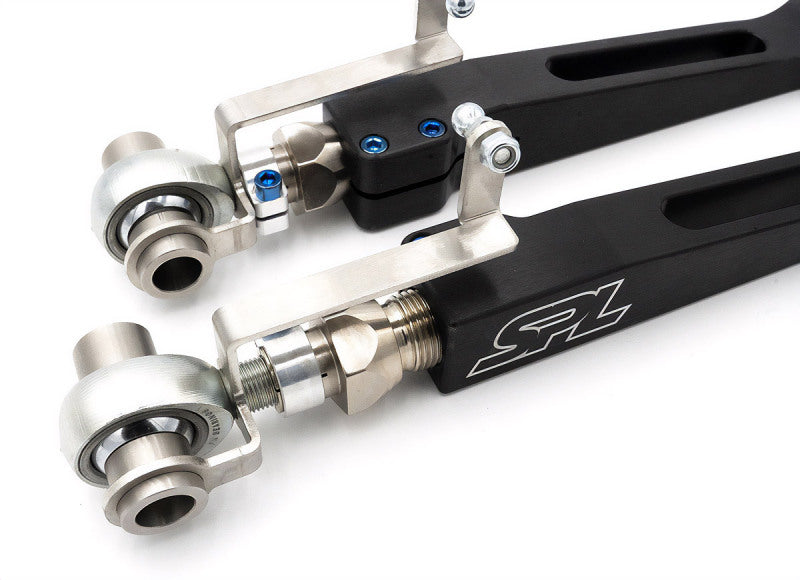

The SPL Front Lower Control Arms (FLCA) provide roll center, camber, and track width adjustment for the Shelby GT350 and GT350R. Using a mixture of billet aluminum, stainless steel, chro-moly steel, and titanium results in strong, adjustable arms that are 2.0 lbs lighter than stock arms.
The ability to run more negative camber greatly improves the peak lateral grip available, dropping several seconds off of lap times when tested on the Vorshlag Dark Horse. This is especially important with better tires and a must-have for anyone looking to prevent excessive outer shoulder wear (and heating) on their tires due to a lack of camber.
The lower control arms come with a ride height sensor bracket to maintain factory ride height sensor location, regardless of length of the arm to keep the Ford chassis electronics happy.
Benefits
Adjustable Camber, Roll Center, and Track Width
Easy, On-car Adjustability
Improved Peak Grip and Tire Life with Ideal Camber Settings
Lightweight, High-Strength Construction

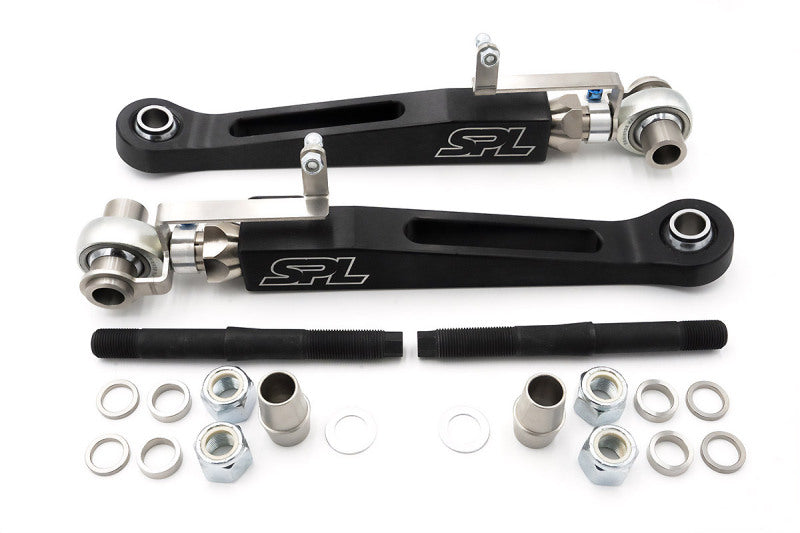

Stackable 304SS Roll Center Spacers in 1/8" and 1/4" Sizes
US Made, PTFE Lined FK Rod Ends
Materials
6061-T6 Aluminum Black Anodized Arm and Clamps
4130 CrMo Electroless Nickel Plated Double Adjuster
Ti6Al4V Titanium Socket Head Cap Screws
304 Stainless Steel Roll Center, Mounting, and Knuckle Spacers
5/8" 4340 CrMo Stud
FK PTFE-lined Spherical Bearings (F1 spec, self-cleaning)
Suitable for all uses, from daily driver to race car.
Featured On
Steve's 1300+WHP Serpent Stangs Racing GT500 Time Attack Car
Confirmed Applications
2015 - 2019 Shelby GT350 and GT350R
FITMENT WARNING
DOES NOT fit the Shelby GT500, 2020 GT350, or non-Shelby Mustangs.
We have specific FLCAs for those fitments:
2015 - 2023 Ford Mustang (S550, inc. GT, EcoBoost, V6) Front Lower Control Arms
Shelby GT500 / 2020 Shelby GT350R Front Lower Control Arms
Install Instructions
SPL FLCA GT350 Instructions
IMPORTANT INSTALL INFO
S550 KNUCKLE TAPER VARIATIONS
Ford made numerous variations of the front knuckles across the S550 Mustang and Shelby line-up. These knuckles vary across nameplates (Mach 1, GT350, etc), years (2019 vs 2020 GT350), and even options (Handling Pack 2, etc).
Each knuckle variant may have different conical tapered seats where the front control arms mount. It is VERY IMPORTANT to verify the supplied conical tapered spacer fits snuggly into the knuckle, has near zero lateral end play (as-in it will not rock within the bore), and seats fully into the knuckle when installed at the proper torque value.
If you need clarification or feel you may have the wrong spacer for your Mustang, then please email us.
