Spring Under U-Bolt Plate Pair

Spring Under U-Bolt Plate Pair

Heavy-duty plates for secure spring mounting.

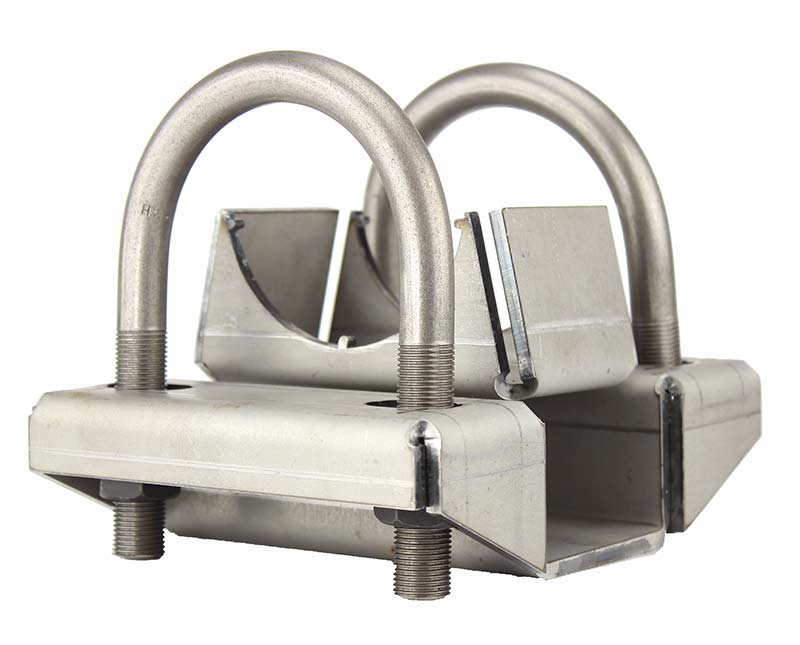

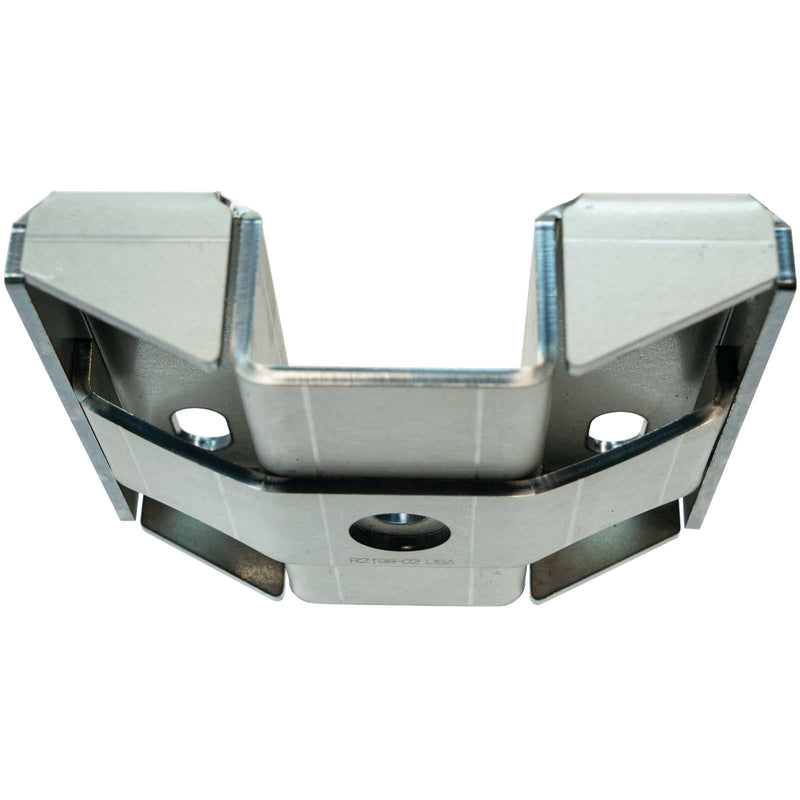

These cradle-style u-bolt plates provide a solid foundation for your leaf spring setup while protecting u-bolt threads from dirt and rocks. The 1.75" deep design creates a protective pocket that keeps your hardware clean and secure. Perfect for builds where you need reliable spring clamping with added protection from trail debris.

Designed for 2.5" wide springs with a snug fit that prevents the spring from shifting even if the center pin is lost. Compatible with 2.75" to 3.5" axle tubes and requires finish welding of seams and strap plates for complete installation.

Key Features

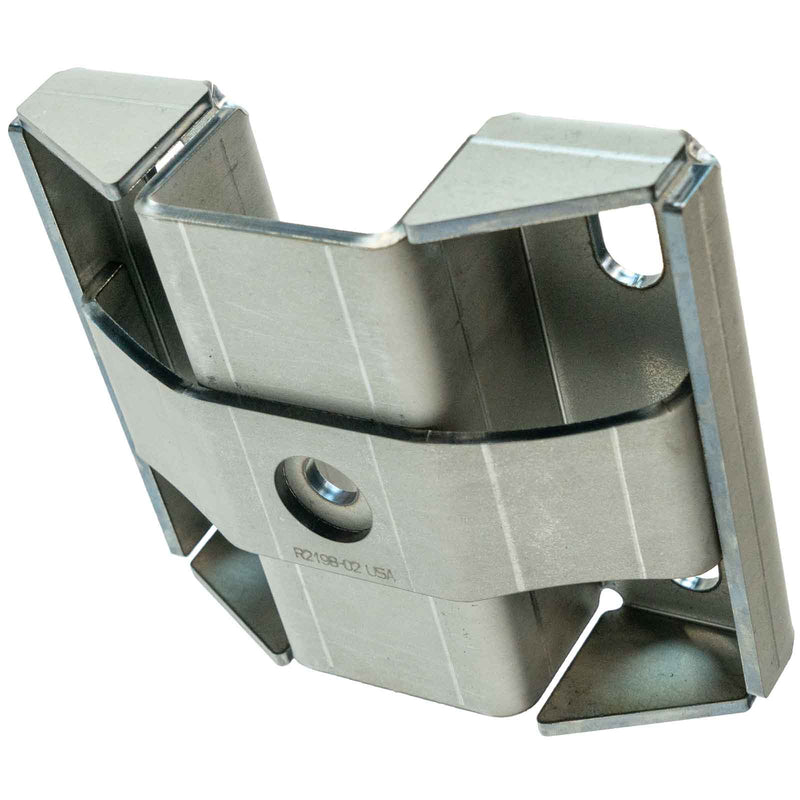

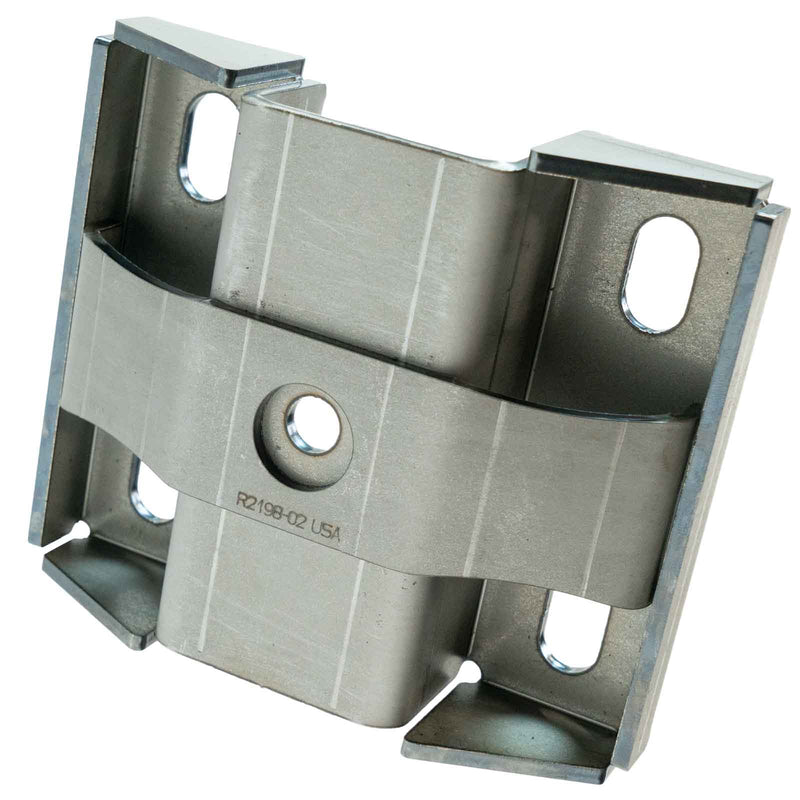

• Part Number: R2198
• Fitment: 2.75" to 3.5" axle tubes with 2.5" springs
• Material: Heavy-duty steel plate construction
• Dimensions: 1.75" deep cradle design, 2.5" spring width
• Special design features: Thread protection and snug spring fit

What's Included

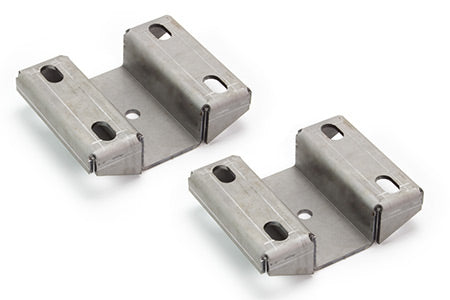

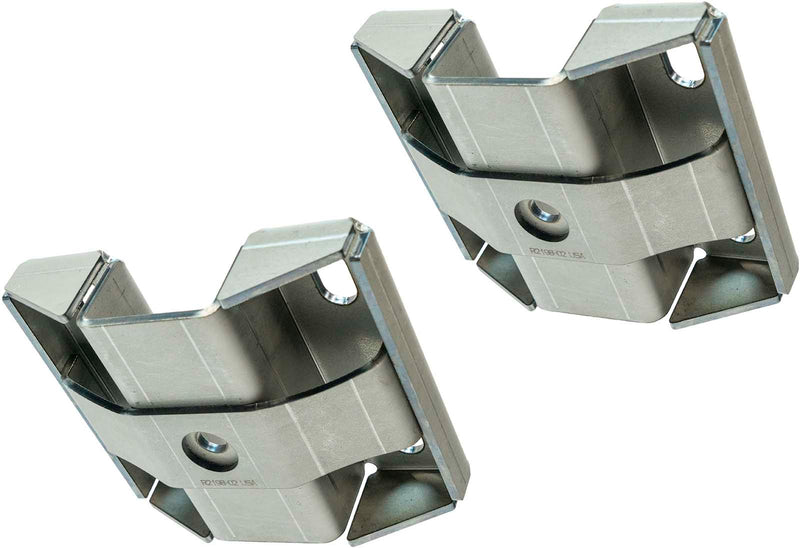

• 2x U-bolt plates (pair)

Notes

• Finish welding required for seams and strap plates

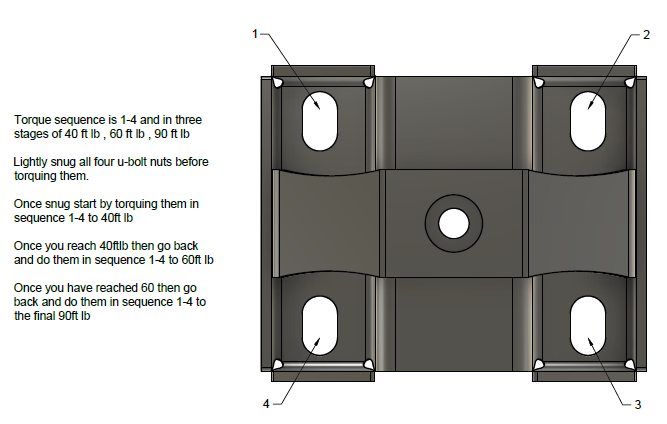

• 90 ft-lb maximum u-bolt torque specification
• U-bolts sold separately
