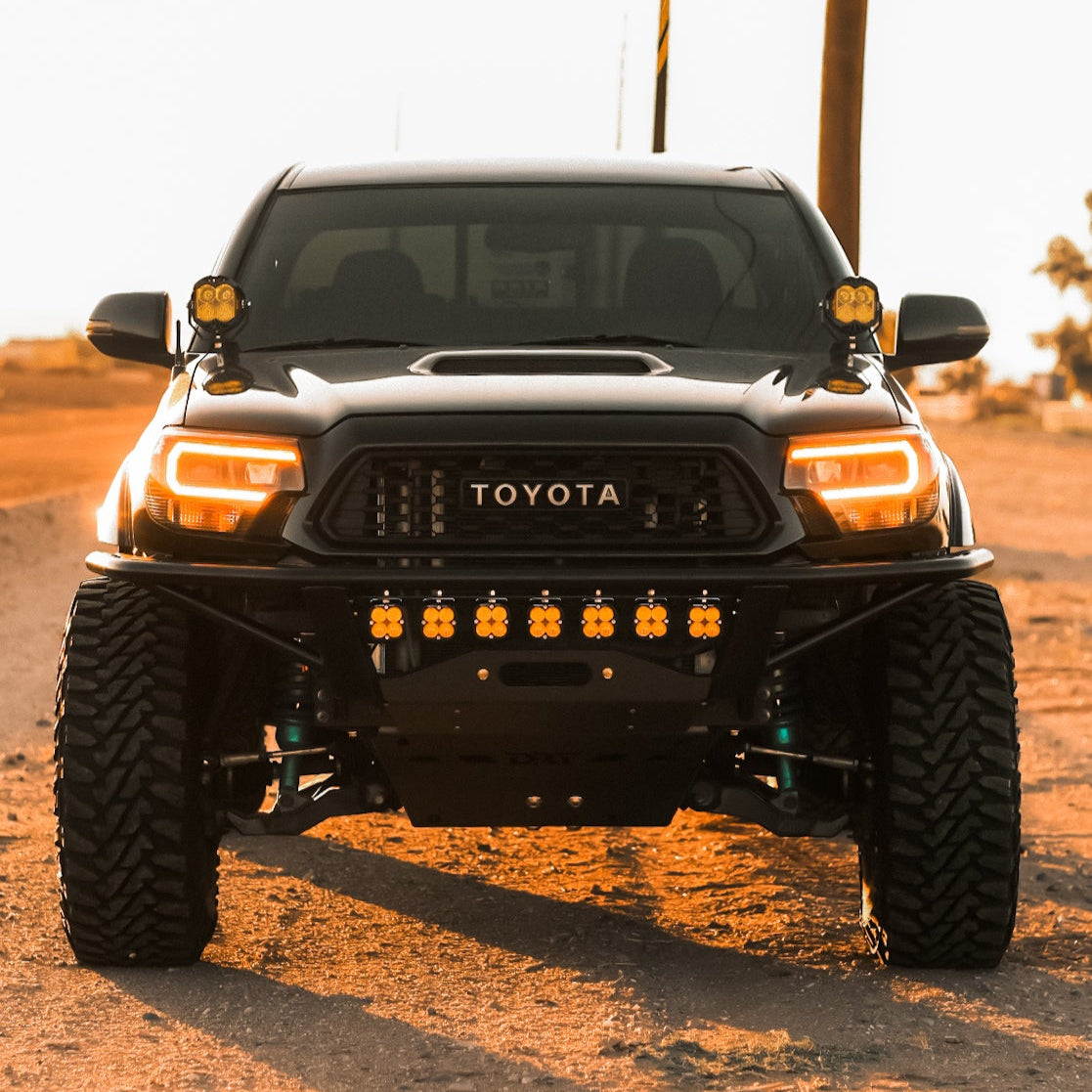

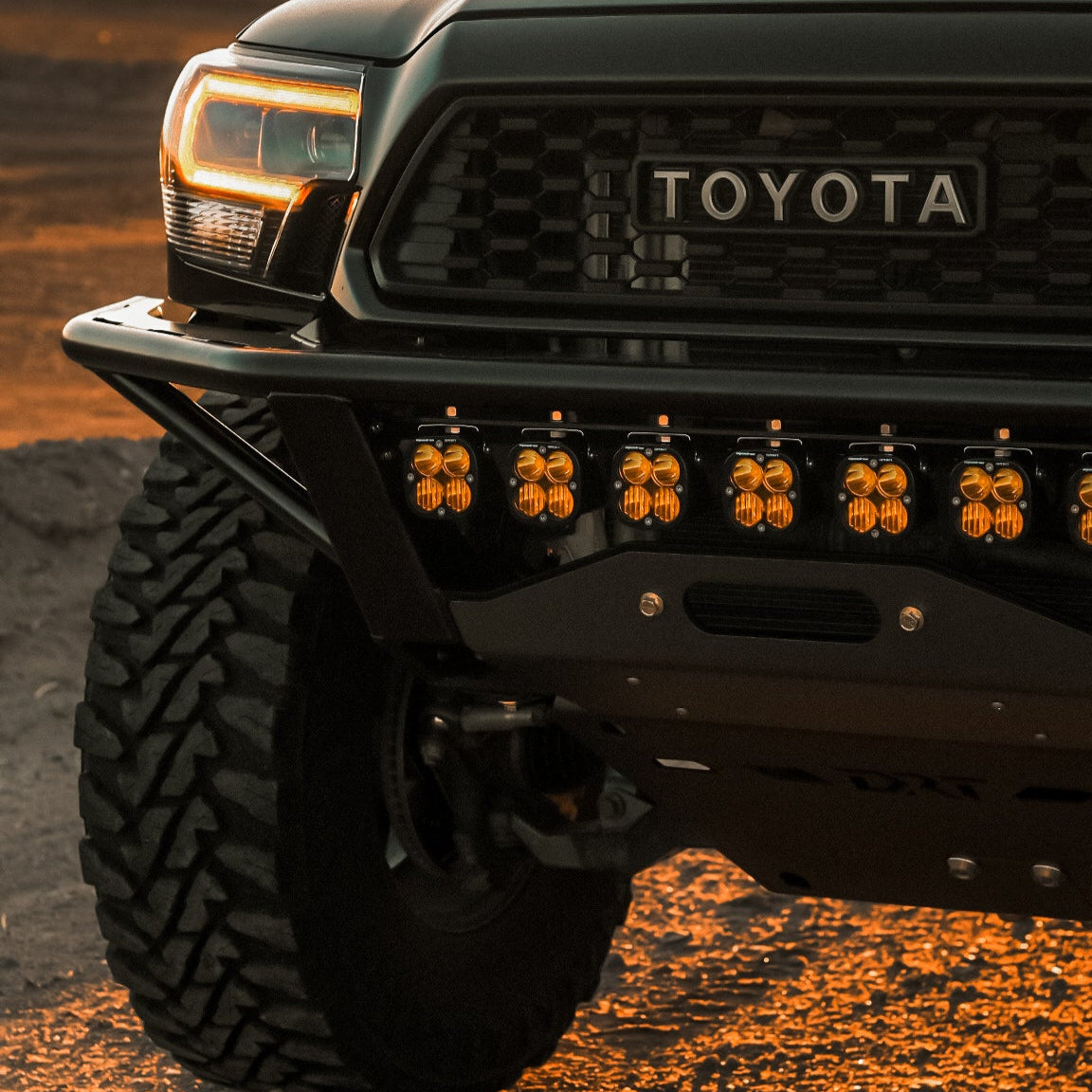

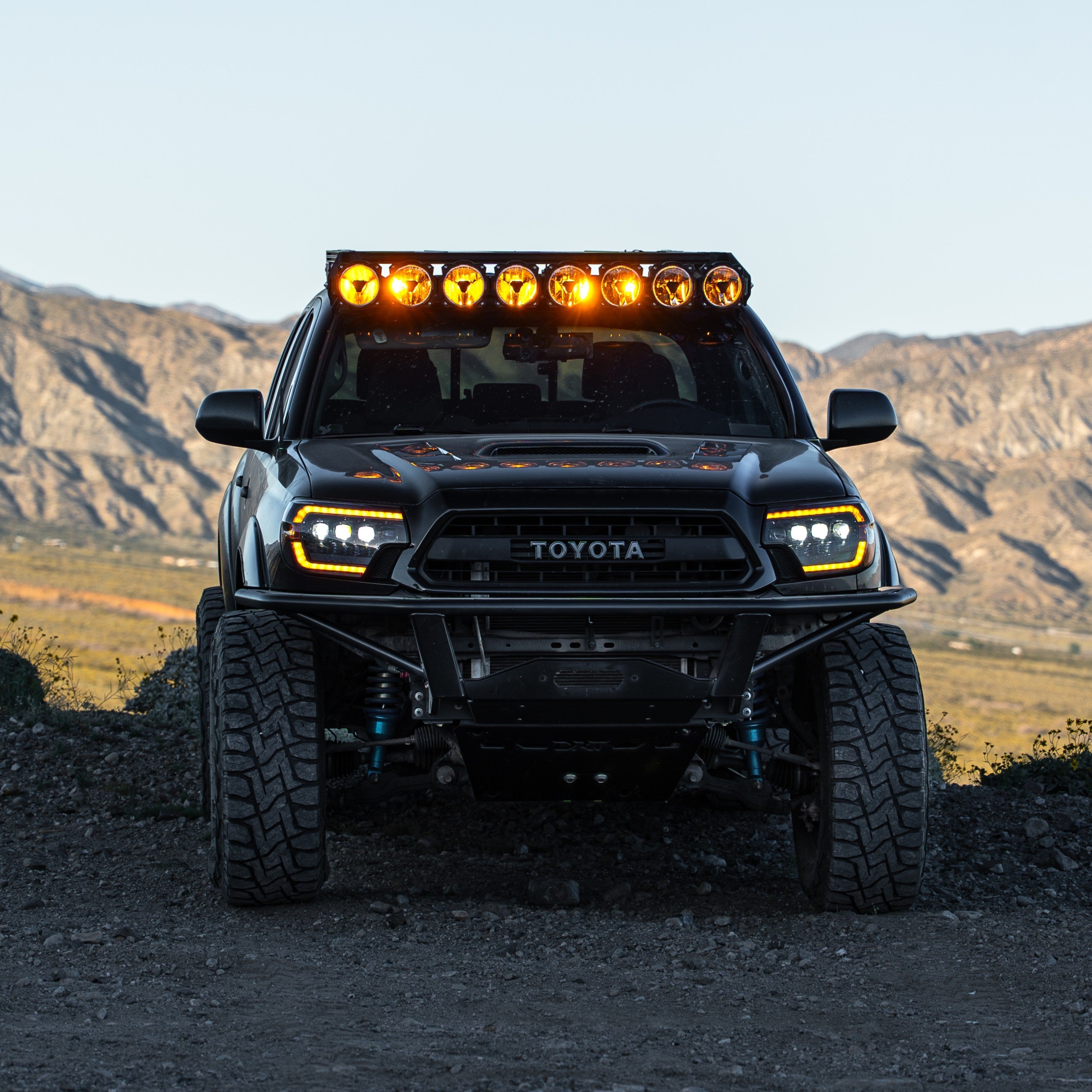

Crossmember Delete Front Bumper – 2012–2015 Toyota Tacoma
Maximum Clearance, Minimum Weight

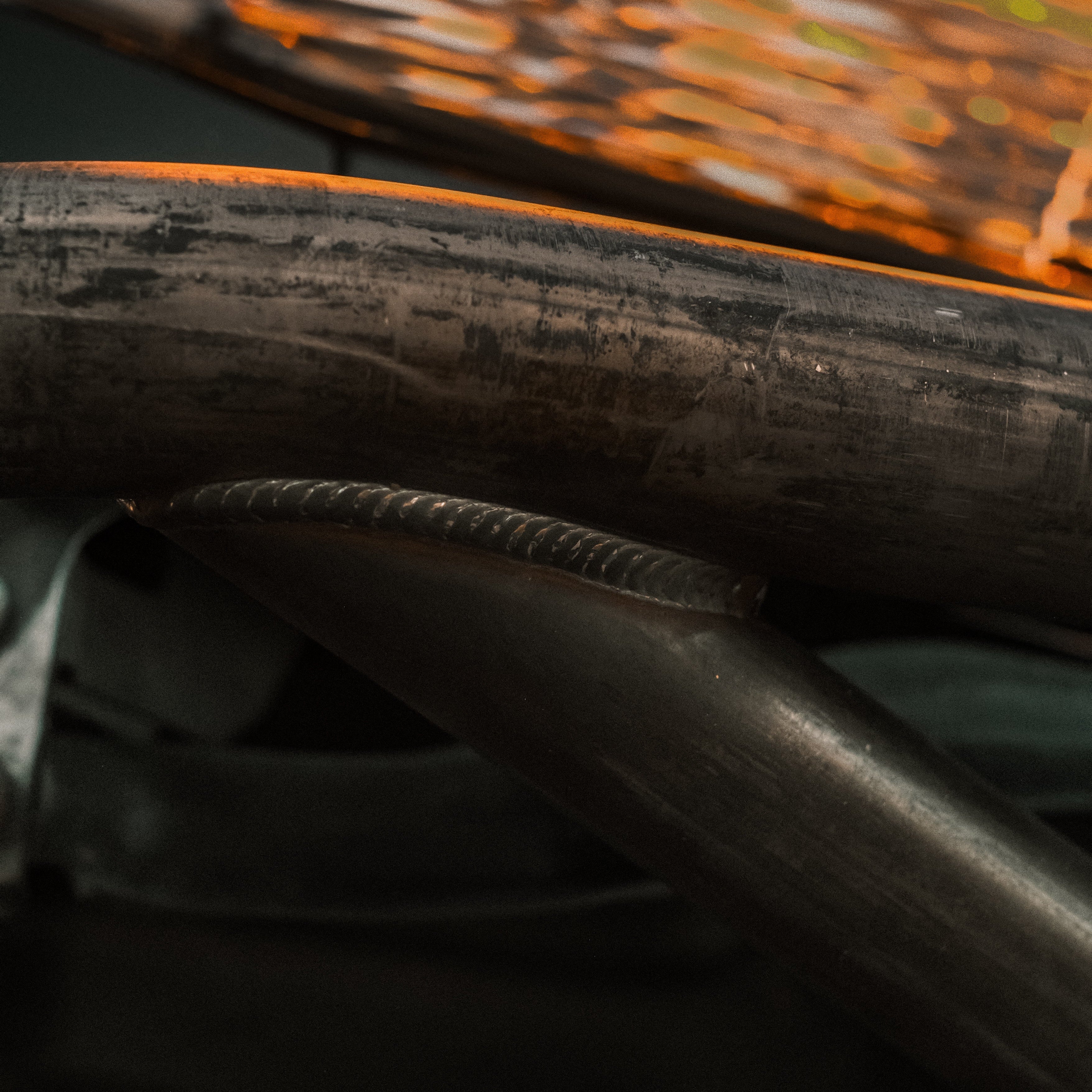

The Crossmember Delete Front Bumper for the 2012–2015 Toyota Tacoma is engineered for serious off-road performance, combining maximum clearance and durability with a lightweight design. Built from 3/16” A36 steel with 1 ¾” × .120 DOM tubing and 1 ½” × .120 side support tubes, this rigid one-piece bumper weighs only 69 lbs while delivering strength you can trust. A laminated D-ring plate design ensures safe and secure recovery points on the trail.
Optional Replacement Crossmember
For added strength, a heavy-duty replacement crossmember is available. It bolts directly between the frame rails to provide a solid mounting base for both the skid plate and bumper.
Lighting Versatility

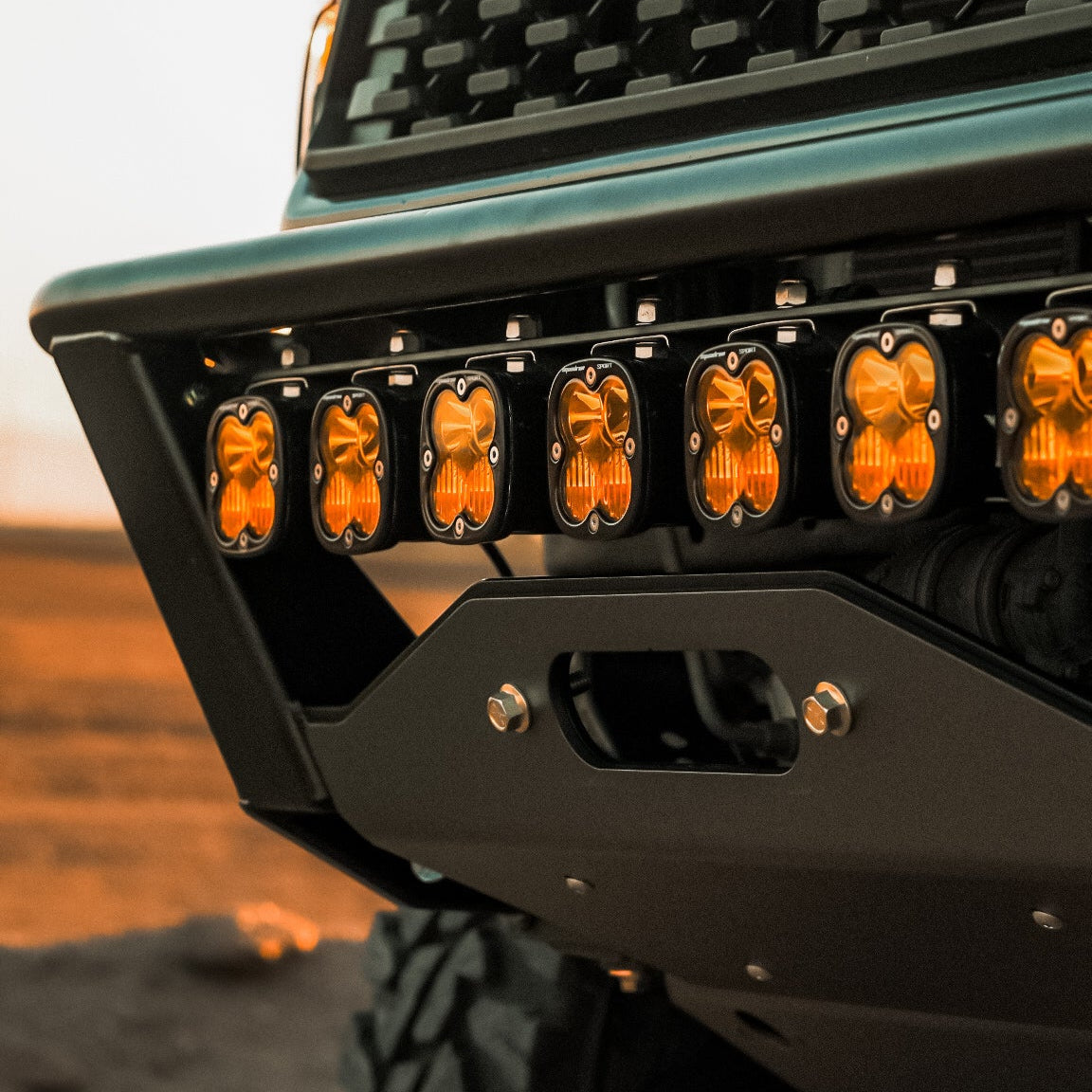

- Side-wing light mounts included (fit Baja Designs Squadron, S2, or similar-sized pods)
- Optional 7” light bar mount (sold separately) for even more lighting options
High-Clearance Engine Skid Plate
- Built from 3/16” steel with 8 mounting points (industry standard is 6)
- Flush-mounted access panels allow quick, easy oil changes
- Stainless CNC-machined washers protect panel hardware for long-term durability
- Works with Swaybars without spacers/drop brackets
Frame Reinforcement Included
- 3/16” weld-on frame reinforcements add strength and extend chassis life
- Designed to handle aggressive off-road abuse and long-term use
Specs
- Weight: 69 lbs
- Materials: 3/16" A36 steel plate main shell, 1/4" aluminum skid plate, .120-wall DOM tubing (1 3/4" and 1 1/2")
- Crossmember: Optional heavy-duty replacement available (bolts between frame rails)
- Recovery Points: Laminated plate D-ring design
- Lighting: Side-wing mounts fit Baja Designs Squadron, S2, and similar pods; optional 7" light bar mount available separately
- Skid Plate: 3/16" high-clearance steel skid with 8 mounting points, flush-mounted access panels, and stainless CNC-machined hardware
- Frame Reinforcements: 3/16" weld-on plates included
- Winch Mount: Compatible with ZEON and EVO series, Superwinch, and Carbon Off-Road (others may require modification)
- Finish: Ships raw
- Lead Time: 4-5 weeks (bull bars add 1-3 weeks)
