Key Features

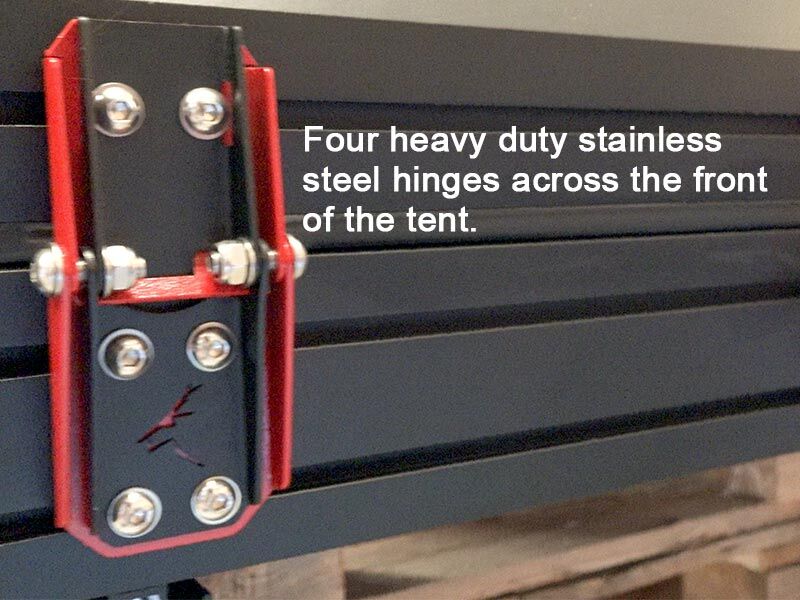

- Aluminum extruded frame with stainless steel fittings.
- Dimensions: Length 2.25m / 7′ 4.6″, Width 1.4m / 4′ 7.1″, Height 278mm / 10.94″
- Max Height (interior, headroom open): 1.4m (4′ 7″)
- Mattress: thickness 70mm / 2.76″ Length 2.13m / 7′, Width 1.28m / 4′ 7″
- Weight: Approximately 94Kg (207lbs) excluding telescopic ladder
- 2.6m Telescopic ladder, second ladder mount and universal fitting kit/brackets supplied as standard

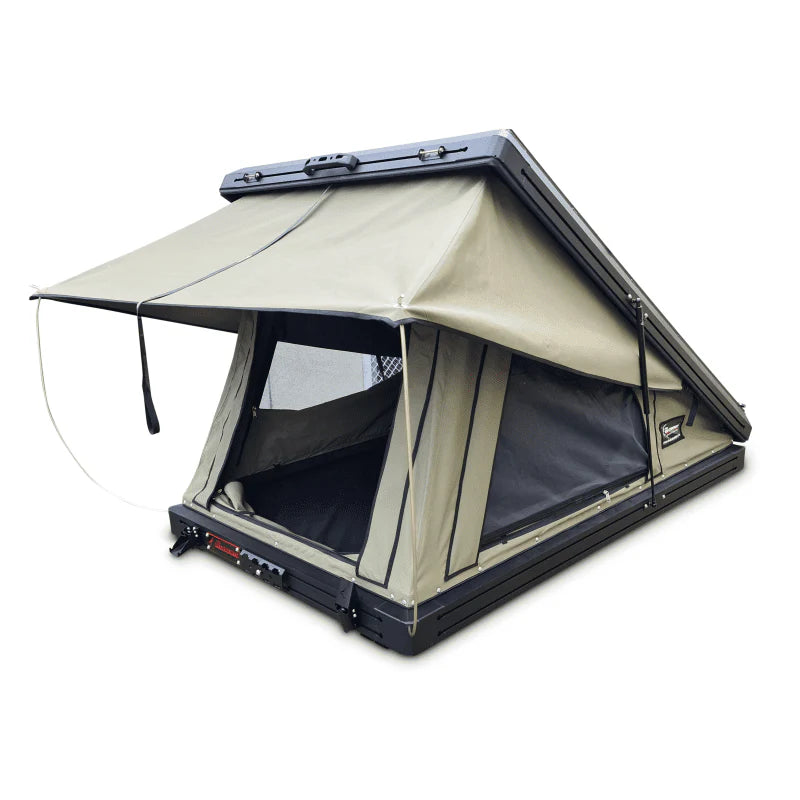

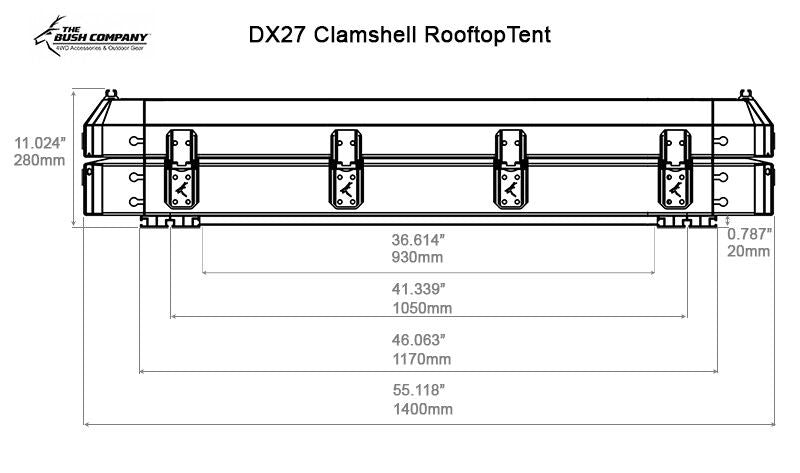

DX27 Clamshell Rooftop Tent - Product Specifications
- External Length: External Frame 2.25m /7' 4.6" (2.32m / 7' 7" inc hinges & handles)
- External Width: External 1.4m (4' 7.1"), 1.45m (4' 9") including gas struts
- Height (exterior, closed): 278mm (10.94") including roof rails and base extrusions
- Max Height (exterior, open): 1.45m (4' 9")
- Max Height (interior, headroom open): 1.4m (4' 7")
- Internal Mattress: Length 2.13m / 7', Width 1.28m / 4' 7", Thickness 70mm / 2.76"
- Weight: Approximately 94Kg (207lbs) excluding telescopic ladder
- Universal fitting kit/brackets included with tent.

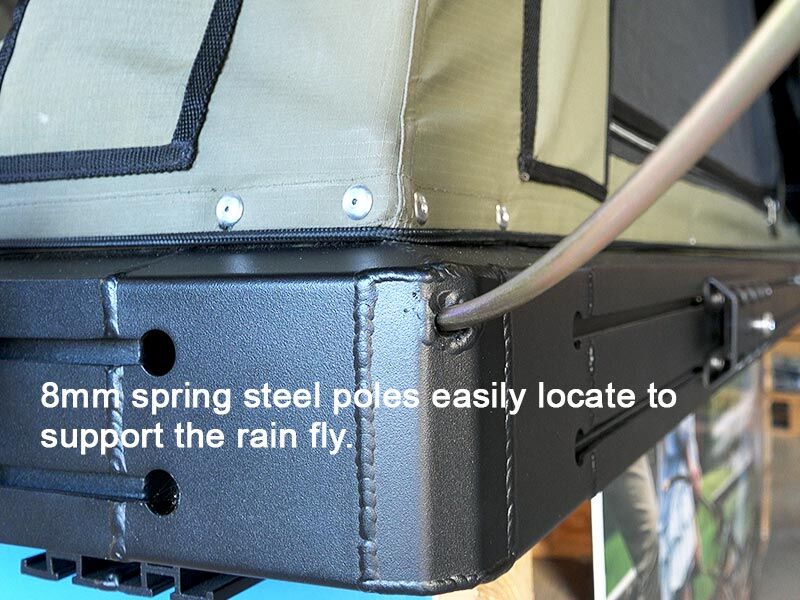

- Large canvas removable one piece rainfly at rear and sides of the tent with heavy duty 8mm spring steel poles and adjustable storm straps for heavier wind conditions.

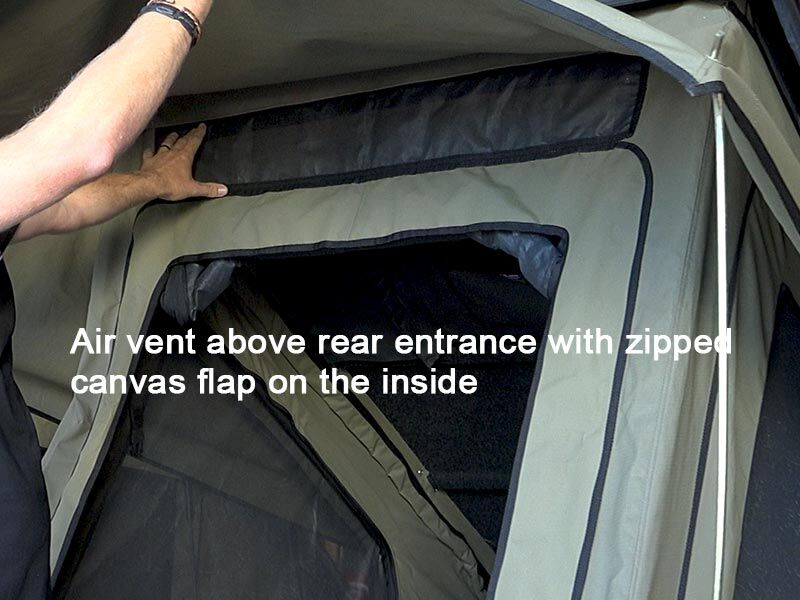

- Air vent above rear entrance with midge mesh and zipped canvas flap on inside.
- Fully seam welded lightweight alloy frame with high quality powder coated finish.

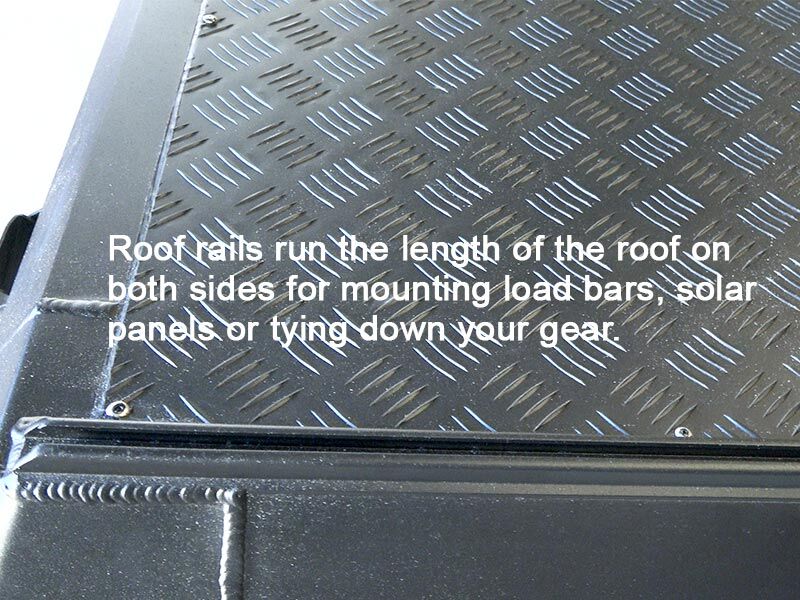

- 2m (6' 6.7") long cargo rails welded to the top of the roof, suitable for attaching accessories or the optional roof load bars .
- Internally reinforced roof, load rated to 200Kg (440lbs) when roof closed, or 50kg (110 lbs) when open.
- 'Ezi-Slots' extruded into the sides of base and top frame for easy attachment of accessories such as awnings, hi-lift jacks, light bars etc.

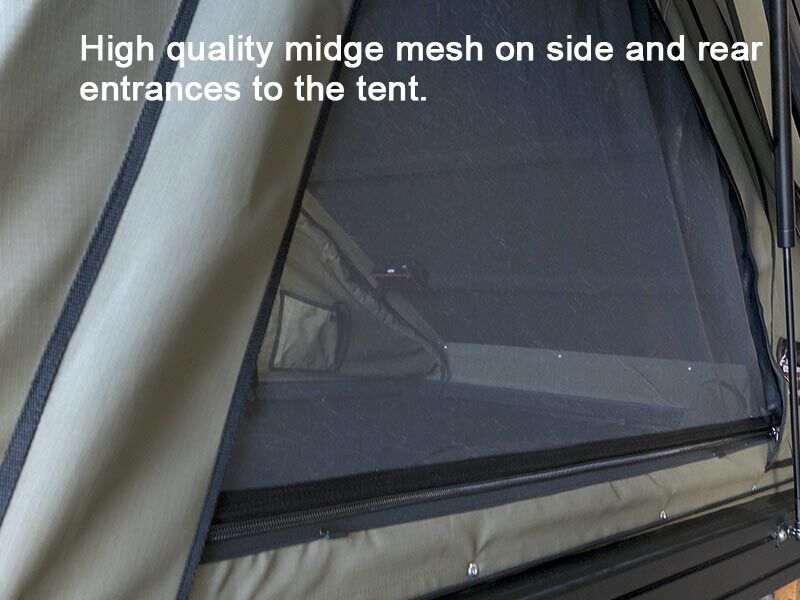

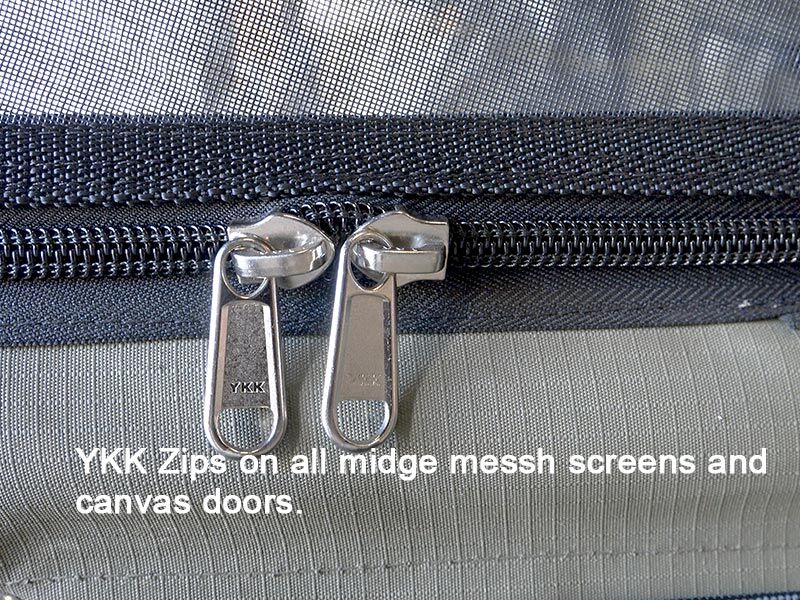

- All three layers at entry points use YKK zippers: external canvas storm door, high quality midge mesh and internal canvas door.
- Three entry point to tent, rear, left and right side.

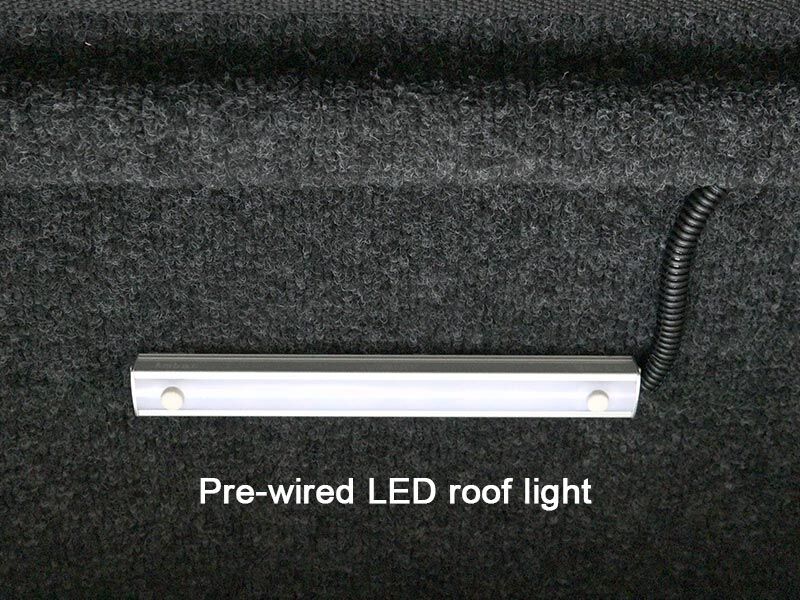

- Internal movable battery powered LED light (shines white, yellow or red) - note, tents ordered prior to November 2021 have a hard wired LED light.

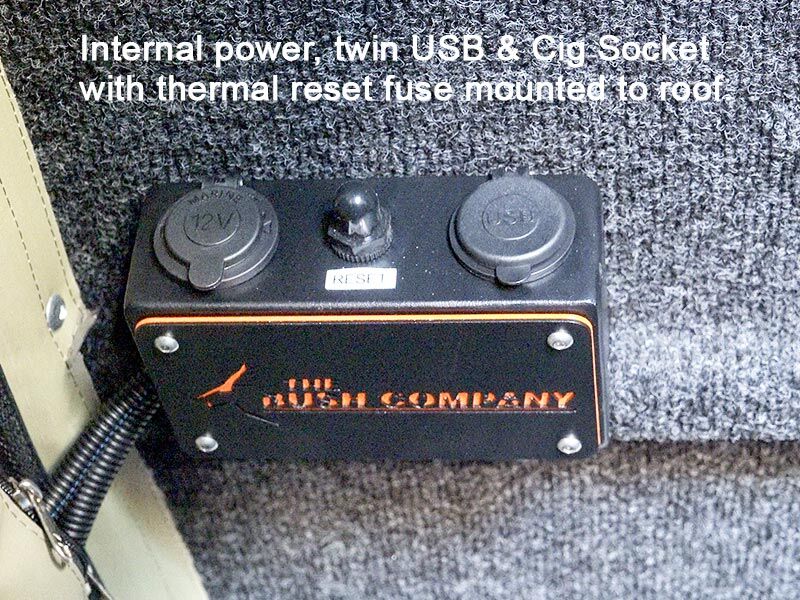

- Electrical power box with twin USB, CIG Socket plug, mounted to internal roof, with resettable thermal fuse.

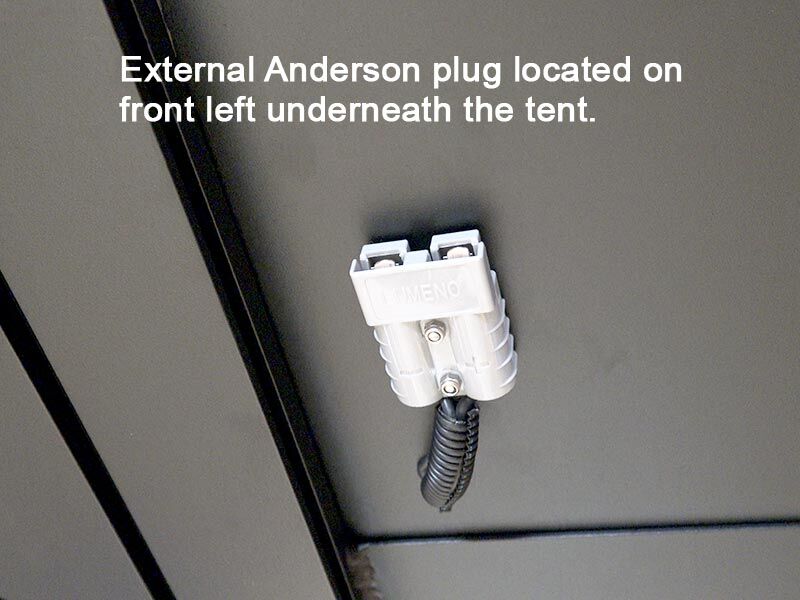

- External 50 amp Anderson plug mounted to underside of tent at hinged end on left side for connection to vehicles power.
- 12cm (4.7") of storage space above mattress when tent closed, so plenty of room for bedding, pillow, fishing rods, rifles etc.

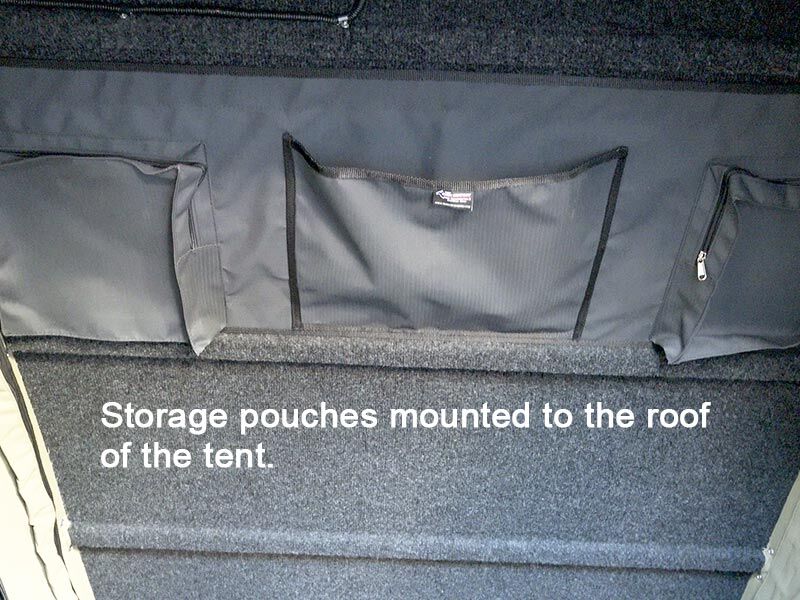

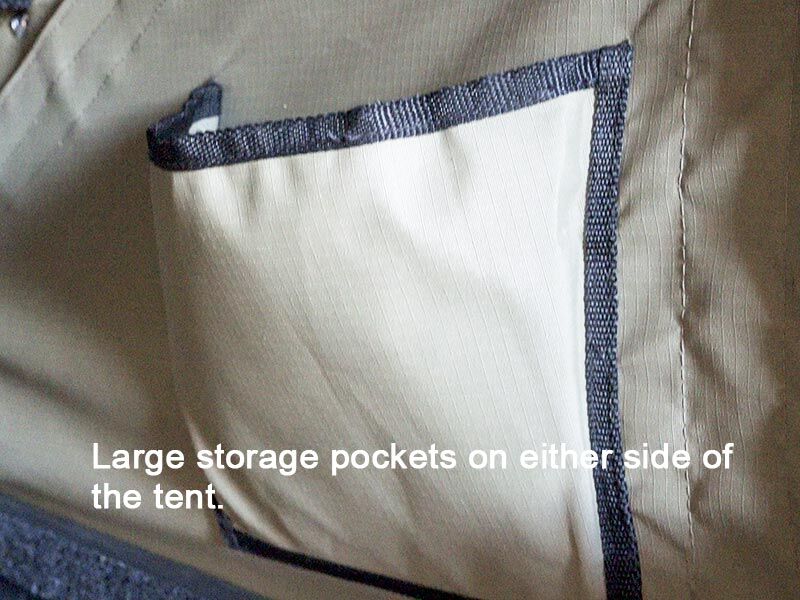

- 3 storage pouches on inside of roof, and 1 large pouch on each side at hinged end.

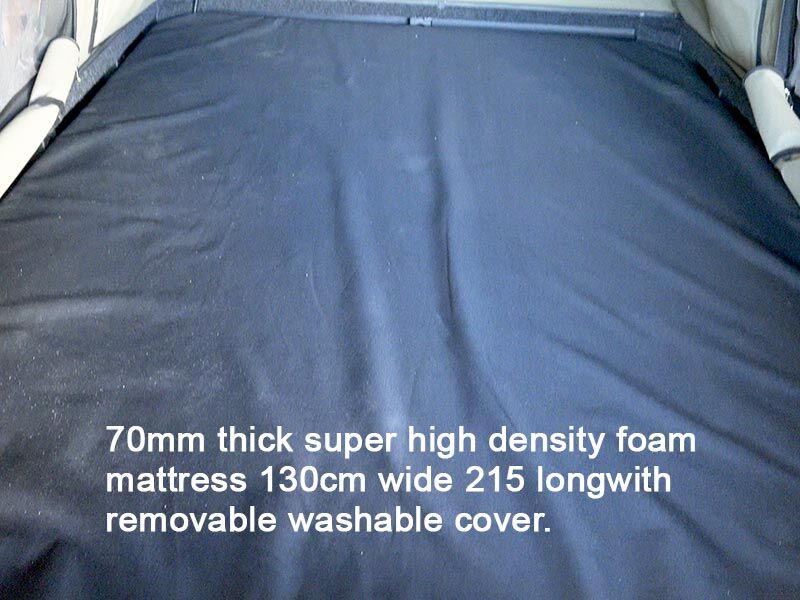

- 70mm / 2.75" thick mattress super high density foam with removable zipped canvas cover.

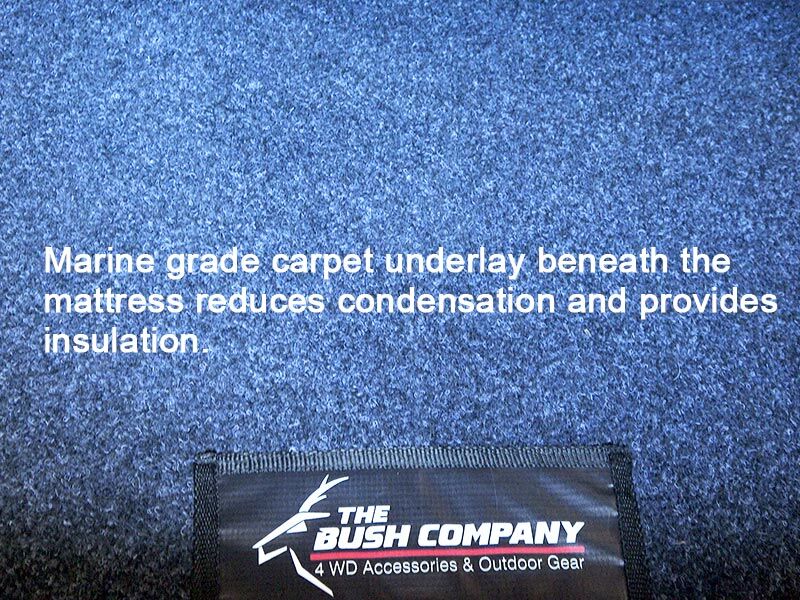

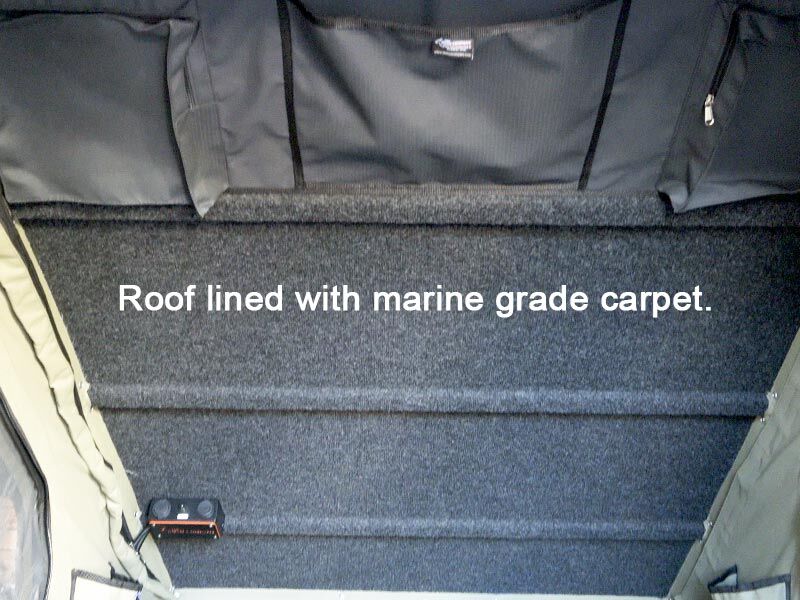

- Thermal marine carpet underneath mattress and carpeted internal roof liner.

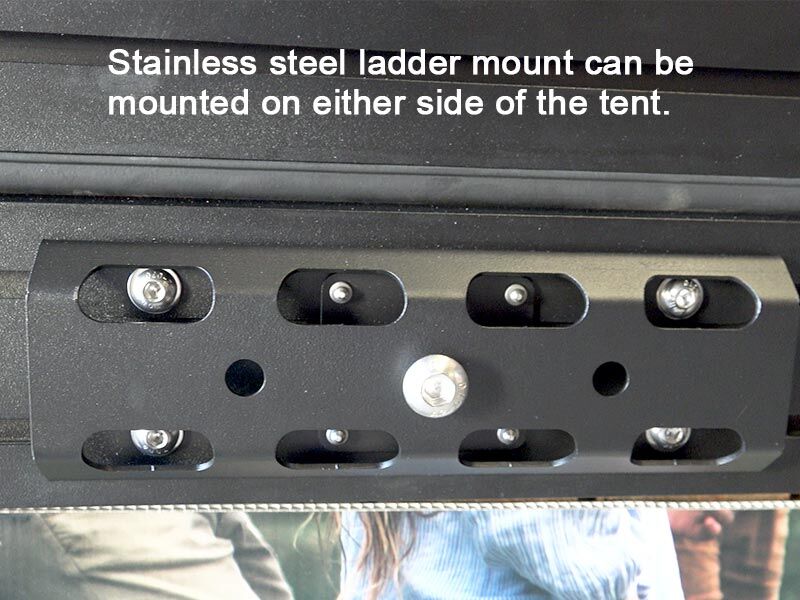

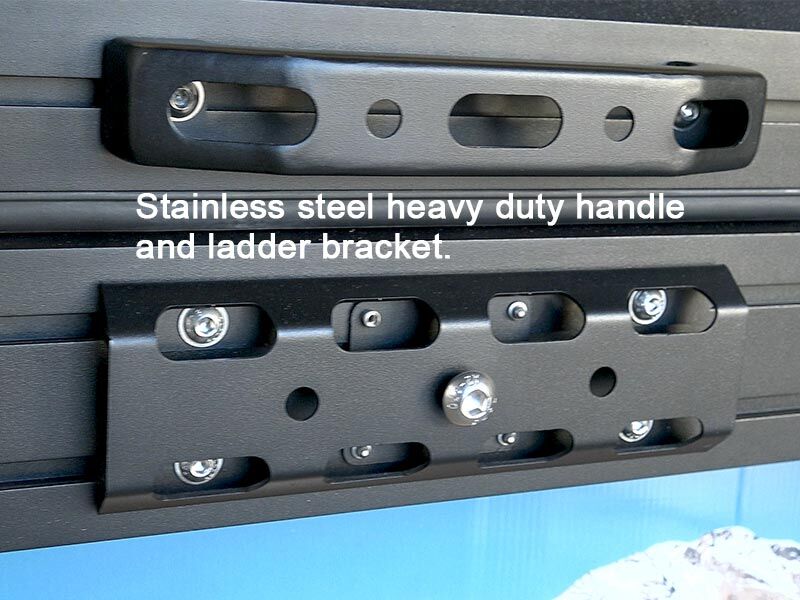

- Telescopic 2.6m (8' 4.3") aluminum ladder with attachment points at rear and sides of tent, supplied in canvas storage bag.

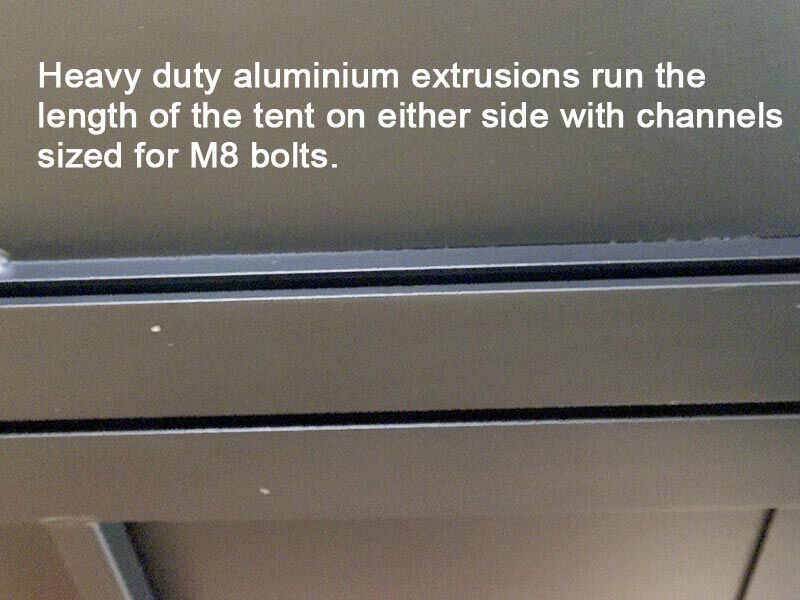

- Two heavy duty 20mm (0.08" high) aluminum extruded foot rails underneath tent with M8 slots on sides and base for easy mounting, set 1050mm / 41.34" apart center to centers joined by multiple 25mm thick sections of welded box tubing for additional strength and floor support.
- 2 Year conditional warranty.
