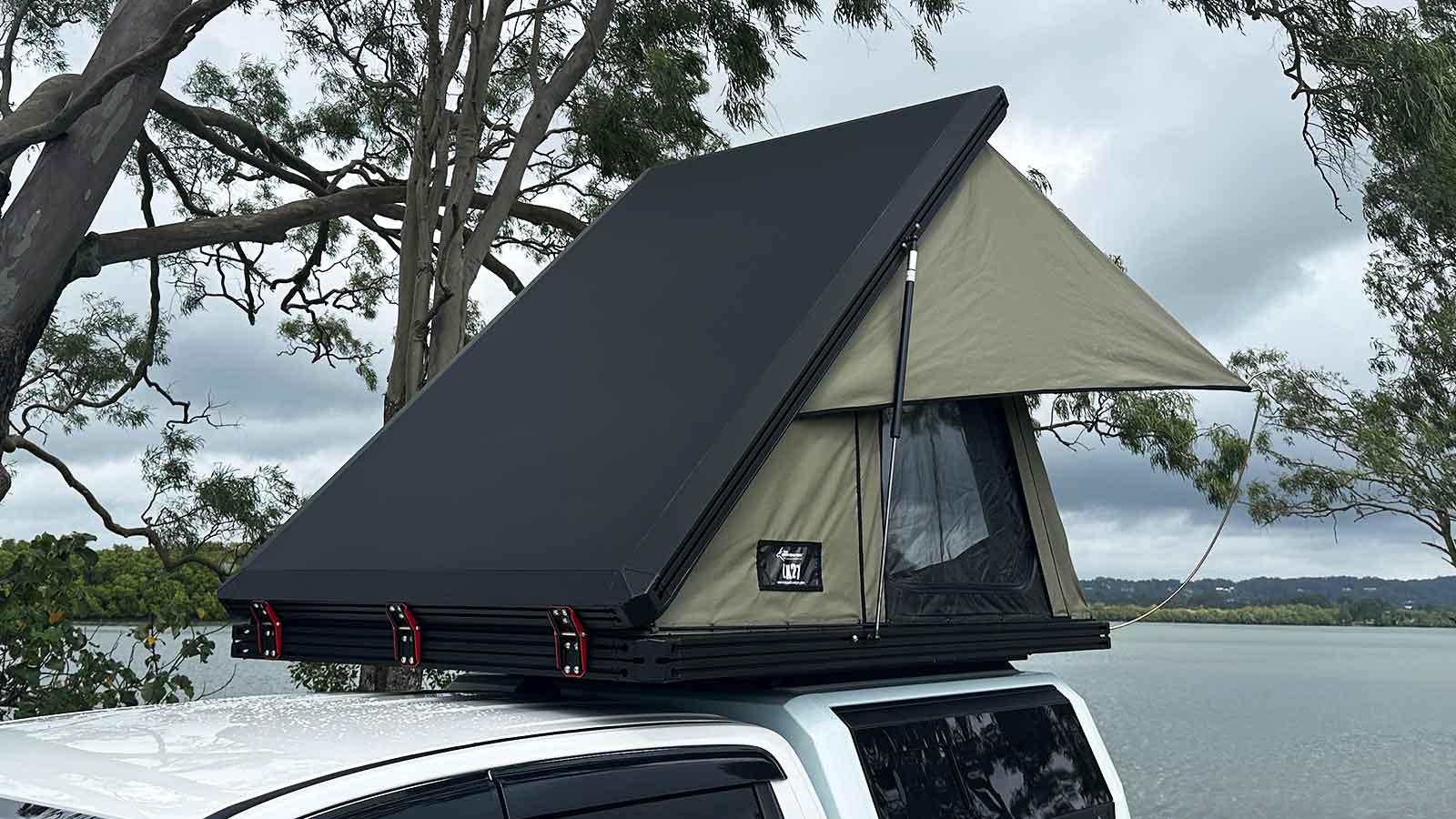

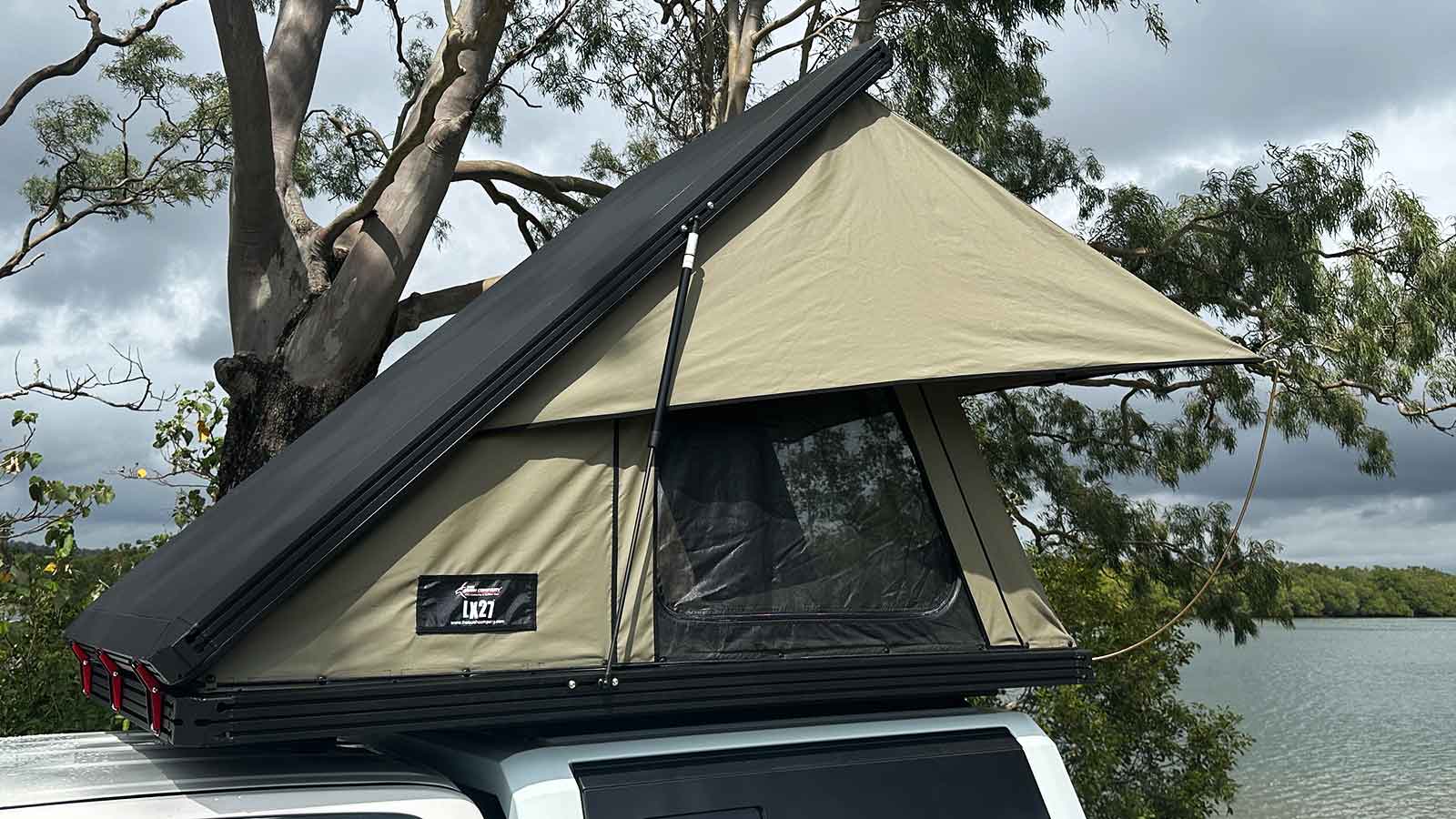

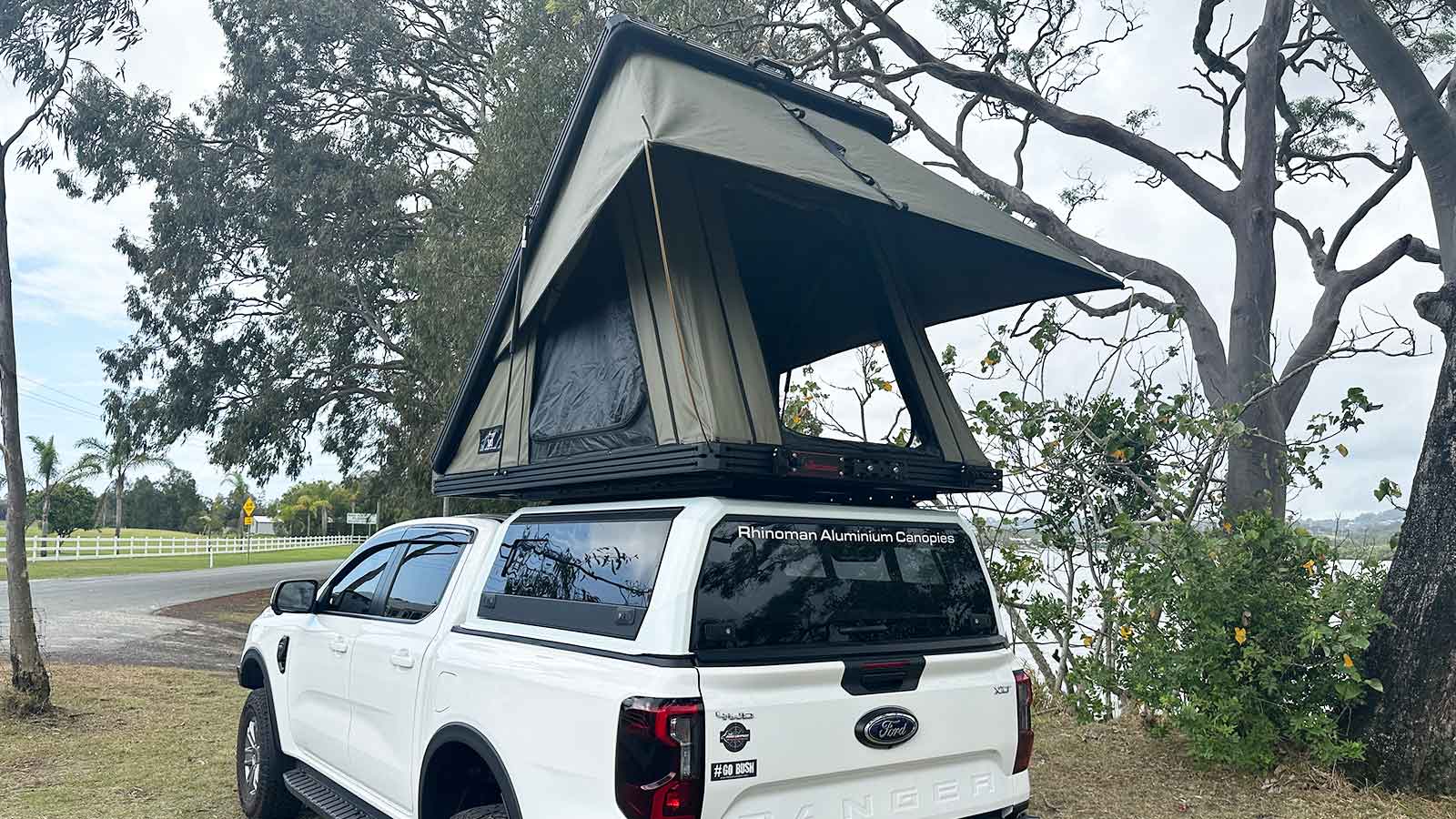

The LX27 Clamshell Rooftop Tent is the lightest in The Bush Company range at only 161 lbs, but still delivers on the strength and quality of materials that our products are world renowned for.

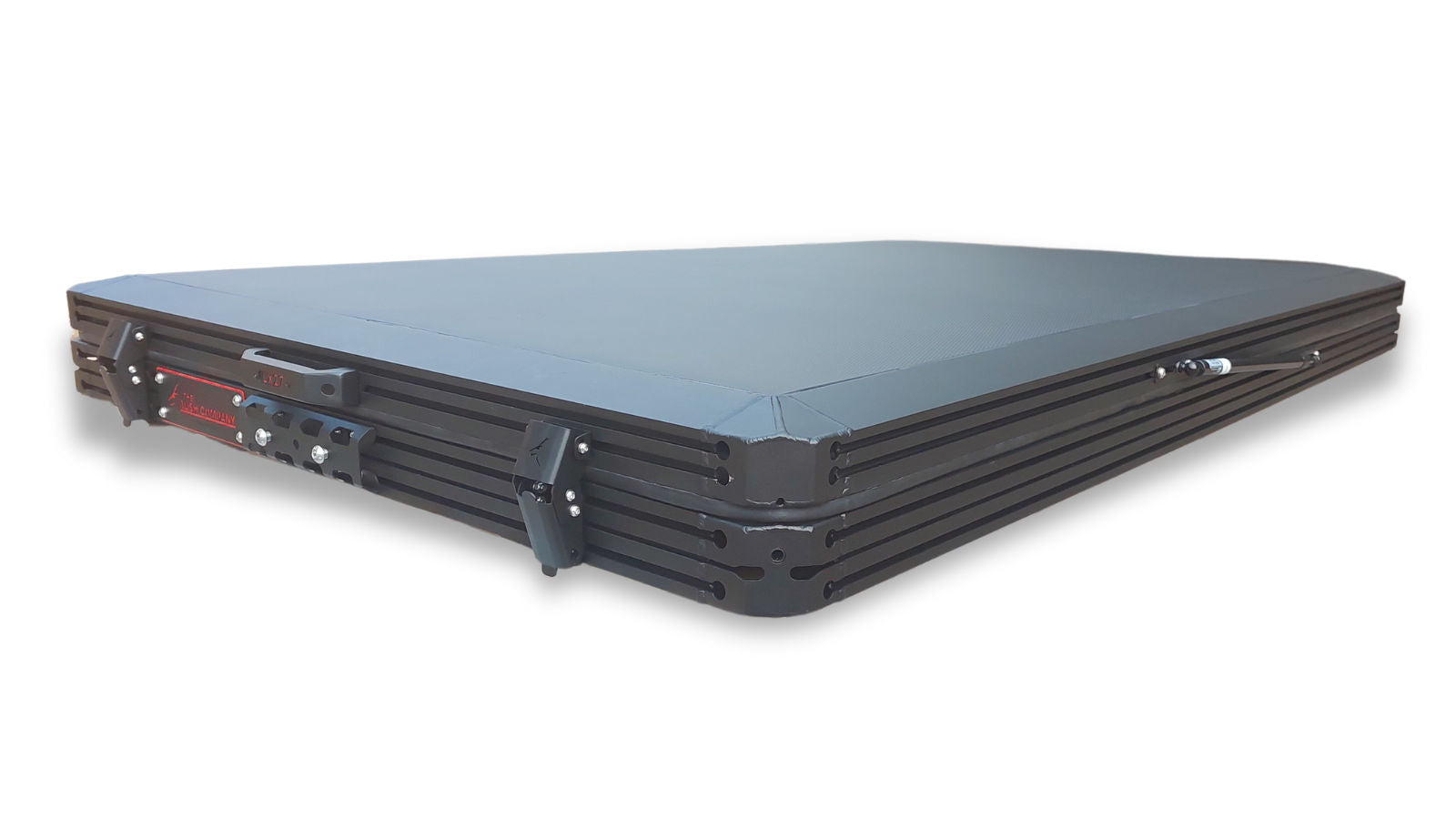

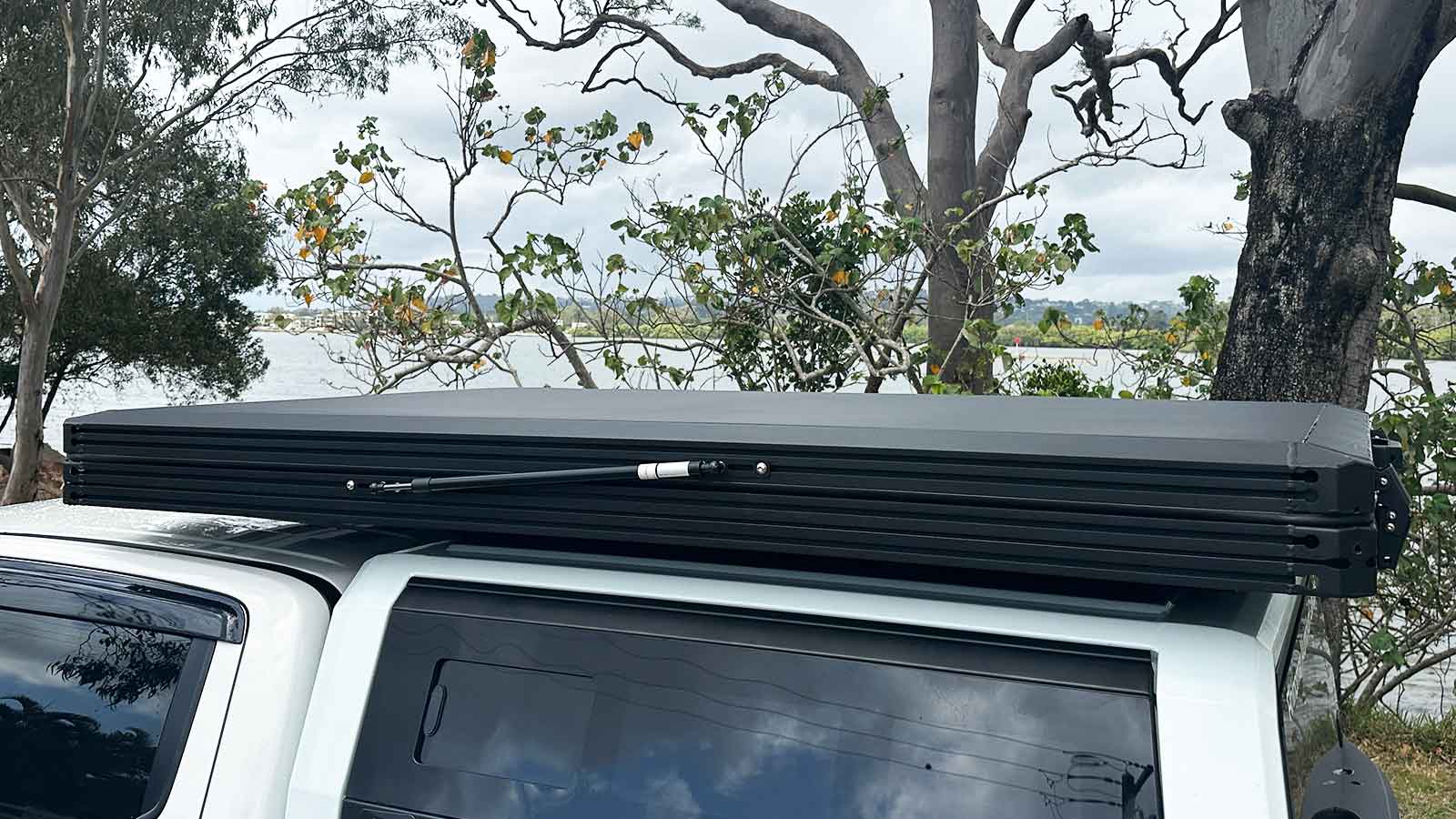

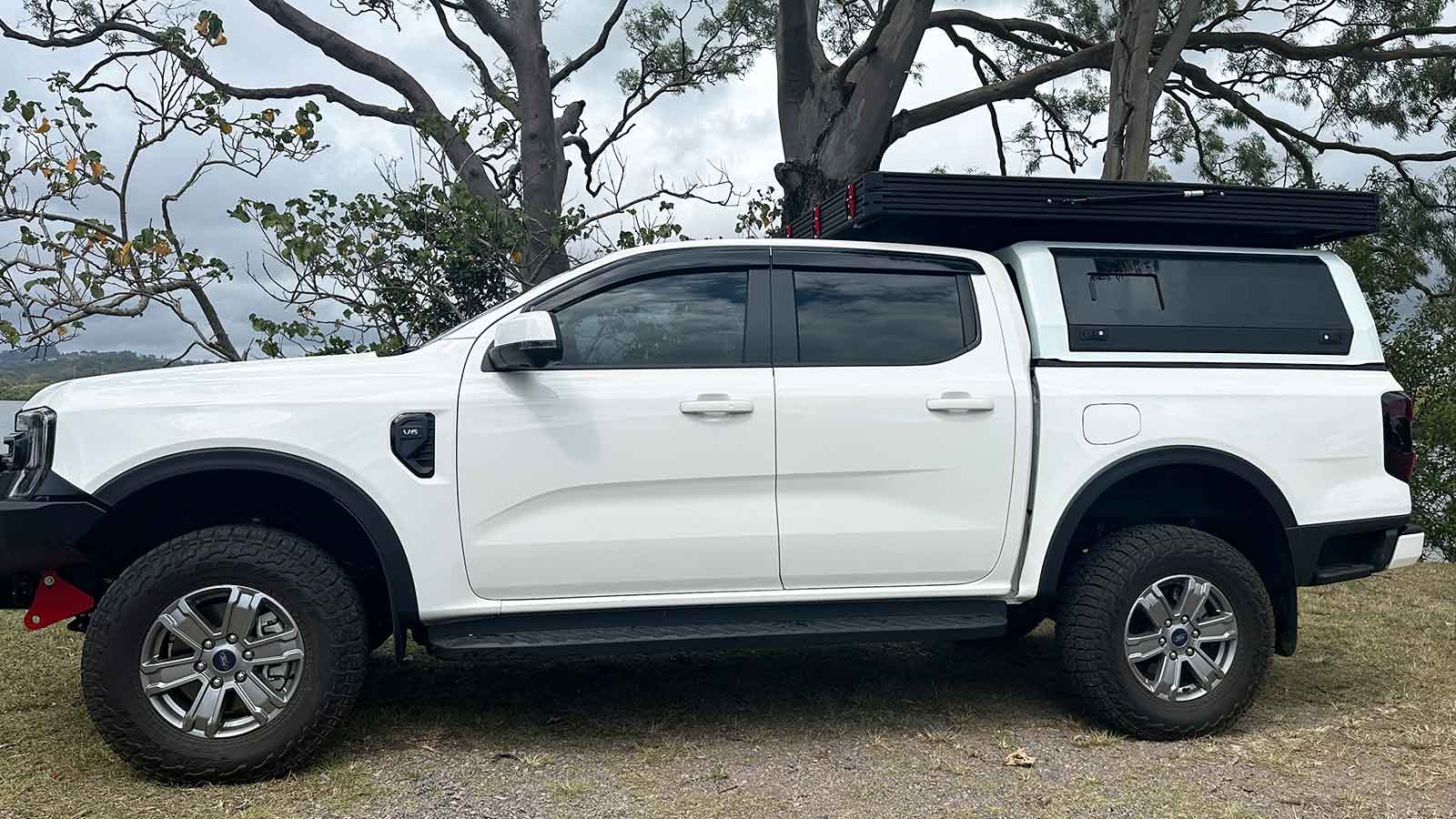

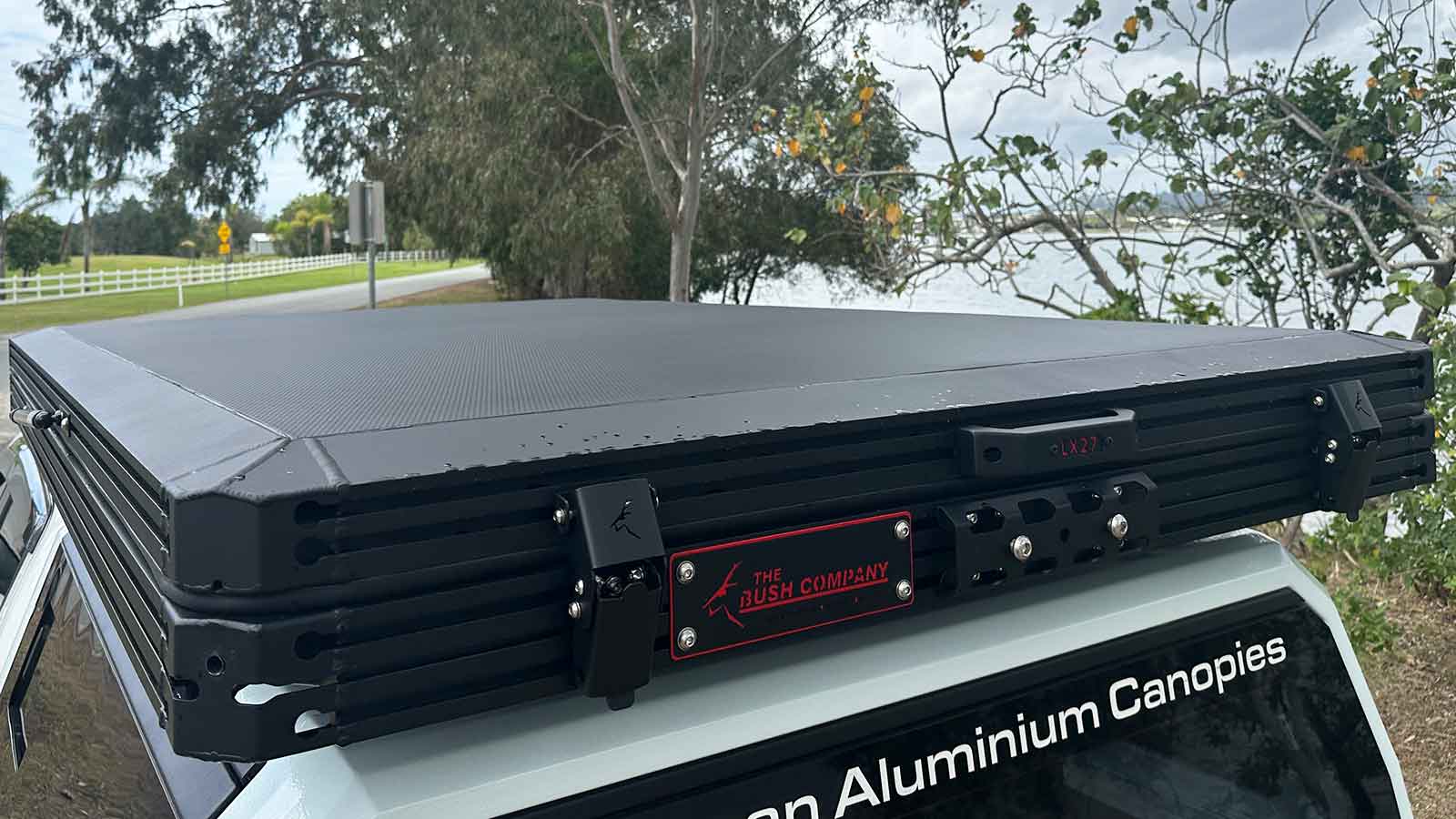

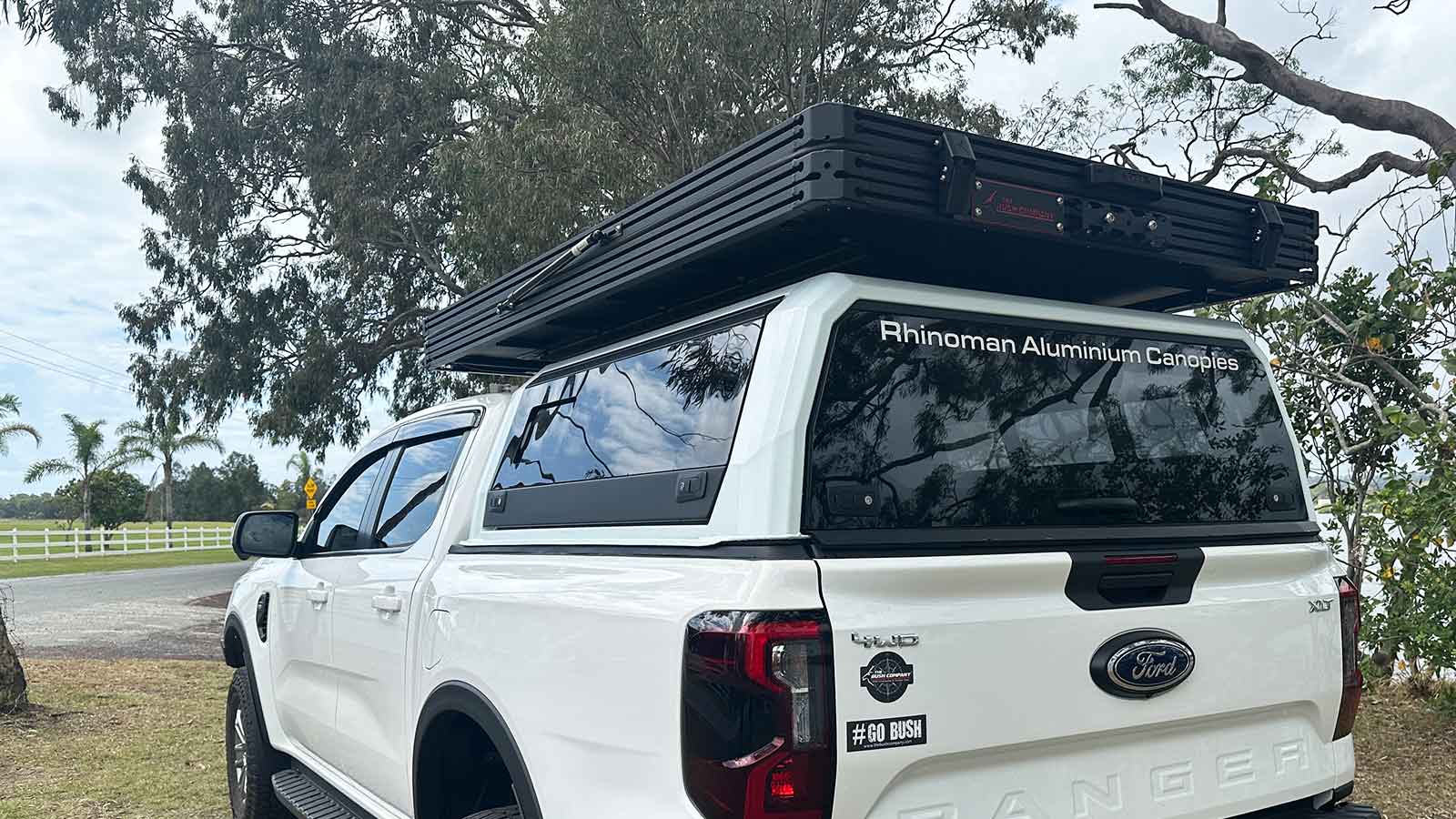

At only 6.8 inches high this tent will suit virtually any vehicle regardless of roof load capacity and you should still be able to get in your garage. There’s 3.2 inches of space above the mattress when closed, so you can still store your bedding and pillows inside the tent.
With less that a 60 second setup/pack down, double skinned canvas walls & doors, dual layered super comfortable mattress and full electrical package are just some of the features that makes the LX27 Clamshell Rooftop Tent one of the best touring tents available.
The following accessories are specific to the LX27:
- Adjustable Load Bar
- Load Bar Solar Panel Bracket Set
- Awning To Tent Bracket 4 Piece
- Sirocco Fan Mount Plate
Key Features

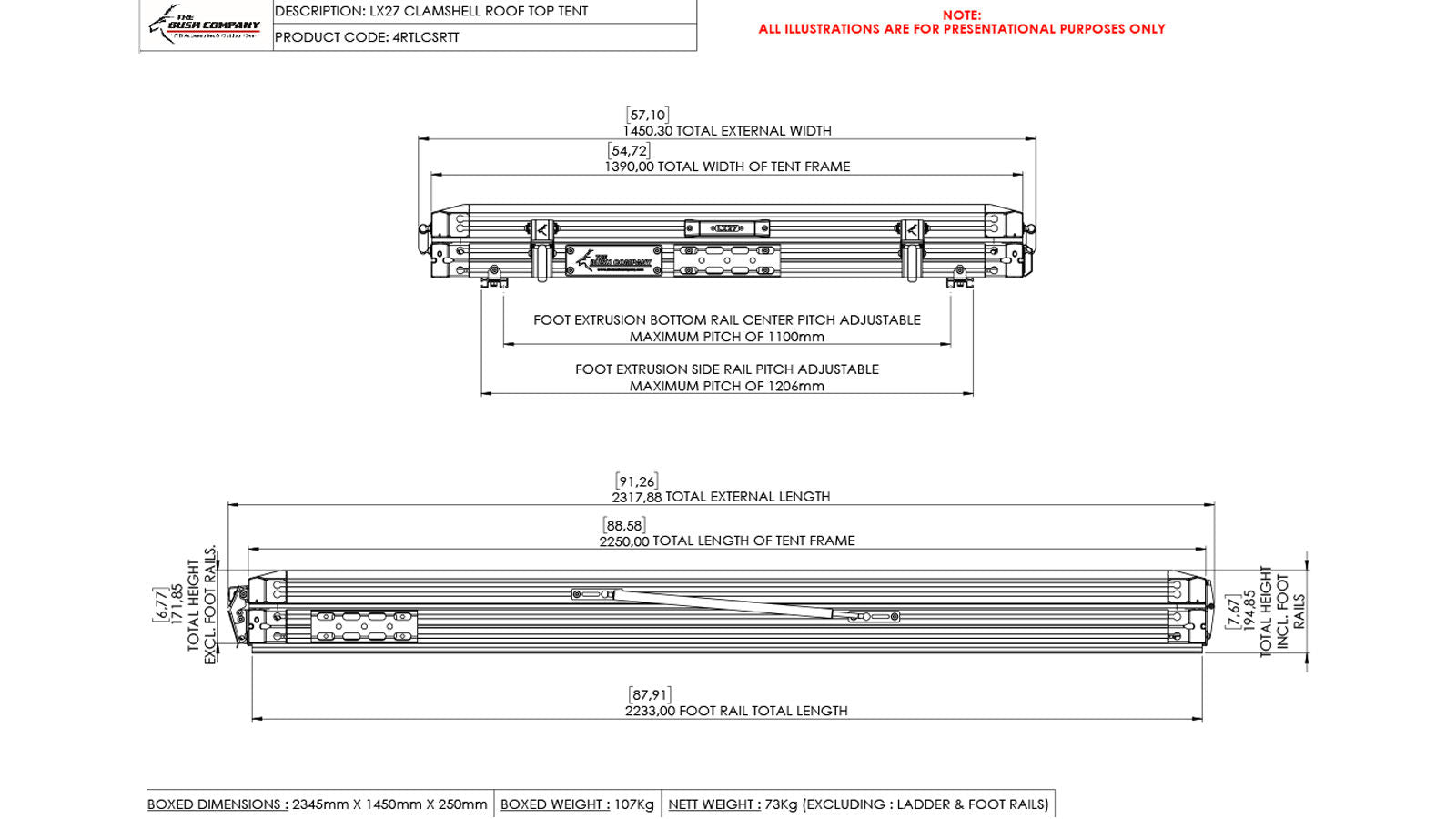

- External Length: External Frame 2.25m (2.32m incl. hinges & handles)
- External Width: External 1.39m, (1.45m including gas struts)

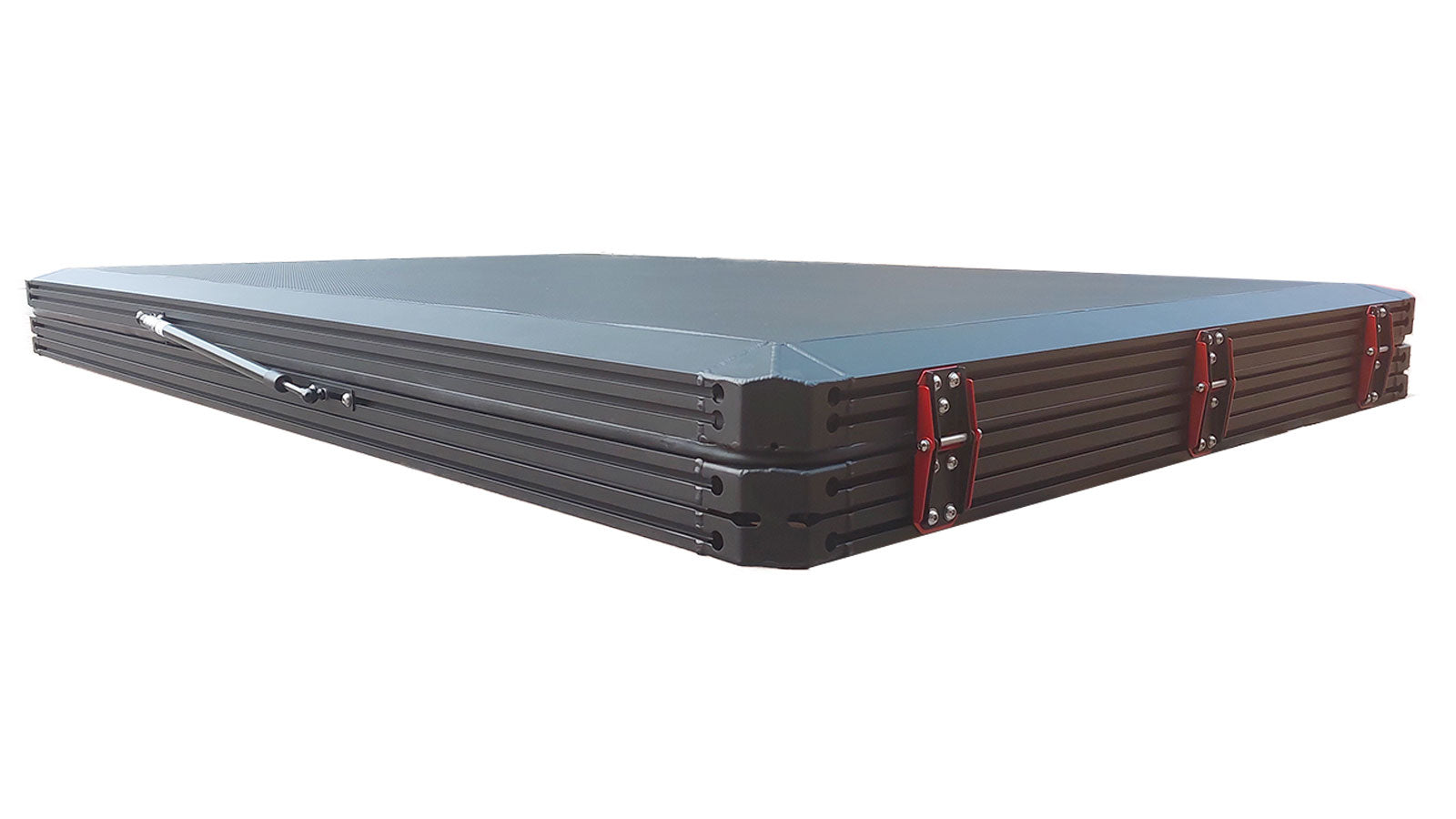

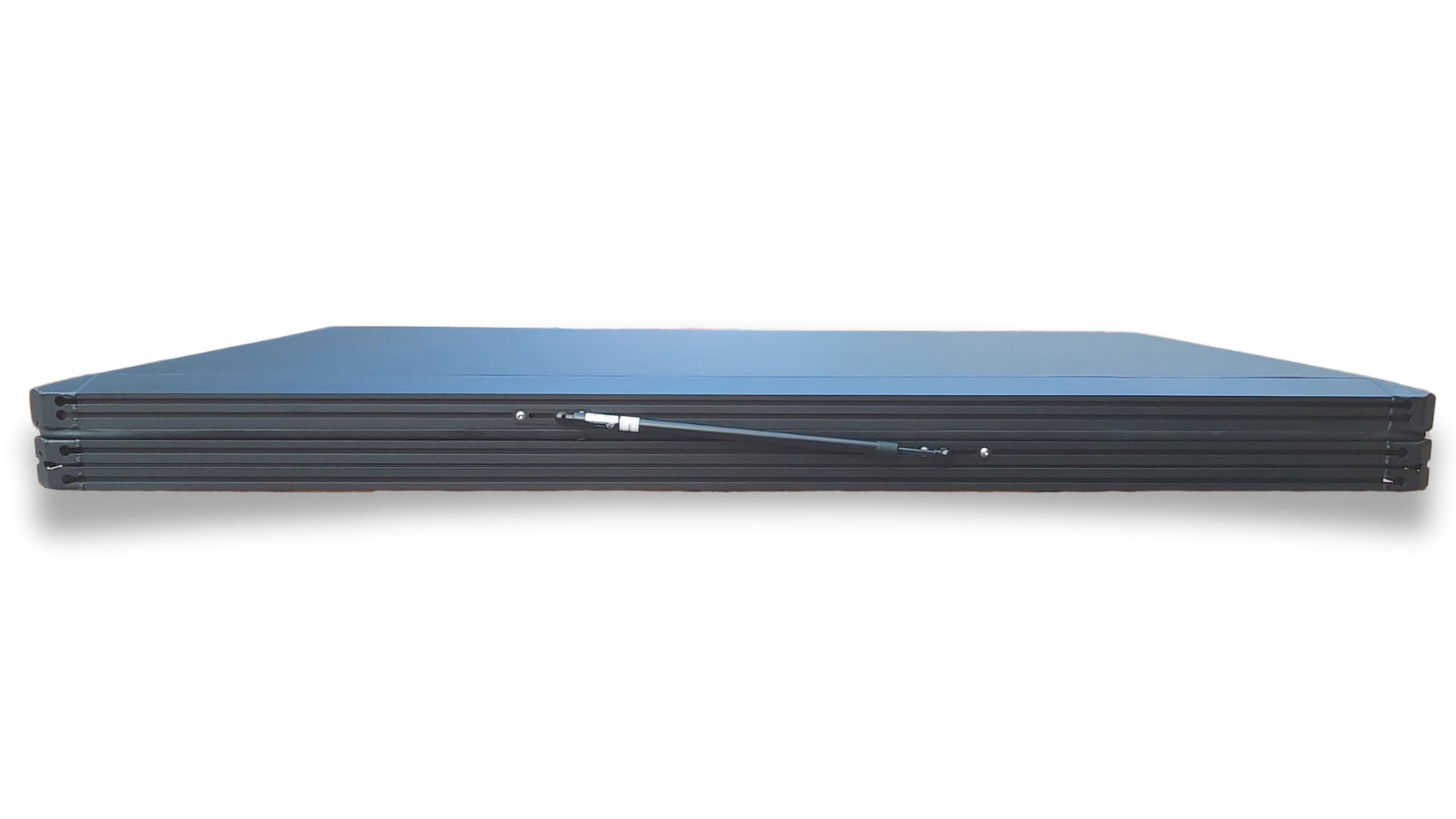

- Height (exterior, closed): 172mm (195mm including optional base extrusions)

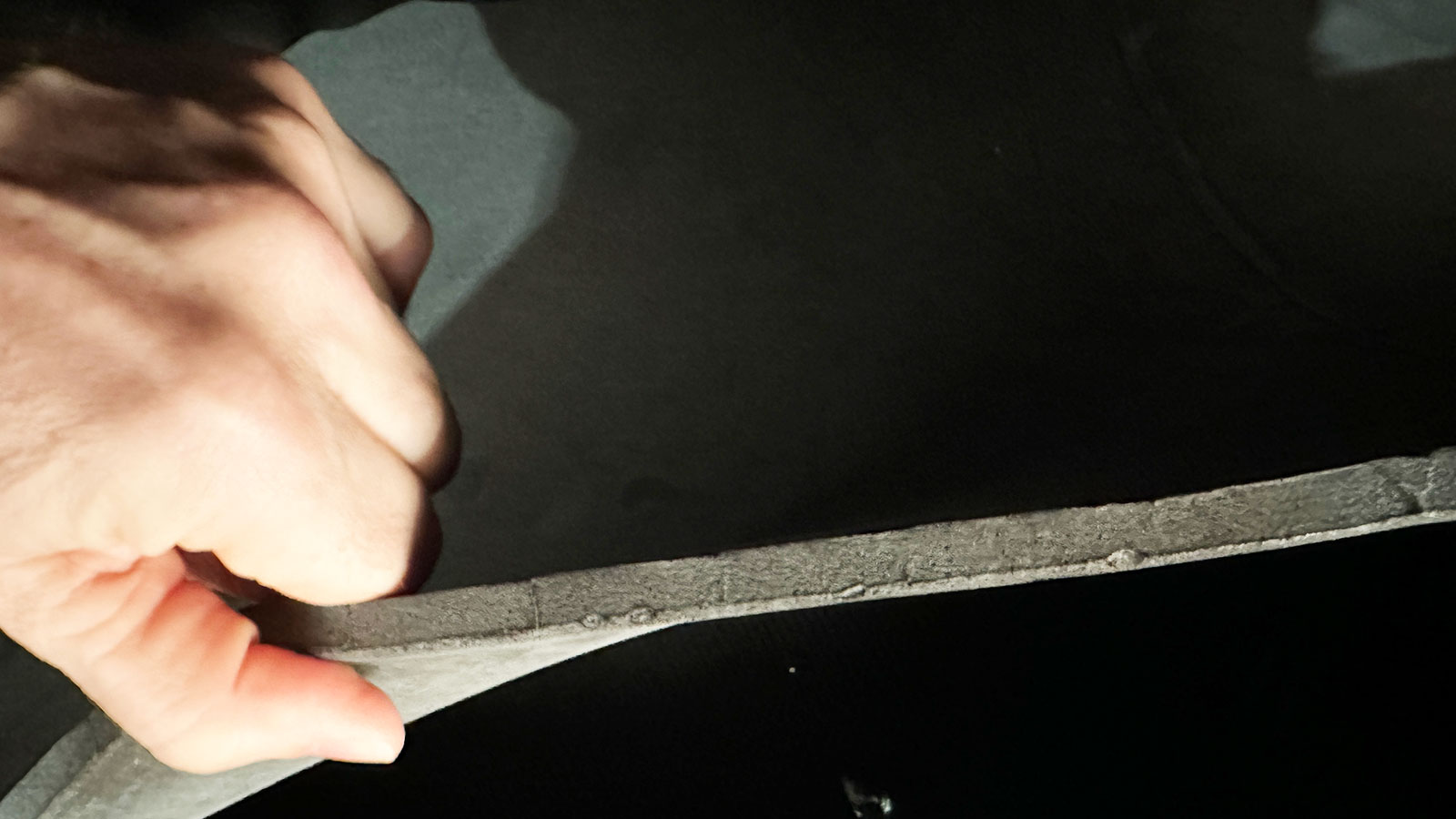

- Mattress: the mattress is 205cm long and 138cm wide, comprised of a unique combination of memory foam (10mm), high density foam (40mm) with canvas cover, plus layer super high-density foam (10mm) beneath mattress.
- Weight: Approximately 73kg (161lbs) excluding ladder and optional longitudinal mounting rails.
- Two layers of 260g (+/- 10%) polyester rip stop acrylic infused, mold and mildew resistant canvas on body of tent.
- Large entry points/windows at the rear and sides of the tent.
- YKK zippers and high quality midge mesh on all doors.
- Internally reinforced roof, load rated to 100Kg (220 lbs) when roof closed, or 35kg (77 lbs) when open.
- Rechargeable LED light (shines white, yellow or red) and 2 sets of electrical sockets each with USB, & CIG Socket plug
- Telescopic 2.6m (8′ 4.3″) black aluminum ladder with angled steps for improved comfort

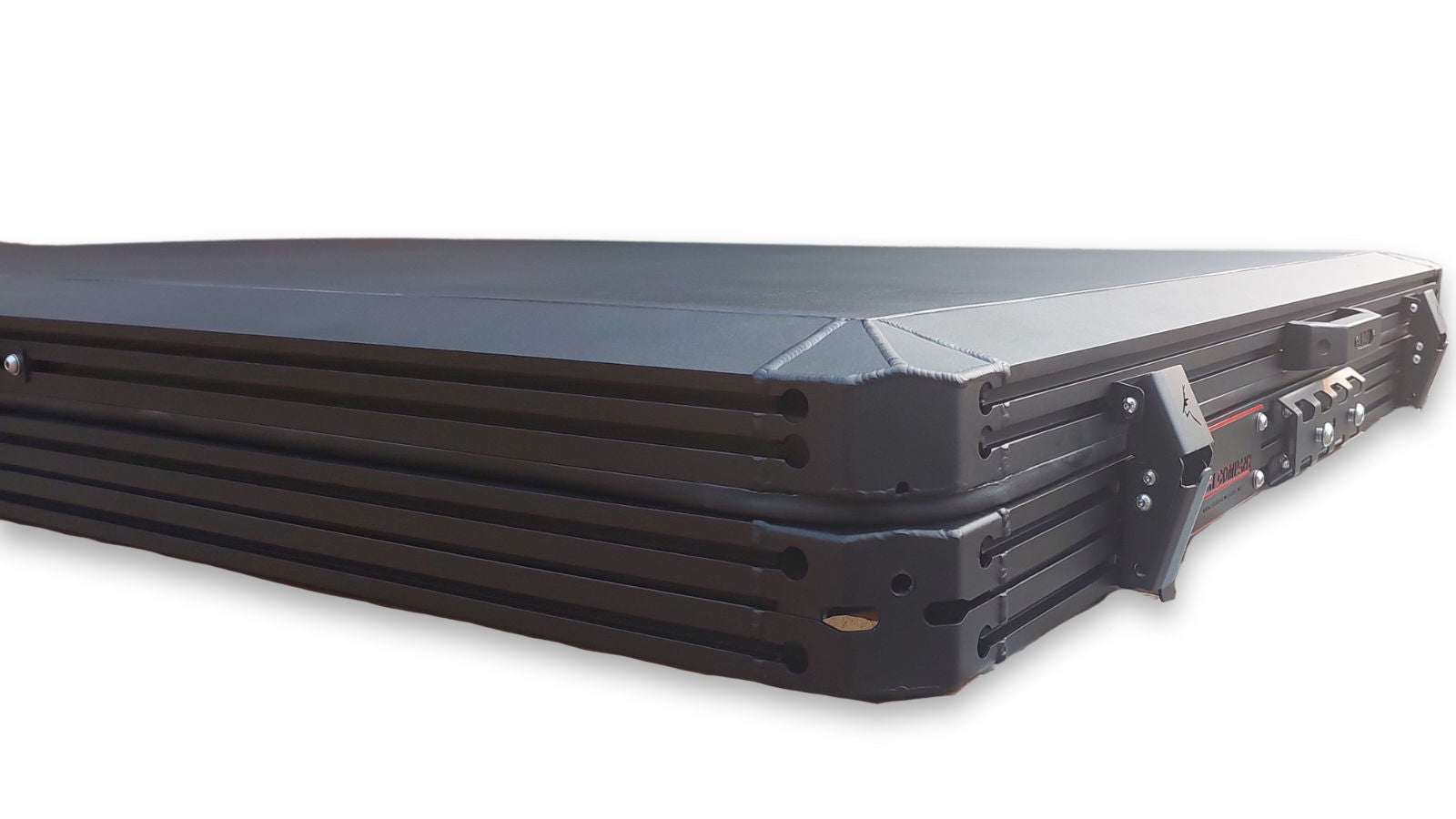

Aluminum Extruded Frame

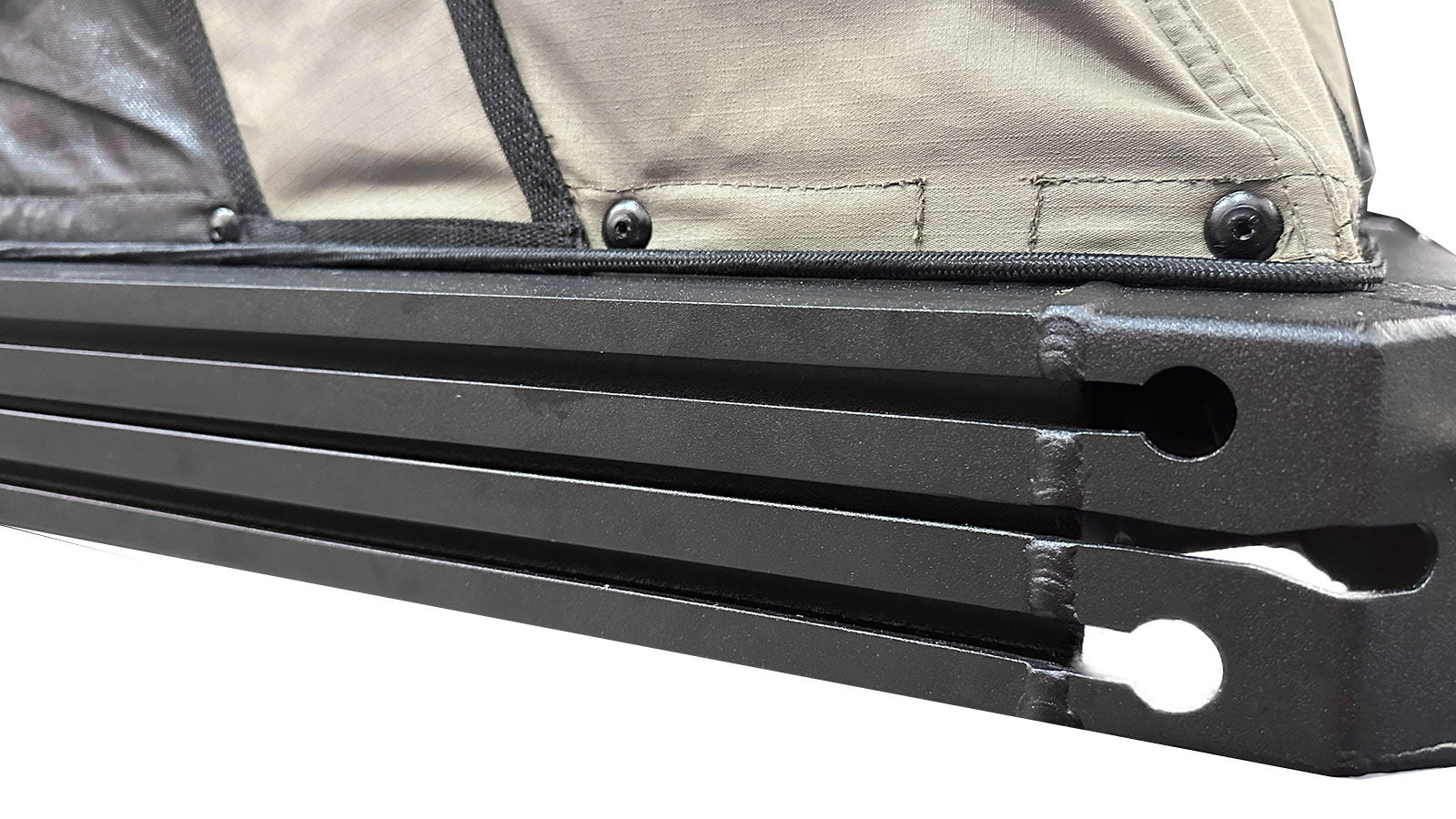

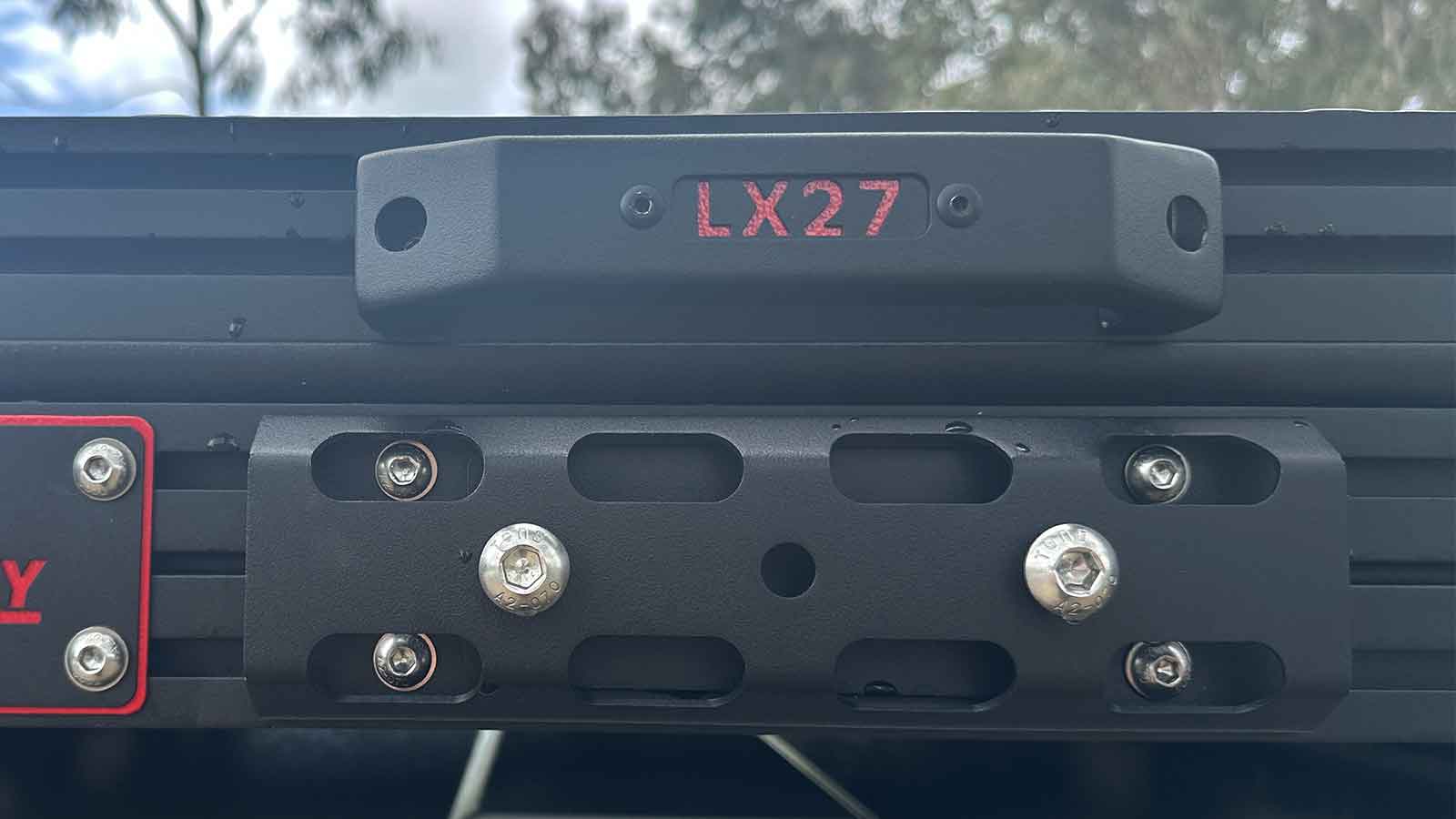

The LX27 has a super tough fully seam welded lightweight alloy frame with a high quality powder coated finish, designed to weather the toughest conditions. The 'Ezi-Slots' built into the top and bottom sections of the frame make fitting accessories a breeze, plus there is a unique sail track channel built into the side of the base section for easy attachments of canvas accessories like boot bags.
Dual Layered Canvas
The canvas on the LX27 is 260gsm/8oz polyester rip stop acrylic infused mould and mildew resistant. To help reduce condensation inside the tent the walls are dual layered and with inner and outer canvas doors on the rear and side entrances. Above the rear door under the rainfly is a meshed vent that can be opened to assist with airflow if you need to zip up all the doors in poor conditions.

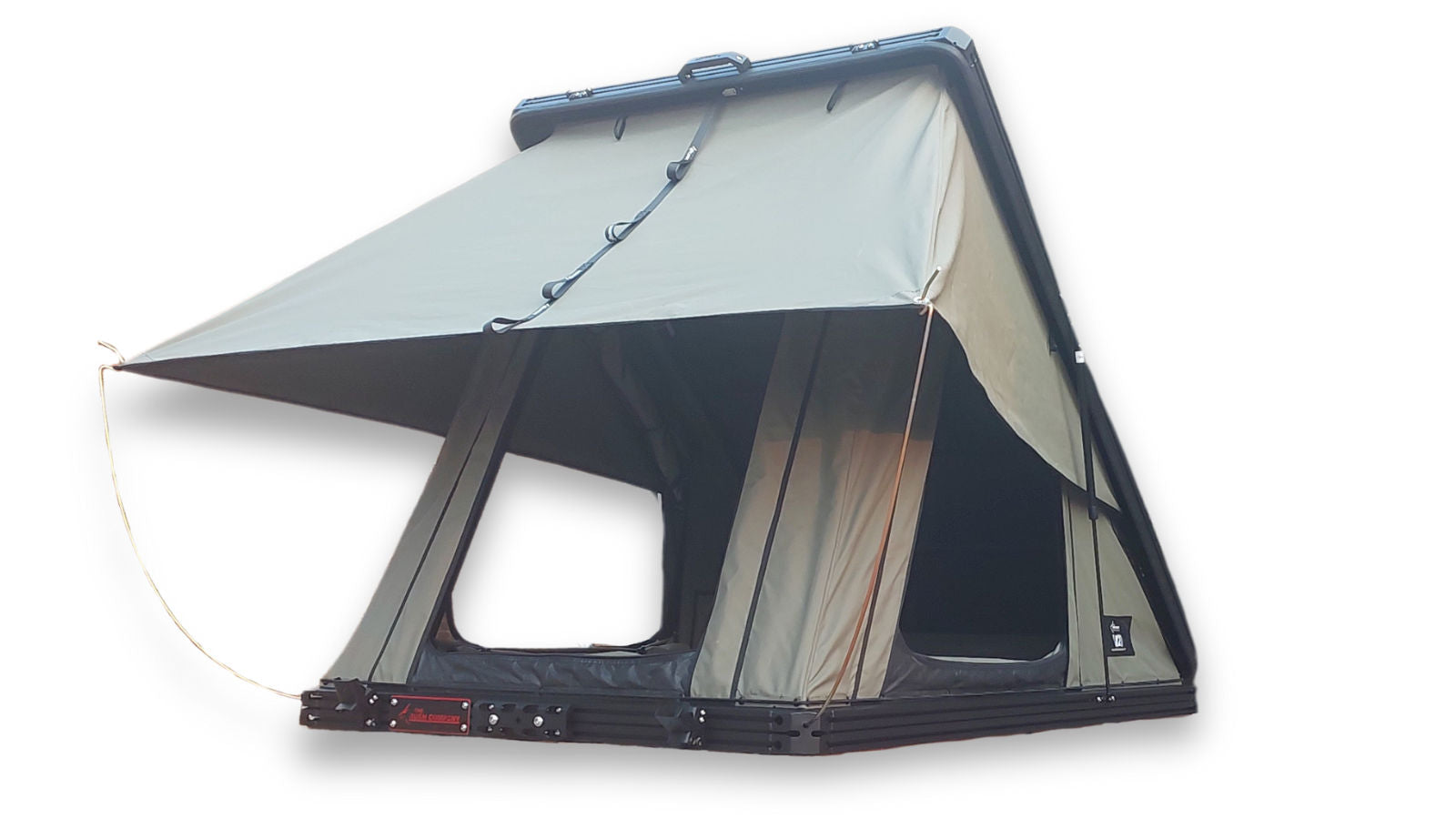

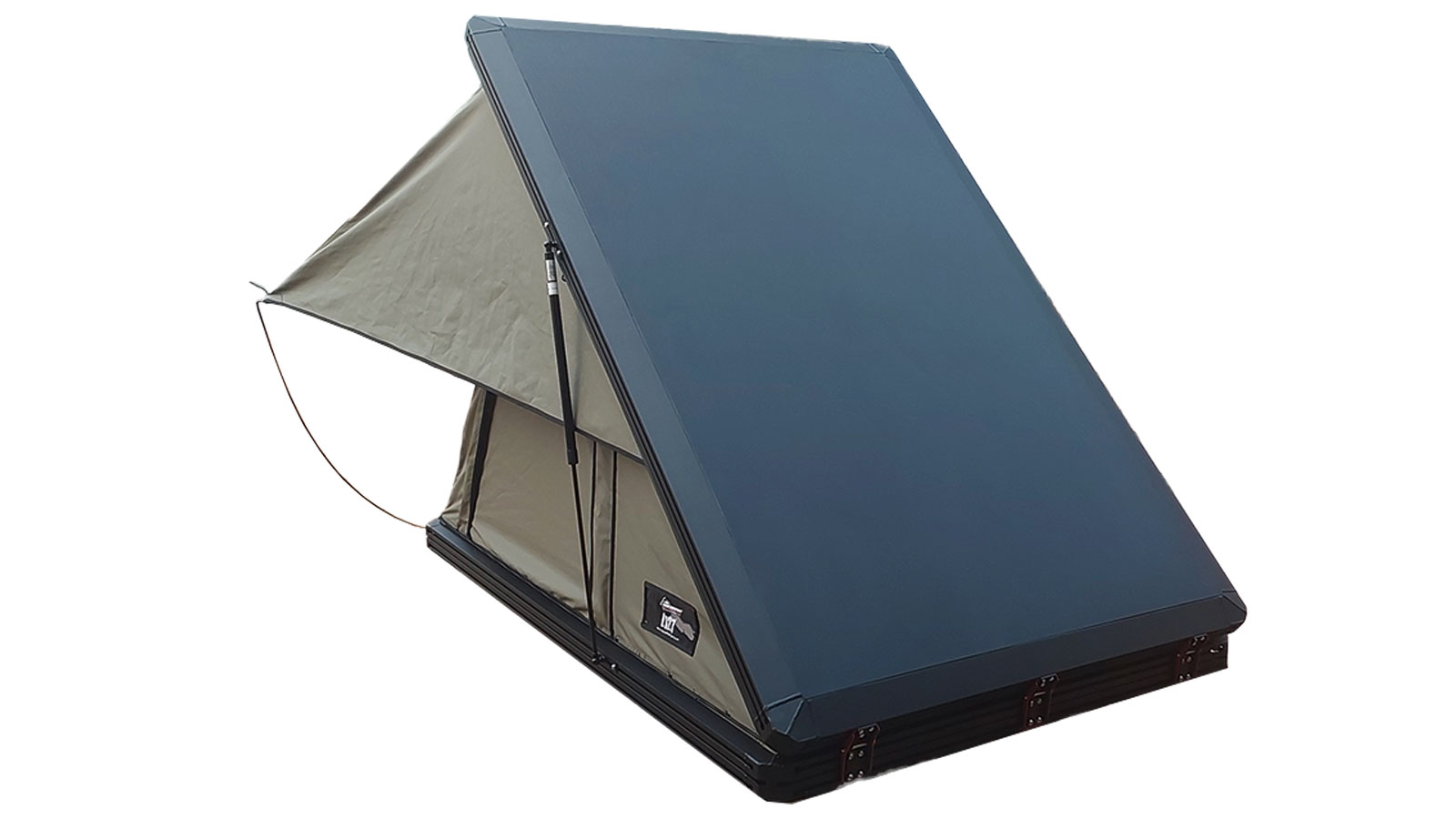

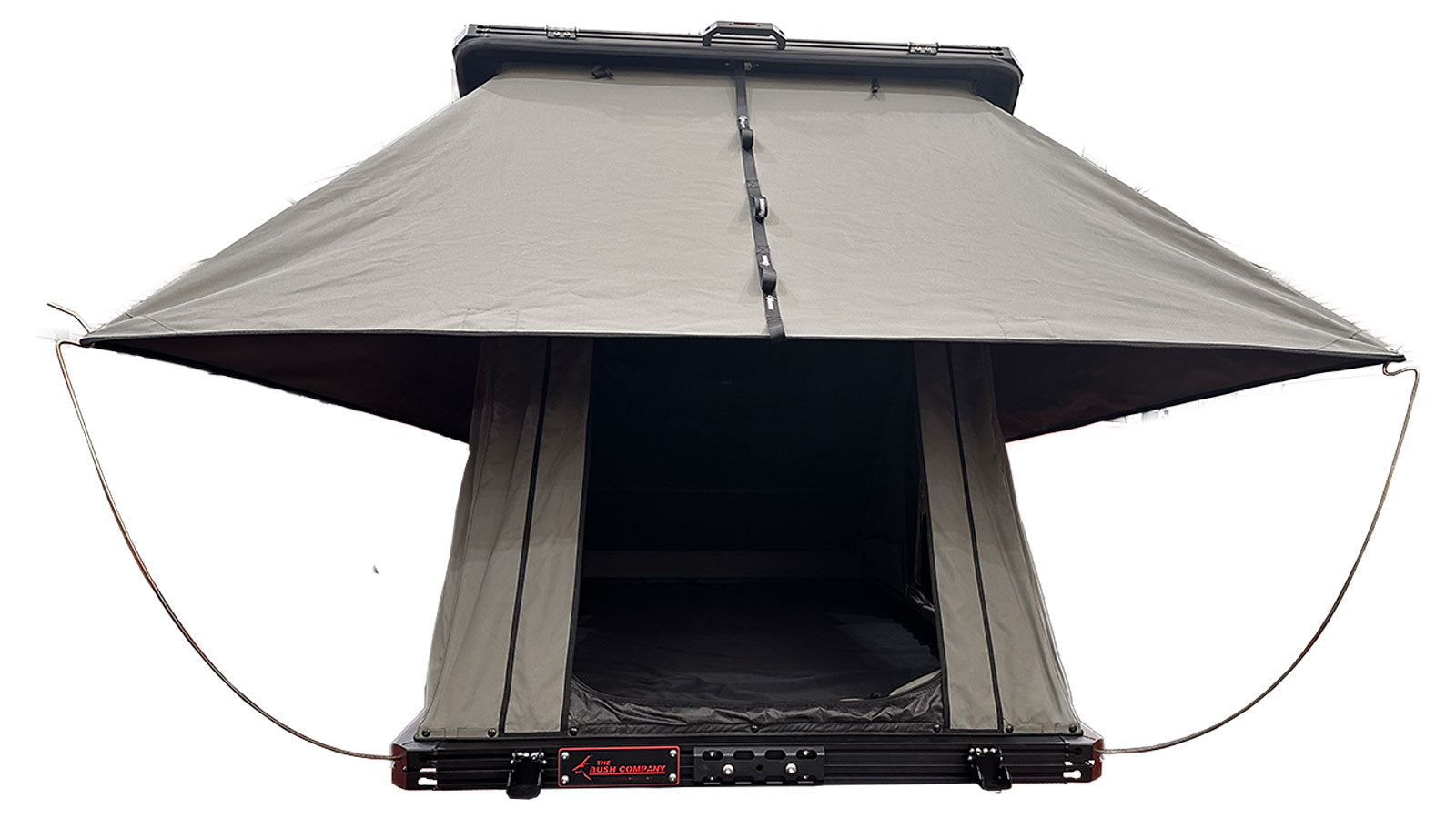

Rainfly At Sides and Rear

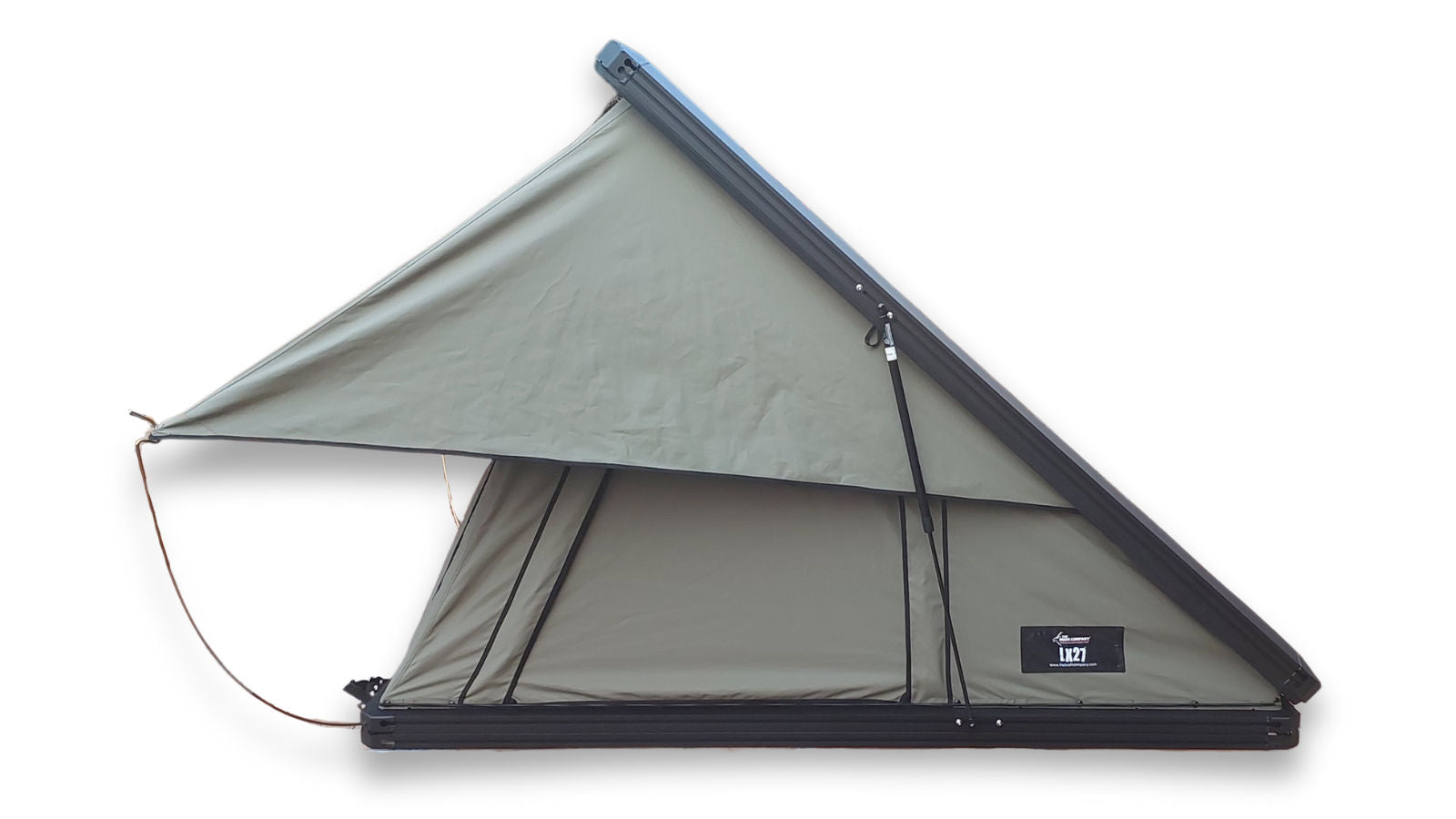

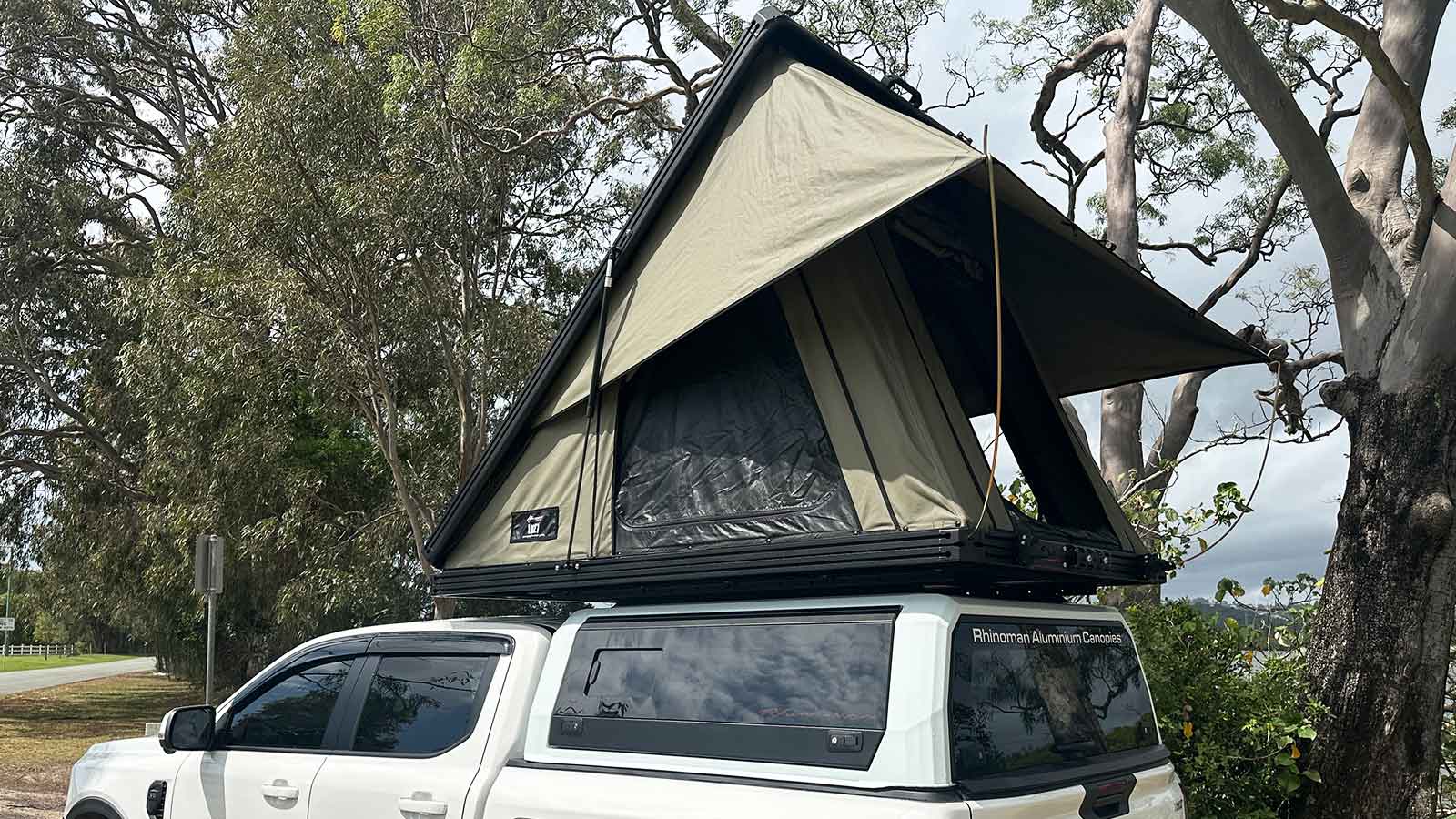

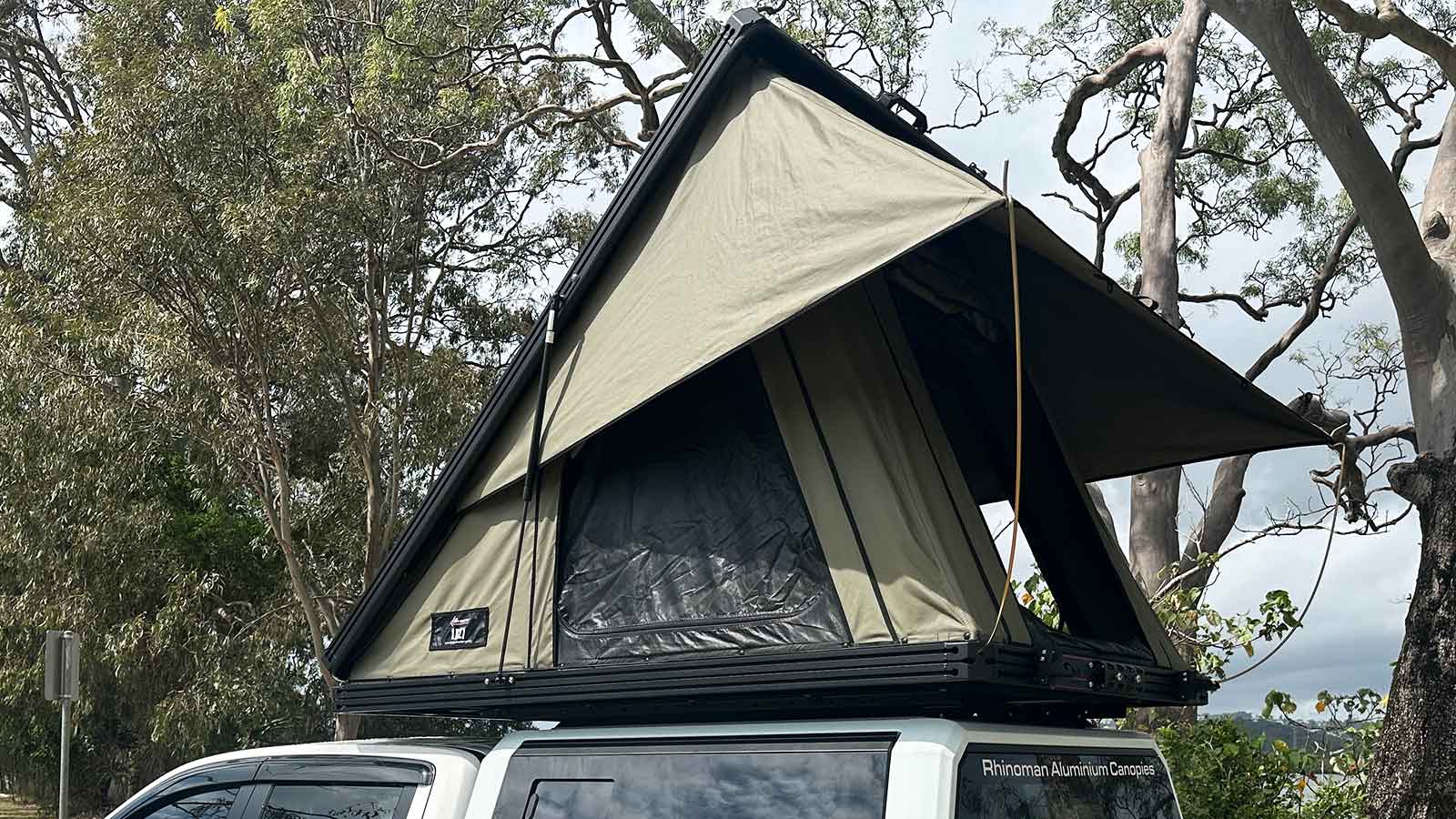

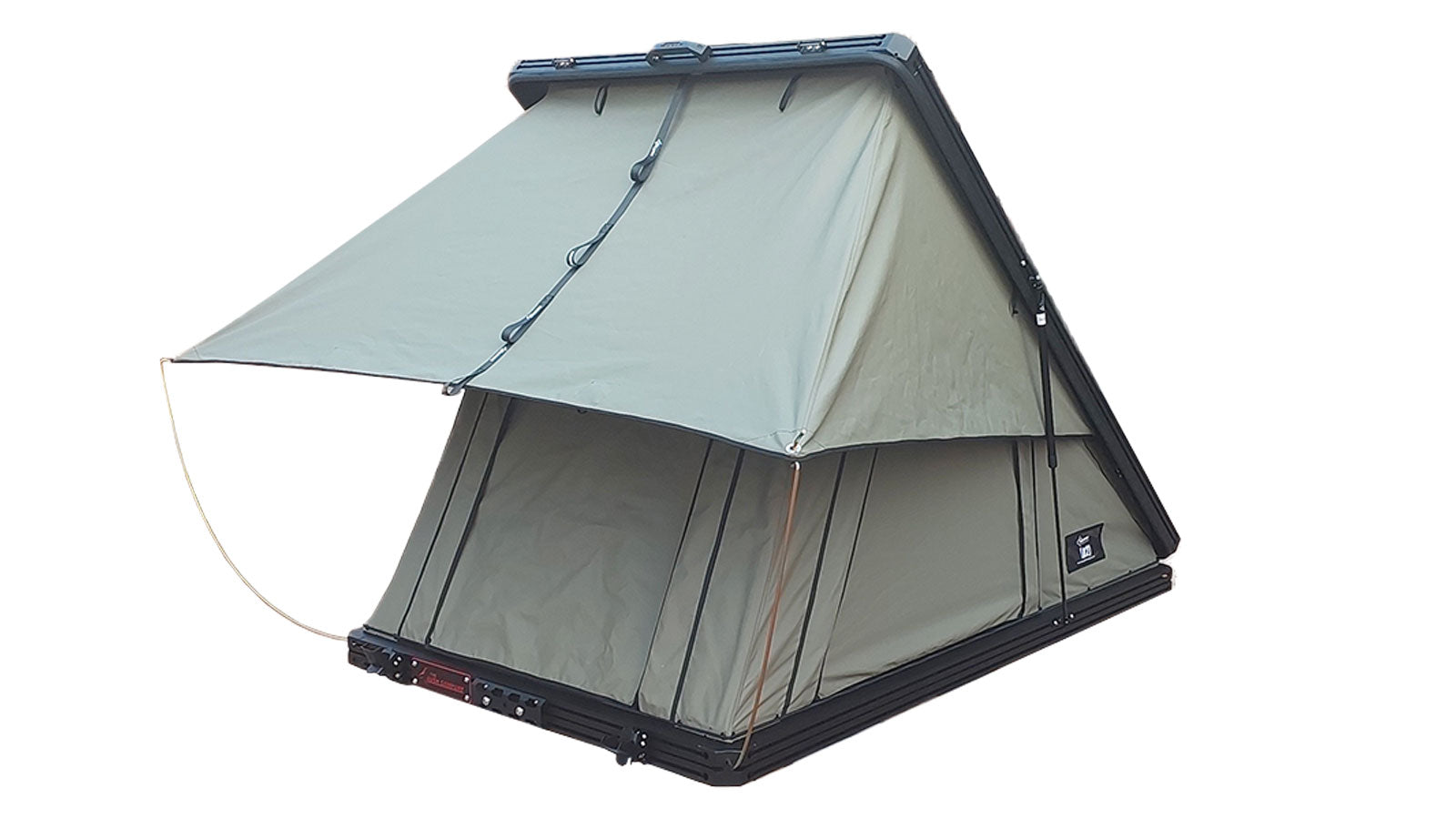

The LX27 has a rainfly at the rear that wraps around to provide cover over the side entrances. The rainfly is attached to the tent with sail track on the rear and sides, but can either be rolled up or fully removed if not required. The rainfly is supported by heavy duty 8mm spring steel poles and has adjustable storm straps for heavier wind conditions.

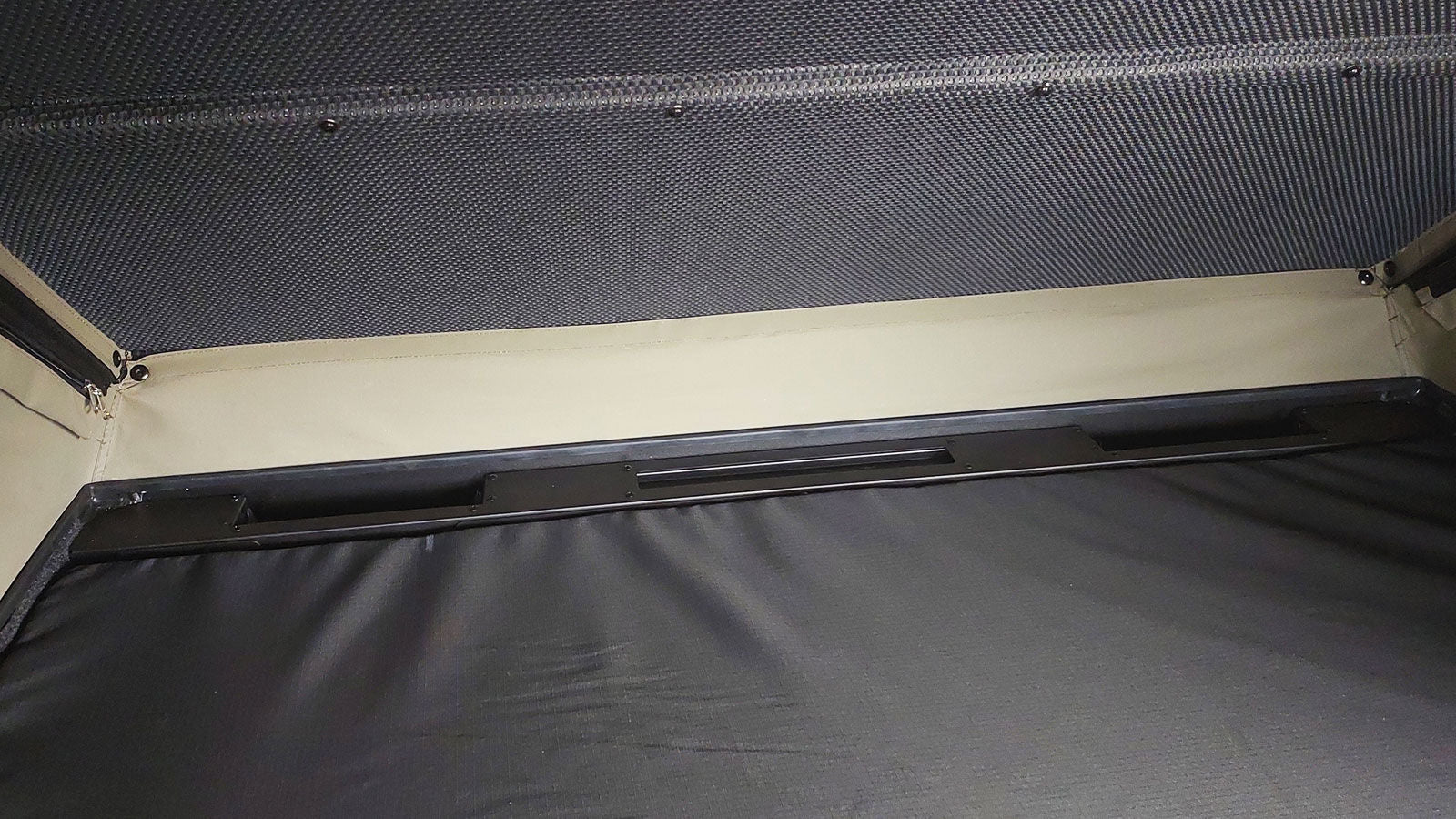

Electrical Package

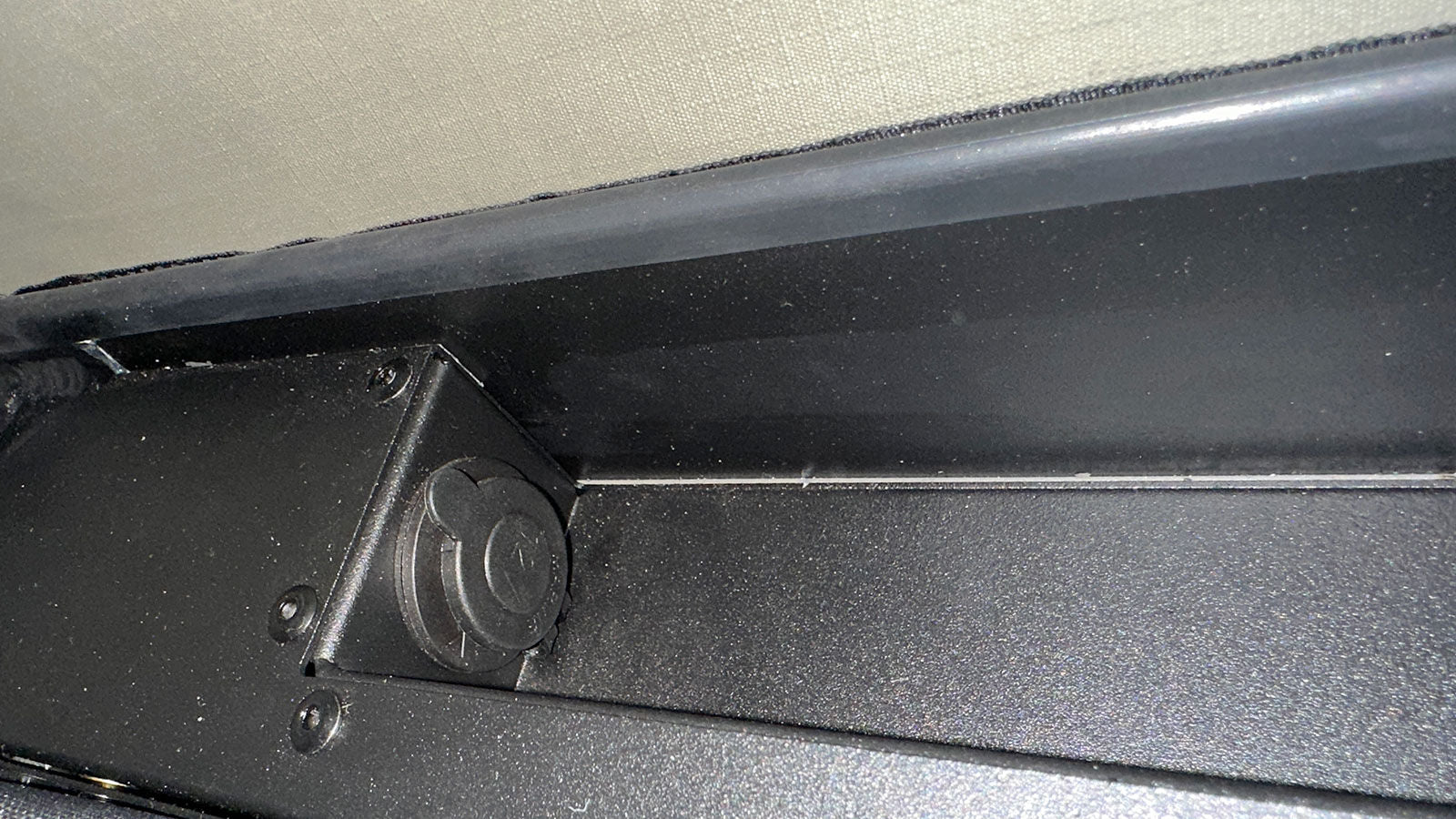

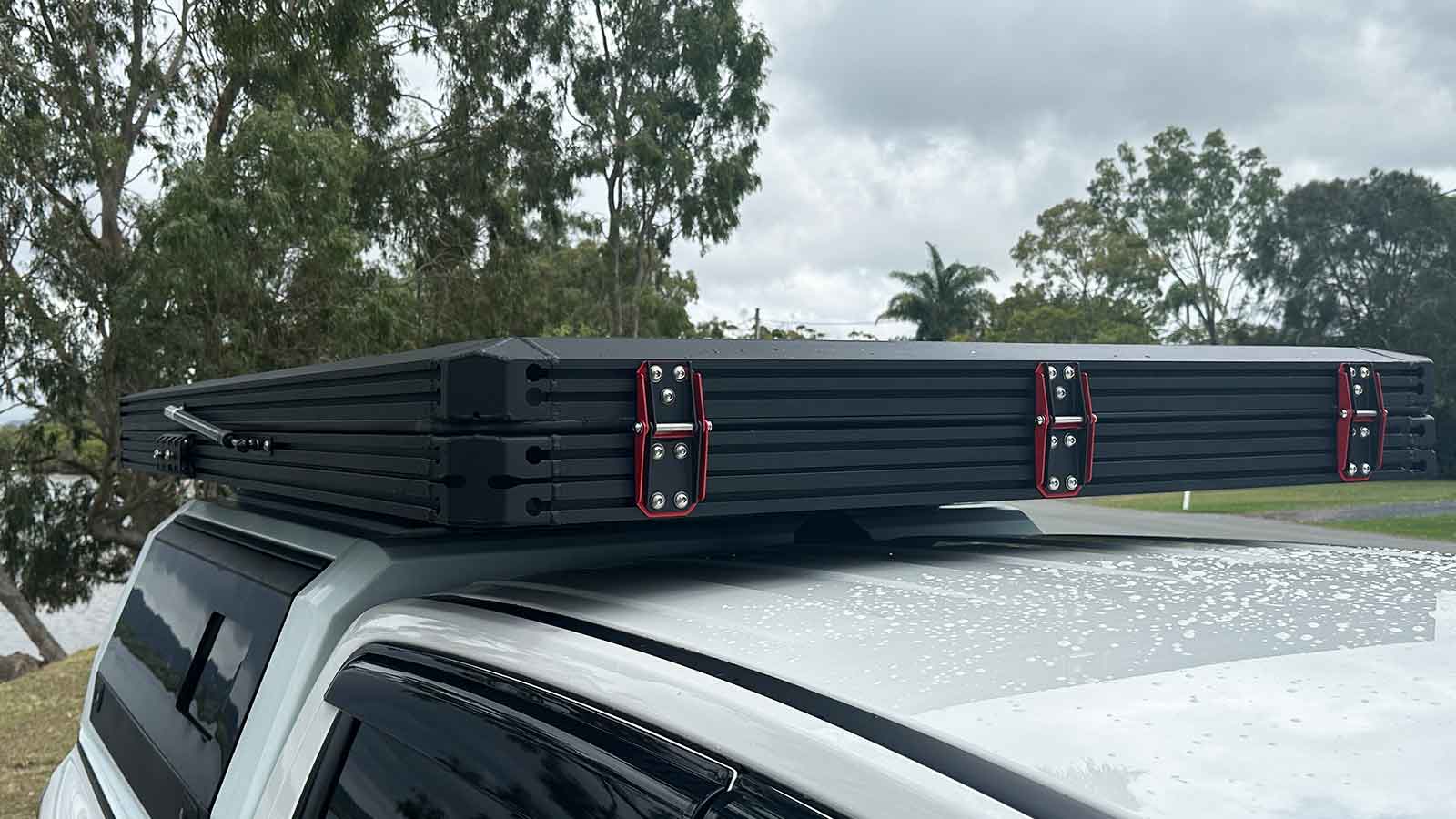

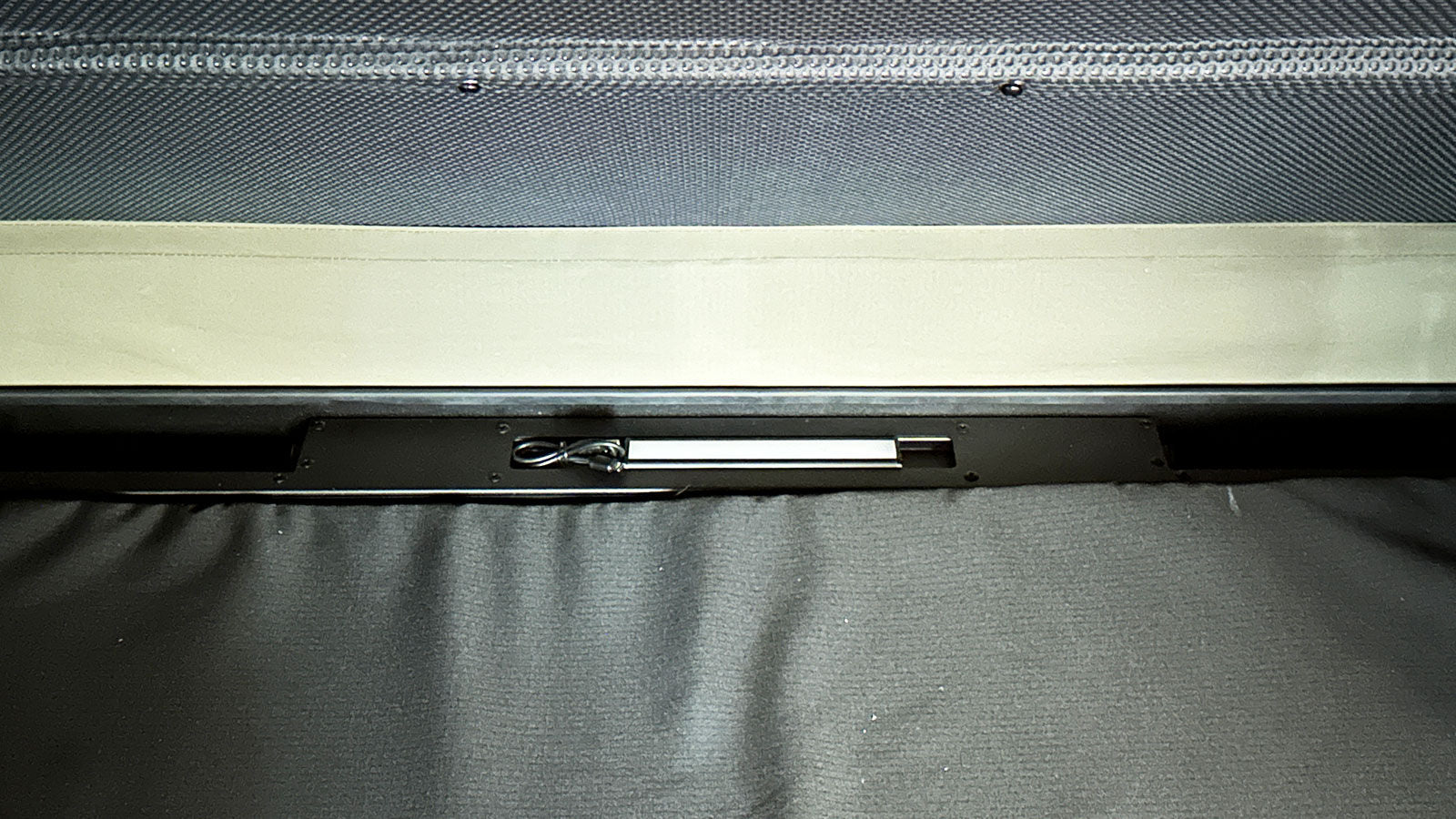

The LX27 has a stylish electrical panel that runs across the hinged end of the tent and the end of the mattress. This panel holds a twin USB and Cig socket on either site and also has convenient pockets on either side for storing important items and a strip to secure the magnetic LED Tri-colour light. Power is supplied to the tent via an external 50 amp Anderson plug mounted to the underside of the tent at hinged end on left side.
Insulated Roof Lining

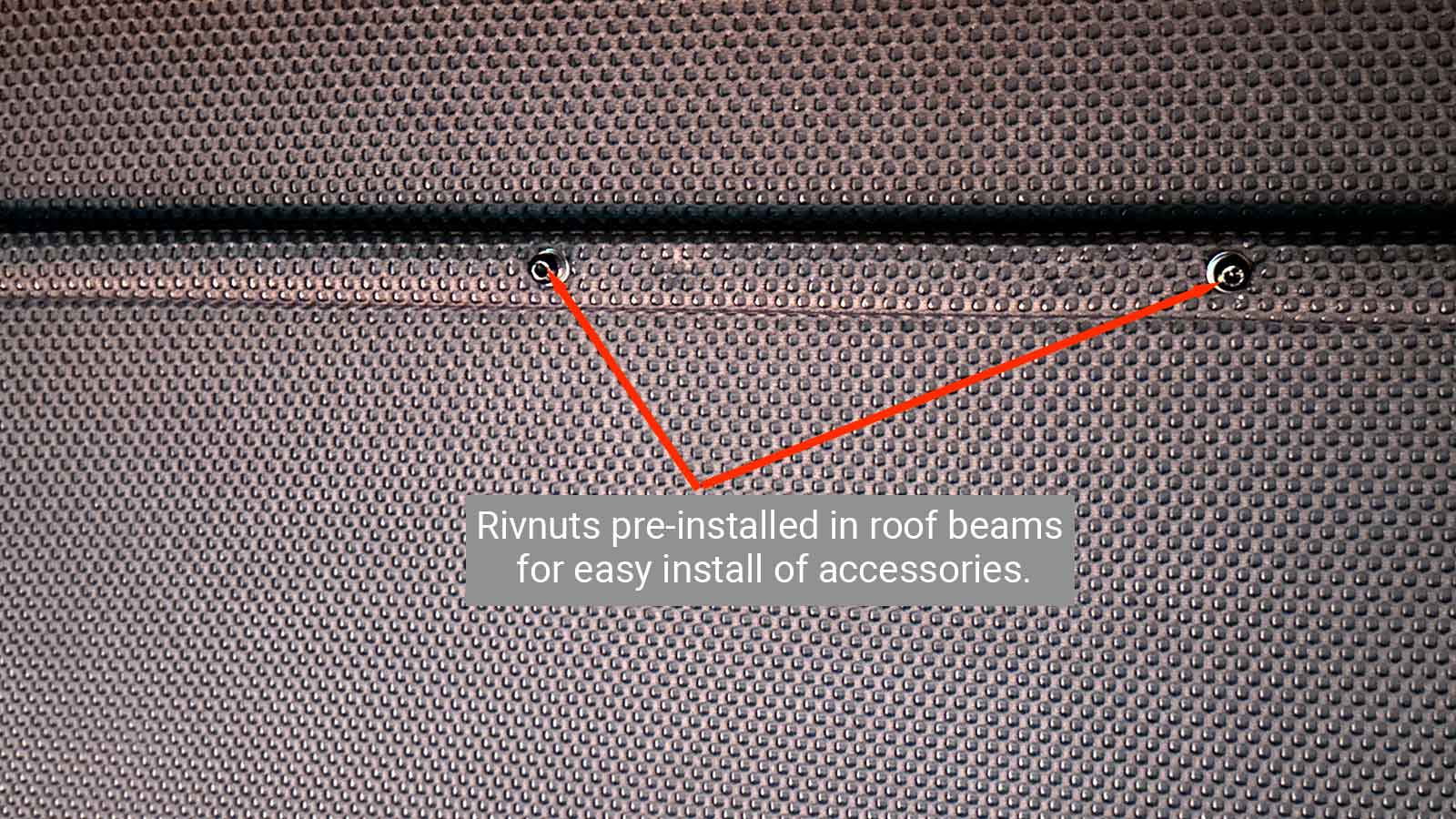

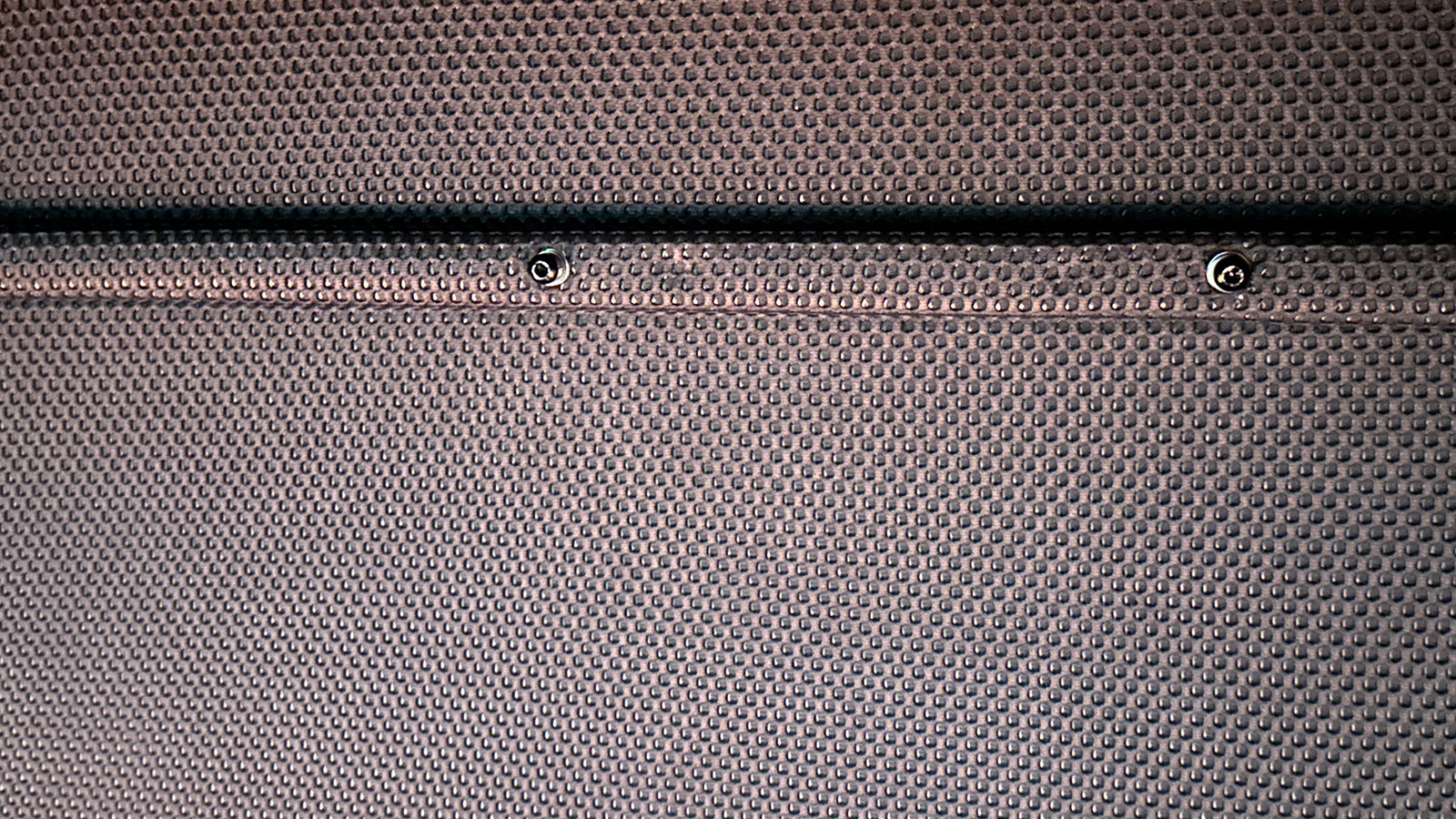

The LX27 has a durable and stylish insulated layer on the underside of the roof and riv-nuts preinstalled in all the internal roof beams to allow easy fitment of internal accessories like a Scirocco fan.
Internal Storage

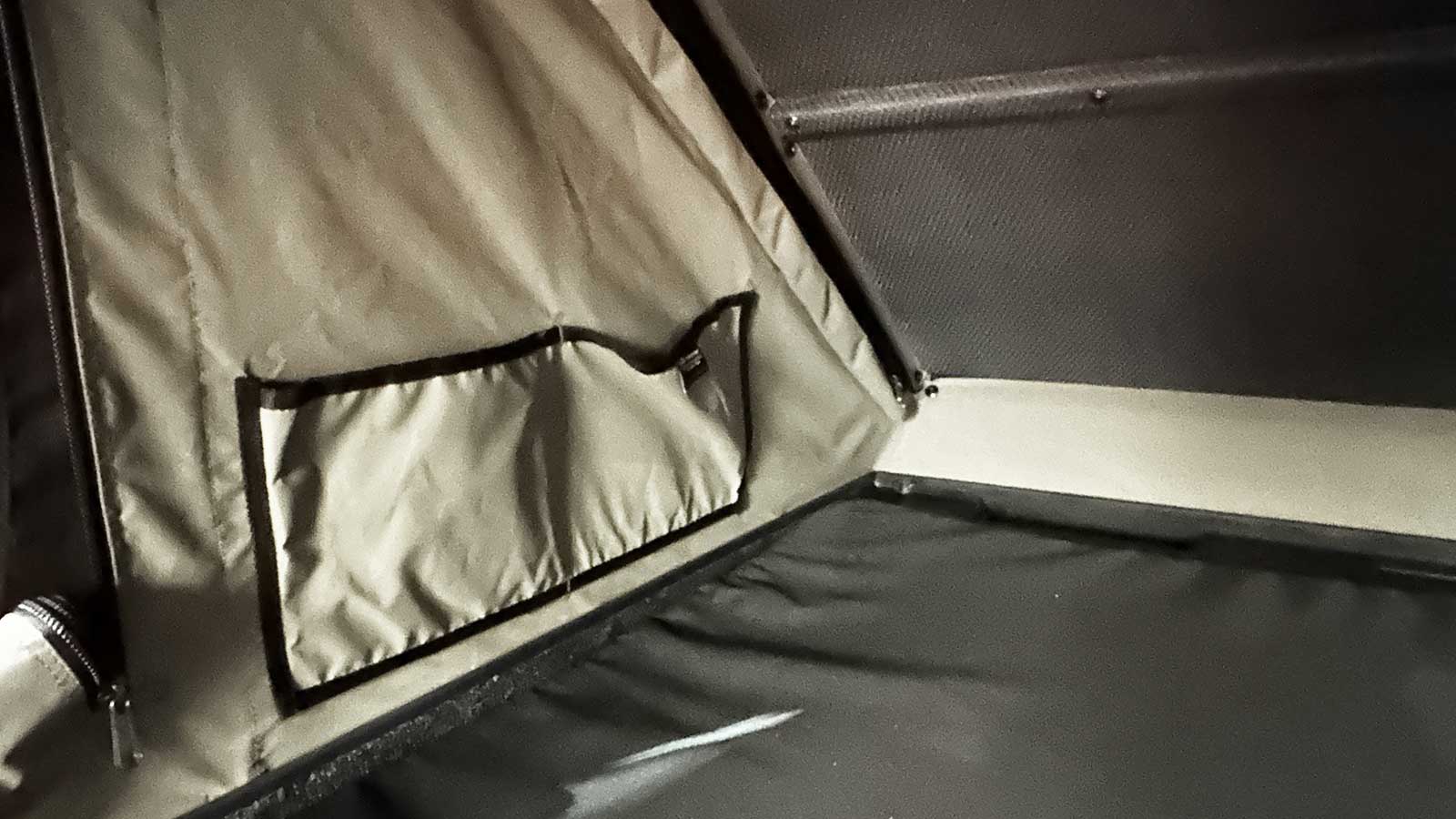

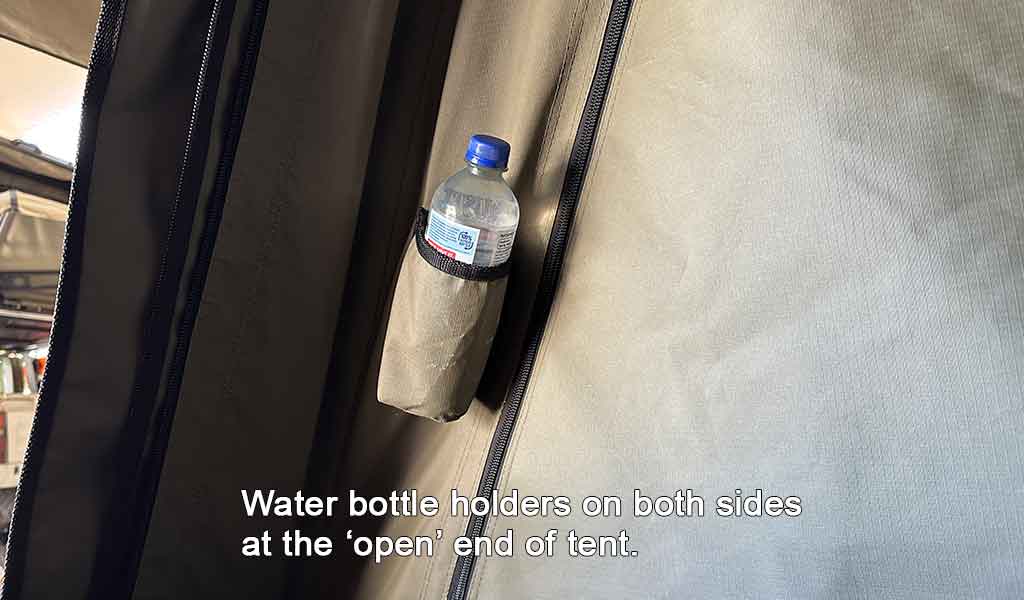

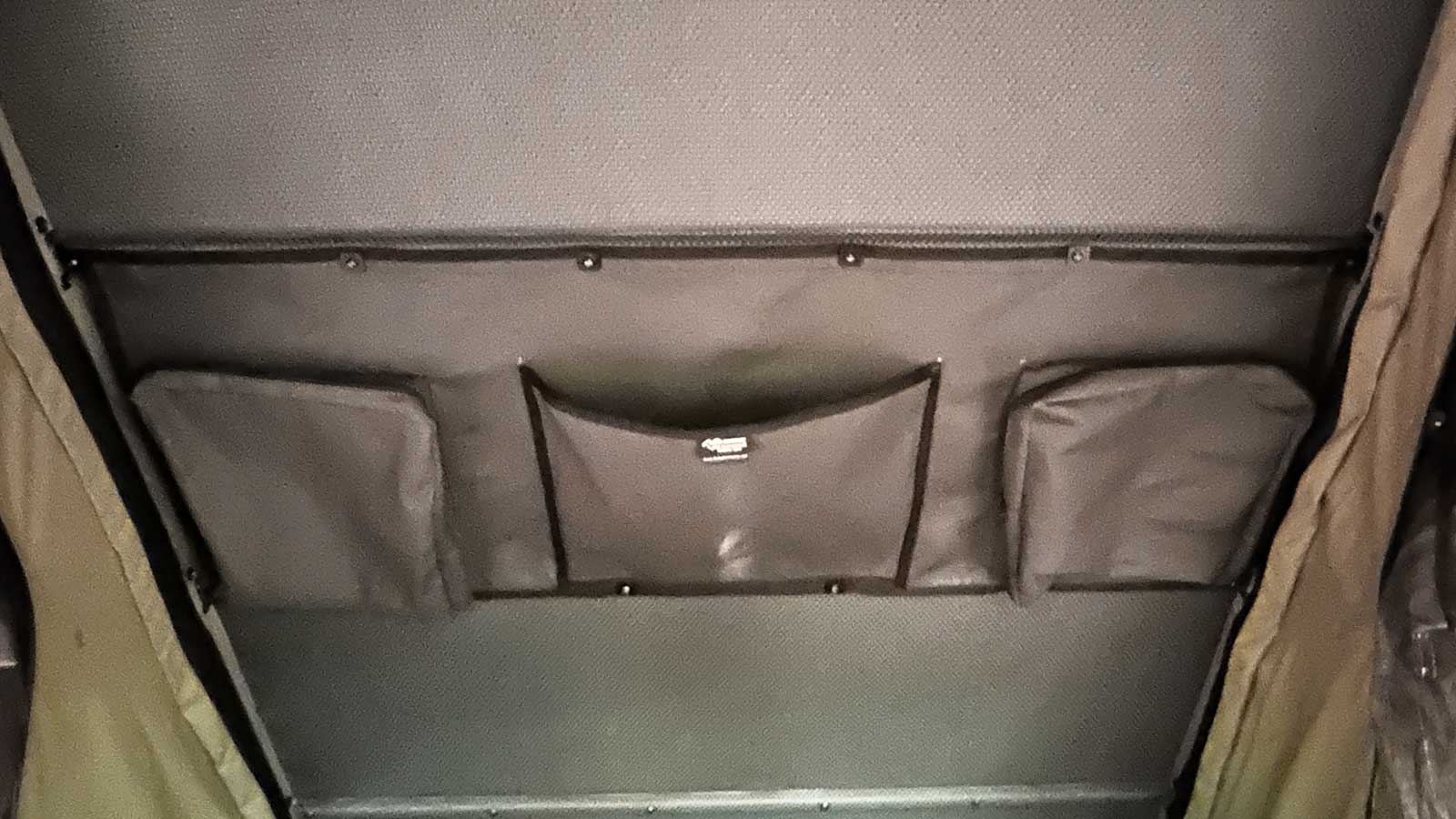

The LX27 has a large set of roof storage pockets and two side pouches on either side of the tent and bottle holders on either side of the rear door.
Installation

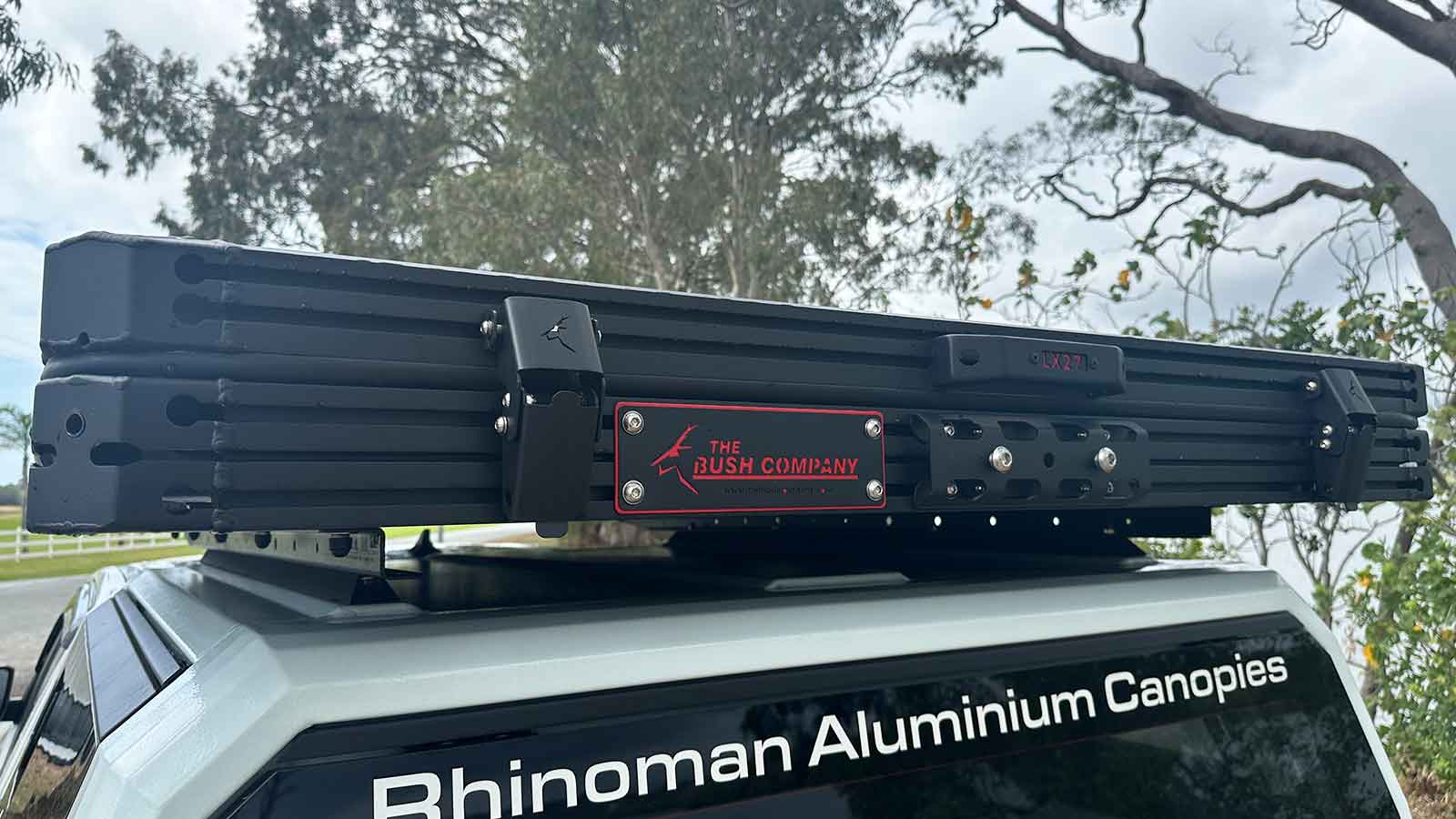

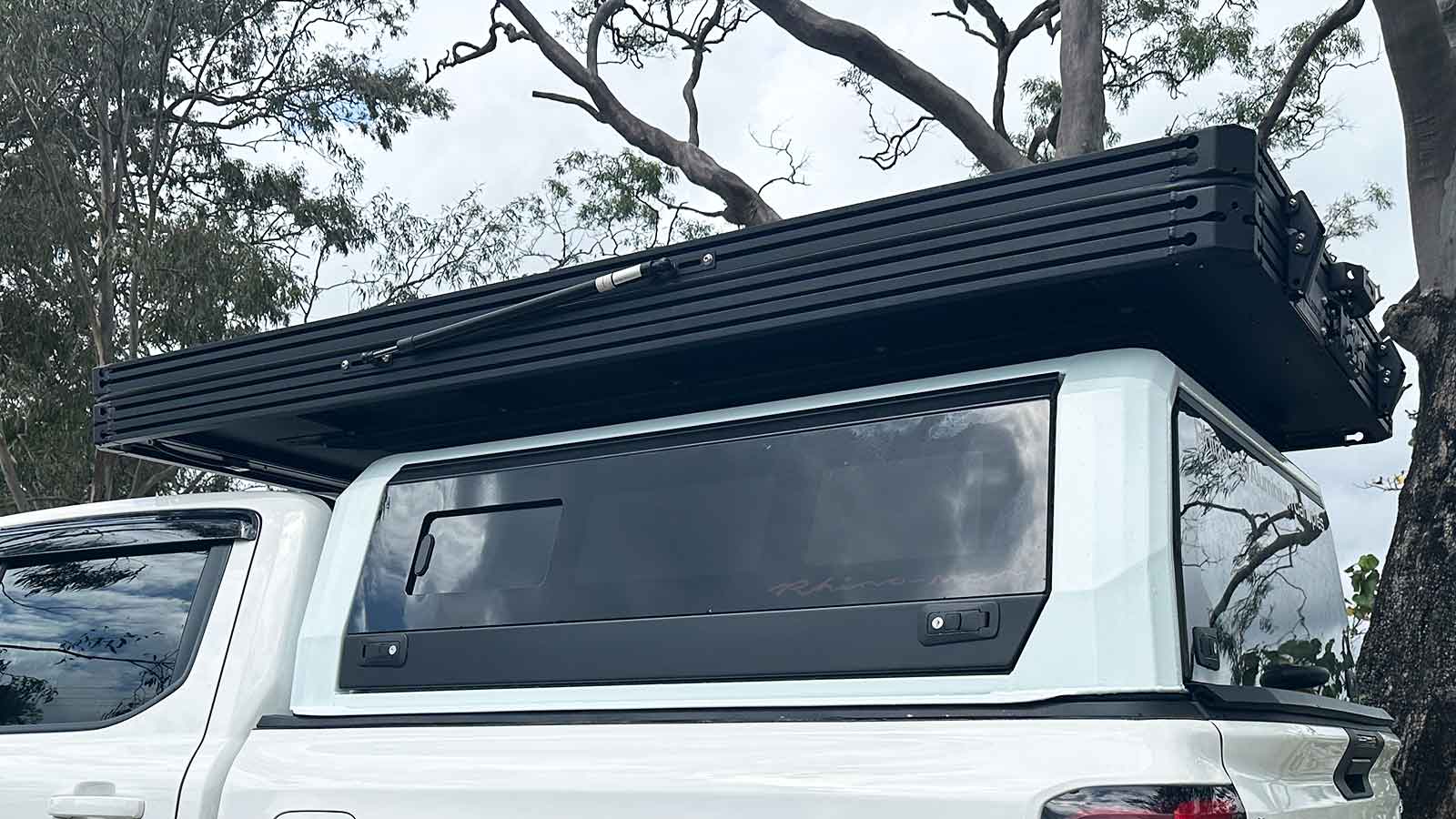

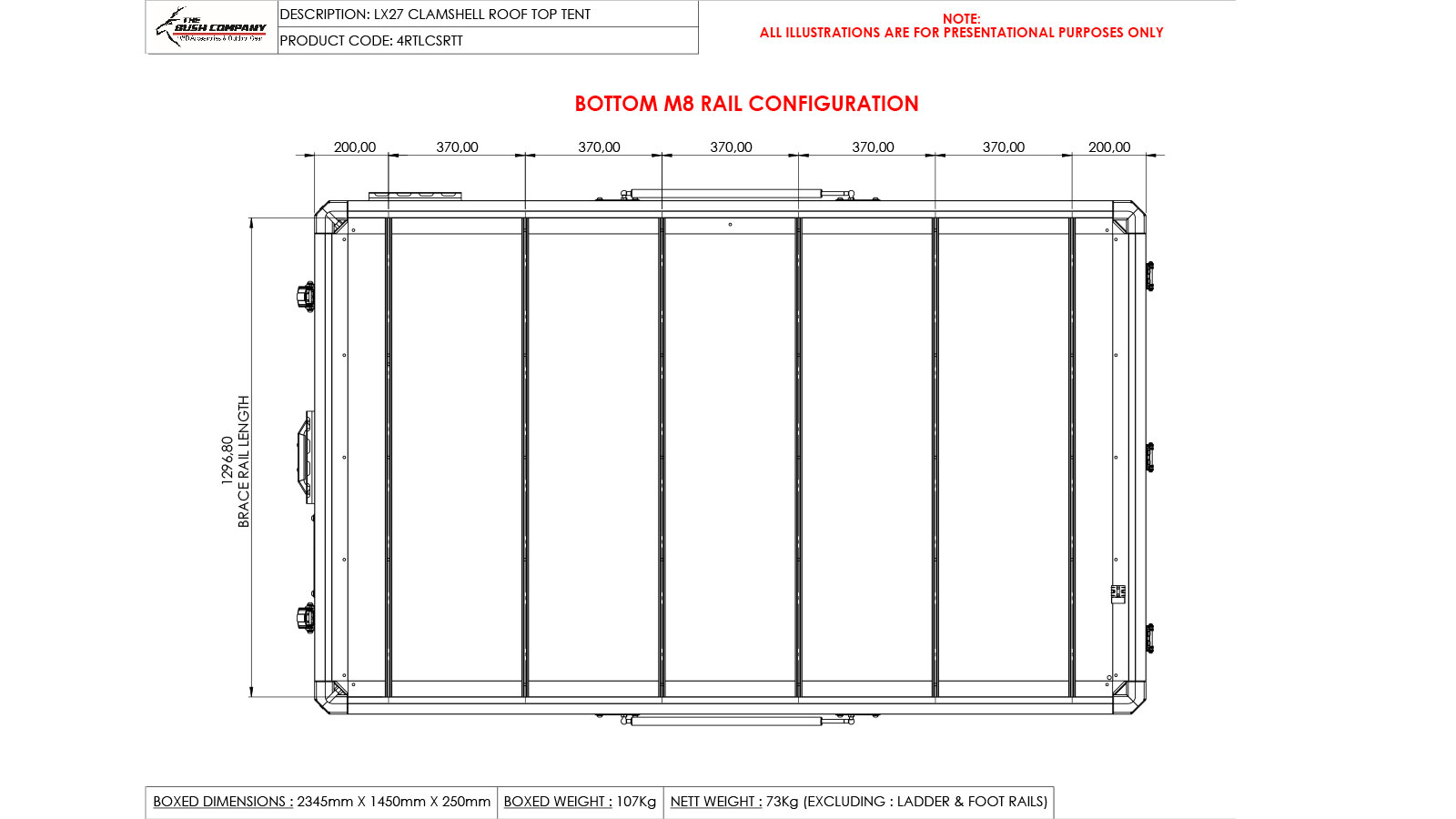

The LX27 has 6 cross rails mounted 370mm apart on the underside of the tent that are flush with the base of the tent (see image below). These rails have an M8 channel in the center that bolts can be inserted into. In addition the tent is supplied with two 23mm high longitudinal extruded rails that can be attached to the cross rails underneath the tent and then used to mount the tent to your vehicle, rack or load bars. A mounting bracket kit is also supplied with the tent.
