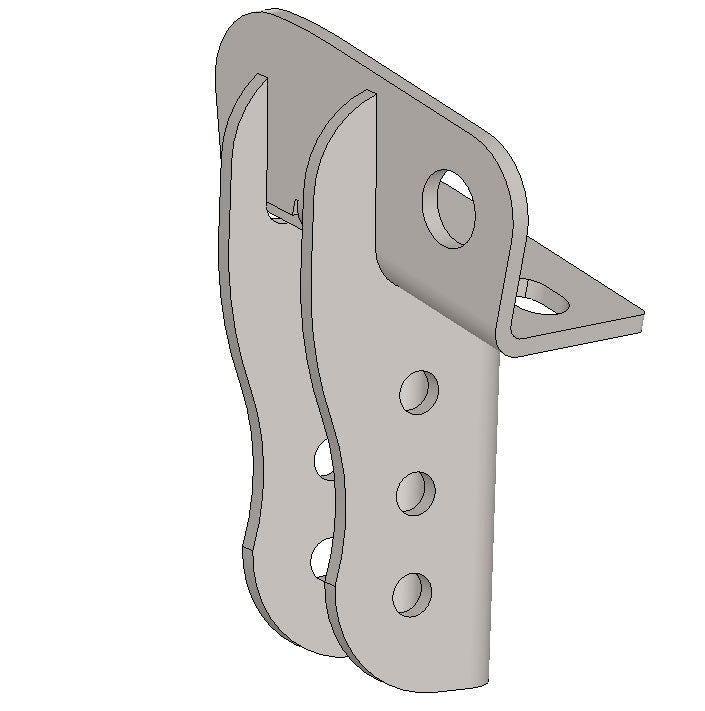

TJ/ LJ Trackbar Mount

 This heavy duty Trackbar mount will replace your factory mount and allow for a 2.5" - 3.5" Stretch forward of the factory position. Perfect for use with our TJ 1 Ton Axle Swap for added clearance.

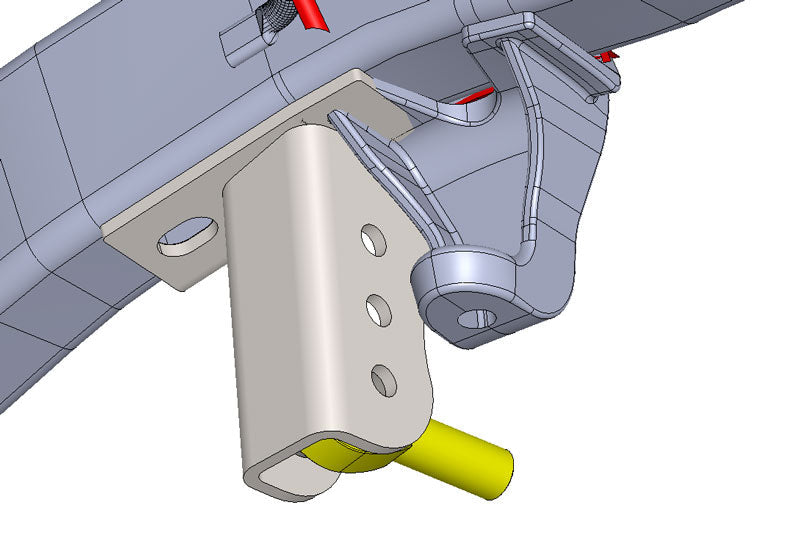

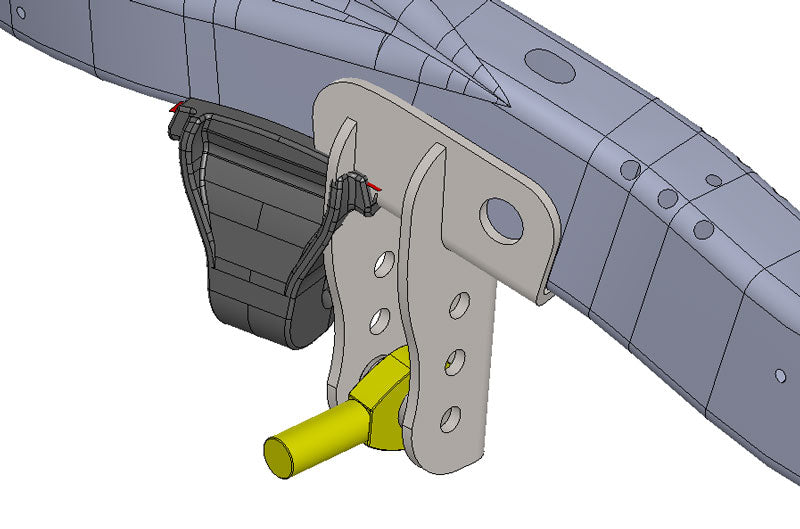

• Designed to curve the factory frame and align the trackbar position
• Locates off a factory frame hole for easy positioning
• Tracbar bracket can slide on frame plate forward or backward until you find the best location with your set up
• 3 hole locations for finding the right steering/tracbar geometry...1.3" in between each hole
• If using the top two holes, you can cut off the bottom of the bracket for higher clearance
• 1.75" Mounting width to fit our 7/8" x 3/4" rod ends with high misalignment spacers. (Will not work with a Factory Replacement Joint)
• CNC laser cut and CNC bent from 1/4" steel for precision fit and heavy duty use

NOTE: This kit requires general welding and fabrication skills including welding to the cast center section. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
