High performance and lightweight, the Tomei Expreme Full Titanium Muffler for the NC Mazda Miata is built on the same ethos as the NC, making it a perfect match for the sports car.
The exhaust is 21 lbs lighter than the stock unit and is noticeably louder.
Specifications| Item | TOMEI | STOCK |
| Part No. | TB6090-MZ03A | - |
| Material | Ti | - |
| Main Pipe A Diameter | 2.38inch (60.5mm) | 2inch (50.8mm) |
| Main Pipe Thickness | 1.0 mm | 1.5mm |
| Silencer Diameter | 5.98inch(152mm) | 8.27inch(210mm)×11.42inch(290mm) Oval |
| Silencer Thickness | 1.0mm | - |
| Exit Diameter | 3.51inch(89.1mm) | 3.02inch(76.6mm) R=4 curl |
| Exit Thickness | 1.0mm | 1.5mm |
| Flange Thickness | 8.0mm flat | 2.5mm Press |
| Weight | 5.29lb (2.4kg) | 26.91lb(12.2kg) |

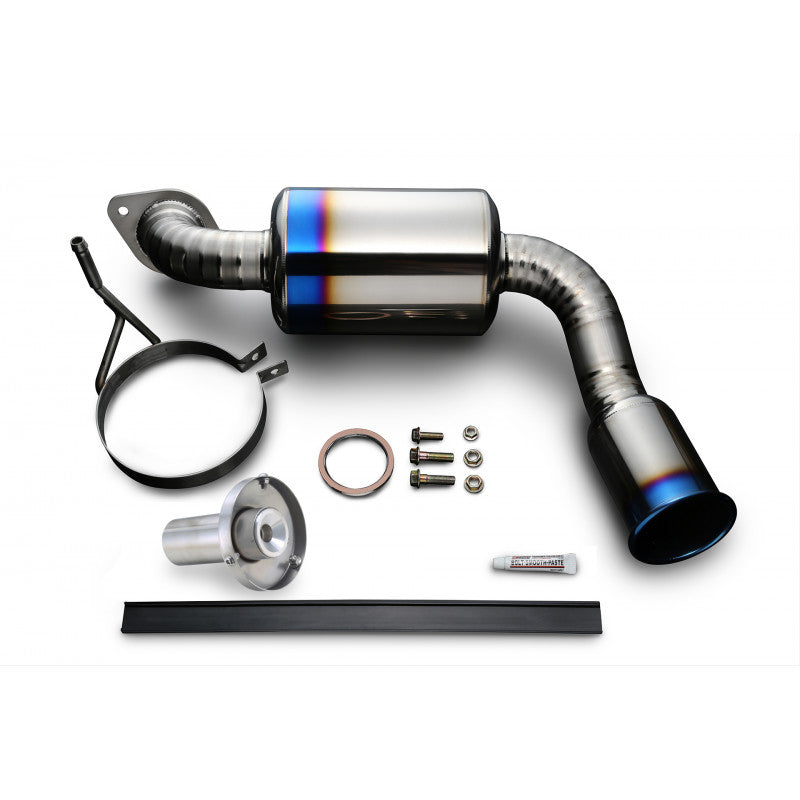

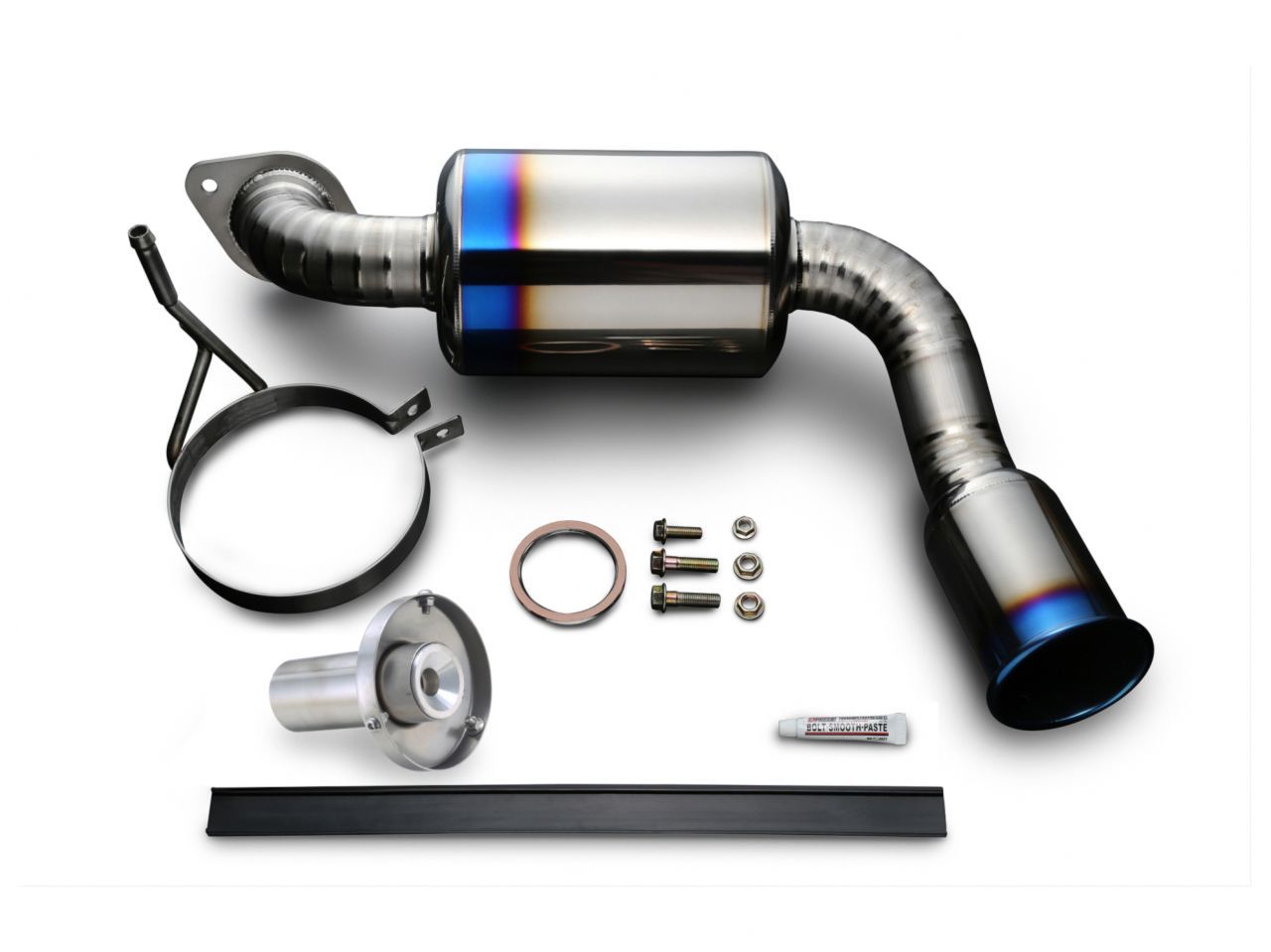

- Muffler (1)
- Muffler Gasket (1)
- Silencer Band (1)
- Silencer Band Rubber (1)
- Flange Bolt (2)
- Flange Nut (2)
- Flange Bolt (1)
- Flange Nut (1)
- Sound Reducer (1)
- Allen Key (1)
- Bolt Smooth Paste (1)
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 | Mazda | MX-5 Miata | 25th Anniversary Edition |
| 2013 - 2015 | Mazda | MX-5 Miata | Club |
| 2006 | Mazda | MX-5 Miata | Club Spec, Base |
| 2008 - 2015 | Mazda | MX-5 Miata | GX, GT, GS |
| 2011 - 2012 | Mazda | MX-5 Miata | Special Edition |
| 2006 - 2015 | Mazda | MX-5 Miata | Sport, Grand Touring |
| 2007 - 2009 | Mazda | MX-5 Miata | SV |
| 2006 - 2012 | Mazda | MX-5 Miata | Touring |
