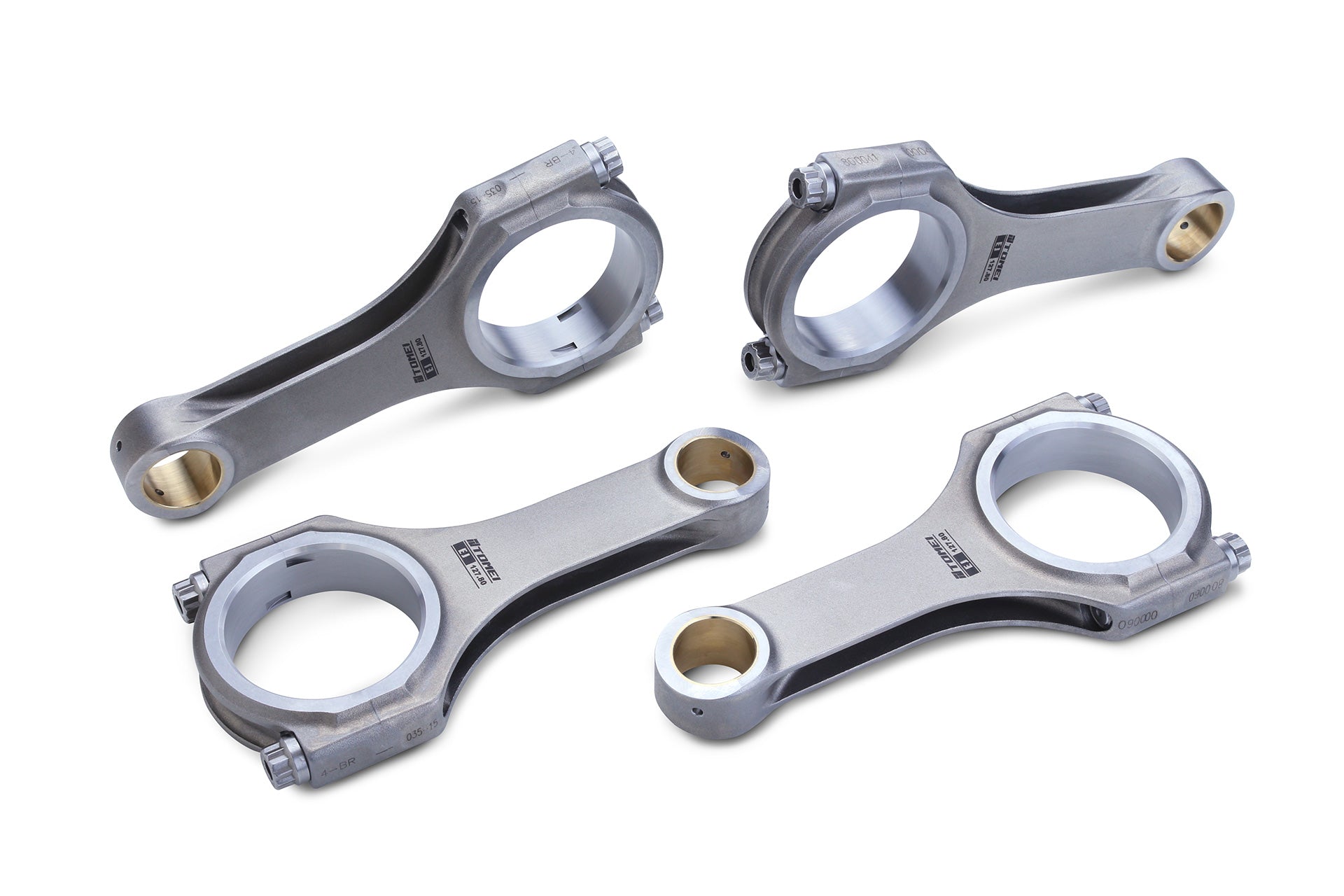

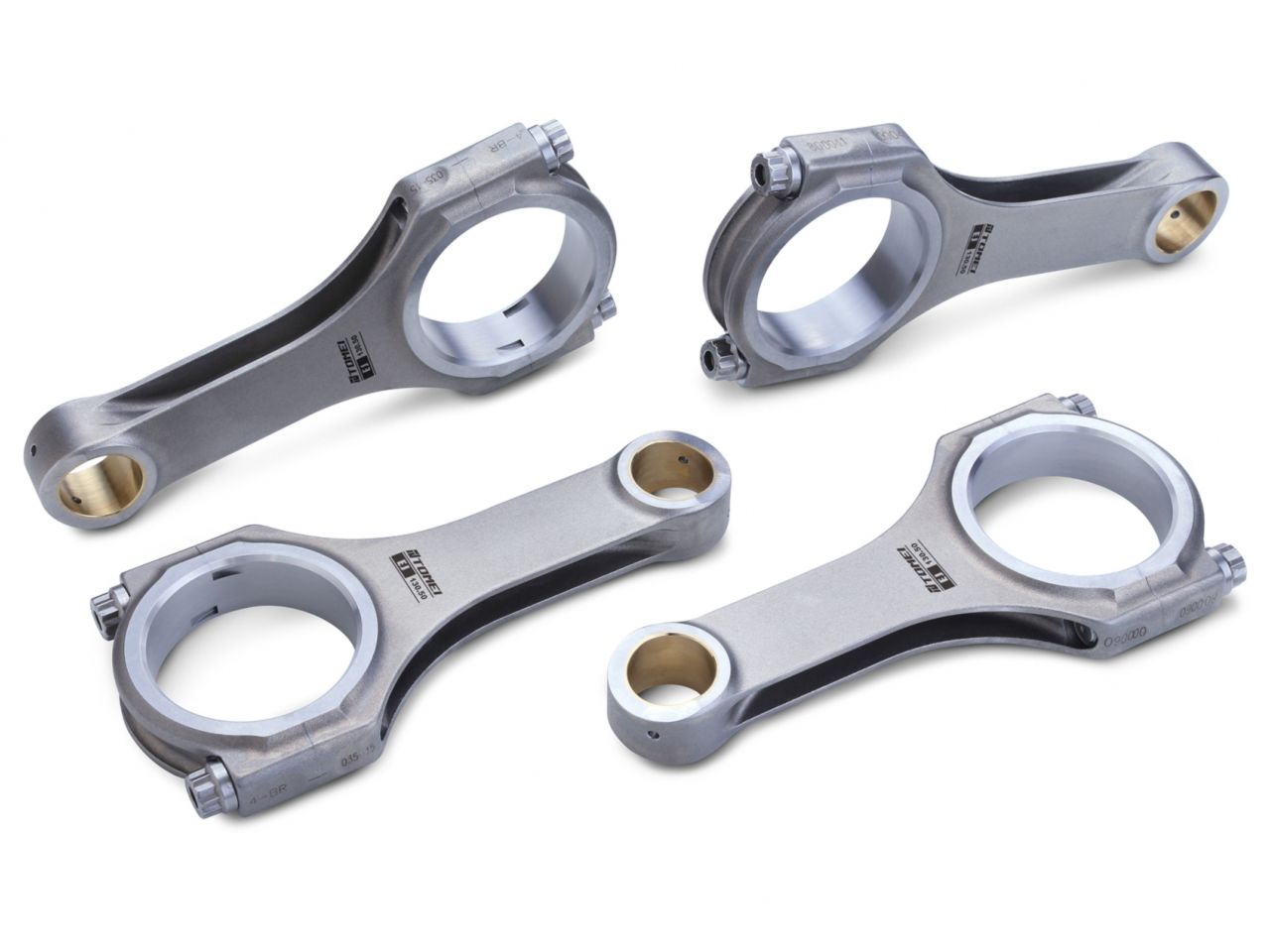

Forged H-Beam Connecting Rod Set EJ20/EJ25
Category: Cylinder Block Connecting Rod
| Category | Engine | Parts Number |
| Forged H-Beam Connecting Rod Set EJ20/EJ25 130.50mm (STD) | EJ20,EJ25 | TA203A-SB01A |
| Forged H-Beam Connecting Rod Set EJ25 127.80mm (2.6) | EJ25 | TA203A-SB02A |
| Part Number | A203A-SB01A | TA203A-SB02A |
| C-to-C (mm) | 130.50 (OEM ±0.0) |
127.80 (OEM -2.7) |
| BE.BORE×WIDTH (mm) |
55.0 x 21.4 | 55.0 x 21.4 |
| PE.BORE×WIDTH (mm) (Bush inner cir) |
23.0 x 21.4 | 23.0 x 21.4 |
| MATERIAL | SNCM439 |
SNCM439 |
| BOLT | ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
| BEARING SIZE | INNER DIA. 52.0mm WIDTH 16.5mm |
INNER DIA. 52.0mm WIDTH 16.5mm |
| WEIGHT (g) | 552 | 541 |
