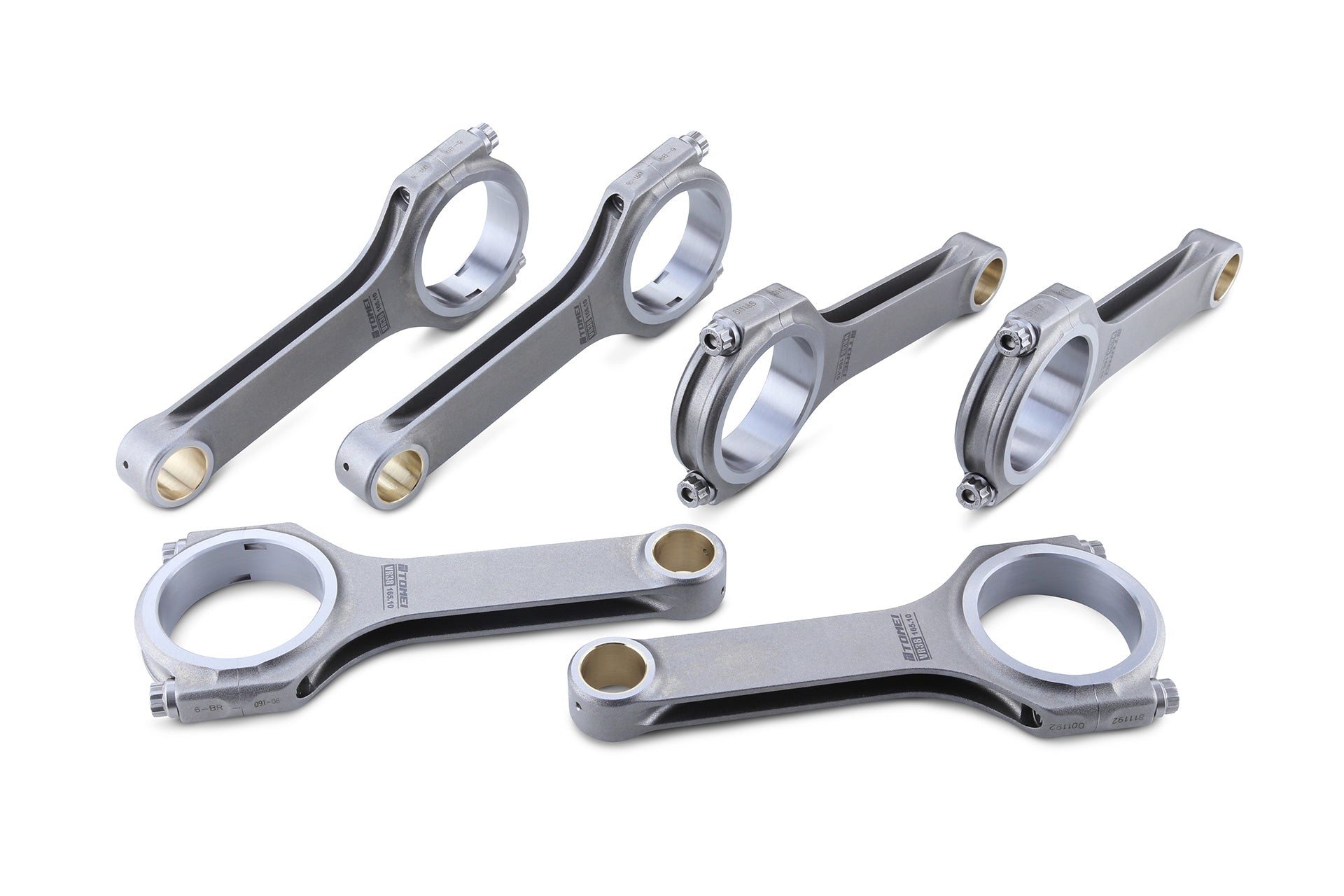

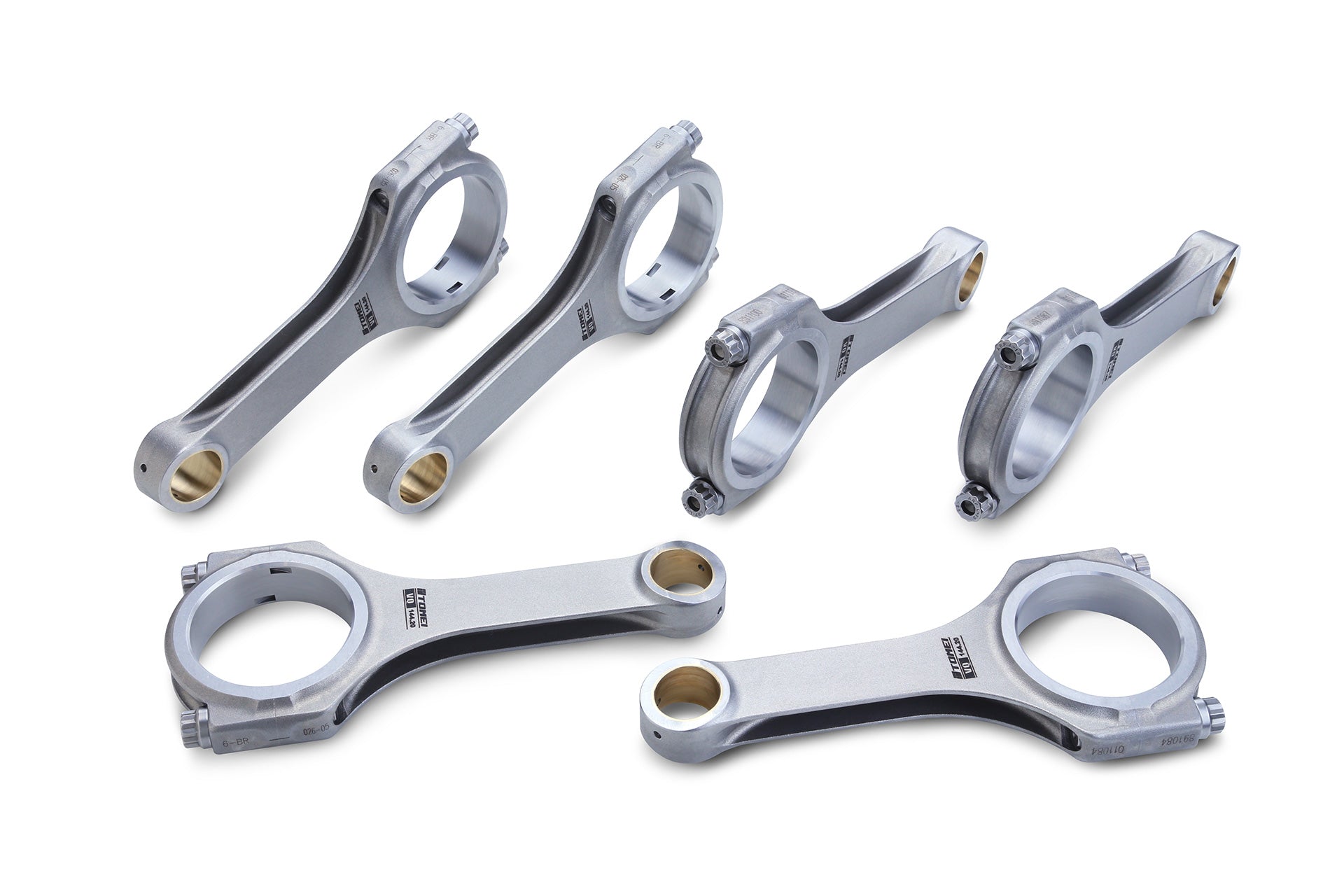

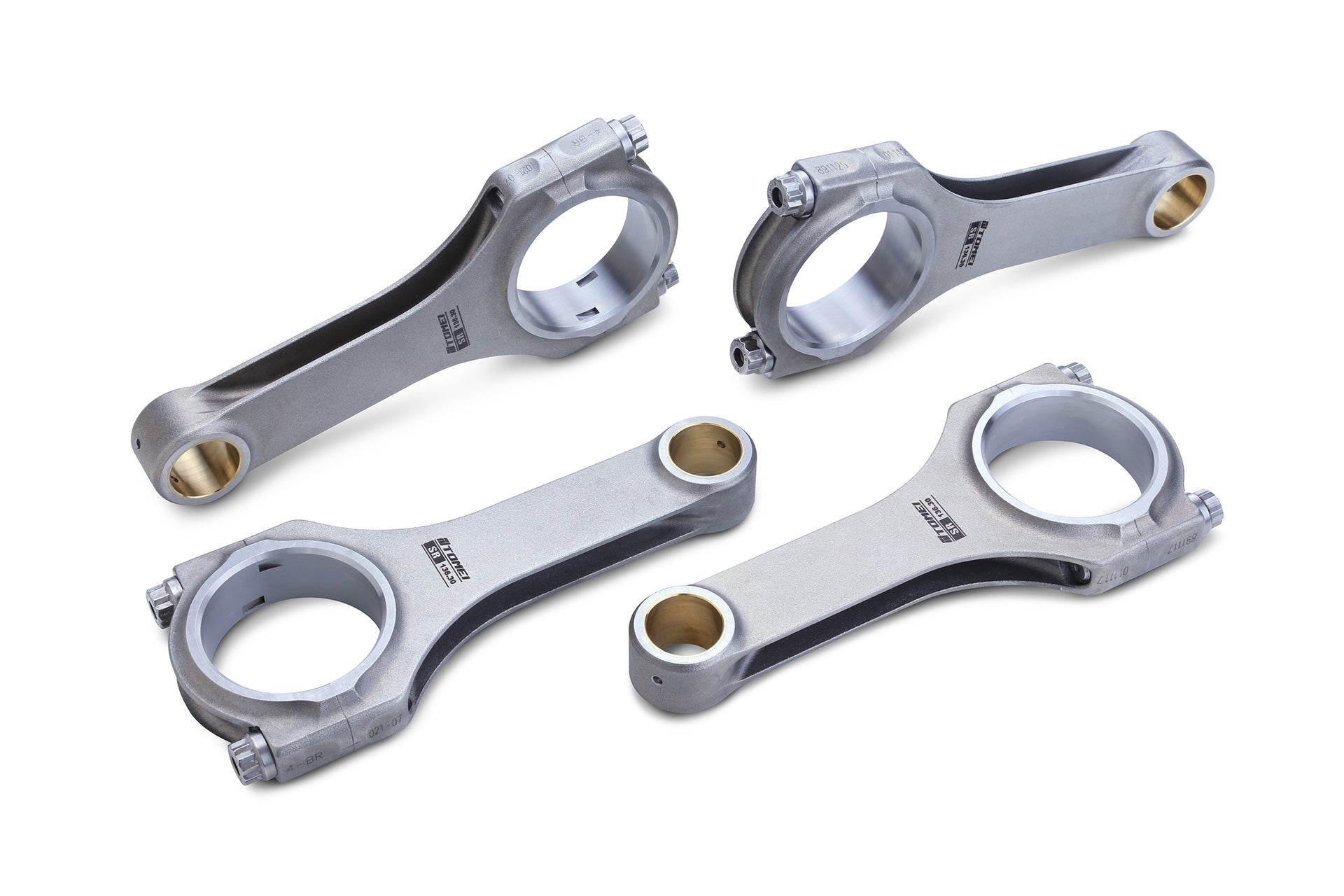

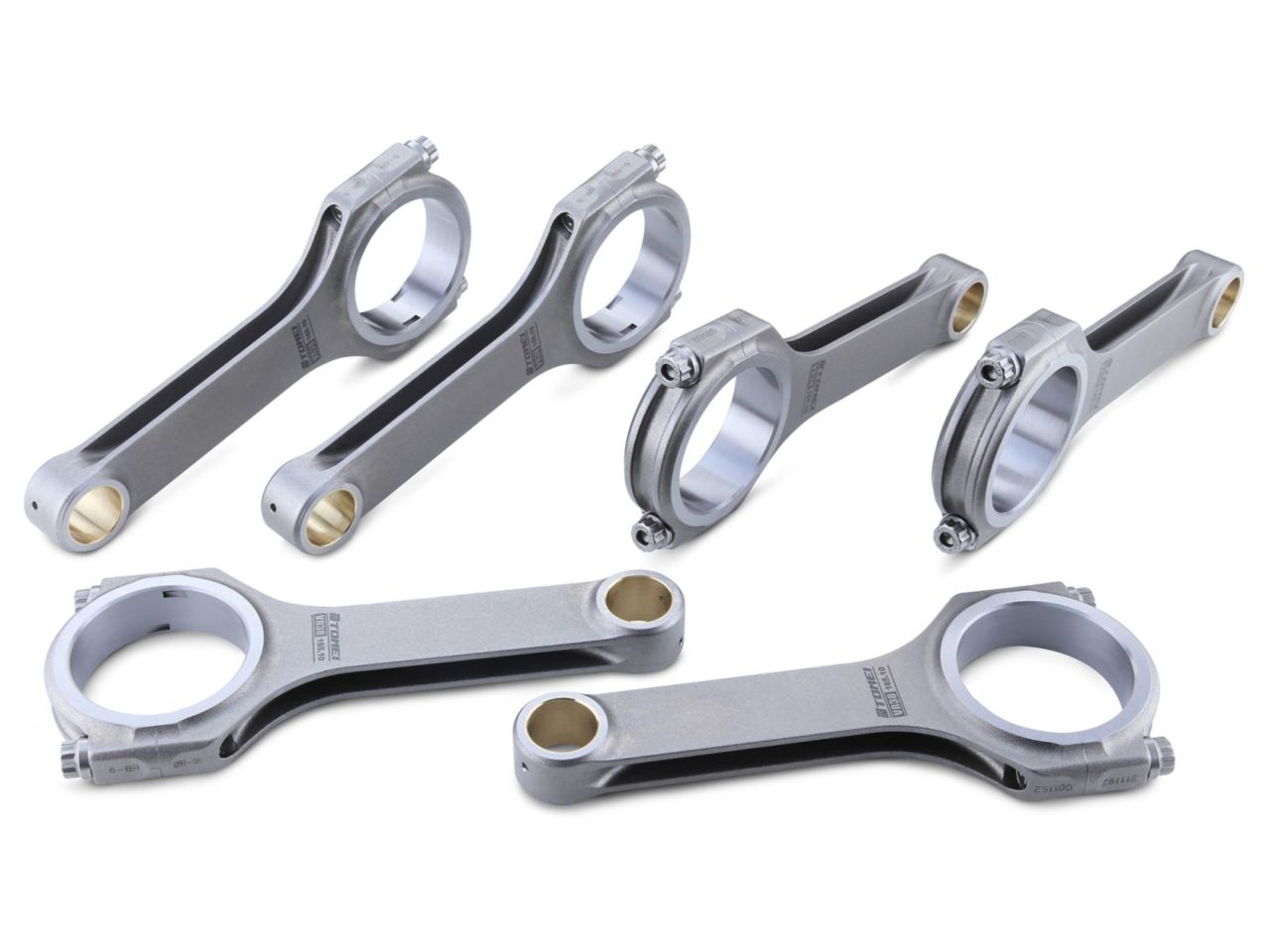

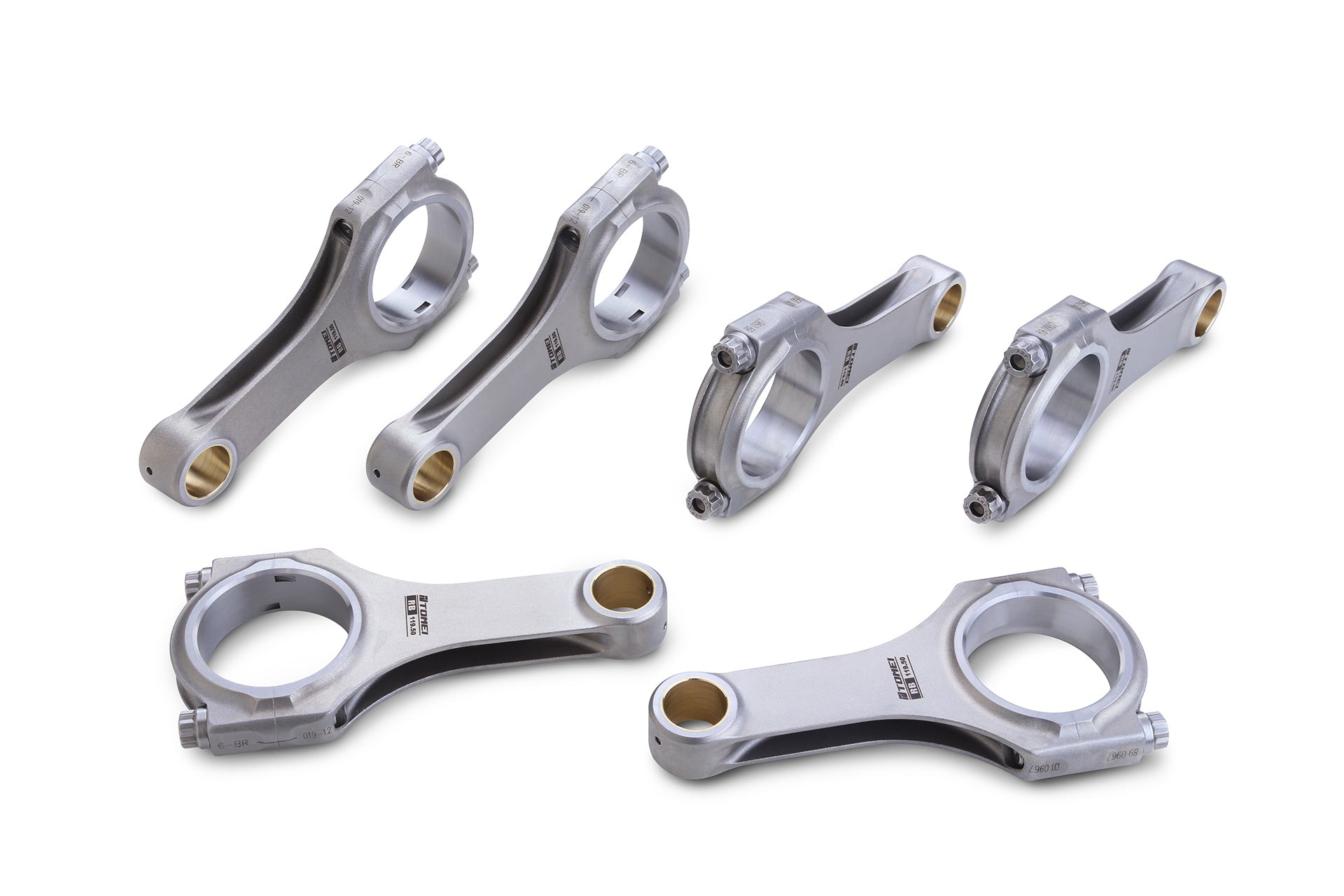

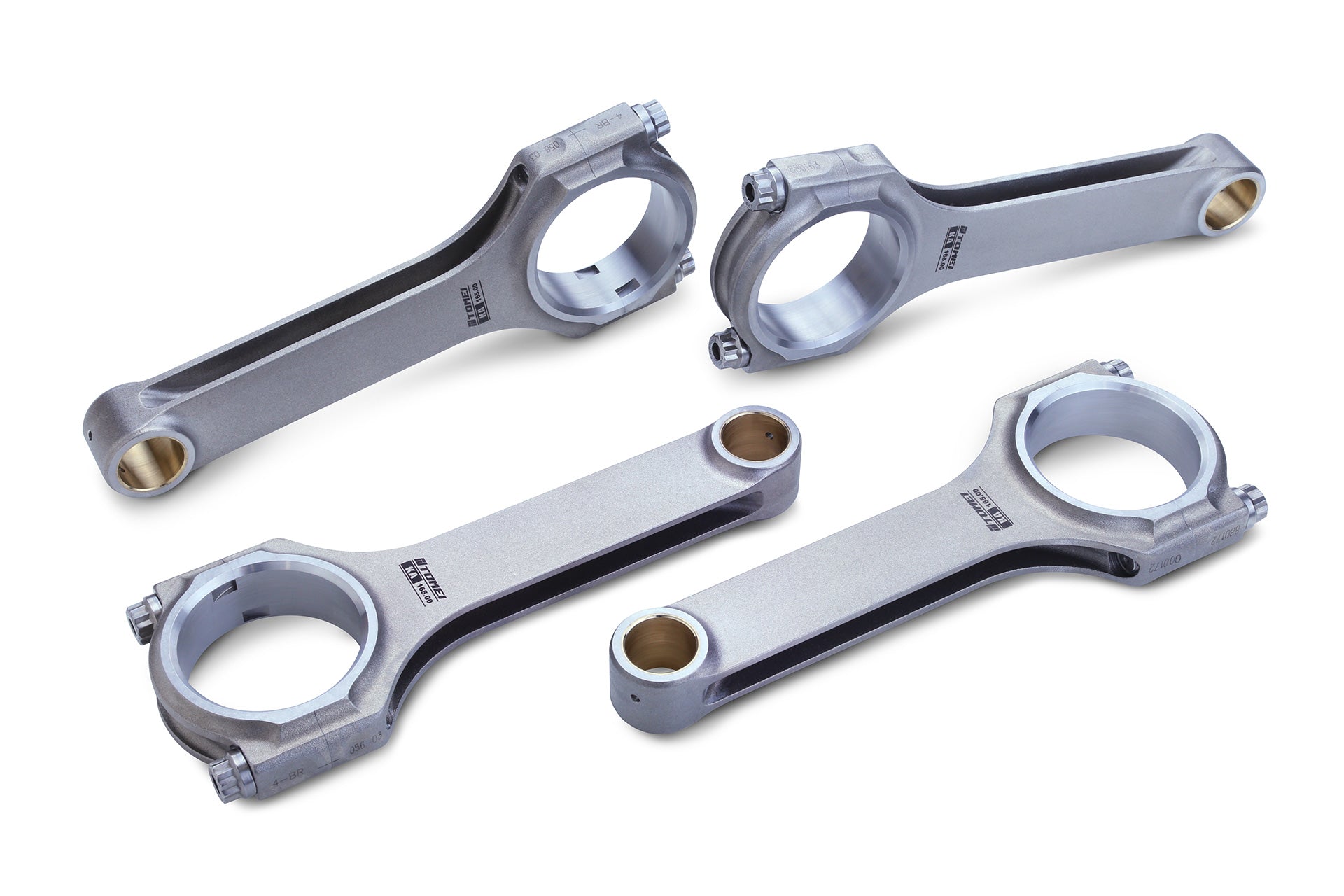

FORGED H-BEAM CONNECTING ROD SET
| Category | Engine | Parts Number |
| Forged H-Beam Connecting Rod Set VR38DETT 165.10mm (STD/4.1) | VR38 | TA203A-NS01A |
| Forged H-Beam Connecting Rod Set VQ35DE 144.20mm (STD) | VQ35 | TA203A-NS04A |
| Forged H-Beam Connecting Rod Set RB26DETT/RB25DE(T) 121.50mm (STD) | RB26,RB25 | TA203A-NS05A |
| Forged H-Beam Connecting Rod Set SR20DE(T)/SR18DE RB26DETT/RB25DE(T) 119.50mm (2.8) | RB26 | TA203A-NS05B |
| Forged H-Beam Connecting Rod Set KA24DE SR20DE(T)/SR18DE 136.30mm (STD/2.2) | SR20 | TA203A-NS08A |
| Forged H-Beam Connecting Rod Set KA24DE 165.00mm (STD) | KA24 | TA203A-NS16A |
| Part Number | TA203A-NS01A | TA203A-NS04A | TA203A-NS05A |
| C-to-C (mm) | 165.10 (OEM ±0.0) | 144.20 (OEM ±0.0) |
121.50 (OEM ±0.0) |
| BE.BORE×WIDTH (mm) |
59.0 x 22.8 | 55.0 x 2.8 | 51.0 x 21.8 |
| PE.BORE×WIDTH (mm) (Bush inner cir) |
23.0 x 22.8 | 22.0 x 20.8 | 21 x 21.8 |
| MATERIAL | SNCM439 |
SNCM439 |
SNCM439 |
| BOLT | ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
| BEARING SIZE | INNER DIA. 56.0mm WIDTH 19mm |
INNER DIA. 52.0mm WIDTH 16.5mm |
INNER DIA. 48.0mm WIDTH 17mm |
| WEIGHT (g) | 678 | 534 | 528 |
| Part Number | TA203A-NS05B | TA203A-NS08A | TA203A-NS16A |
| C-to-C (mm) | 119.50 (OEM -2.0) |
136.30 (OEM ±0.0) |
165.00 (OEM ±0.0) |
| BE.BORE×WIDTH (mm) |
51.0 x 21.8 | 51.0 x 22.8 | 53.0 x 24.8 |
| PE.BORE×WIDTH (mm) (Bush inner cir) |
21 x 21.8 | 22.0 x 22.8 | 21 x 24.7 |
| MATERIAL | SNCM439 |
SNCM439 |
SNCM439 |
| BOLT | ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
| BEARING SIZE | INNER DIA. 48.0mm WIDTH 17mm |
INNER DIA. 48.0mm WIDTH 17mm |
INNER DIA. 50.0mm WIDTH 20mm |
| WEIGHT (g) | 525 | 562 | 658 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1998 | Nissan | 240SX | SE, Base |
| 1989 - 1990 | Nissan | 240SX | XE |
