Fuel Pressure Regulator TYPE-L
| Category | Engine | Parts Number |
| TYPE-L | UNIVERSAL | TB507A-0000B |
| TYPE-S | UNIVERSAL | TB507A-0000A |

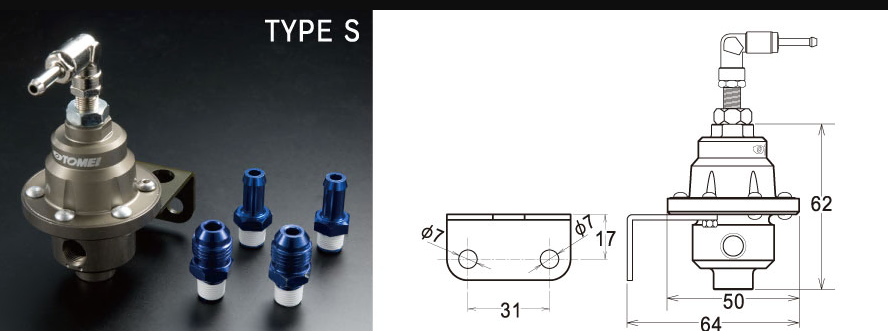

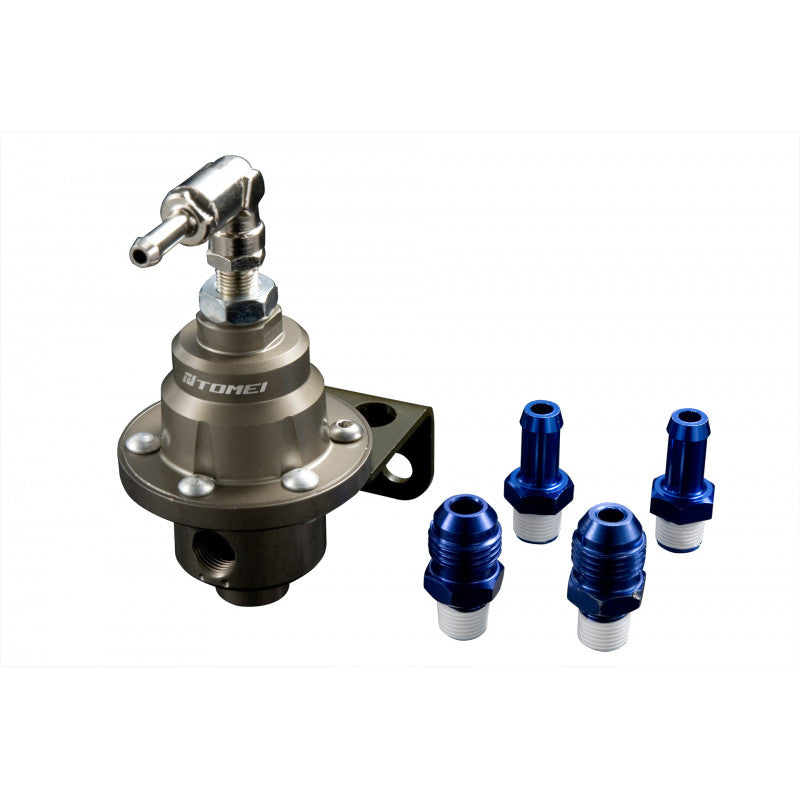

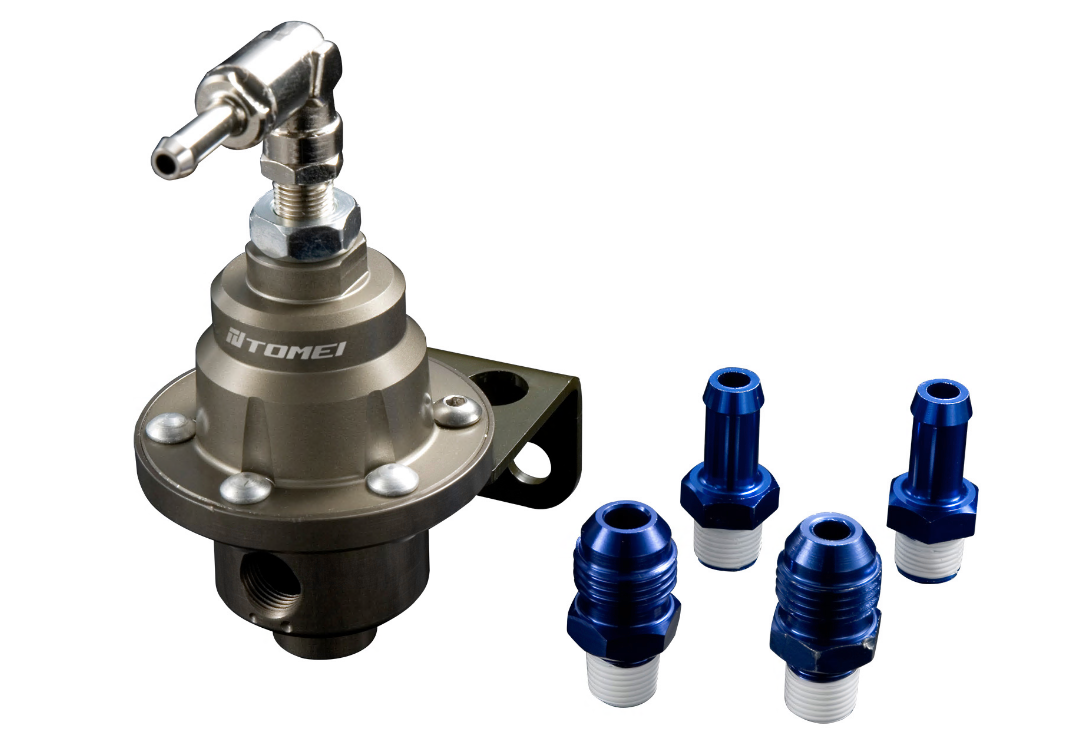

- Type S TB507A-0000A is for GENERAL TUNING

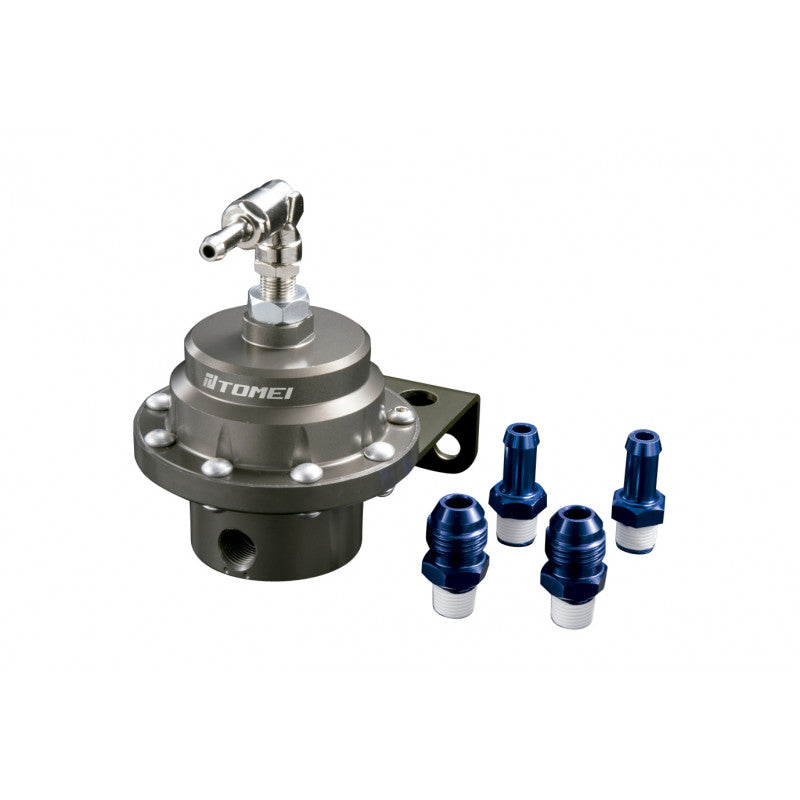

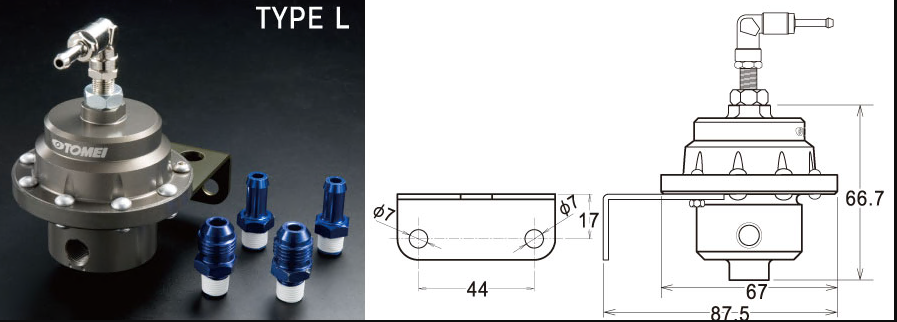

- Type L TB507A-0000B is for HIGH FLOW, BIG POWER & HIGH BOOST
- Specification:
| TYPE | REGULATORS BODY |
SURFACE FINISH |
WEIGHT (With Bracket |
DIAPHRAGM DIAMETER |
VACUUM HOSE NIPPLE |
FITTING PARTS |
PRESSURE ADJUSTABILITY |
| S | Aluminium | Hard Anodized |
155g | φ33 |
φ4.5 |
・AN6 1/8NPT x2 ・#8 Straight 1/8NPT x2 |
2.0kgf/cm²~ 8.0kgf/cm² |
| L | 270g | φ50 |
|||||
|
KIT CONTENTS |
|||||||
| Fuel Pressure Regulator (x1) / AN6 1/8NPT (x2) / #8 Straight 1/8NPT (x2) | |||||||
