Full Titanium Muffler Kit Expreme Ti Civiv Type-R
| Category | Engine | Parts Number |
| FK8 TYPE-R | K20 | TB6090-HN06A |
| FK8 TYPE-S | K20 | TB6090-HN06B |
| CIVIC TYPE-R FK8 TYPE-D | K20 | TB6090-HN06C |
Descriptions:
| TB6090-HN06A | TB6090-HN06B | TB6090-HN06C | |
| Specifications | Brand: Tomei Exhaust Orientation: Straight Exit Installation Hardware Included: Yes Piping Flex Joint: No Piping ID: 3.15in Piping Material: Titanium Tip Qty: 1 Tip Size: 4.5in Mfgr. Warranty: No Warranty Condition: New Product |
Brand: Tomei Exhaust Orientation: Straight Exit Installation Hardware Included: Yes Piping Flex Joint: No Piping ID: 3.15in Piping Material: Titanium Silencer Included: Yes Tip Qty: 1 Tip Shape: Round Tip Size: 4.5in Mfgr. Warranty: No Warranty Condition: New Product |
Brand: Tomei Installation Hardware Included: Yes Piping Flex Joint: No Piping ID: 3.15in Piping Material: Titanium Silencer Included: Yes Tip Qty: 2 Tip Shape: Round Tip Size: 4.5in Mfgr. Warranty: No Warranty Condition: New Product |

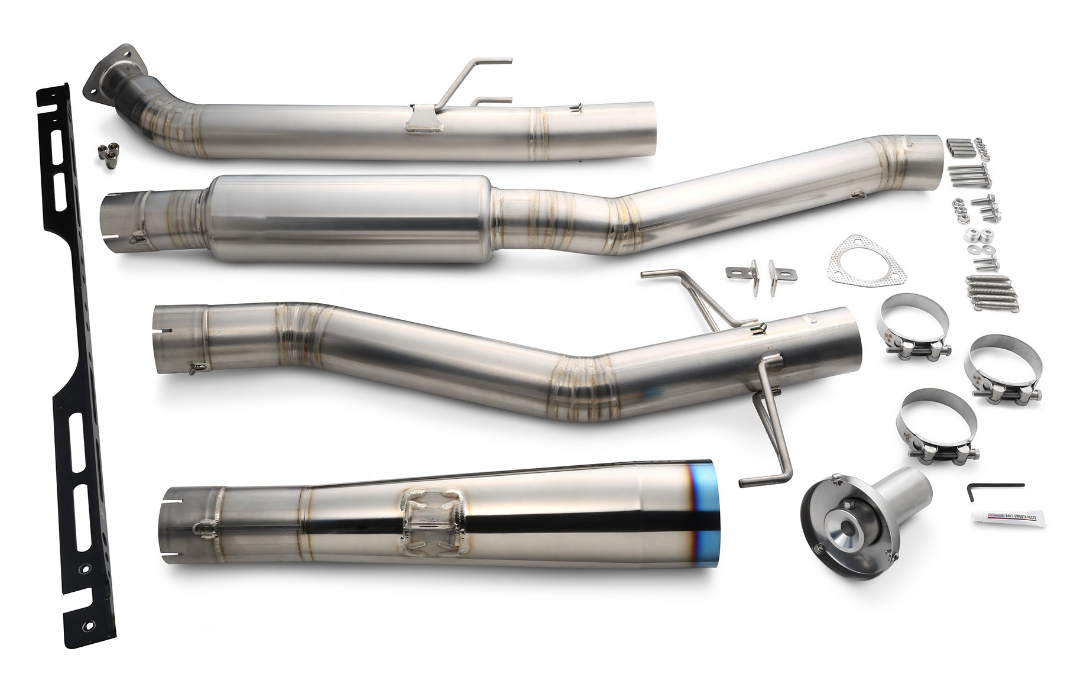

| Details | Version: Type R Loudest and lightest version Straight-through design with no muffler Full titanium construction 3.15" (80mm) piping diameter 4.53" (115mm) tip size Weight: 15.4lbs (7.0 kg) Main pipe thickness: 1.0mm Includes silencer 4-piece assembly Designed with joint springs to help prevent both cracks and vibrations Includes new hardware for the installation |

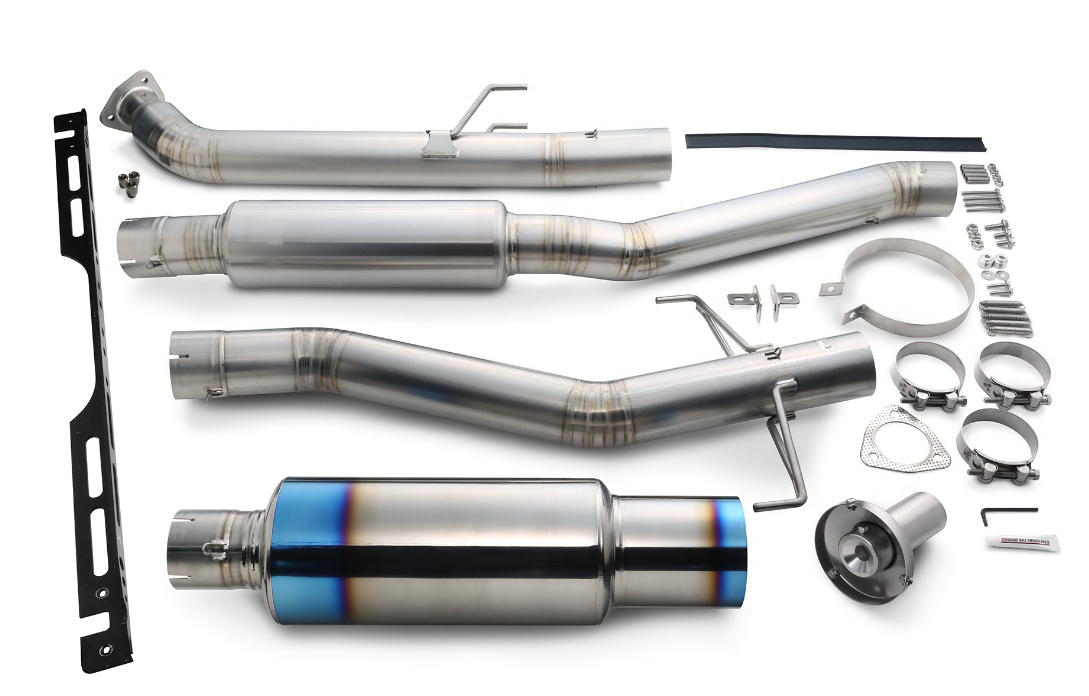

Version: Type S Single muffler design Straight-through design with minimal bends in the piping Full titanium construction 3.15" (80mm) piping diameter 4.53" (115mm) tip size Weight:21.7lbs (9.9kg) Main pipe thickness: 1.0mm Includes silencer 4-piece assembly Designed with joint springs to help prevent both cracks and vibrations Includes new hardware for the installation |

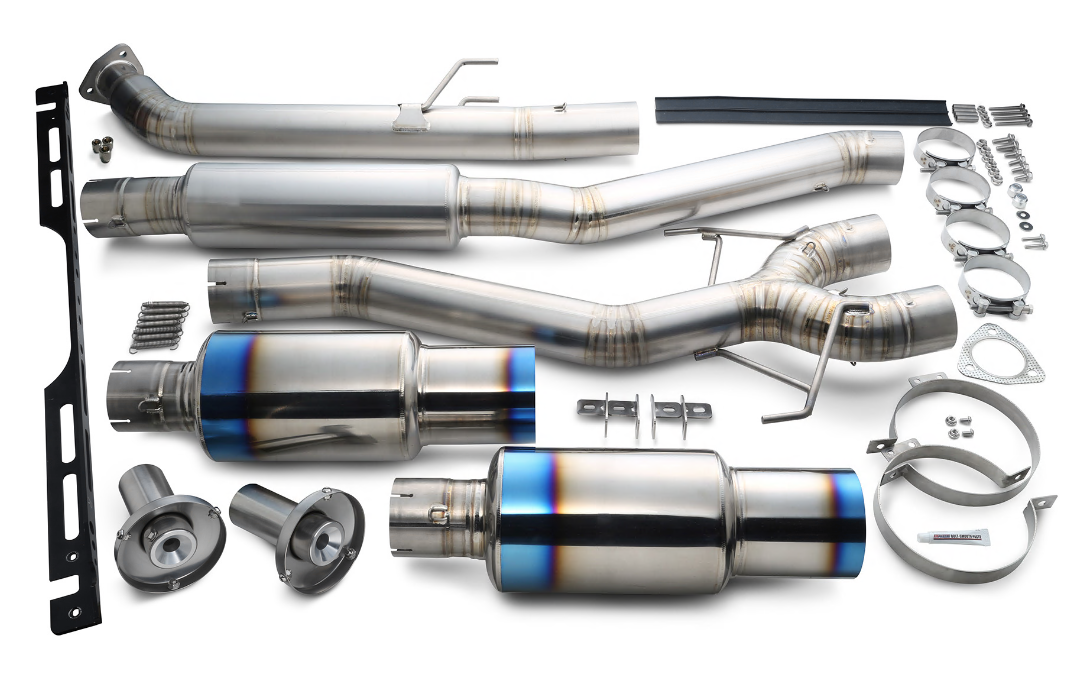

Version: Type D Dual muffler design Straight-through design with minimal bends in the piping Full titanium construction 3.15" (80mm) piping diameter Dual 4.53" (115mm) tip size Weight:29.3lbs (13.3kg) Main pipe thickness: 1.0mm Includes (2) silencers 4-piece assembly Designed with joint springs to help prevent both cracks and vibrations Includes new hardware for the installation |
| Fitment Details |
Honda Civic Type R 2019 Honda Civic Type R 2020 Honda Civic Type R Type R Turbo Hatchback 4DR 2017 Honda Civic Type R Turbo Hatchback 4DR 2018 Honda Civic Type R Turbo Hatchback 4DR |
Honda Civic Type R 2019 Honda Civic Type R 2020 Honda Civic Type R Type R Turbo Hatchback 4DR 2017 Honda Civic Type R Turbo Hatchback 4DR 2018 Honda Civic Type R Turbo Hatchback 4DR |
Honda Civic Type R 2019 Honda Civic Type R 2020 Honda Civic Type R Type R Turbo Hatchback 4DR 2017 Honda Civic Type R Turbo Hatchback 4DR 2018 Honda Civic Type R Turbo Hatchback 4DR |
