This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.

Features:

• Lightweight
• Strong
• Durable
• The mid-section is connected using springs and clamps rather than conventional flanges.
• The flexibility of the spring helps prevent cracks from vibration
• Springs provide a secure connection between each section.
• Clamp bands and slits on the pipe ends offer additional reassurance when installing
• Long fiber glass wool is used in silencers
• Flanges are cut from 8mm thick titanium, making them more resist to cracking and warping.

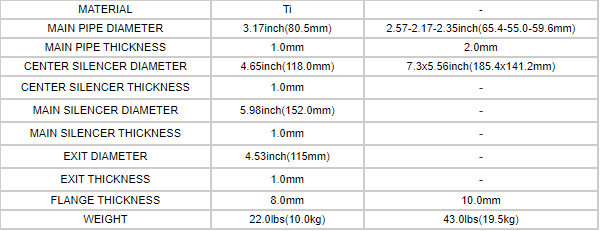

• Specification:
• Material: Titanium
• Main Pipe Diameter: 3.17 inch
• Main Pipe Thickness: 1.0mm
• Center Silencer Diameter: 4.65 inch
• Center Silencer Thickness: 1.00mm
• Main Silencer Diameter: 5.98 inch
• Main Silencer Thickness: 1.00mm
• Exit Diameter: 4.53 inch
• Exit Thickness: 1.00mm
• Flange Thickness: 8.0mm
• Exhaust Noise Test
• Without Sound Reducer: 101 db
• With Sound Reducer: 97 db
• With Sound Reducer ver.2: 92 db

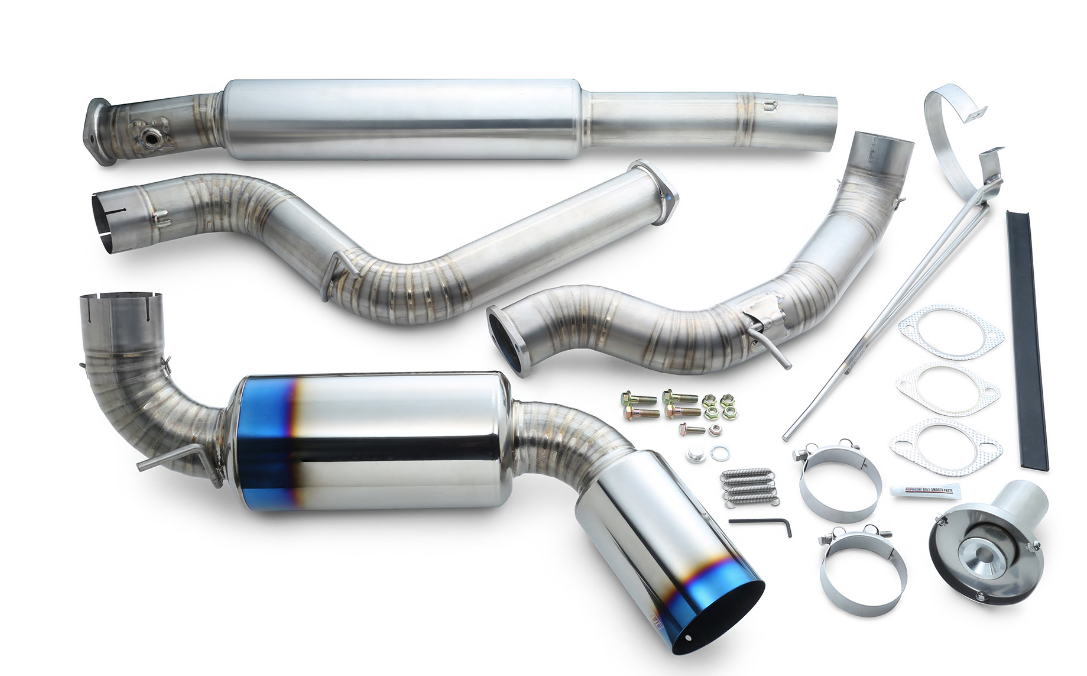

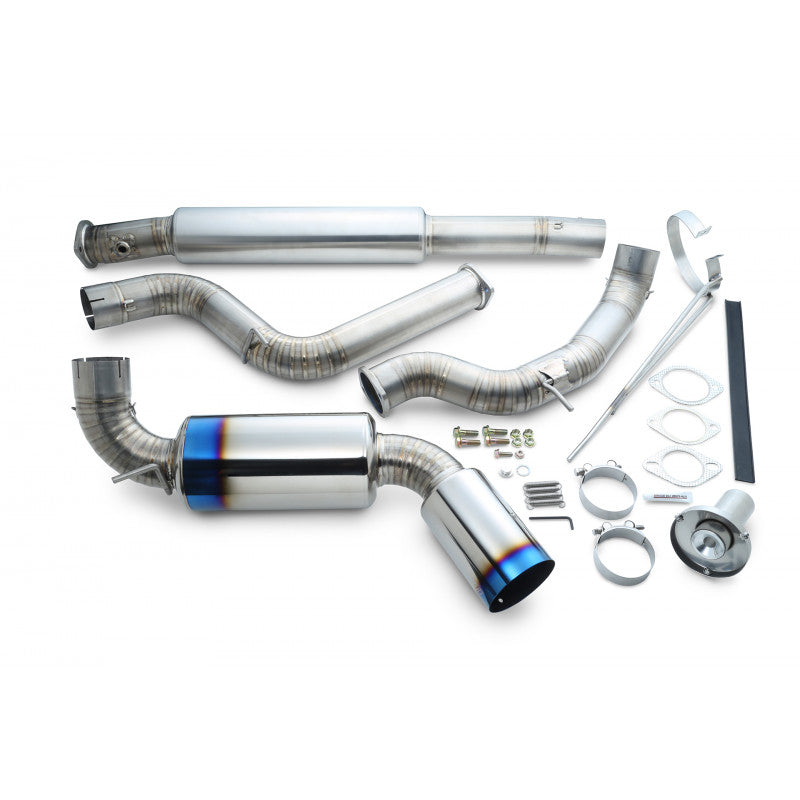

• Kit Includes:
• Main Pipe A
• Main Pipe B
• Main Pipe C
• Silencer
• Silencer Band
• Silencer Band Rubber 152mm
• Flange Gasket 763-2-105
• Flange Gasket 80-2-105
• Flange Gasket 635-2-99
• Clamp Band 79-85
• Spring
• Flange Bolt M10*P1.25 35mm
• Flange Nut M10 P1.25
• Flange Bolt M8 P1.25 25mm
• Flange Nut M8 P1.25
• A/F Sensor Plug M18*P1.5
• Copper Washer M18-1.0
• Sound Reducer ver 2 115
• Hex Key
• Bolt Smooth Paste

• Ford Focus ST 13-18
