Full Titanium Muffler Kit Expreme Ti SKYLINE ER34
| Category | Engine | Parts Number |

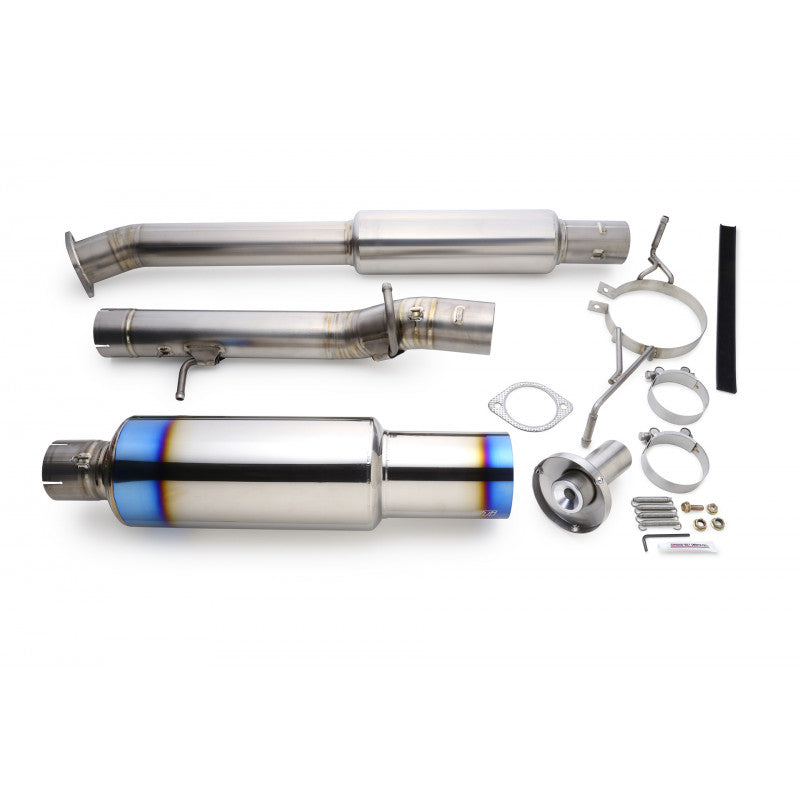

| ER34 2 DOOR | RB25 | TB6090-NS06A |

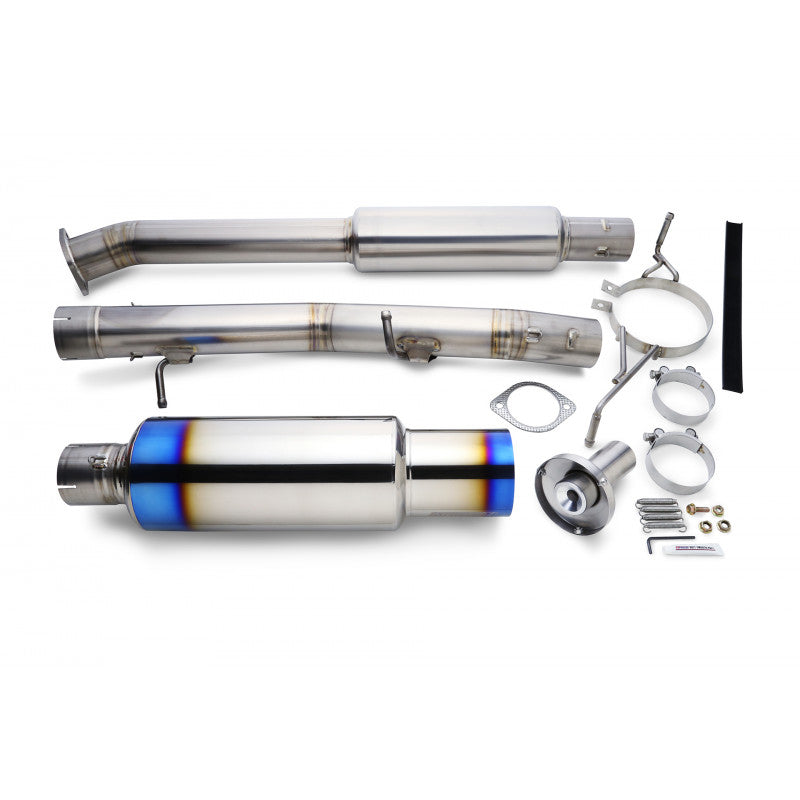

| ER34 4 DOOR | RB25 | TB6090-NS06B |
Descriptions:
| TB6090-NS06A | TB6090-NS06B | |
| Specifications | Material: Titanium Main Pipe Diameter: 80.5mm Main Pipe Thickness: 1.0mm Center Silencer Diameter: 118.0mm Center Silencer Thickness: 1.0mm Main Silencer Diameter: 152.0mm Main Silencer Thickness: 1.0mm Exit Diameter: 115.0mm Exit Thickness 1.0mm Weight: 15.65 lbs |
Material: Titanium Main Pipe Diameter: 80.5mm Main Pipe Thickness: 1.0mm Center Silencer Diameter: 118.0mm Center Silencer Thickness: 1.0mm Main Silencer Diameter: 152.0mm Main Silencer Thickness: 1.0mm Exit Diameter: 115.0mm Exit Thickness 1.0mm Weight: 16.31 lbs |
| Features | Original Titanium Material Lightweight, Strong, Durable 3pc Assembly Joint Springs Perforated Tube Long Fiber Glass Wool 8mm Thick Titanium Flanges |
Original Titanium Material Lightweight, Strong, Durable 3pc Assembly Joint Springs Perforated Tube Long Fiber Glass Wool 8mm Thick Titanium Flanges |

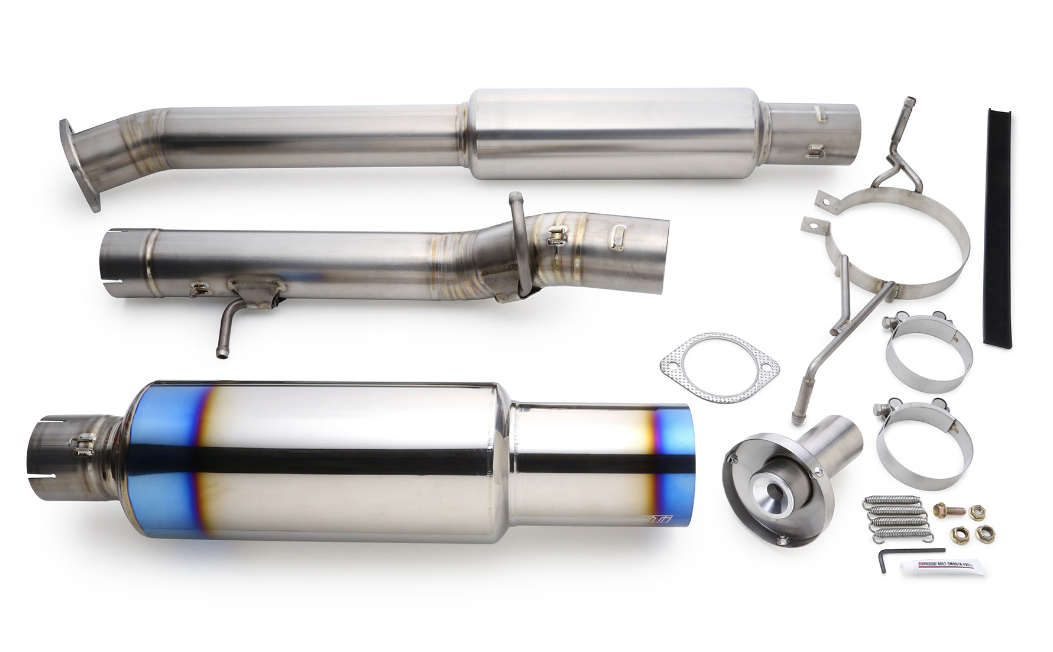

| Kit Includes | Main Pipe A x1 Main Pipe B x1 Silencer x1 Silencer Band x1 Flange Gasket 80-2-115 x1 Flange Nut M10 P1.25 x2 Clamp Band 79-85 x2 Spring x4 Silencer Band Rubber 152mm x1 Flange Bolt M8 P1.25 25mm x1 Flange Nut M8 P1.25 x1 Sound Reducer Ver.2 115 x1 Hex Key x1 Bolt Smooth Paste x1 |
Main Pipe A x1 Main Pipe B x1 Silencer x1 Silencer Band x1 Flange Gasket 80-2-115 x1 Flange Nut M10 P1.25 x2 Clamp Band 79-85 x2 Spring x4 Silencer Band Rubber 152mm x1 Flange Bolt M8 P1.25 25mm x1 Flange Nut M8 P1.25 x1 Sound Reducer Ver.2 115 x1 Hex Key x1 Bolt Smooth Paste x1 |
| Fitments | Nissan Skyline R34 999-2002 | Nissan Skyline R34 1999-2002 |
