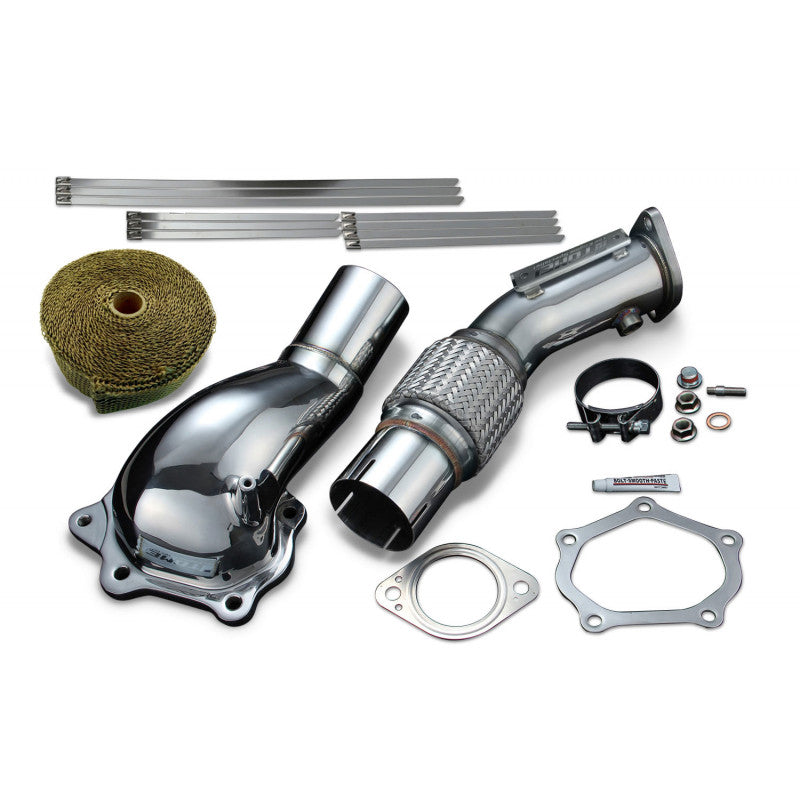

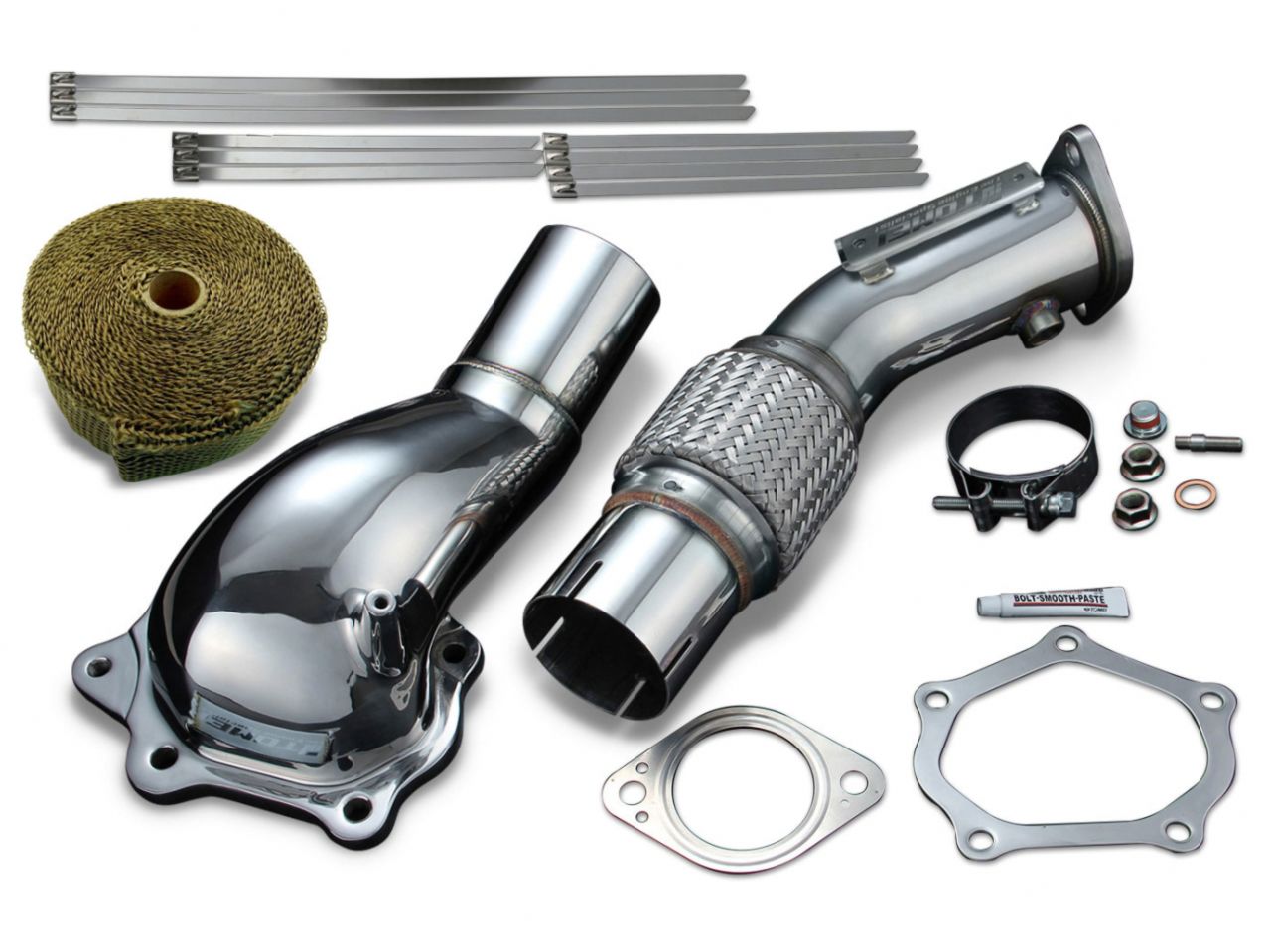

KIT CONTENTS

• OUTLET COMPONENT
• GASKET (TURBO SIDE)
• GASKET (CATALYZER)
• CLAMP BAND
• BLIND PLUG
• COPPER WASHER
• STUD BOLT M10-40 P=1.25 (THREAD 12/26)
• TITAN EXHAUST BANDAGE
• BANDAGE BAND
• FLANGE NUT M12 * P=1.25
• STICKER (EXPREME)
• BOLT SMOOTH PASTE
• INSTALLATION MANUAL
• STICKER (TOMEI)
• WARRANTY CARD

OUTLET COMPONENT KIT EXPREME 4B11 CZ4A with TITAN EXHAUST BANDAGE (Previous Part Number 433001)

• Category: Exhaust Outlet Component
• Engine: 4B11 EVO 10
• Weight (lb): 12.57
• Dimension (inch): 21*8*12

After testing a variety of shapes and pipe diameters here at Tomei R&D Lab, we found the optimum tuning point for the best performance balance. This design will extract the full capabilities from the EVO 10 4B11 engine. The design also retains the original layout to help with the ease of installation and compatibility for other exhaust parts.
