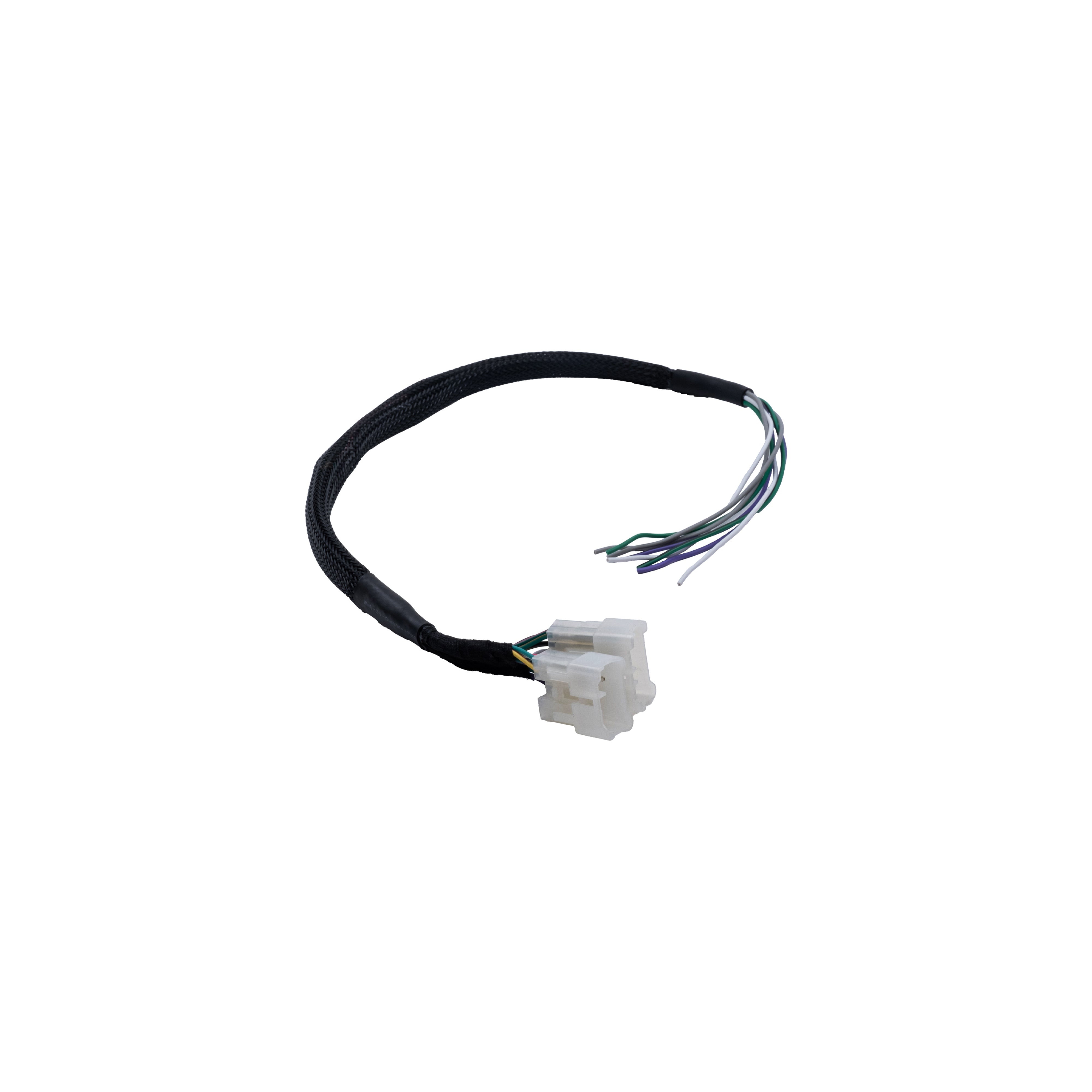

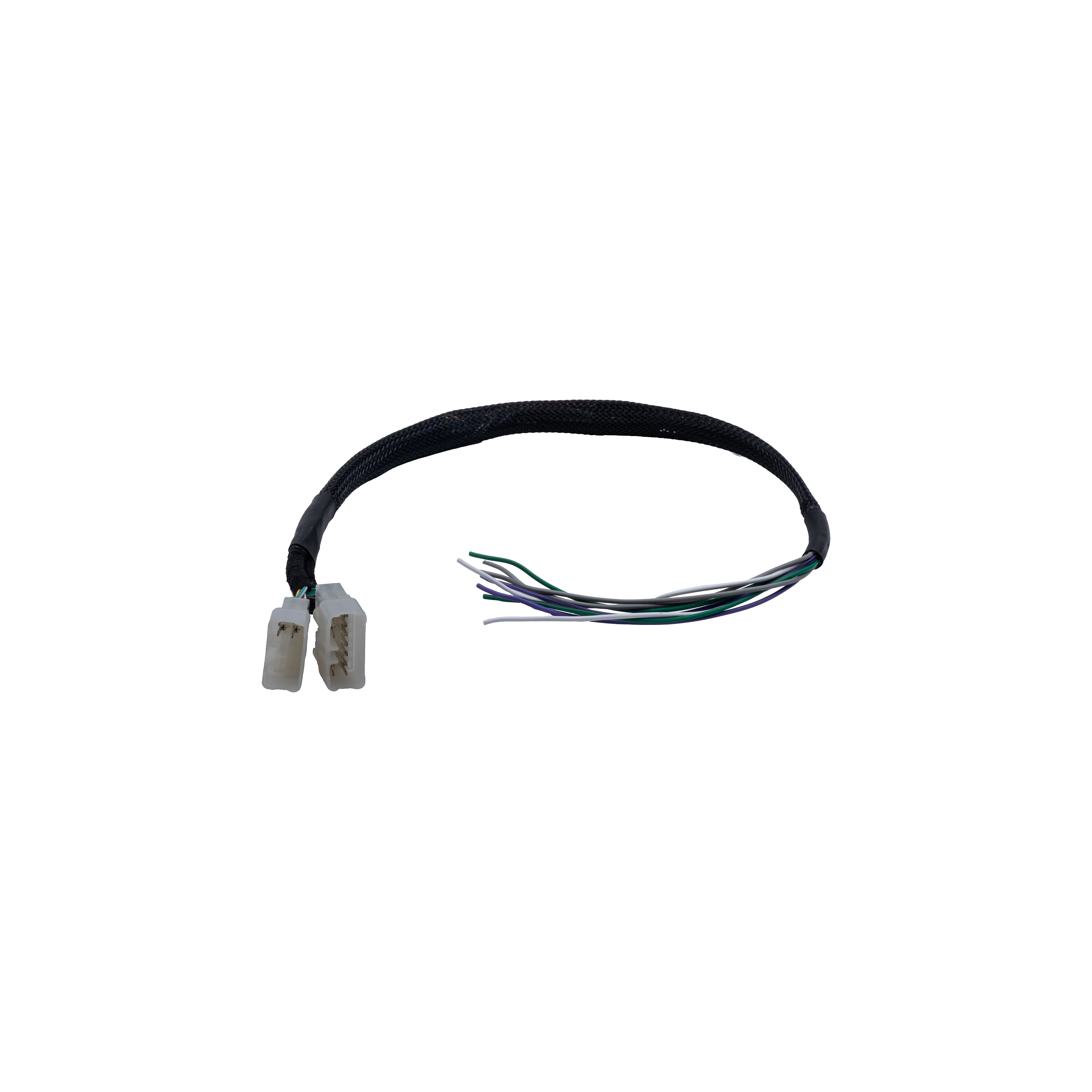

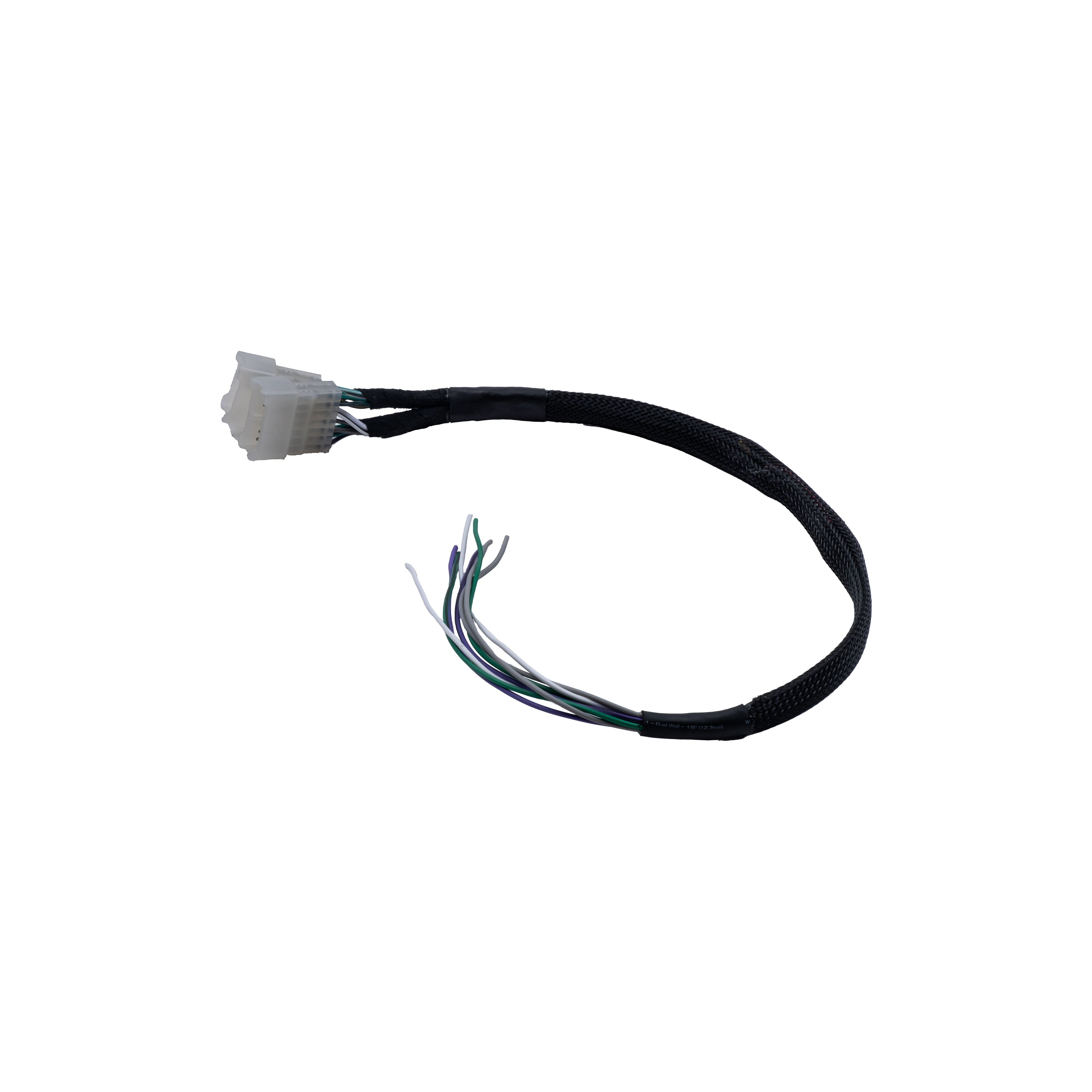

Introducing our 2014 - 2021 Tundra Non-JBL Amplified Bypass Harness, designed to simplify the installation process for your aftermarket amplifier while preserving your vehicle's audio system integrity. This harness is specifically crafted for 2014-2021 Tundra vehicles equipped with the Amplified non-JBL audio system, providing a seamless solution for bypassing the factory amplifier. By utilizing our bypass harness, you can effortlessly upgrade your sound system, ensuring a clean, professional install without cutting into your vehicle's factory wiring.
Connecting the Bypass Harness to your amplifier:
- Rear Left + Green
- Rear Left - Green/Black Stripe
- Rear Right + Purple
- Rear Right - Purple/Black Stripe
- Front Left + White
- Front Left - White/Black Stripe
- Front Right + Grey
- Front Right - Grey/Black Stripe
- SUB – Black
- SUB + Red

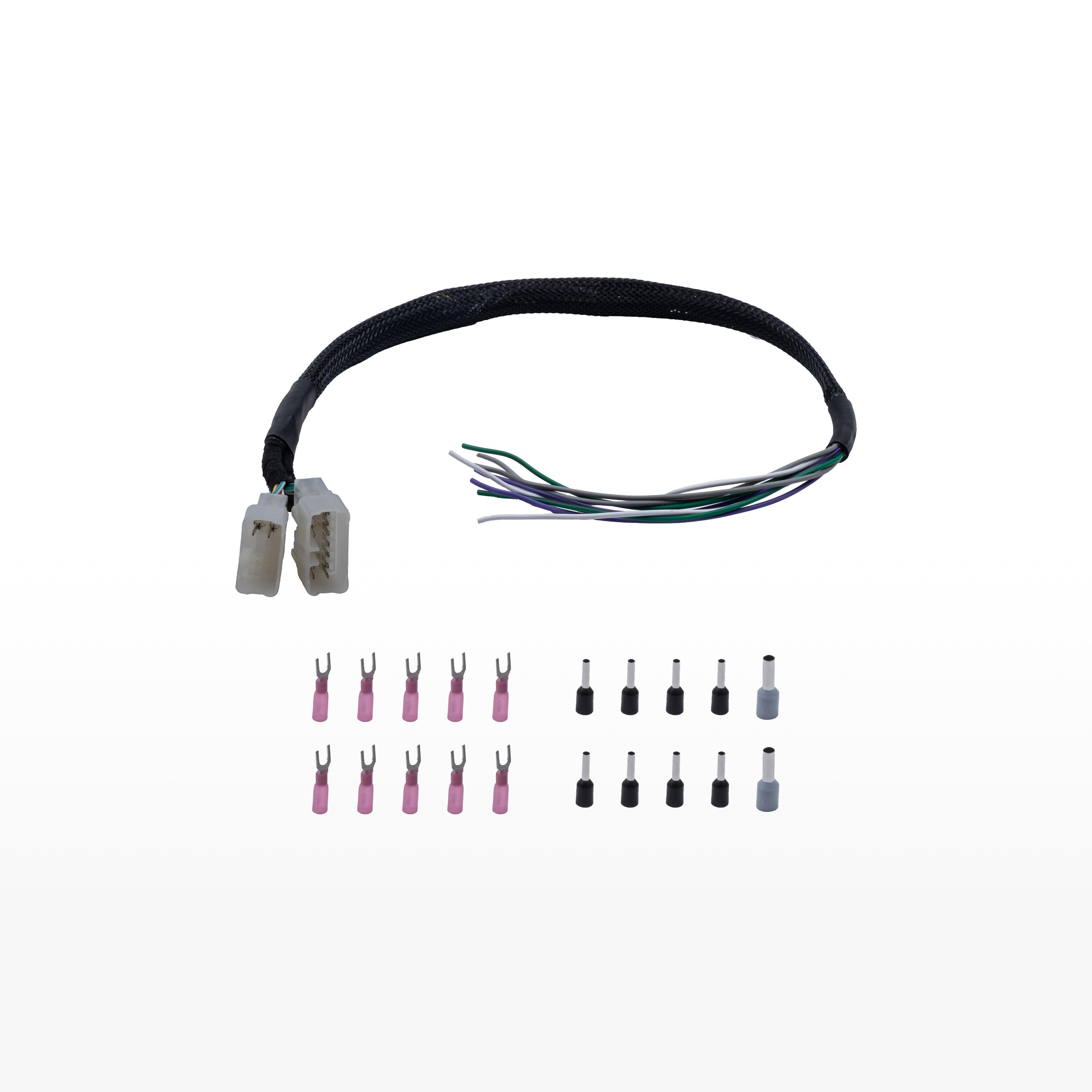

Included In Kit:
- 1x Tundra Non-JBL Amp Bypass Harness
- 10x Wire Ferrules
- 10x Fork Terminals
JBL Amplified or Non-JBL Amplified?
- If you have a JBL logo on the top of your door speakers then you have a JBL Amplified System.
- If you don’t have a JBL logo on your door speakers but you have an amplifier under your drivers side or passenger side seat then you have a non-JBL Amplified System.
- If you do not have a JBL logo on the top of your door speakers nor have an amplifier under your drivers side or passenger side seat then you have a Non-Amplified System.
The package includes everything you need for a smooth installation: the Tundra Non-JBL amplified bypass harness, 10 wire ferrules, and 10 fork terminals. These additional connectors are included for compatibility, allowing you to connect easily to whichever amplifier you choose. Wire ferrules help ensure a secure and reliable connection to the amp’s terminals, while fork terminals provide flexibility in case your new amplifier’s input requires them. With these components, you'll have the adaptability to set up a reliable, high-quality connection for your amplifier, maintaining system performance without compromising on quality.
Our bypass harness is a plug-and-play solution that respects your vehicle’s original wiring, allowing for easy installation and removal if needed. By bypassing the factory JBL amp, you’re free to tap into your new amplifier’s full potential, unlocking richer sound and deeper bass.
Whether you’re a DIY enthusiast or prefer a professional install, our Amplified non-JBL Bypass Harness package has you covered, making it easy to enhance your sound system without the hassle. Upgrade your 2014-2021 Tundra non-JBL-amplified-equipped vehicle with confidence, knowing you have a reliable solution that maintains both performance and the integrity of your vehicle’s wiring.
