VF-117 - Open Wing Option - 1 inch Body Lift

Regular price $1,749.00
  • No Bull Bar
  • Yes Bull Bar (+$89.99 USD)
  • 3/16" Standard
  • 1/8" ALuminum (+$150.00USD)

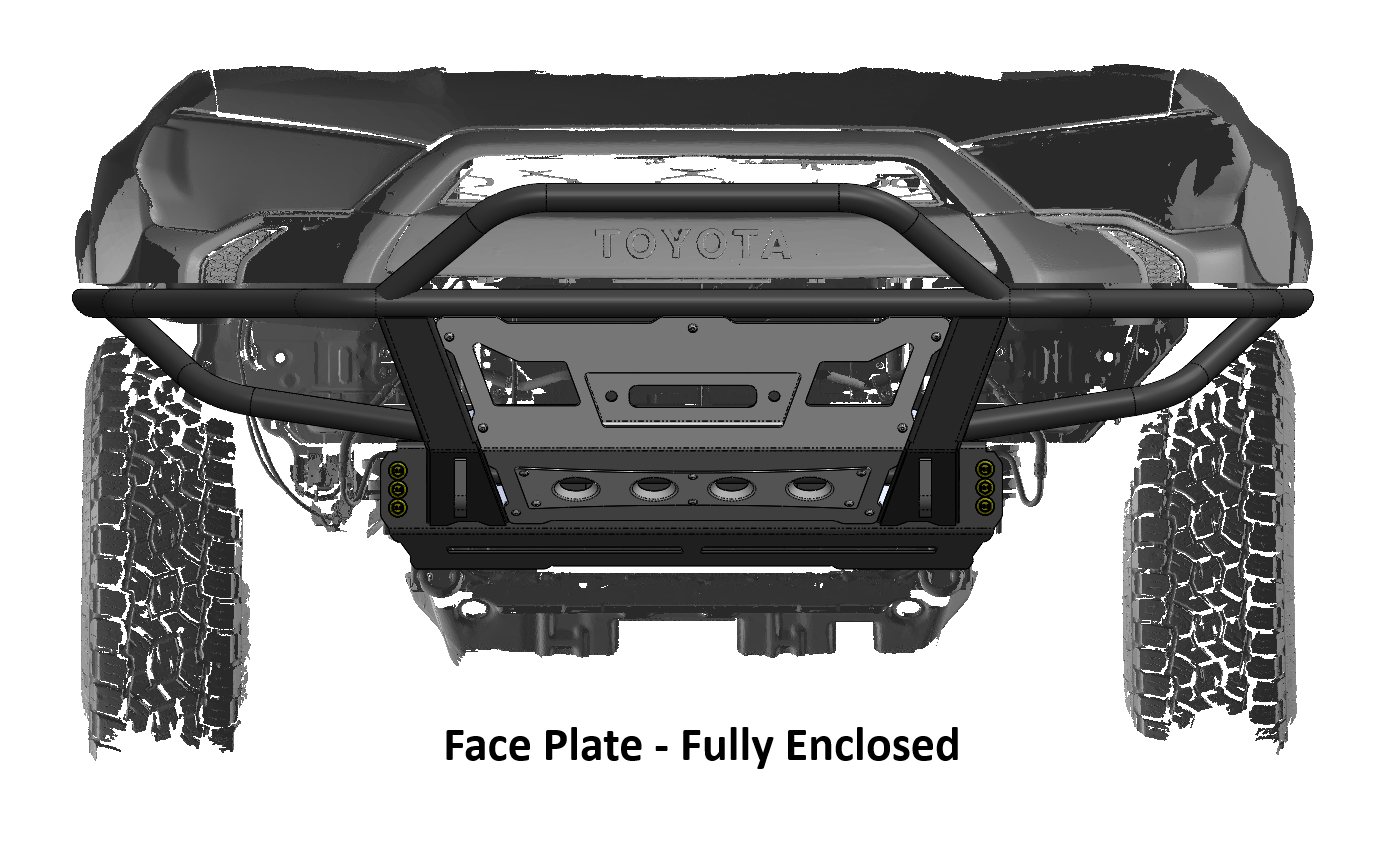

  • Enclosed

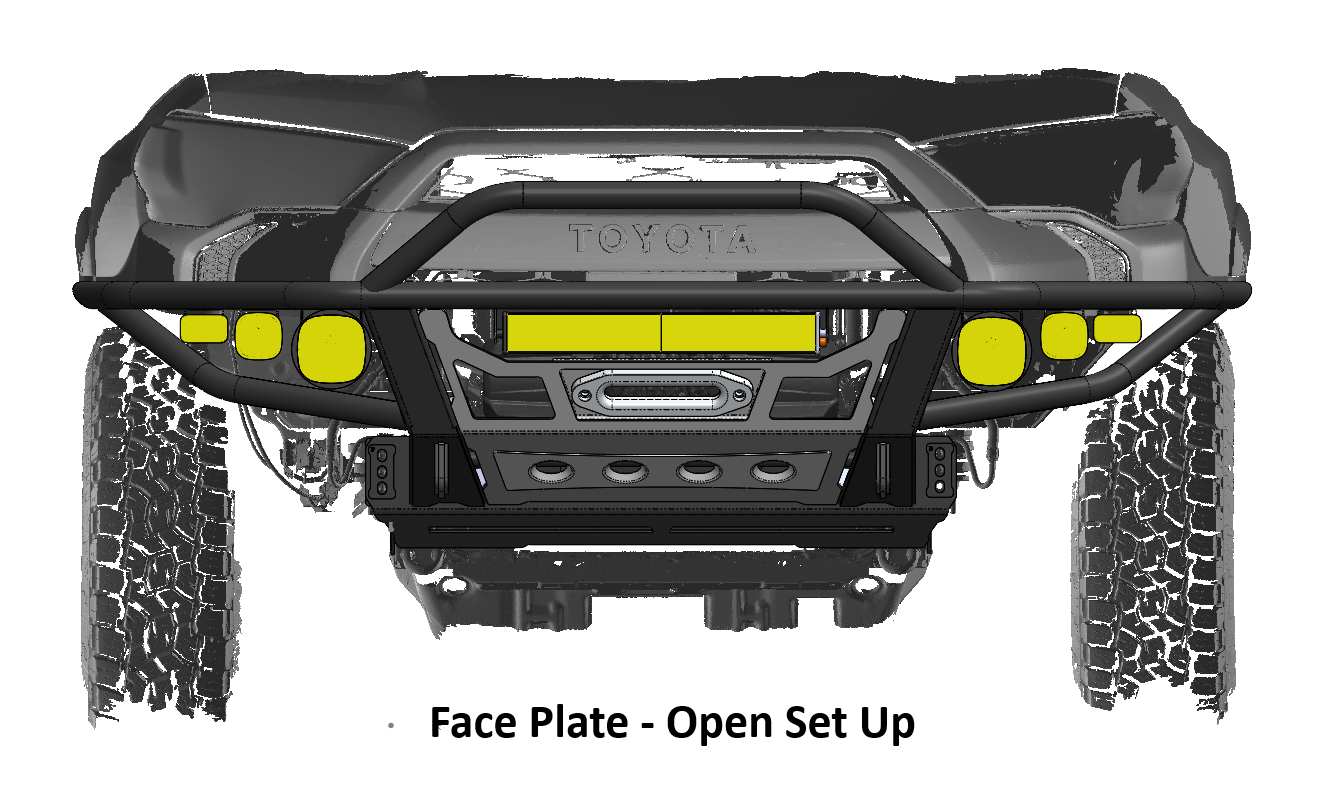

  • Open Set Up(+$49.99 USD) (Allows for light pods/20inch lightbar in the middle)
FREE TEQ Under Hood LED Light Kit A $74.99 value, added free to your cart

VF-117 Open Wing specs and fitment

  • Fits5th Gen 4Runner
  • BuildWelded front bumper
  • Body lift1" body lift
  • Plate3/16" HRP&O steel or 1/8" aluminum
  • Tubing1.75" x 0.120" DOM
  • WinchMount behind a removable cover
  • Weight100-110 lb by face plate
  • Lead time4-6 weeks
Fitment
Vehicle
5th Gen 4Runner
Position
Front bumper
Body lift
1" body lift

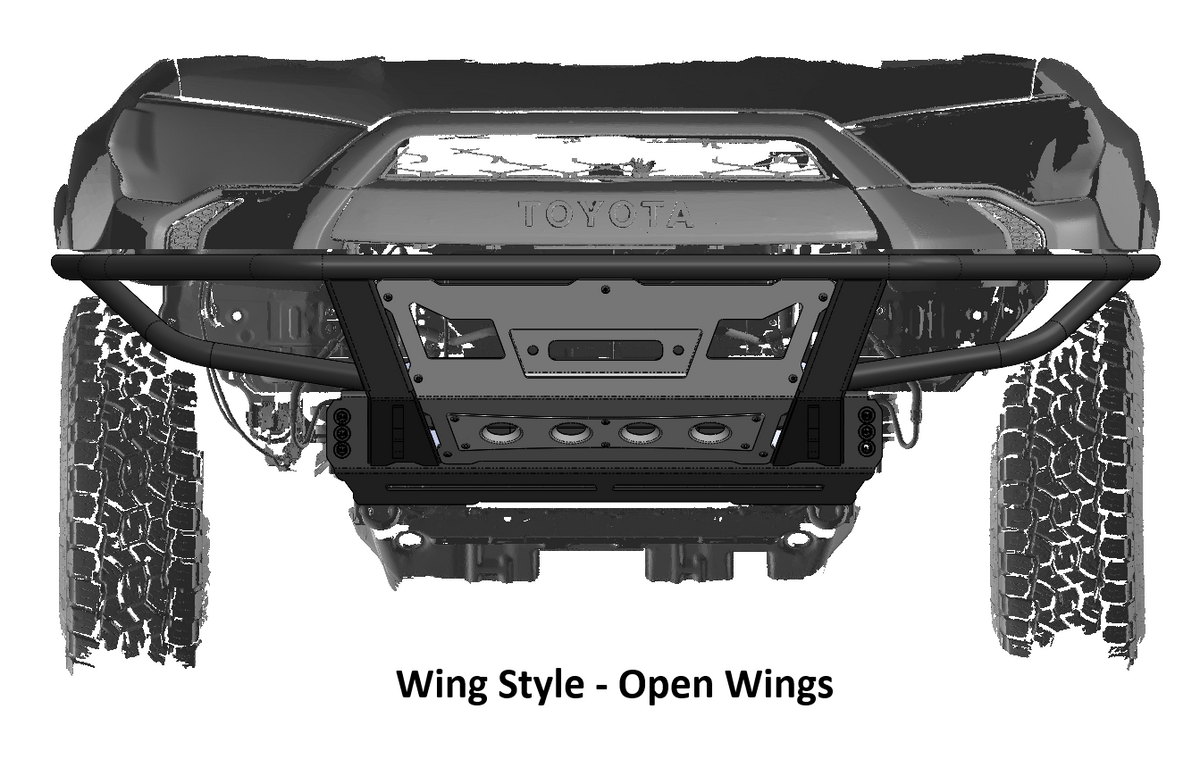

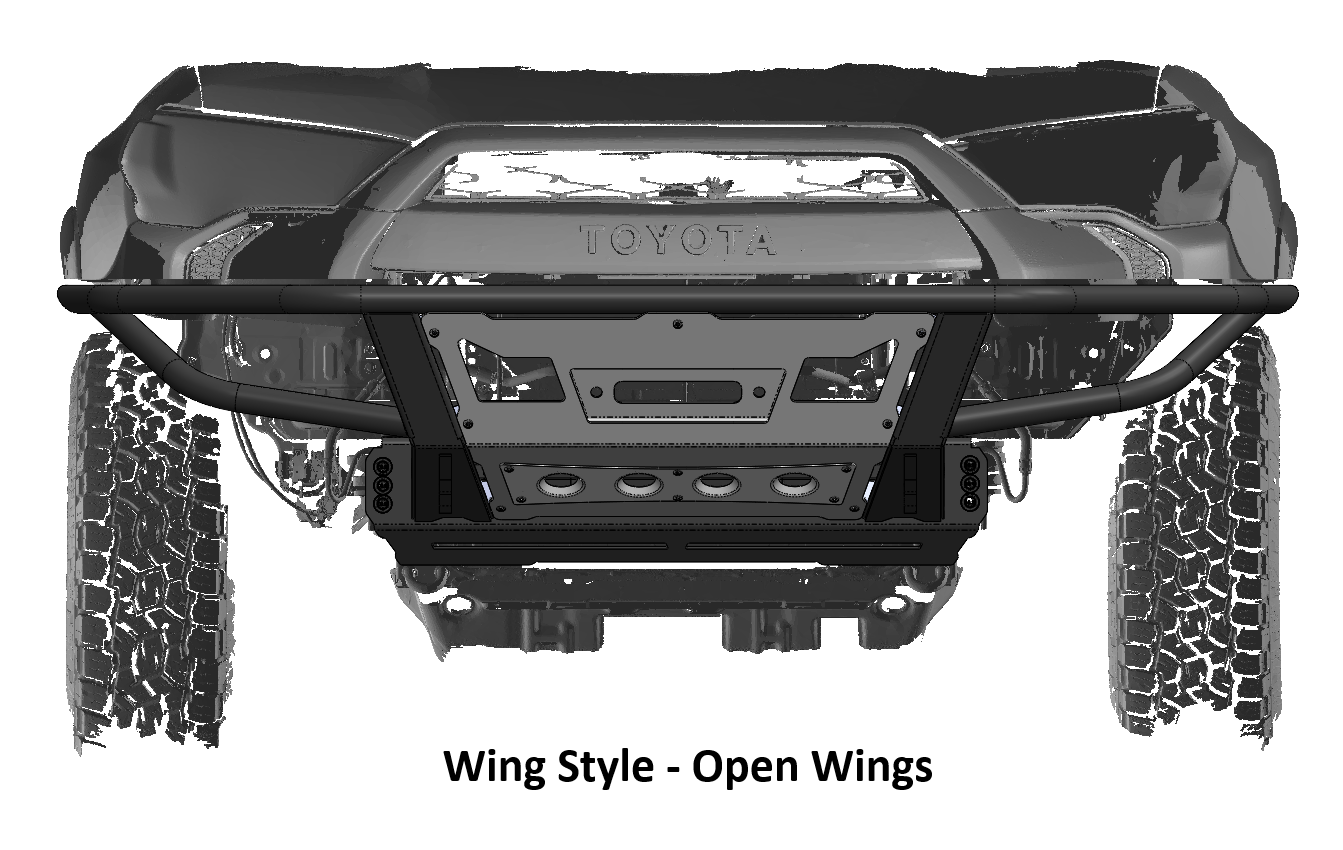

Wings
Open
  • This listing is for trucks with a 1" body lift. There is a separate VF-117 listing for no body lift
Build and materials
Build
Welded
Plate
3/16" HRP&O steel or 1/8" aluminum
Mounting
1/4" HRP&O main mounting bracket, 1/4" gussets under the winch mount
Tubing
1.75" x 0.120" DOM
Recovery
3/4" clevis shackle mounts
Lighting
Open face plate fits light pods or a 20" light bar
Weight
100-110 lb by face plate
Made
Built in-house in the USA
Features and options

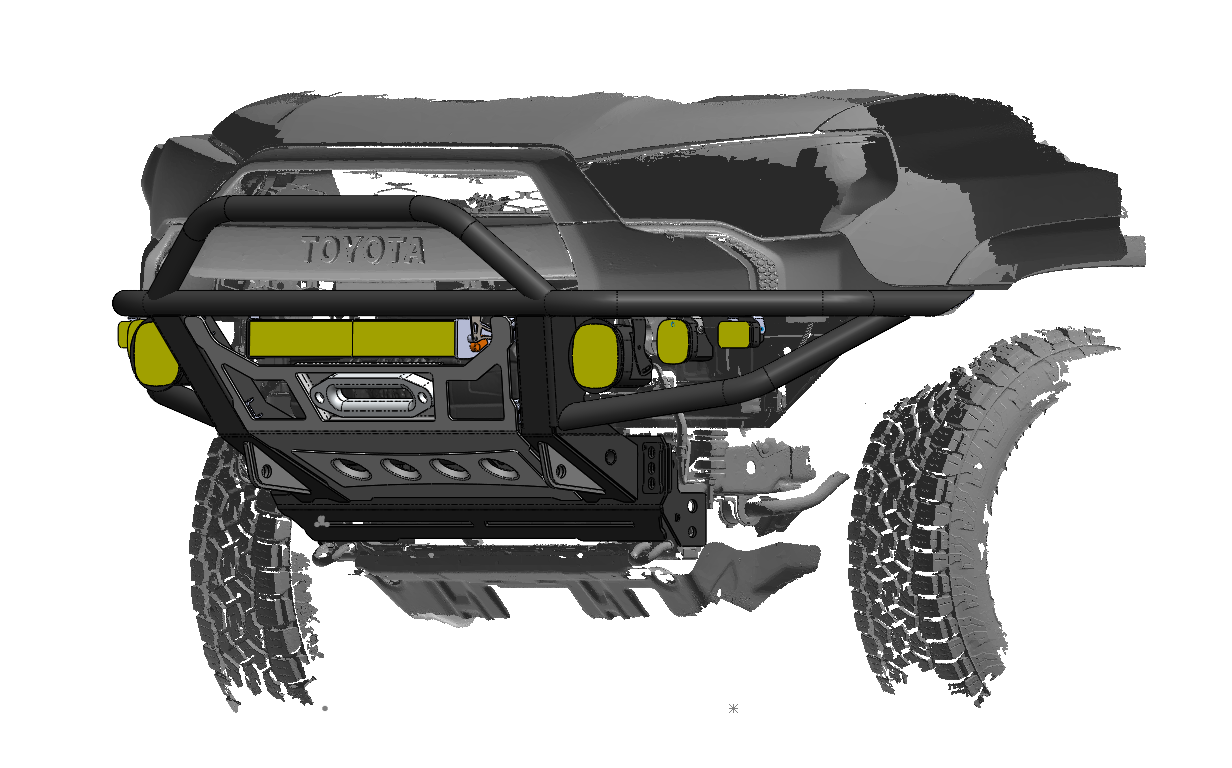

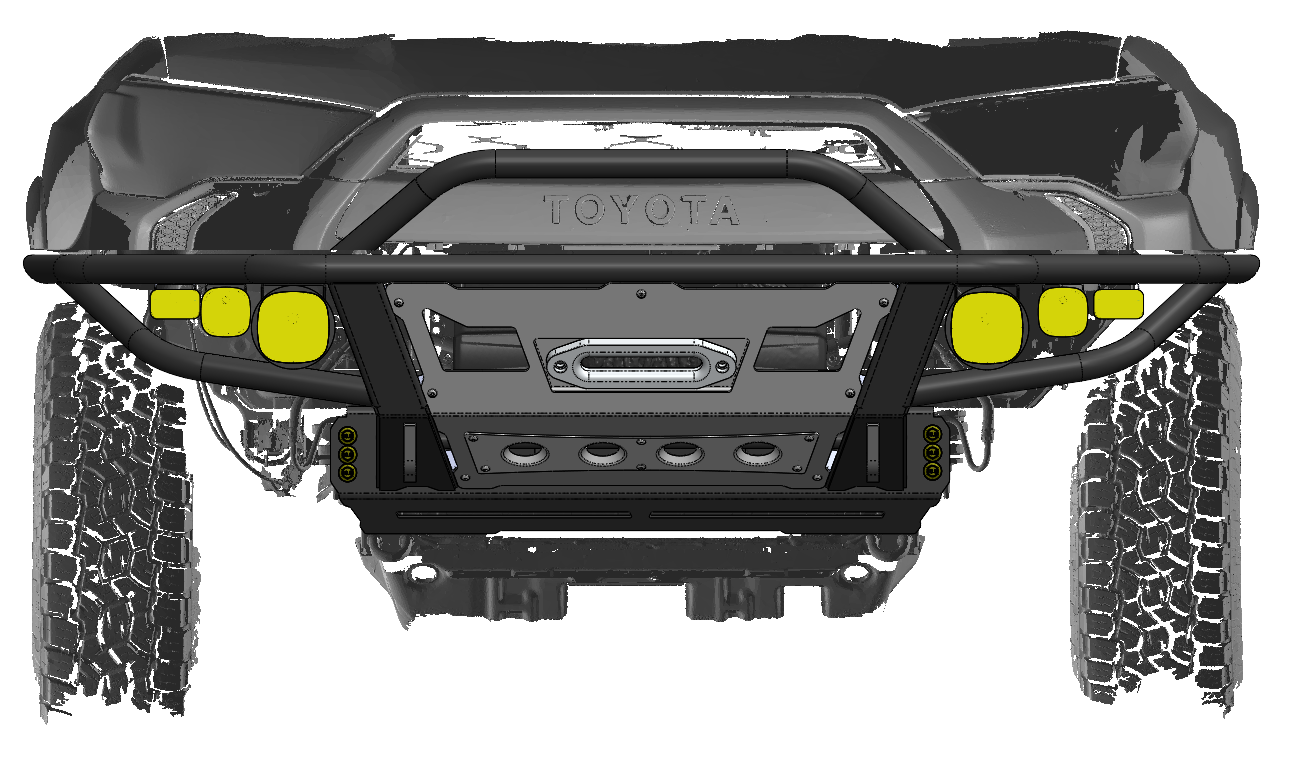

  • Modular face plate: run it enclosed, or open for light pods or a 20" light bar
  • Face plate in 3/16" steel or lighter 1/8" aluminum
  • 1/8" aluminum winch cover plate with dimple holes, removable for winch access
  • Recovery points sit near the main mounts, backed by an integrated support tube
  • Built-in light pod mounting brackets
  • 3/16" face plate support structure

Options: Bull bar: none or yes; face plate enclosed or open.

Install notes

Bolt-on, no cutting or welding to the frame.

  • The OEM bumper has to be cut and trimmed to fit
  • Trucks with TSS (Toyota Safety Sense) sensors or the front camera need them relocated
  • With a winch, the power steering line may need to be adjusted or relocated

Not sure about your setup? Message us before you order.

Lead time, shipping and returns
  • Lead time: 4-6 weeks. Orders are processed in the order they are received. Lead times are estimates and can move with workload, high-volume periods and holidays.
  • Shipping: Ships to the FedEx Freight terminal you choose, for pickup there. Find a FedEx Freight terminal.
  • Returns: Defective or problem items return free; change-of-mind returns within 30 days carry a 20% restocking fee. Refund policy.

VF-117 Open Wing FAQ

Will the VF-117 Open Wing fit my 5th Gen 4Runner?

The VF-117 Open Wing is built for the 5th Gen 4Runner. Works with 1" body lift. Wing style: Open. This listing is for trucks with a 1" body lift. There is a separate VF-117 listing for no body lift.

Can I run a winch?

Yes. The VF-117 has a winch mount behind a removable face plate cover. With a winch, the power steering line may need to be adjusted or relocated.

Is it bolt-on?

Bolt-on, no cutting or welding to the frame. The OEM bumper has to be cut and trimmed to fit. Trucks with TSS (Toyota Safety Sense) sensors or the front camera need them relocated. With a winch, the power steering line may need to be adjusted or relocated.

Steel or aluminum face plate?

The standard face plate is 3/16" steel for more rigidity. The 1/8" aluminum plate saves weight. Total weight is 100-110 lb depending on the plate.

Will it work with my front camera and TSS sensors?

Yes, but trucks with TSS (Toyota Safety Sense) sensors or the front camera need them relocated so they keep working.

How long is the lead time?

The current lead time is 4-6 weeks. Orders are processed in the order they are received. Lead times are estimates and can move with workload, high-volume periods and holidays.

How does it ship?

Ships to the FedEx Freight terminal you choose, for pickup there. Find the FedEx Freight terminal nearest you.

What if I need to return it?

Defective or problem items return free; change-of-mind returns within 30 days carry a 20% restocking fee. Refund policy.

All Vidal Metal Worx bumpers →

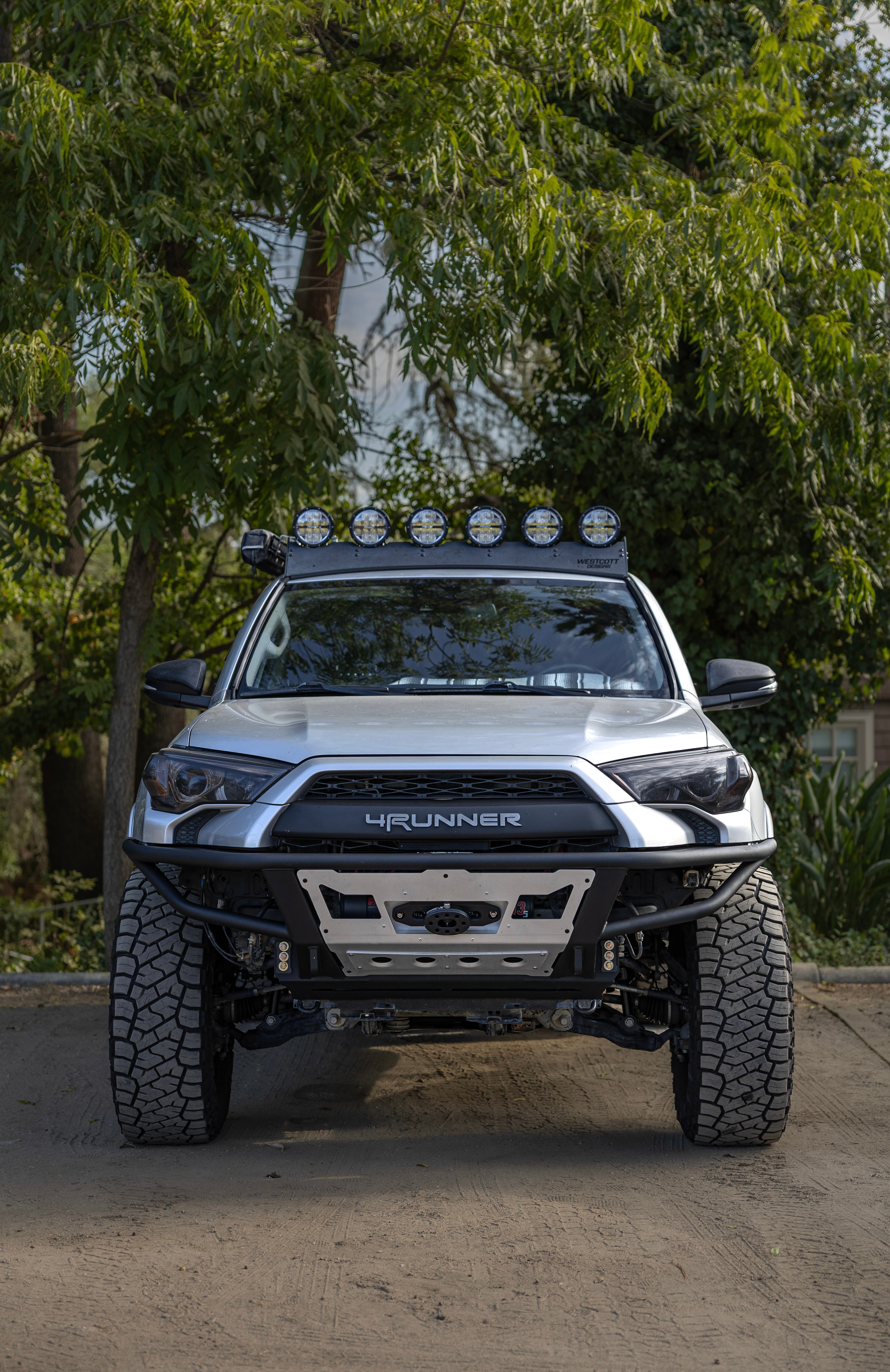

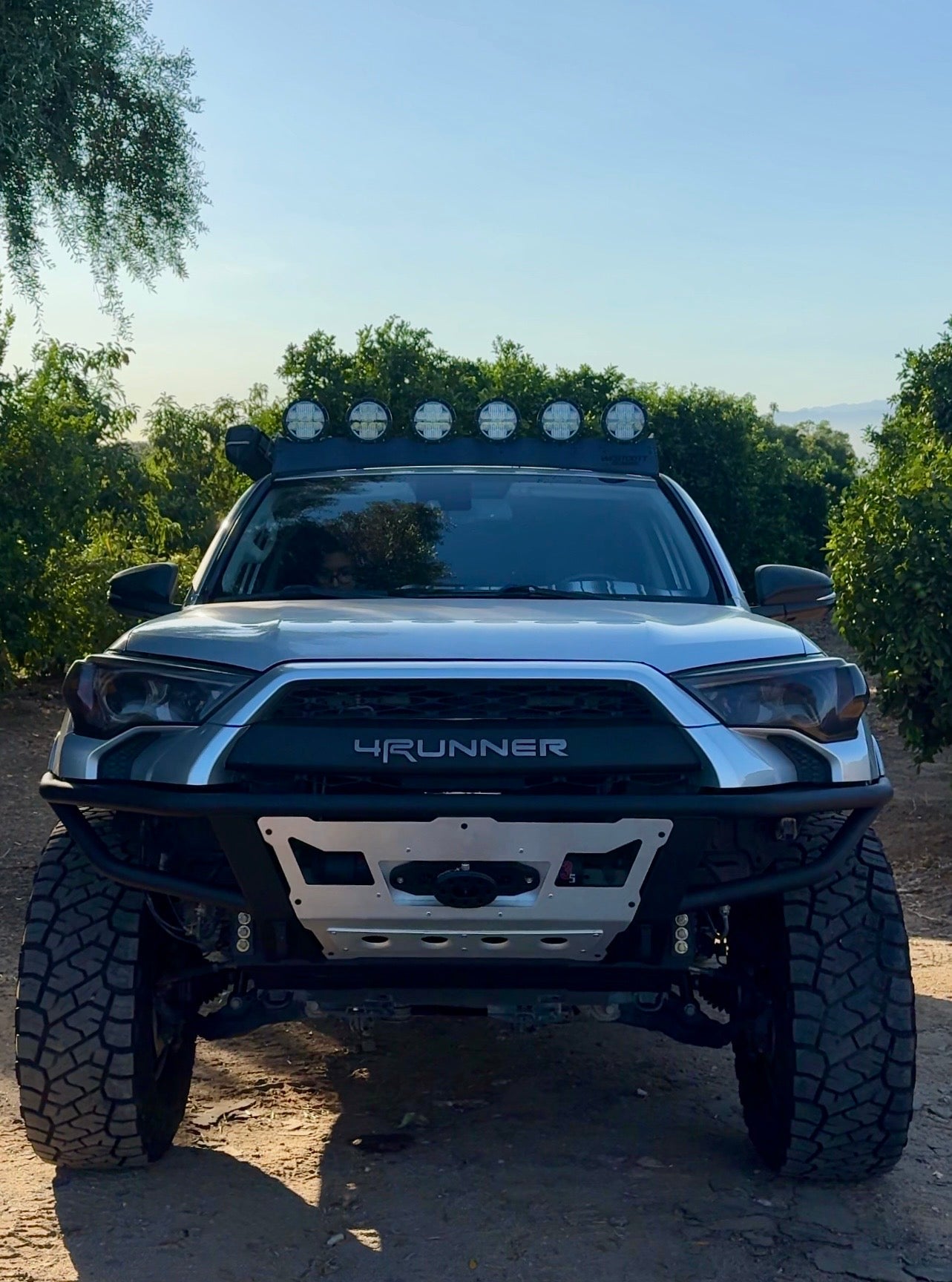

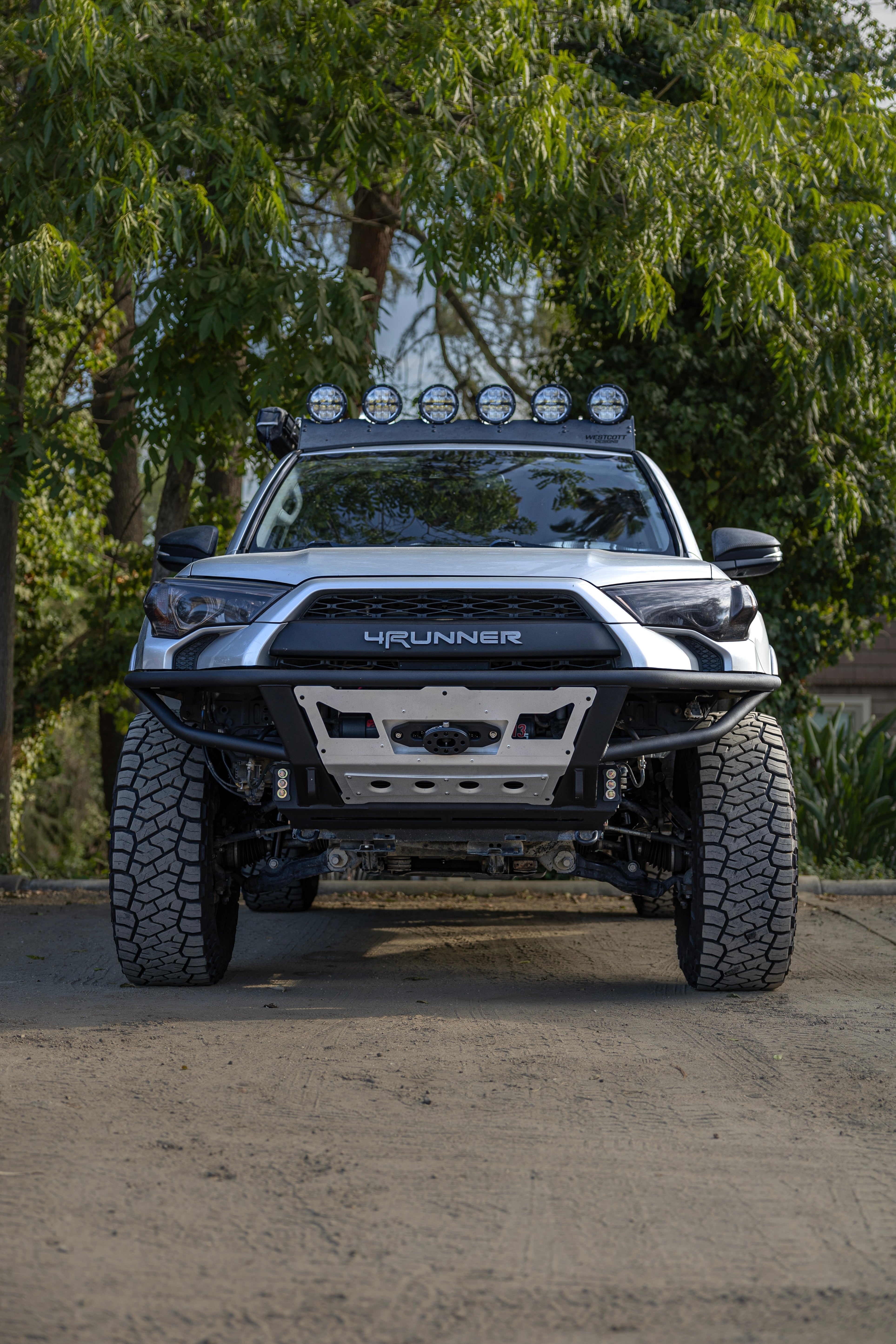

VF-117 Open wing front bumper, 1 inch body lift version, on a silver 5th Gen 4Runner
