Weld on UCA Brackets for Low Pro Front Truss

$159.99

Select bolt size

1/2 inch 1/2 inch
7/16 inch 7/16 inch

Select uca mount style

RockJock Johnny Joints; RockJock Johnny Joints;
Daystar Bushings; Daystar Bushings;

Quantity

Description

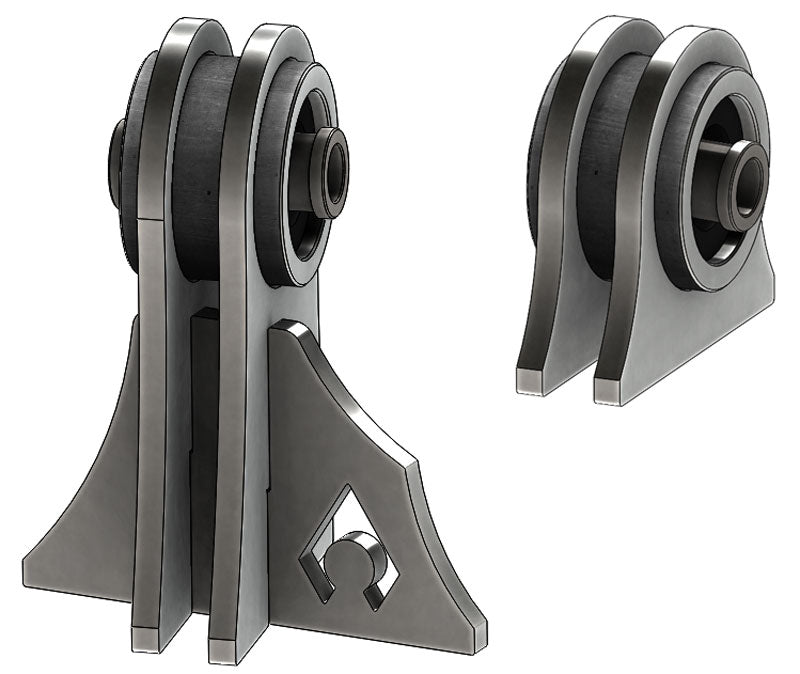

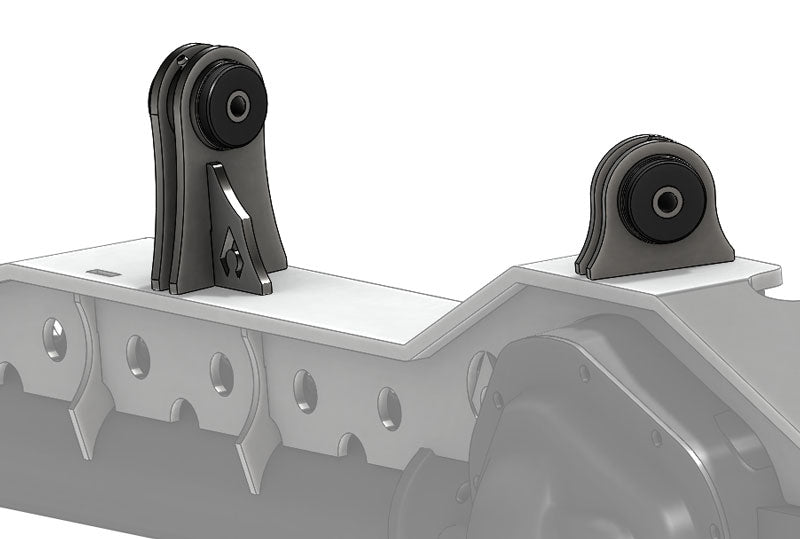

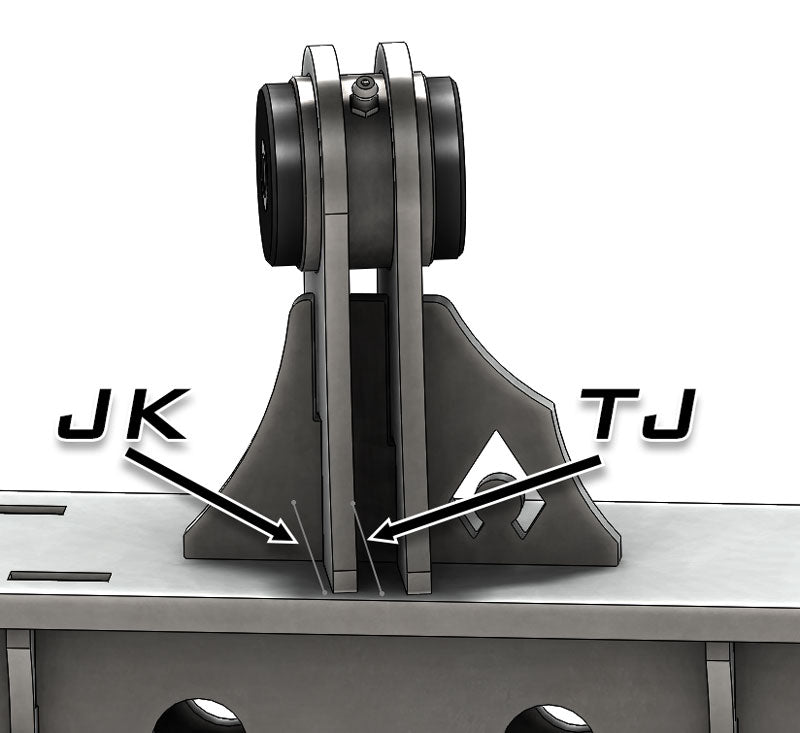

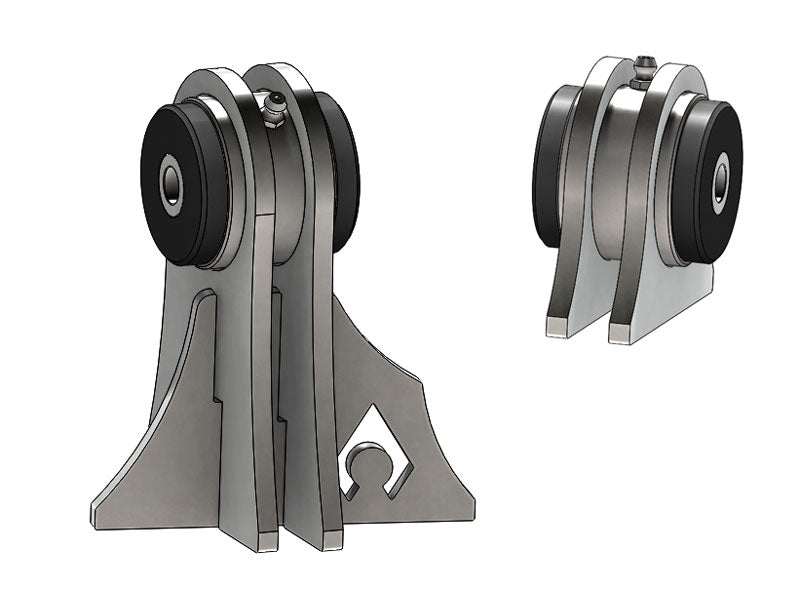

These UCA brackets are intended to mount on the top of our new Low Profile Front Trusses and give you the same style of control arm mounting found on Jeep JK's and TJ's. The new trusses have an etched line in the top that acts as a center-line for the joint in this kit and lets you locate it at the correct location and angle (see pic 4). Made from 1/4" thick steel and gusseted on the taller mount, these brackets are basically the same as what we've been using on our revolutionary JK and TJ 1 ton swap kits for years.

Choose either the affordable Daystar Polyurethane Bushings or the flexible RockJock Johnny Joints.

Choose the bolt size (hole diameter) of your desired UCA mount. From the factory the TJ comes with 7/16" UCA holes and most all aftermarket lifts use this size. The JK comes with 1/2" UCA holes. You may select the 1/2" hole size for a TJ but you will need to drill out the hole on your control arm bracket.

Includes greasable zerk fittings. This kit is unwelded. The joints come assembled and will need to be disassembled prior to welding. DO NOT WELD ASSEMBLED JOINTS.

NOTE: Due to the size difference from the factory axle to the 60, these UCA are higher than factory UCA mounts. The center hole of these brackets is 8.5" from axle center-line. This may not work with all lift kits especially radius arm style lift kits such as Rubicon Express.
