Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, synthetic elastomer bushings provide improved steering feedback and braking performance.

Notes: Important

70mm OD, Tube 95mm L - adds +/- 1.5deg caster

Kits Required: 1

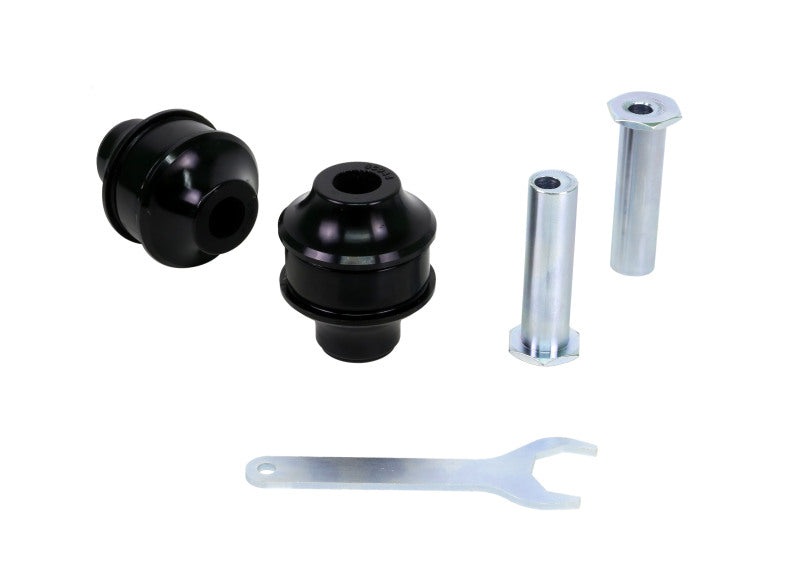

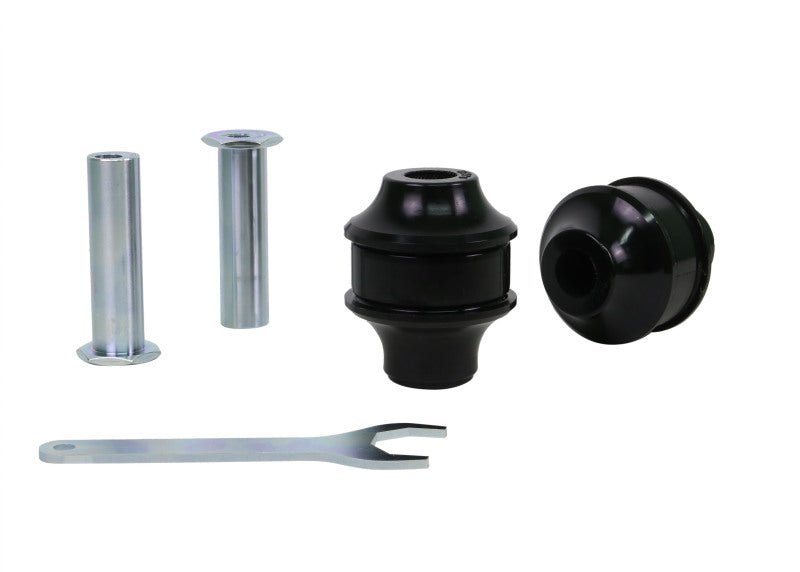

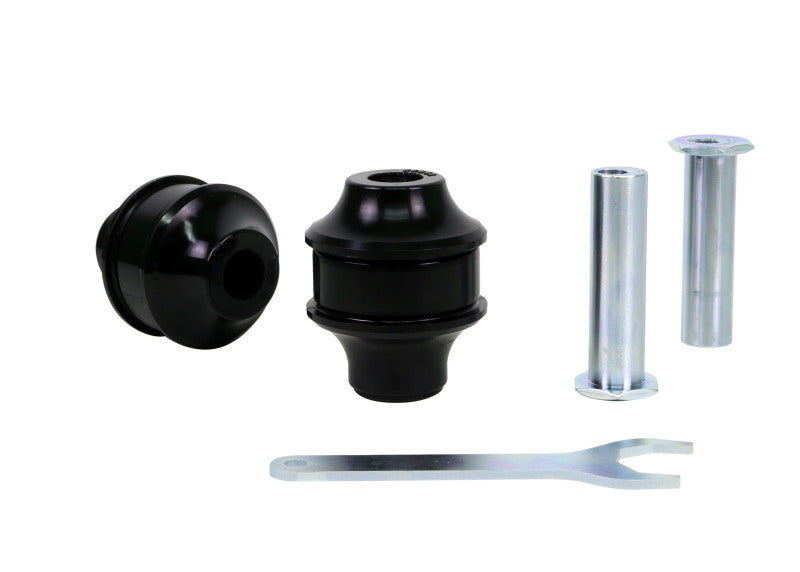

Kit Contents: 2 Bushings, 2 Tubes, Adjusting Tool, Install Guide, Grease

Features

• Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
• Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
• Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
• Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.

Kit Specifications

Bush Type: 10

Bush Qty: 2

ODAA/AB: 70.7 mm

ID B: 23.7 mm

LC: 89 mm

FLD: 26 mm

FLOD: 76.6 mm

C/Tube QTY: 2

C/Tube Size: 24x12.5x95 mm

Alignment Type: Caster

Adjustment Type: Adjustment Type

On Car Adjustable: Yes

Adjustment Notes: Adds +/- 1.5deg - incl adjusting tool

Packaged Weight and Dimensions

Weight: 1.13kg/2.491lbs

Length: 10cm/4''

Width: 20cm/8''

Height: 26cm/10''

Vehicle Applications

BMW 1 SERIES F20, F21(8/2011-ON)

BMW 2 SERIES F22, F23, F45(10/2013-ON)

BMW 3 SERIES F30, F31, F34, F80(3/2011-ON)

BMW 4 SERIES F32, F33, F36, F82, F83(7/2013-ON

Vehicle Fitments:
