Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

Notes: Important

Kits Required: 1

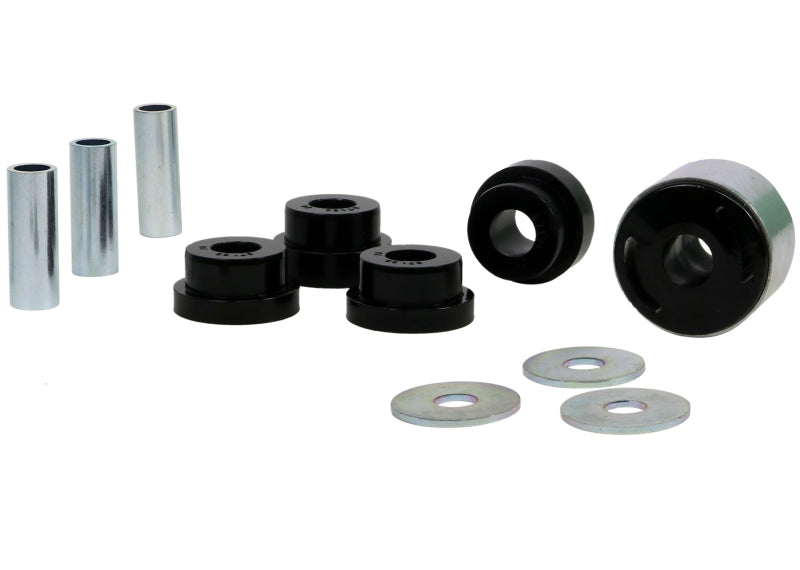

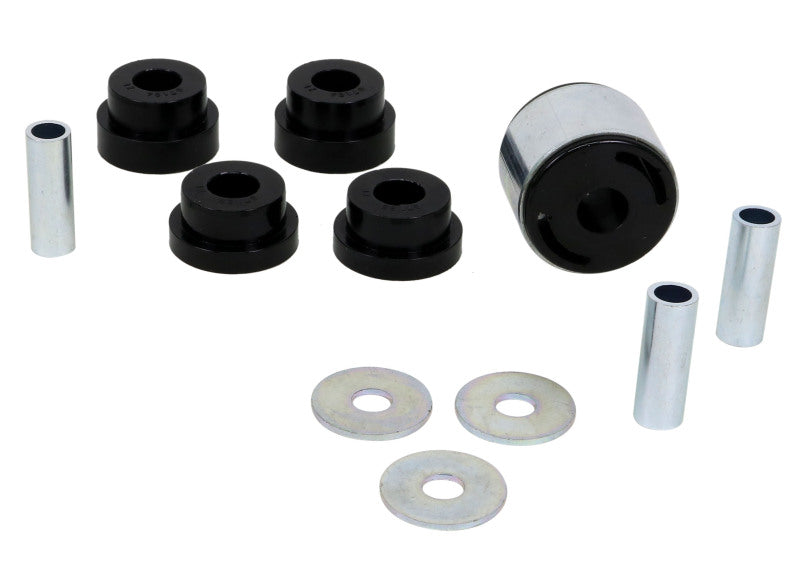

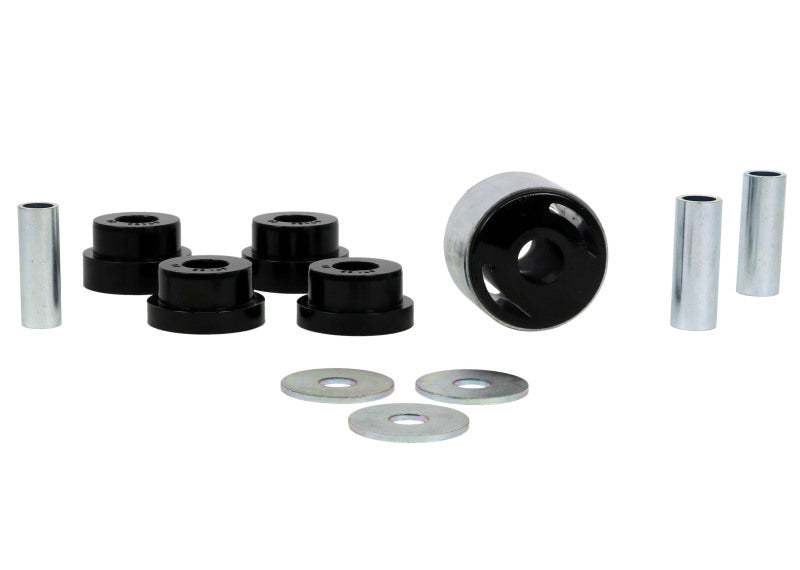

Kit Contents: 1 Shell Bushing, 4 Bushings, 3 Tubes, 3 Washers, Install Guide, Grease

Features

• Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
• Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
• Internal grease reservoirs provide continual self lubrication for optimum friction management.
• Specially bonded design for optimised strength typically required in high load bearing applications.
• Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.

Bush Type:1/1/16

Bush Qty: 2/2/1

ODA: 45.3 mm/45.3 mm/70 mm

IDB: 22.2 mm/22.2 mm/22.2 mm

LC: 27.5 mm/33.3 mm/56.7 mm

FLD: 10.5 mm/16.3 mm/6.7 mm

FLOD E: 56 mm/56 mm/65.5 mm

C/Tube QTY: 3/3/3

C/Tube Size: 22.2x14.3x56 / 22.2x16.2x62 mm/22.2x14.3x56 / 22.2x16.2x62 mm/22.2x14.3x56 / 22.2x16.2x62 mm

Packaged Weight and Dimensions

Weight: 0.88kg/1.94lbs

Length: 10cm/4''

Width: 20cm/8''

Height: 26cm/10''

Vehicle Applications

MITSUBISHI LANCER EVOLUTION EVO X(10/2007-ON)

Vehicle Fitments:
