Stage 1 Lift Kit Bilstein/OME 2.5" – 3rd Gen Tacoma (2016-2022)

$937.99

$1,169.99$232.00 OFF

Select front coils

OME 887: Stock front weight. 1.5 inch lift OME 887: Stock front weight. 1.5 inch lift
OME 888: Stock front weight 2.5 inch lift OME 888: Stock front weight 2.5 inch lift
OME 886: 200 + lbs additional front weight heavy bumper 2.5 inch Lift OME 886: 200 + lbs additional front weight heavy bumper 2.5 inch Lift

Select rear springs

Icon AAL 1.5" Icon AAL 1.5"

Quantity

Description

Current lead time: 1 - 4 weeks

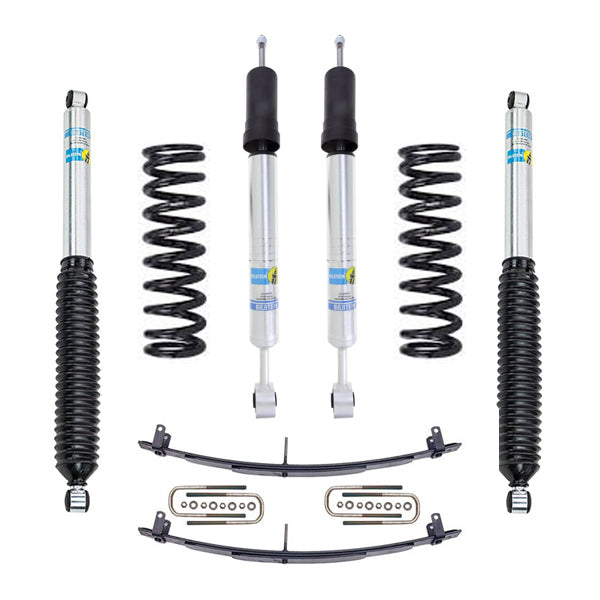

This lift kit can be configured with:

Bilstein 5100 front shocks
Front old man emu medium to heavy-duty lift coils
Rear extended Bilstein 5100 shocks allowing for longer travel

FRONT SETUP

OME 887: Stock front weight. 1.5 inch lift
OME 888: Stock front weight 2.5 inch lift - 2" with extra weight
OME 886: 200 + lbs additional front weight heavy bumper 2.5 inch Lift

REAR SETUP

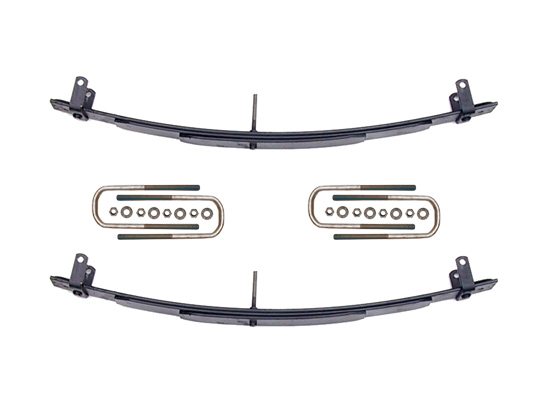

Icon add a leaf kit to achieve 1.5″ of lift

Front shocks must be used on lowest setting.

Front shocks will need to be assembled - top hats are re-used from your stock setup. Many shops are able to compress and swap the top hats on.

We are using the coils to achieve lift, not the shocks, moving the perch up on the front shocks will be more than 3″ of lift, it will ride rough and void warranty.
